T04E T3/ T4 Turbo Kit V-band w/ Wastegate BOV Adapter Oil returen Feed Line

Application:

Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines

*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Product Specific:
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet  Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) / 85.8mm (width)

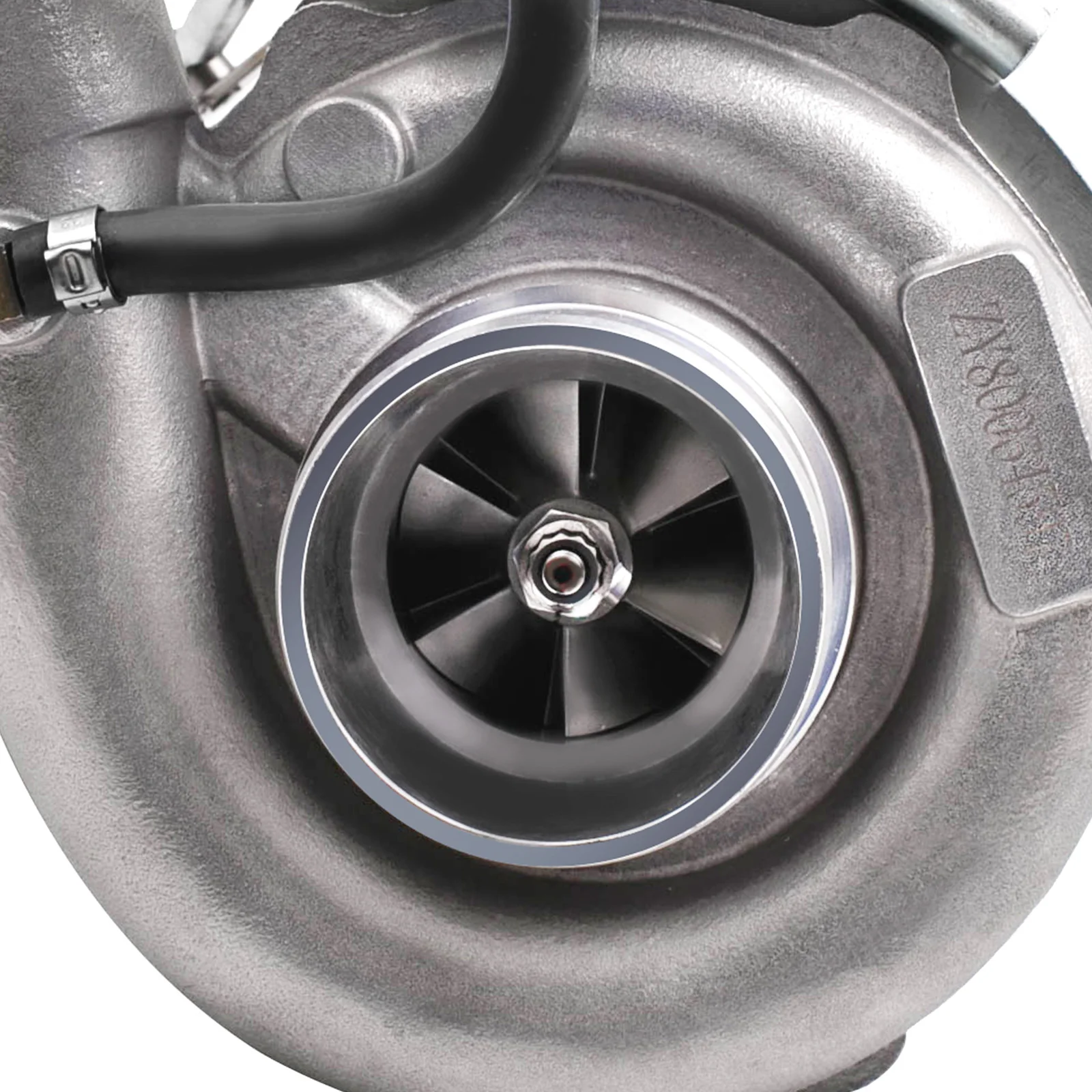

Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled

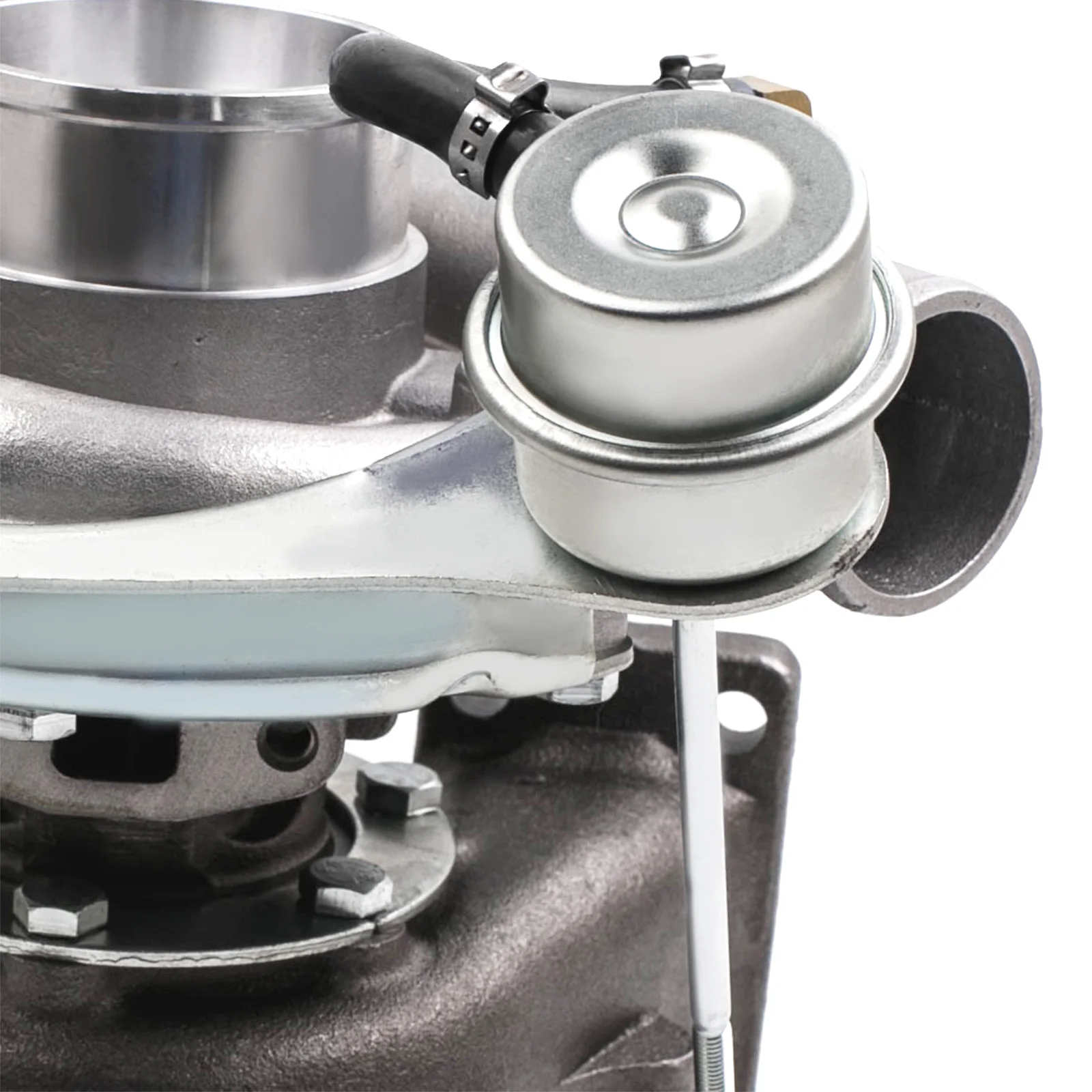

Wastegate: w/ Wastegate
Thrust Bearings: 270 Degrees
Hosepower: Up to 420 HP
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size: 30x 28x 24 cm
Package Weight: 9180g

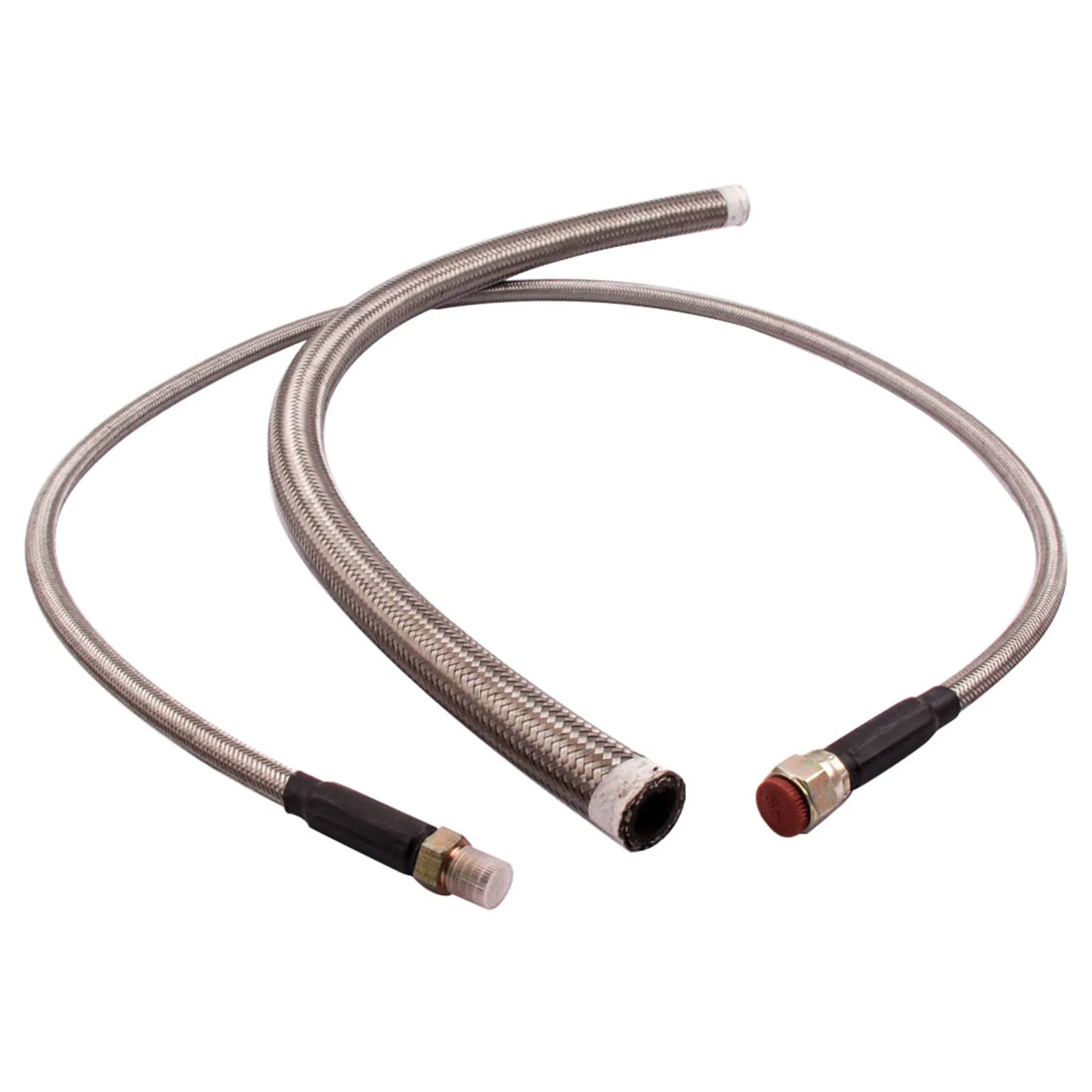

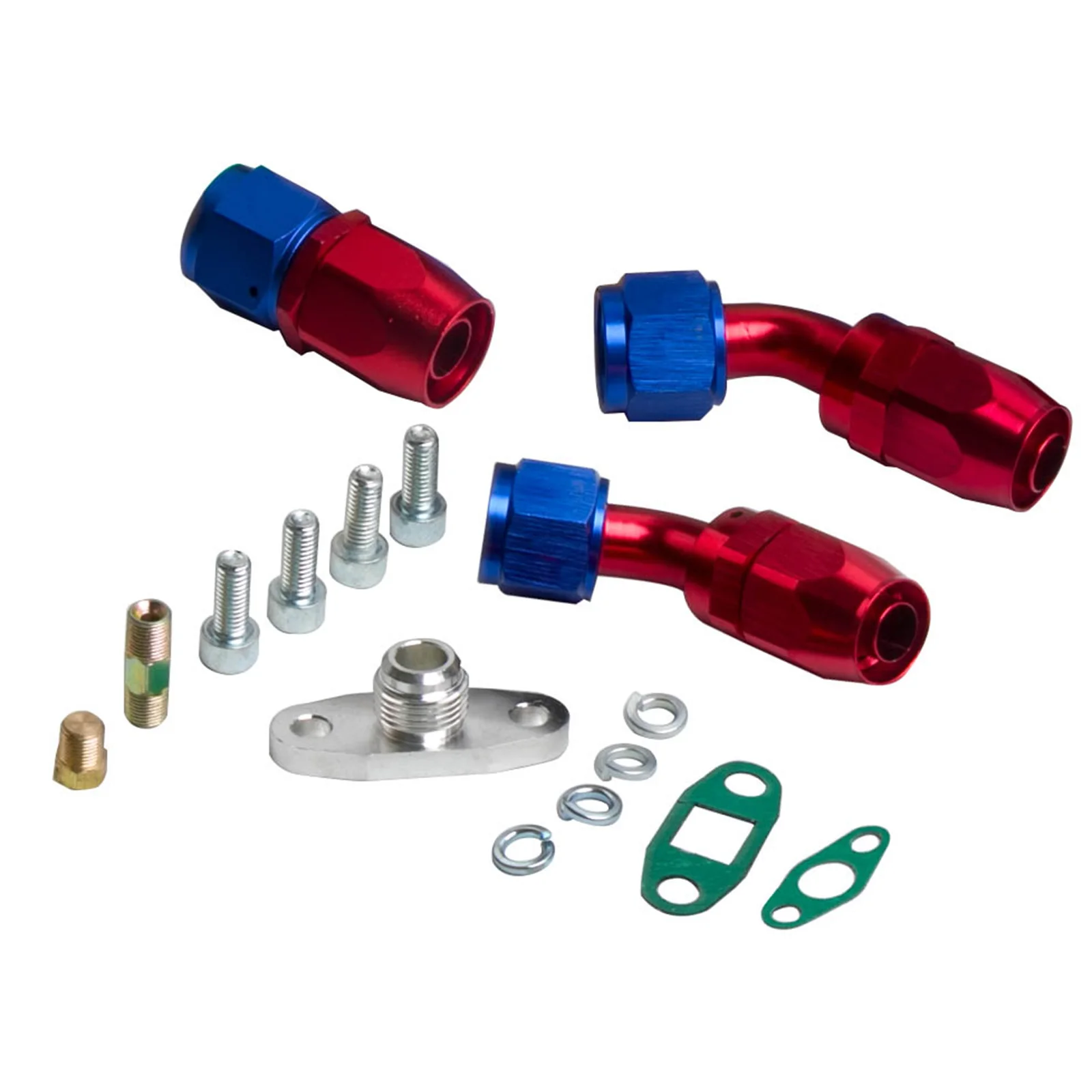

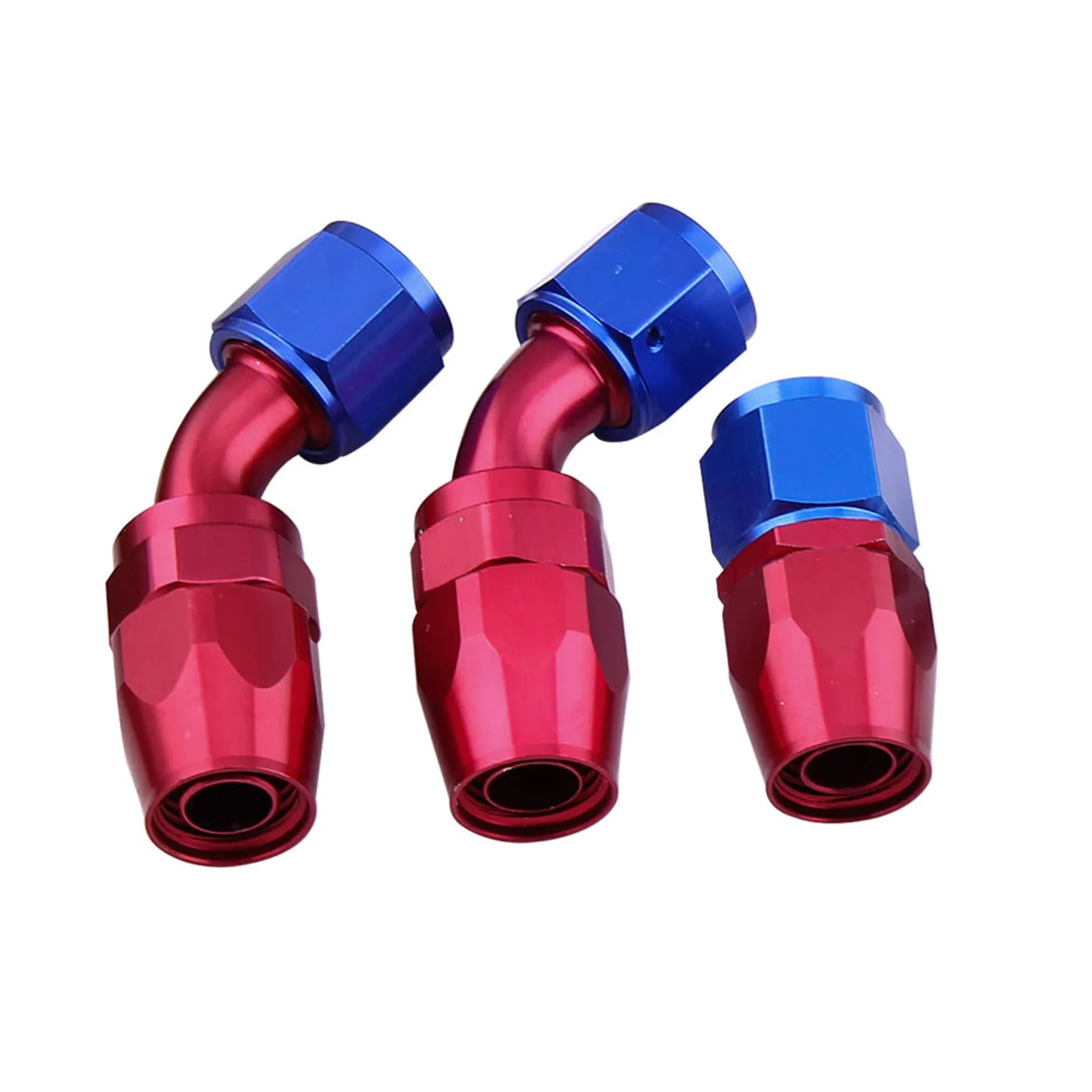

Oil Feed+Return Drain Line:

 * Stainless Steel Braided
 * Includes complete install kit
 *  It helps circulate oil from the turbo charger to the oil pan.
 * The kit provides a anodized look
 * gives a best cooling performance on your turbo and long lasting life.

Oil Return Line: Length: 550mm || Inner Diameter: 21mm
Oil Feed Line: Length: 1000mm || Inner Diameter: 14mm

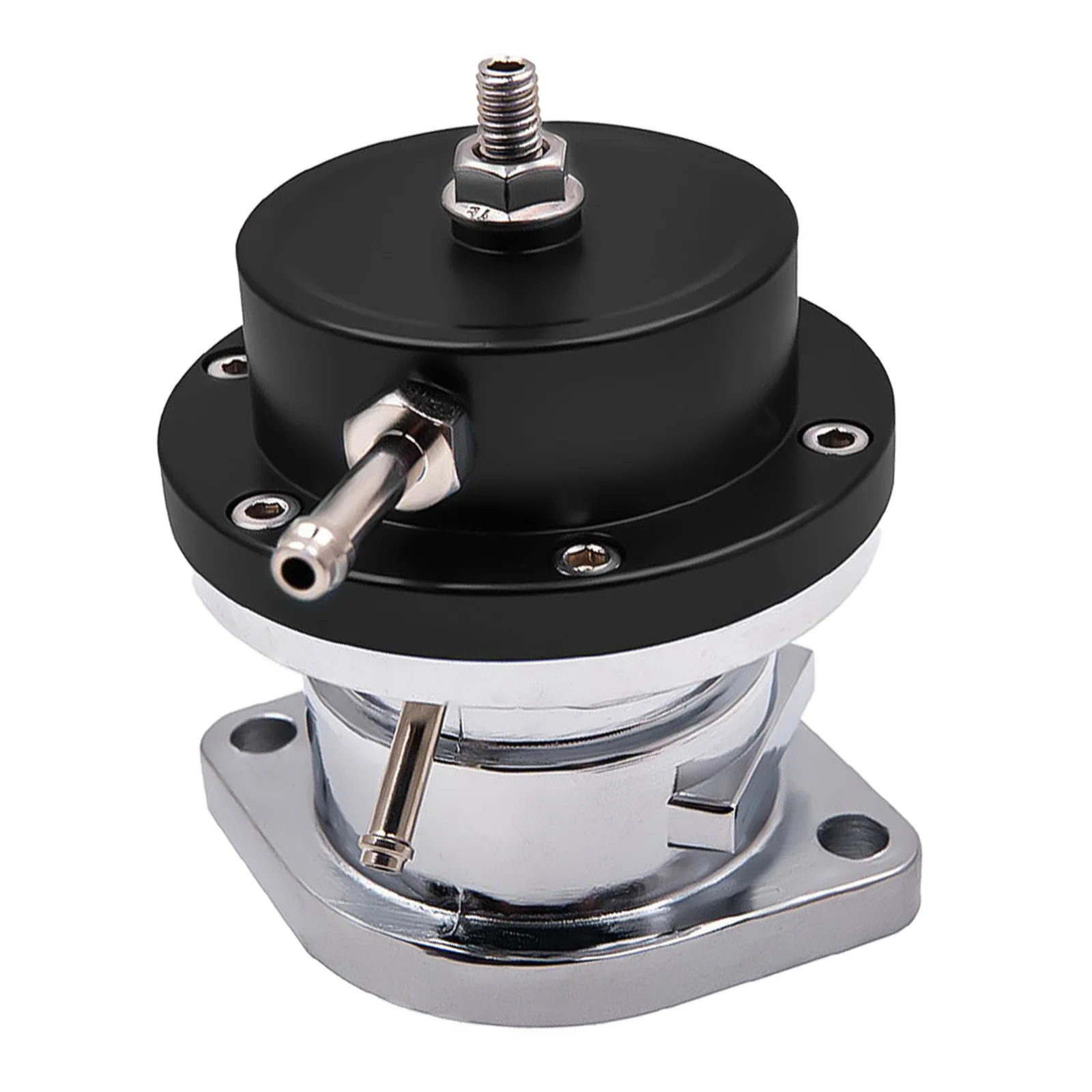

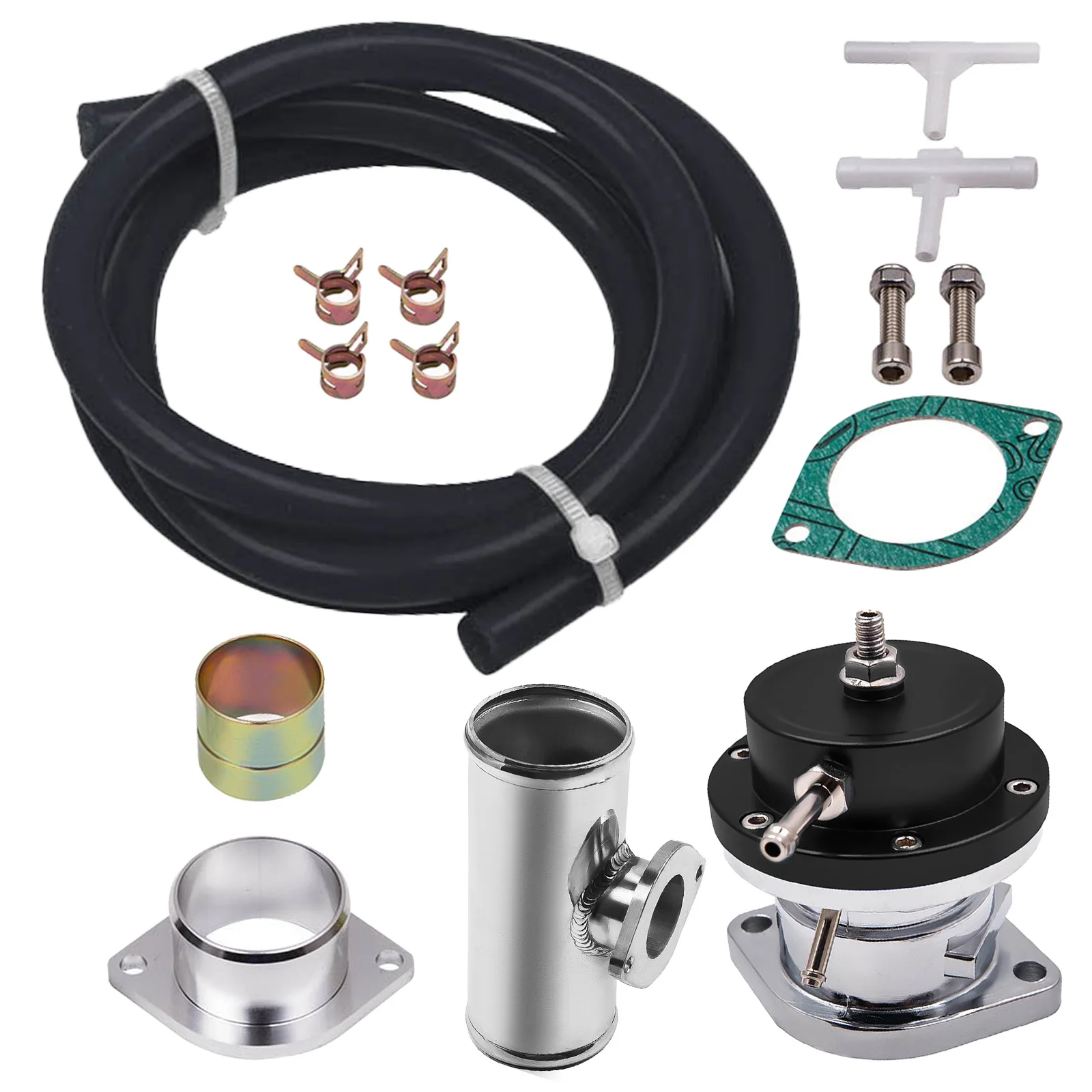

Blow Off Valve Kit (the color will be shipped randomly(black/blue))
 * CNC Billet Aluminum Type RS Style Blow off Valve
 * Easy Mount Piping Set Included For Bolt-On.
 * Including all necessary hardwares.
 * easily adjustable to prevent both permature boost leakage and compressor surge.
 * Fast response One For Low And High Boost Pressure.
 * Performance design produces a powerful and aggressive sound
 * Quality design will not leak under high boost conditions
 * Flanges can be installed at user discretion

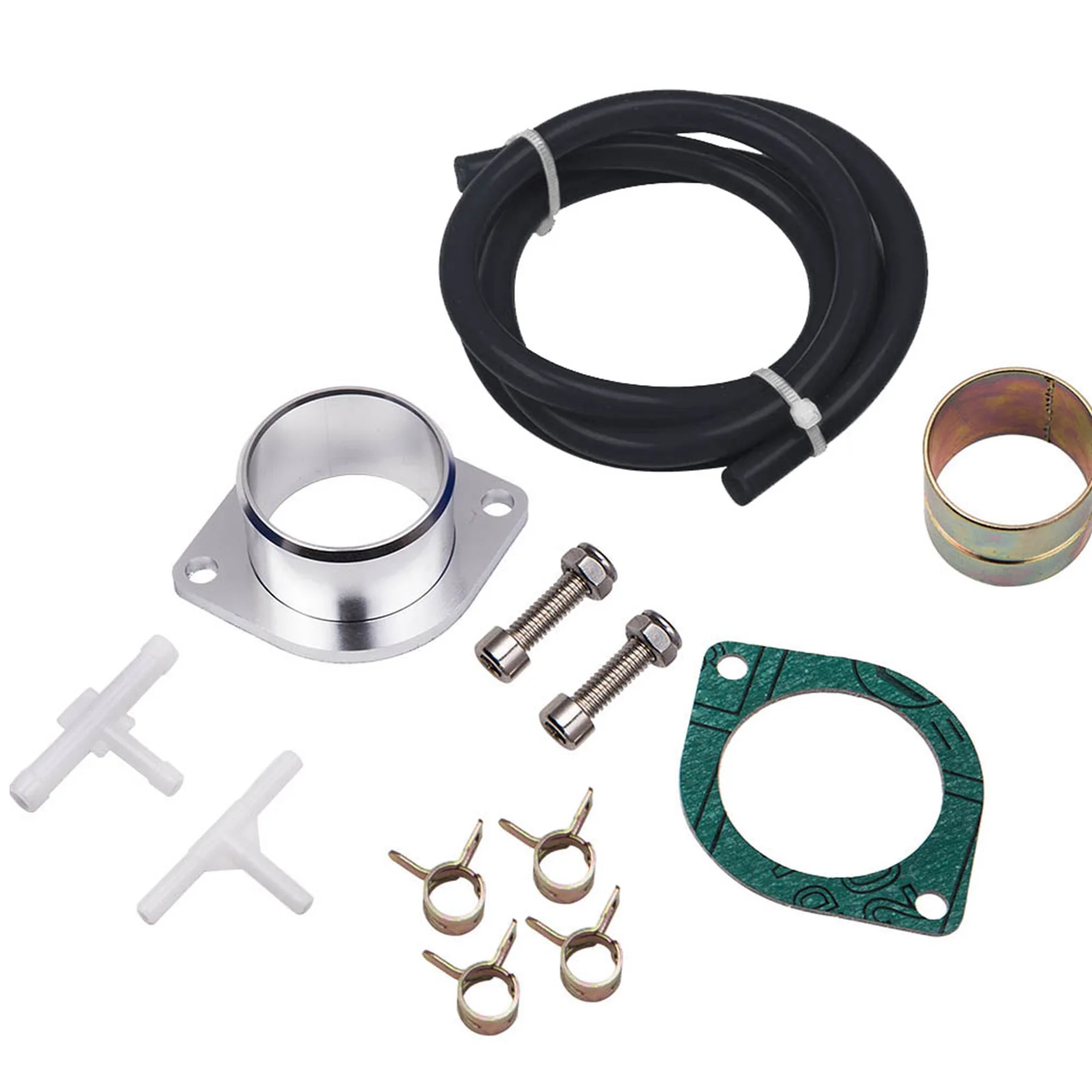

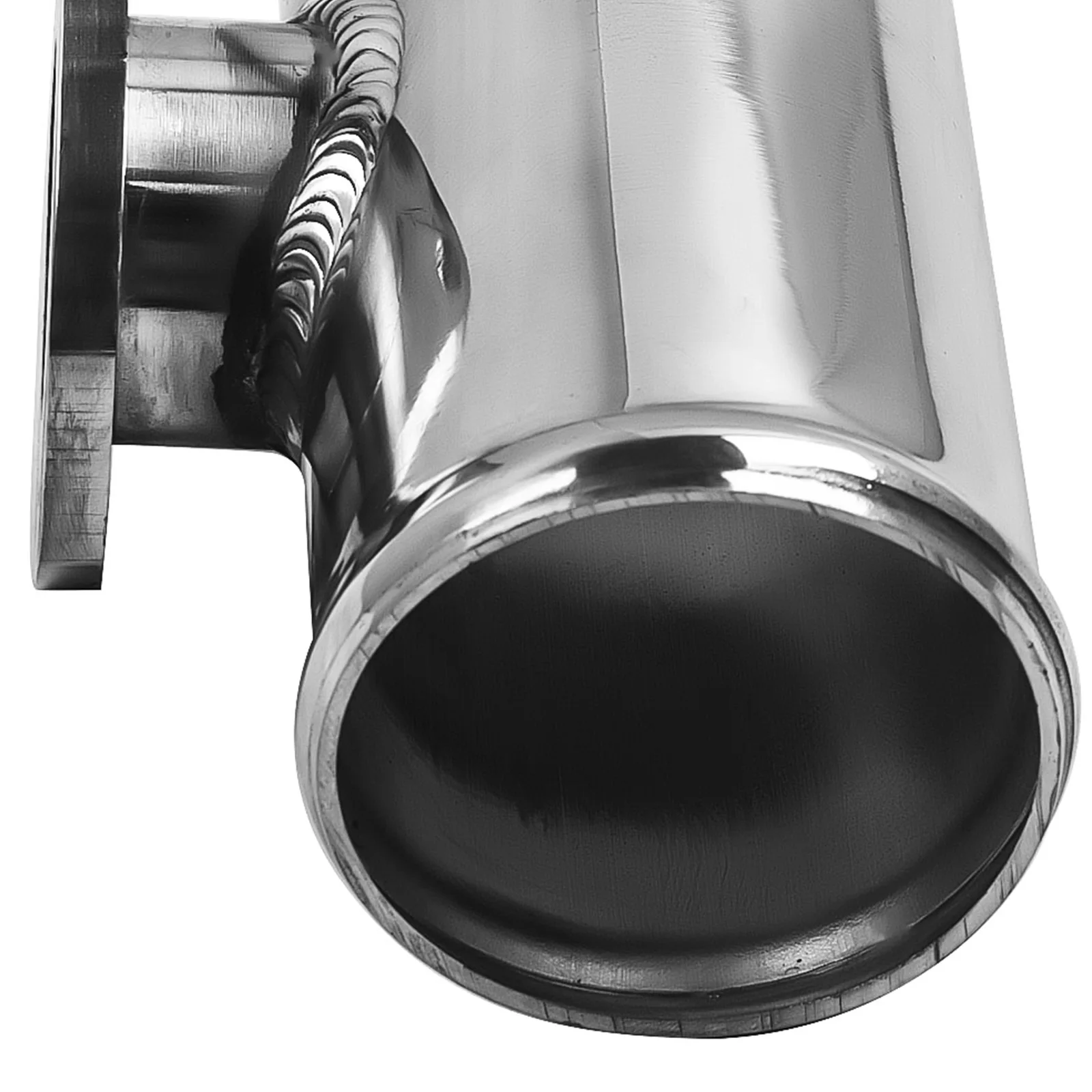

BOV pipe/Adapter
 * can install anywhere suitable

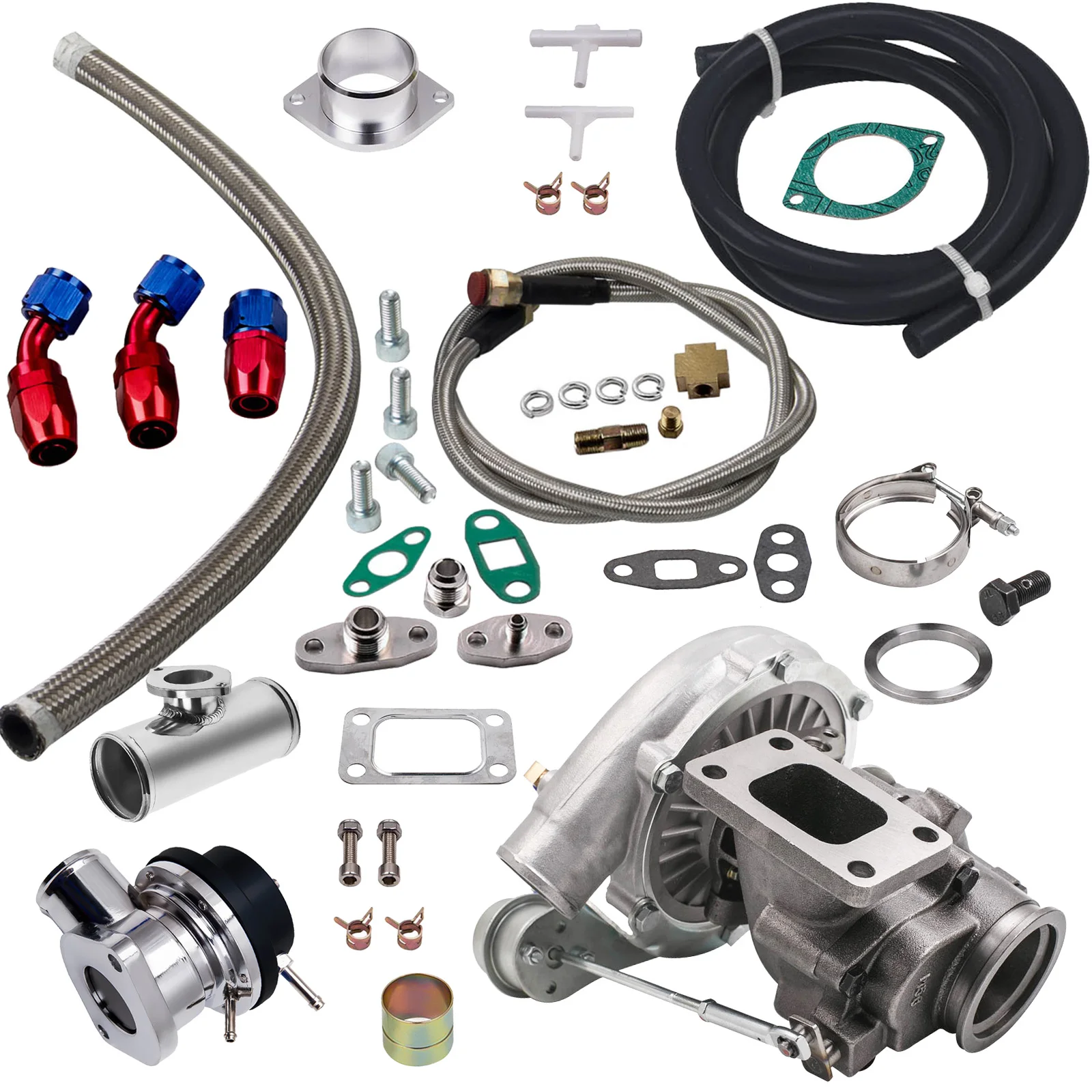

Package Include

1x Turbocharger

1x Oil Feed / Return Line

1x Type-S Blow Off Valve(Random Color)

1x BOV Adapter/pipe

Features:

*Product Material
1. Turbine housing: Ductile iron QT450-10 – temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy –  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance
1. Rich experience in turbo production and own factory
2. High-Speed oil seal ring and Precision clearance
3. Built for durability and strength

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Note:

* Replace, repair or reconnect air cleaner element per manufacturer’s manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
