• Turbo Information：

        *Fit for:
        Perfect for 1.6L-2.5L engines
        Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP
        Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

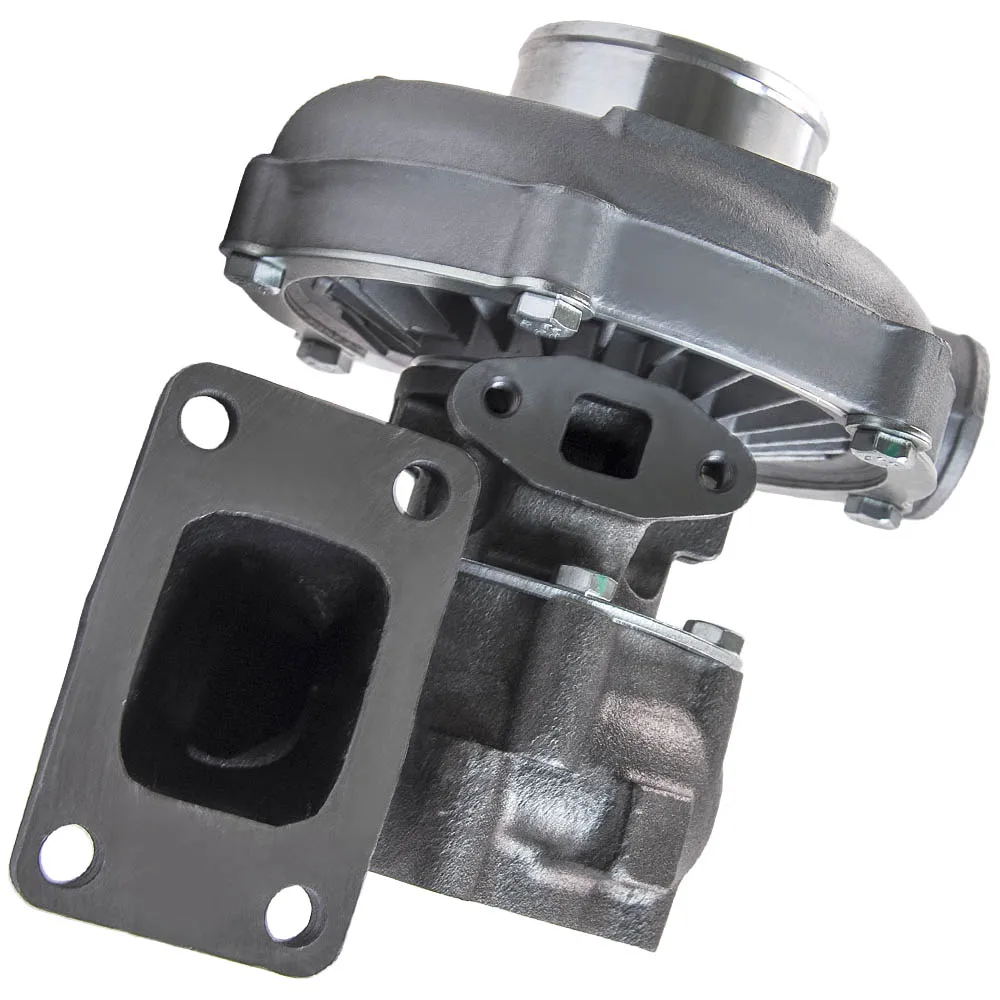

       *Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
       *Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
       *Cooling Type: Oil Cooled
       *Wastegate: External Wastegate
       *Horse Power: Boost Horse Power up to 300+HP

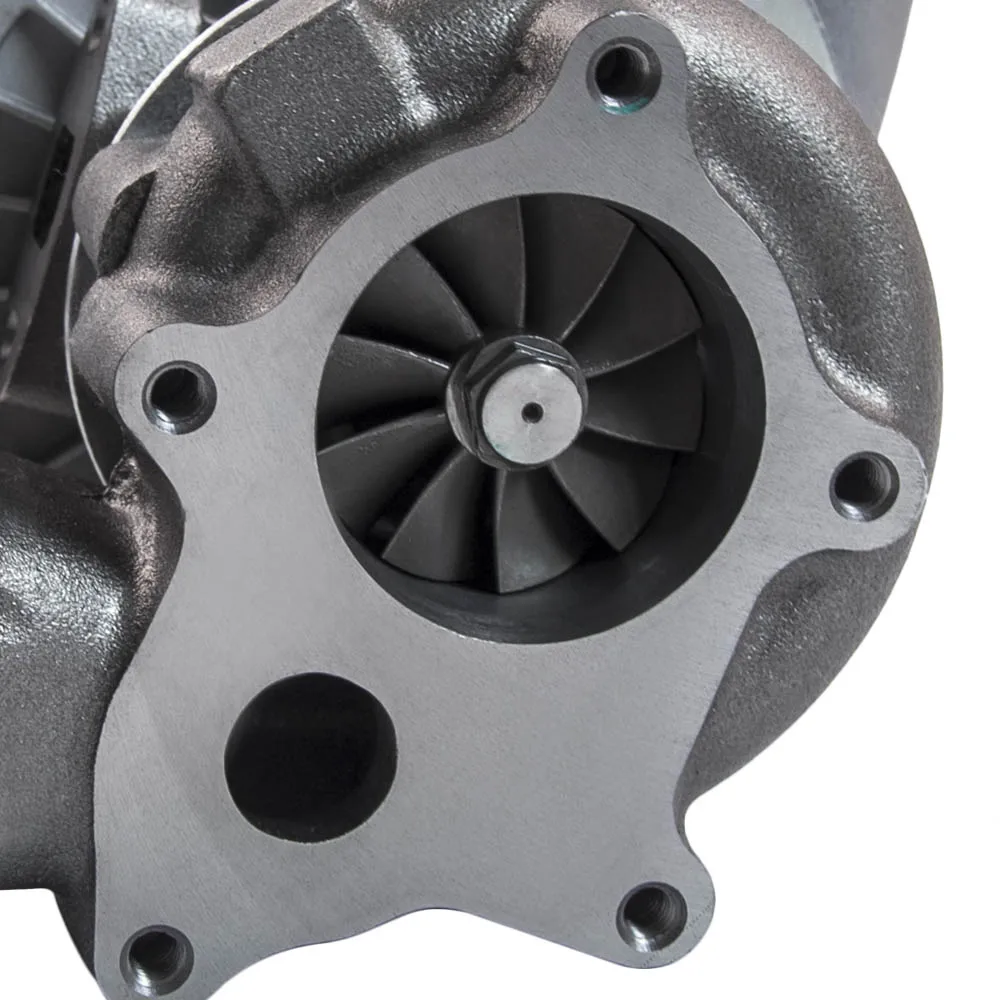

       *Compressor:
        Trim: 44
        A/R: 0.5
        Inducer: 50.5
        Exducer: 76

      *Turbine:
        Trim: 73
        A/R: 0.63
        Inducer: 65.5
        Exducer: 55.9

*Bearing Type: Floating  Bearing

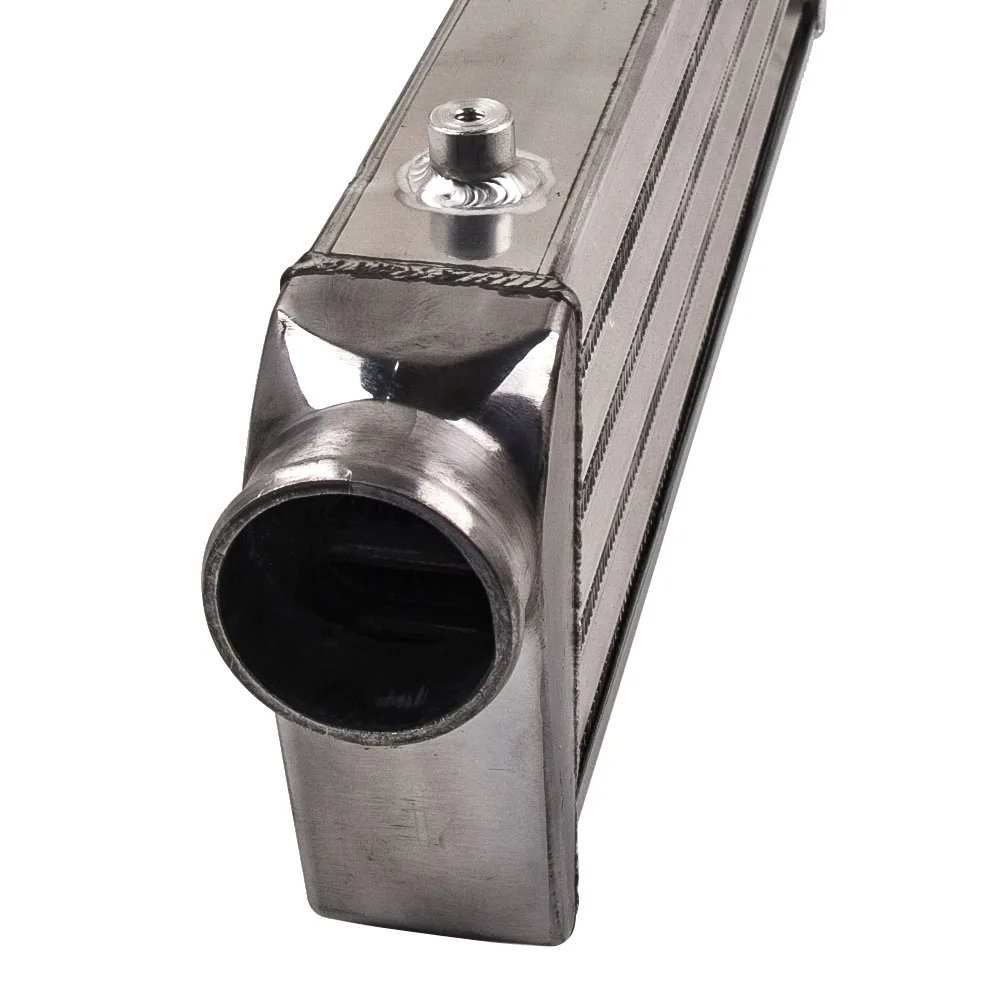

• Intercooler Information：

        *Inlet / outlet size :    2.5"

        *Core size:  21”x 7”x 2.25”/550x175x64mm

        *Full size:  27.00" (L) X 7.00" (H) X 2.50"(W)

        *Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP

        *Pressure drop:  2~5psiat35psi, 0.2~0.5psiat15psi

        *Material:  Aluminum alloy

        *Core design:   Tube & Fin

        *Applaction:  Universal

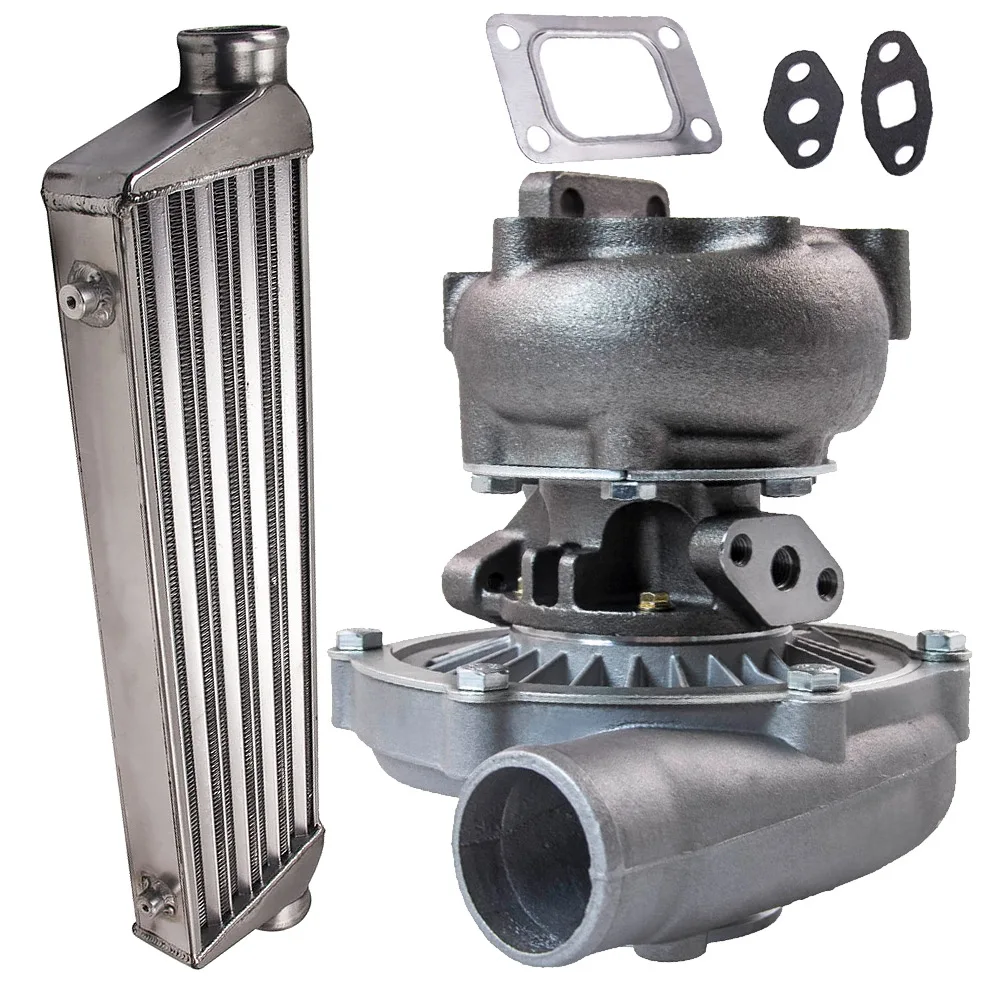

• Package Included:You will get exactly as shown in the picture above

• Condition: 100% Brand New

• NOTE:

     * Professional installation is highly recommended (No Instruction Included)
     * For any needs please contact us
