6x Pistons & Rings Set 83.01mm Φ30mm For VW Touareg Phaeton Audi A4 A5 A6 A7 A8 Q5 Q7 3.0 TDI Diesel

OE#
059 107 065 DF
059 198 151 N
059 107 441 (Φ30mm)

Replacement OE#
059 107 065 BS / CH / DG / DP / FD / JE
059 198 151 K / P

Description
– STD 0.00 spec (no fit cylinder expand)
– Piston Diameter Φ83.010mm
– Pin Bolt Diameter Φ30mm / Length 68mm
– Ring size 1st 83×1.8 2nd 83×2.0 3rd 83×2.0
– Made by FMN ( Federal-Mogul )

– Please Read carefully the “Fit Car Model” in the following

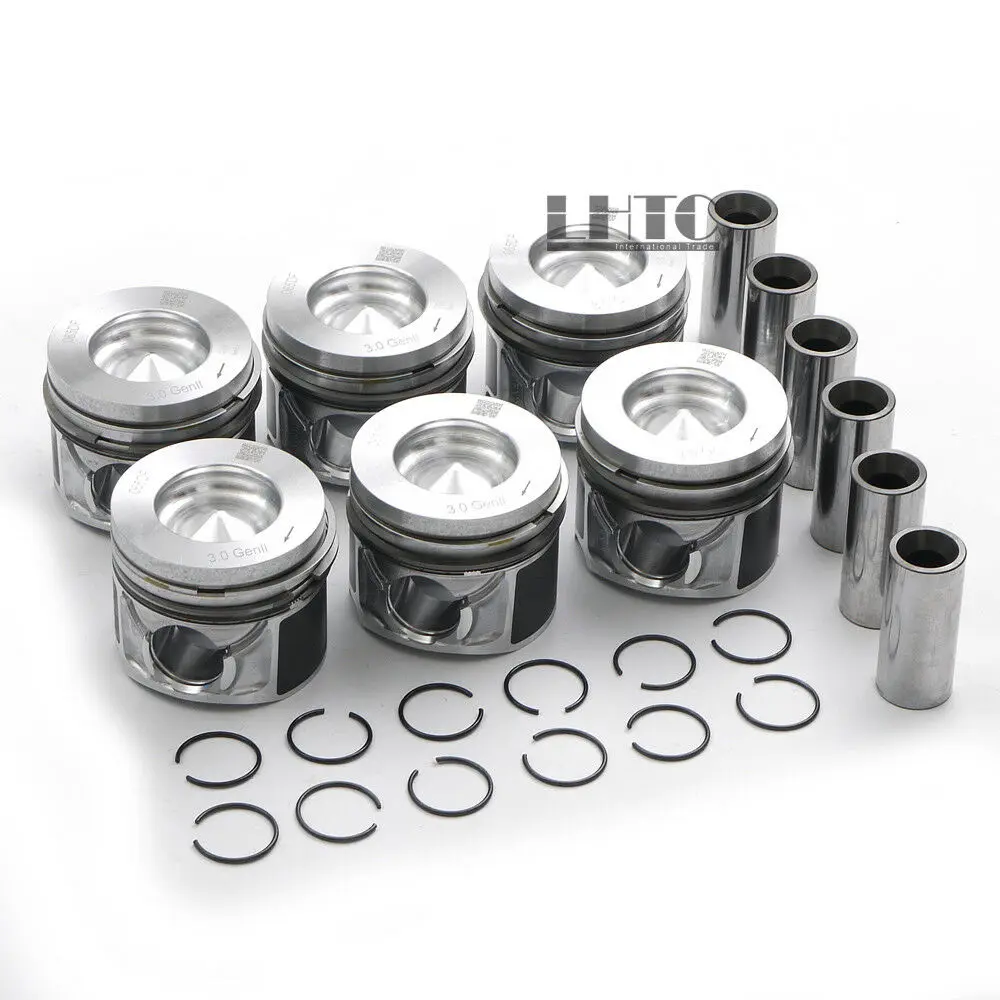

Package includes
Piston & Ring x6
Piston Pin x6
Piston Pin Buckle x12

Fit Car Model

Brand & Model Produce Year Fit Engine
Audi
Cylinder bore 83.010mm / Piston pin Φ30mm
A4 (B8) 2009-2015 3.0 TDI 150kw (204ps) / 155kw (211ps) / 176kw (239ps) / 180kw( 245ps)
A4 allroad 2011-2016 3.0 TDI 180kw( 245ps)
A5 2009-2016 3.0 TDI 150kw (204ps) / 155kw (211ps) / 160kw (218ps) / 176kw (239ps) / 180kw( 245ps)
A6 (C6 , C7) 2009-2017 3.0 TDI 150kw (204ps) / 155kw (211ps) / 160kw (218ps) / 176kw (239ps) / 180kw( 245ps)
A7 2011-2018 3.0 TDI 150kw (204ps) / 176kw (239ps) / 180kw( 245ps)
A8 2010-2013 3.0 TDI 155kw (211ps) / 176kw (239ps) / 184kw (250ps)
Q5 2009-2017 3.0 TDI 155kw (211ps) / 176kw (239ps) / 180kw (245ps) / 184kw (250ps) / 190kw (258ps)
Q7 2009-2016 3.0 TDI 150kw (204ps) / 155kw (211ps) / 165kw (224ps) / 176kw (239ps) / 180kw (245ps)

Volkswagen Cylinder bore 83.010mm / Piston pin Φ30mm
Phaeton 2008-2016 3.0 TDI 171kw (234ps) / 176kw (239ps) / 180kw (245ps)
Touareg 2009-2015 3.0 TDI 155kw (211ps) / 165kw (224ps) / 176kw (239ps) / 180kw (245ps)
