Application

For Renault Laguna 1.9L dCi with F9Q-732/733/740/751 Engine 2001-03
For Renault Megane 1.9L dCi with F9Q-732/733/740/751 Engine 2001-03
For Renault Scenic 1.9L dCi with F9Q-732/733/740/751 Engine 2001-03
For Renault Master II 1.9L dCi with F9Q-732/733/740/751 Engine 2001-03
For Renault/Nissan Primastar dCi with F9Q-732/733/740/751 Engine 2001-03
For Renault Trafic II 1.9L dCi with F9Q-732/733/740/751 Engine 2001-03
For Volvo V40, S40 I 1.9L D with F9Q-732/733/740/751 Engine 2000-04
For Mitsubishi Carisma 1.9L DI-D MP with F9Q-732/733/740/751 Engine 1999-04
For Mitsubishi Space Star 1.9L DI-D with F9Q-732/733/740/751 Engine 2001-05
For Opel Movano A 1.9L DTI with F9Q-732/733/740/751 Engine 2000-04
For Opel Vivaro 1.9L TDI with F9Q-732/733/740/751 Engine 2000-

OEM & Part Number

703245-1, 703245-0001,703245-5001s,
703245-2, 703245-0002, 703245-5002s,
717345-1, 717345-0001, 717345-5001S,
717345-2, 717345-0002, 717345-5002S,
751768-1, 751768-0001,751768-5001S,
751768-2, 751768-0002, 751768-5002S,
751768-3, 751768-0003, 751768-5003S,
751768-4, 751768-0004, 751768-5004S,
751768-5, 751768-0005, 751768-5005s,
53039700048, 5303 970 0048, 5303-970-0048,
53039880048, 5303 988 0048, 5303-988-0048,
36002418 , 30620721, MW30620721 , MW31216381
82107431, 8200683854, 8200084399, 8200348244,
8200458162, 8200544911,8200095350,8200095350A,
86002418,8602271,8200091350, 8200091350A，8200091350B ,
8200046681, 8200046681A , 8200046681B ,8200683854,
7701472228, 7701474358, 7700105102C,7700105102,
7701478022,7700108052, 7711497500,7711497142, 7711134299
1441100QAA, 1441100Q0H, 1441100Q0A,
14411-00QAA, 14411-00Q0H, 14411-00Q0A,
93184486, 93160135, 93187292，
5860004, R1630019, 9121244，
4405411 , 4416393，4409975

Specification

Engine Code: F9Q

Turbo Model: GT1549S

Cooling Type: Oil Cooled

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Condition: Brand New

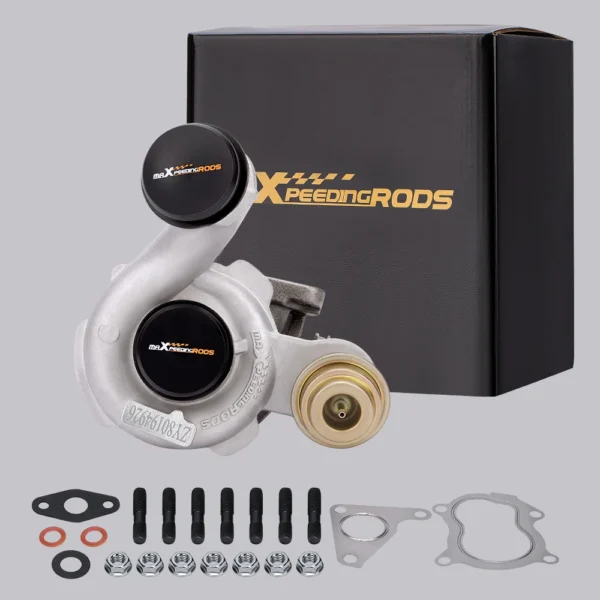

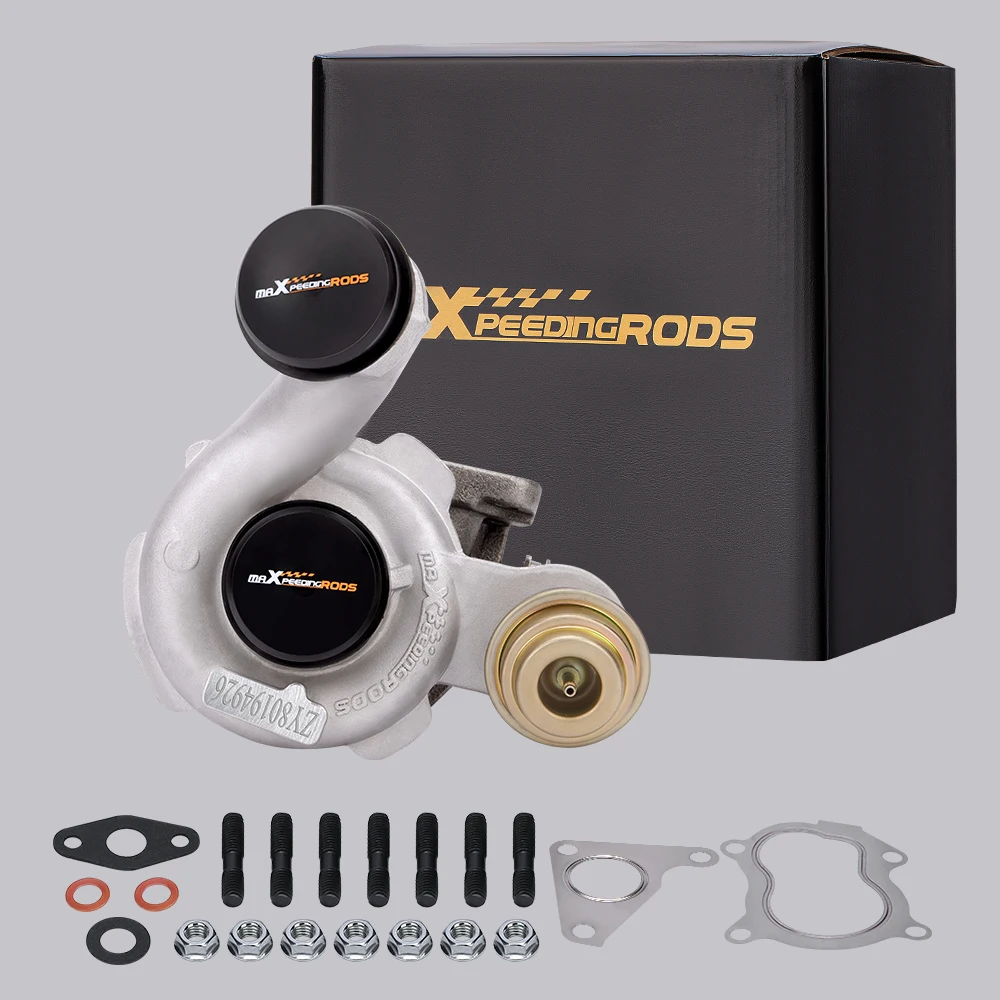

Accessories: You will receive the parts exactly as shown in the picture above.

Package Size: 29 x 27 x 24 cm

Package Weight: 5000g

Feature

* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy –  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product  Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Product Certification: TÜV ISO 9001 CERTIFIED

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Notice

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
