TURBOCHARGER For CITROEN C3 HDI 1.6L D DV6TED4 06 – 1.6 DIESEL TDCi DV6 Turbocompressor Turbine Turbo 750030-0002，750030-5001S

Application :

For CITROEN  C2 1.6L D DV6TED4 05 –

For CITROEN  C3 HDI 1.6L D DV6TED4 06 –

For CITROEN  C4 HDI 1.6L D DV6TED4 04 –

For CITROEN  C5 HDI 1.6L D DV6TED4 03 –

For CITROEN  XSARA Picasso 1.6L D DV6TED4 03 –

For CITROEN  Picasso 1.6 HDi FAP 1.6L D DV6TED4 04 –

For CITROEN  Berlingo 1.6 HDi FAP 1.6L D DV6TED4 05 –

For PEUGEOT 1007 109HP 1.6DHi Fap DV6TED18 05 –

For PEUGEOT 207 Hdi  1.6L D DV6TED4 04 –

For PEUGEOT 206 Hdi  1.6L D DV6TED4 04 –

For PEUGEOT 407 Hdi  1.6L D DV6TED4 04 –

For PEUGEOT 307 Hdi  1.6L D DV6TED4 04 –

For PEUGEOT 308 Hdi  1.6L D DV6TED4 07 –

For PEUGEOT 3008 TDi 110 1.6L D DV6TED4 09 –

For PEUGEOT 5008 HDI 110 1.6L D DV6TED4 10 –

For Peugeot Partner 1.6 HDi 110 FAP 05-

For FORD C MAX  1.6L D DV6TED4 04 –

For FORD C-MAX  TDCi 1.6L D DV6TED4 03 –

For FORD Focus TDCi 1.6L D DV6TED4 04 –

For FORD Mondeo III 1.6 TDCi  03-

For Volvo C30    1.6D 1.6L   D4164T   06-

For VOLVO S40  1.6L D DV6TED4 05-09

For VOLVO V50 1.6L D DV6TED4 07-09

For MAZDA 3 1.6L D DV6TED4 04 –

For MINICOOPER D 1.6L D(R55 R56) W16 07 –

Part Number :

740821，740821-1，740821-2，740821-0001，

740821-0002，740821-5001S，740821-5002S，

750030，750030-1，750030-2，750030-0001，

750030-0002，750030-5001S，750030-5002S，

753420，753420-2，753420-3，753420-4, 753420-5，

7534202, 7534203, 7534204, 7534205,

753420-0002，753420-0003，753420-0004，753420-0005，

753420-0006，753420-5002S，753420-5003S，753420-5004S，

753420-5005S，753420-5006S，

0375J3，0375J6，0375J7，0375J8，

1373584，1479055，1355027，1254337，

1231096，1789074，1465162，1340133，

1441253，1319614，8603746，36002480，

36000722，31259243，8603489，

Y60113700, Y60113700A, Y60113700B，Y60113700C,

Y60113700D，Y60113700E，Y60113700F， Y60113700G，

7804903，11657804903,

3M5Q6K682AK，3M5Q6K682AE, 3M5Q6K682AF ，3M5Q6K682AH，

9656125880，9657248680，9660641380，9650764480，

9663199280，9654128780，9651839880，

Specifications:

Turbo Model：GT1544V GT15V GT15

Engine Code：W16，D4164T，DV6TED4

Cooling Type: Oil Cooling

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower: Up to 109HP

Turbo Type:  VNT variable geometry turbo

Actuator: Vacuum

Condition: Brand New

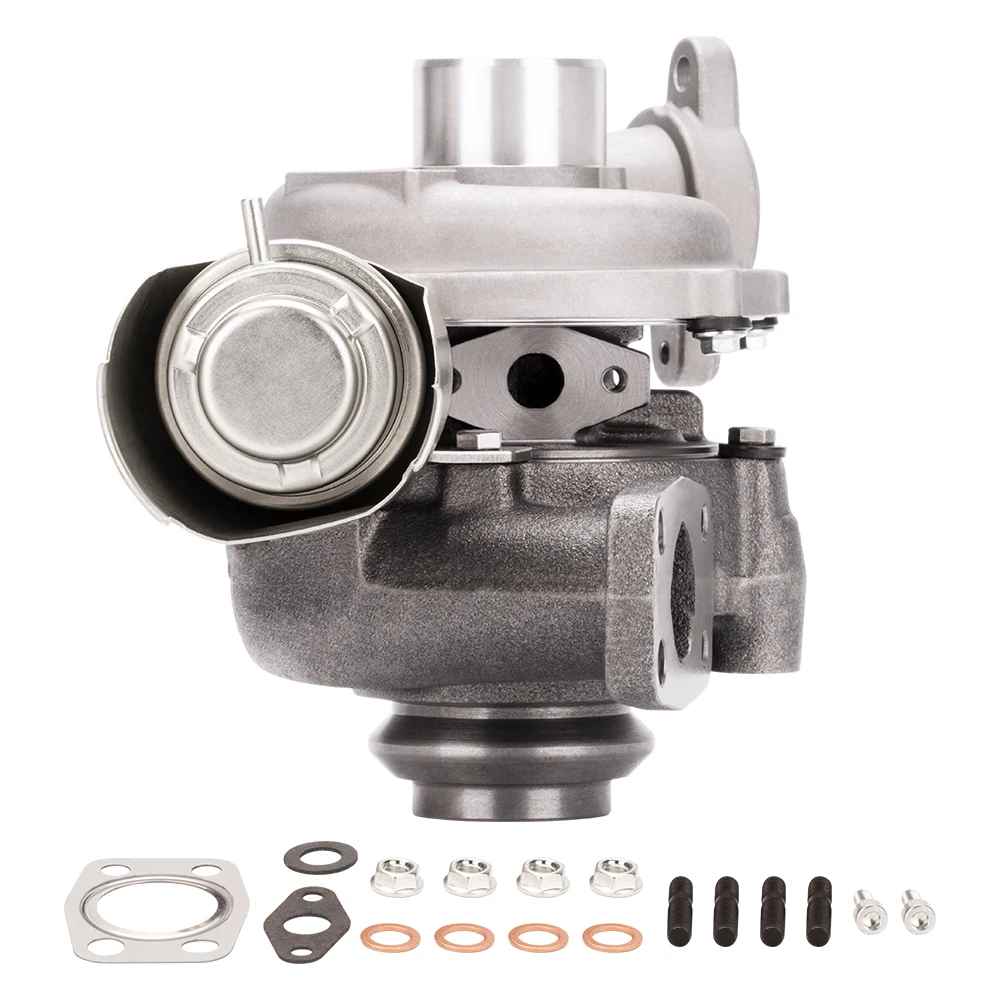

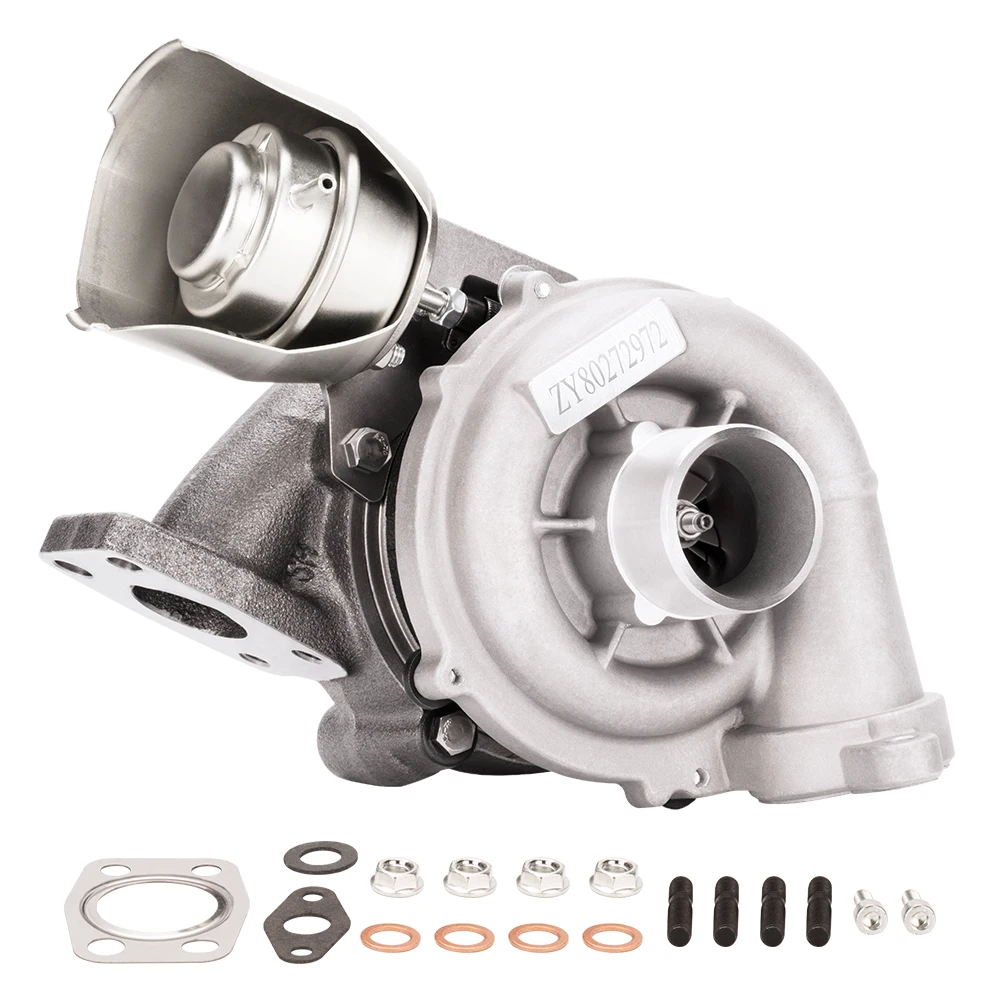

Accessories: You will receive the parts exactly as shown in the picture above.

Package Size:26x25x23cm

Package Weight: 5480g

Features：

* Product Material

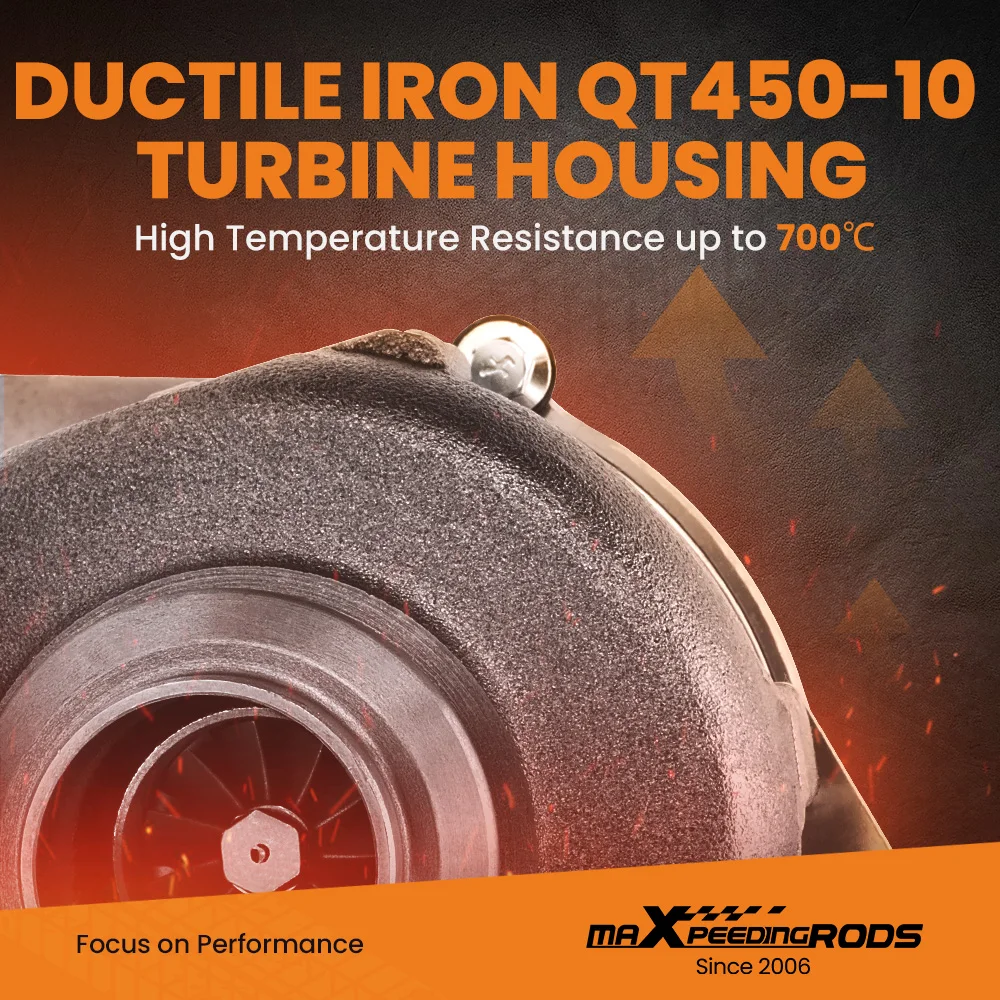

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

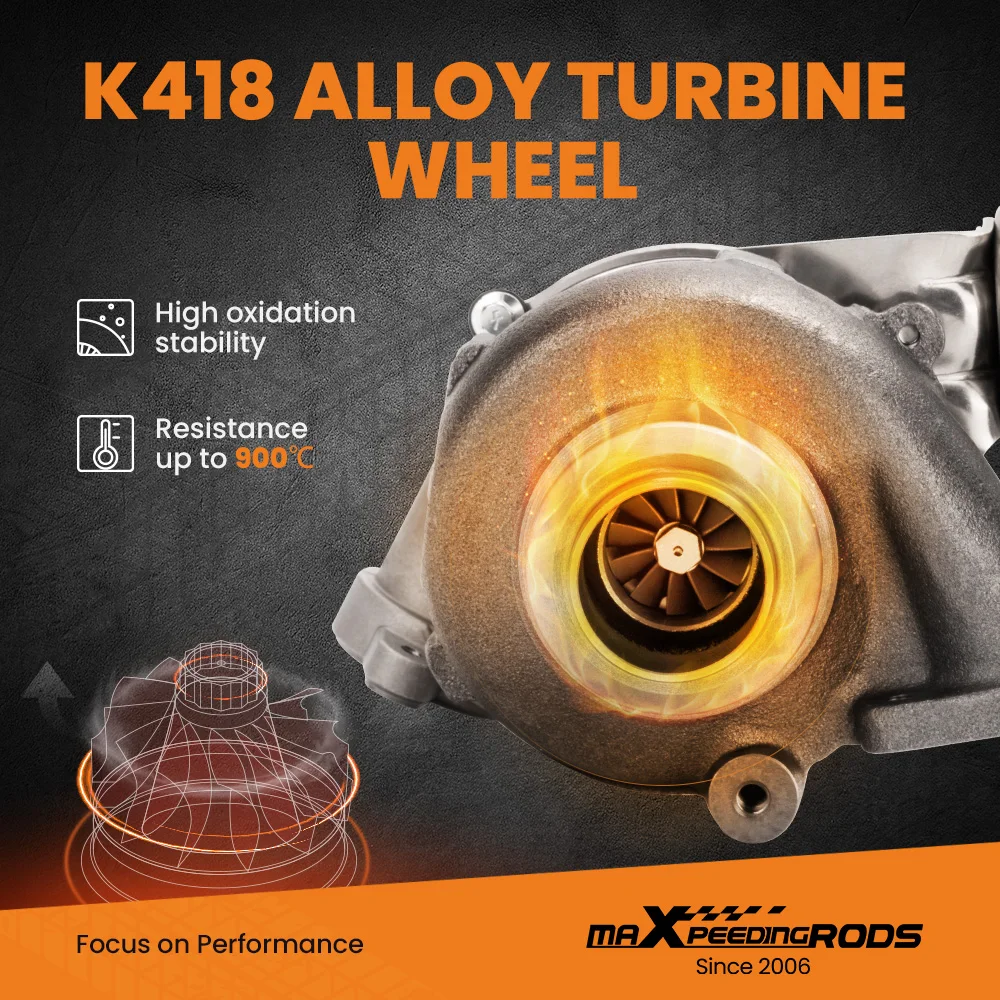

2. Steel turbine wheel：K418 alloy –  high  oxidation stability and resistance  up  to 900℃

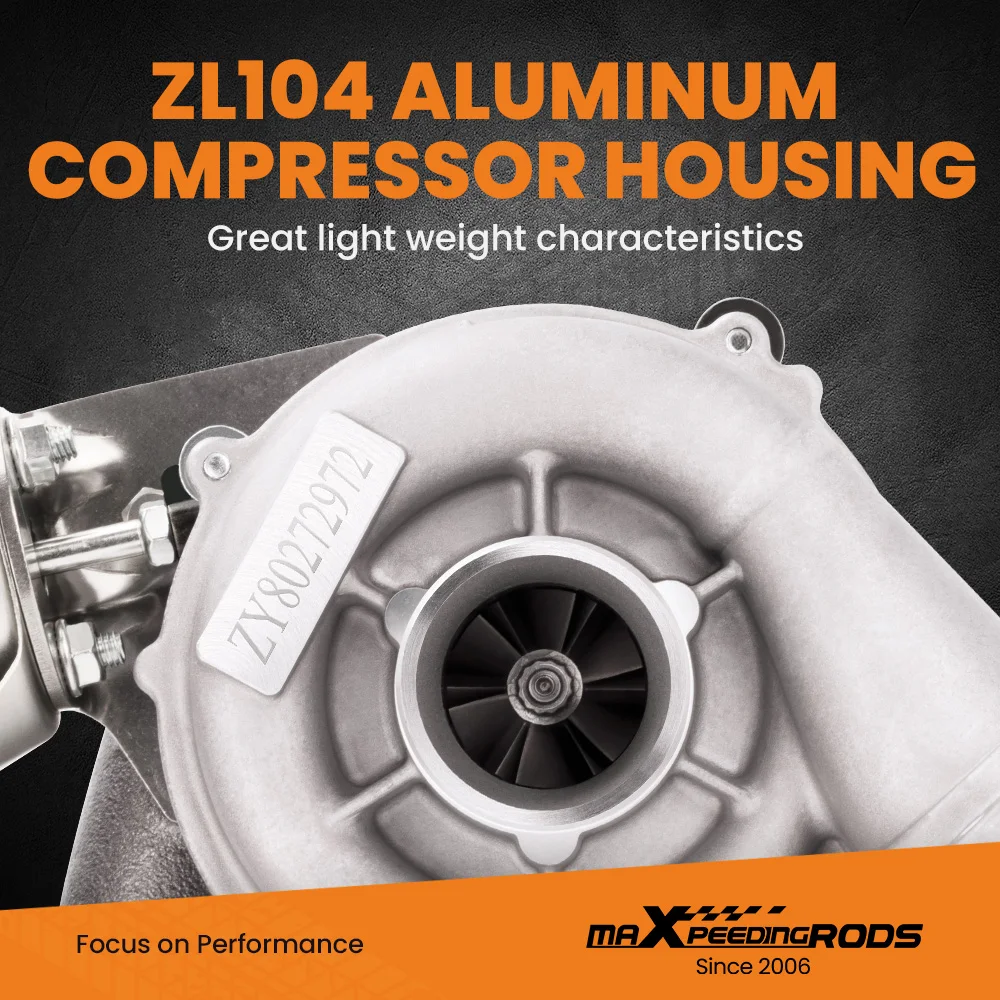

3. Compressor housing：ZL104 aluminum with lightweight

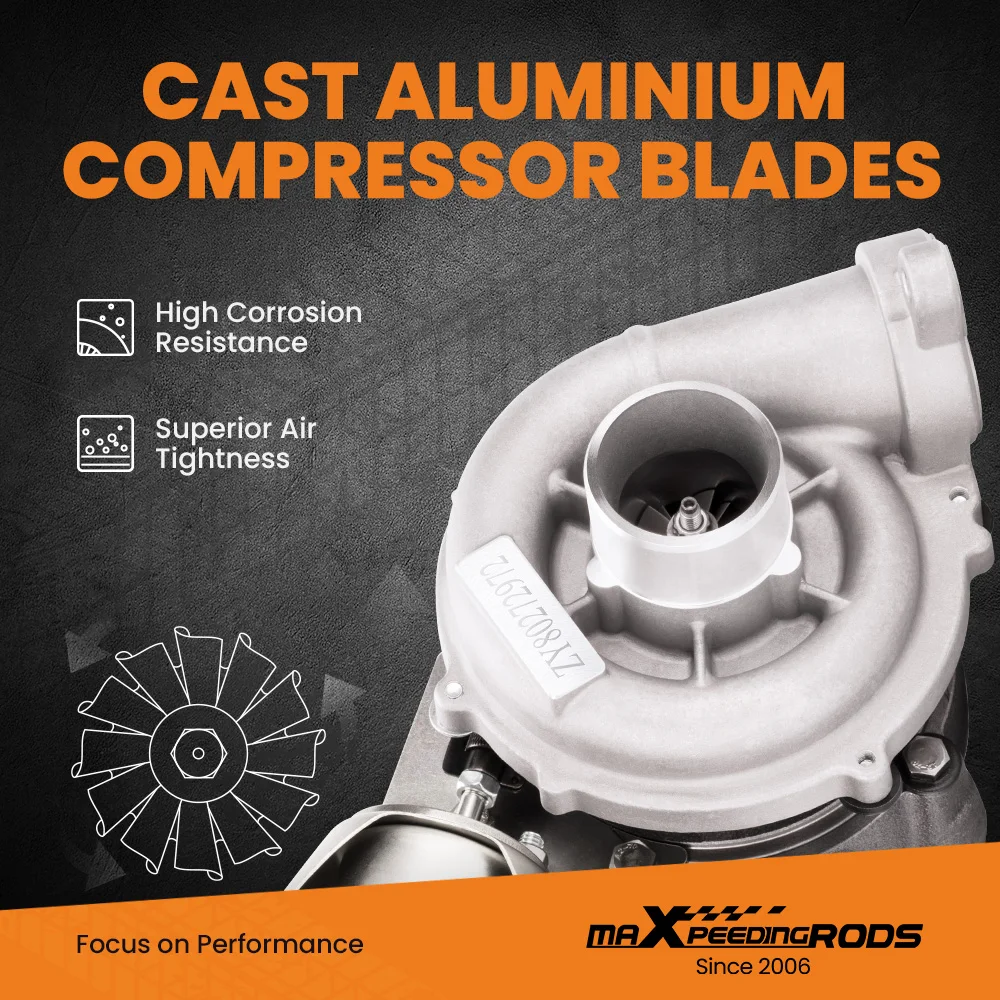

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product  Performance

1. OEM-quality and size with little modification

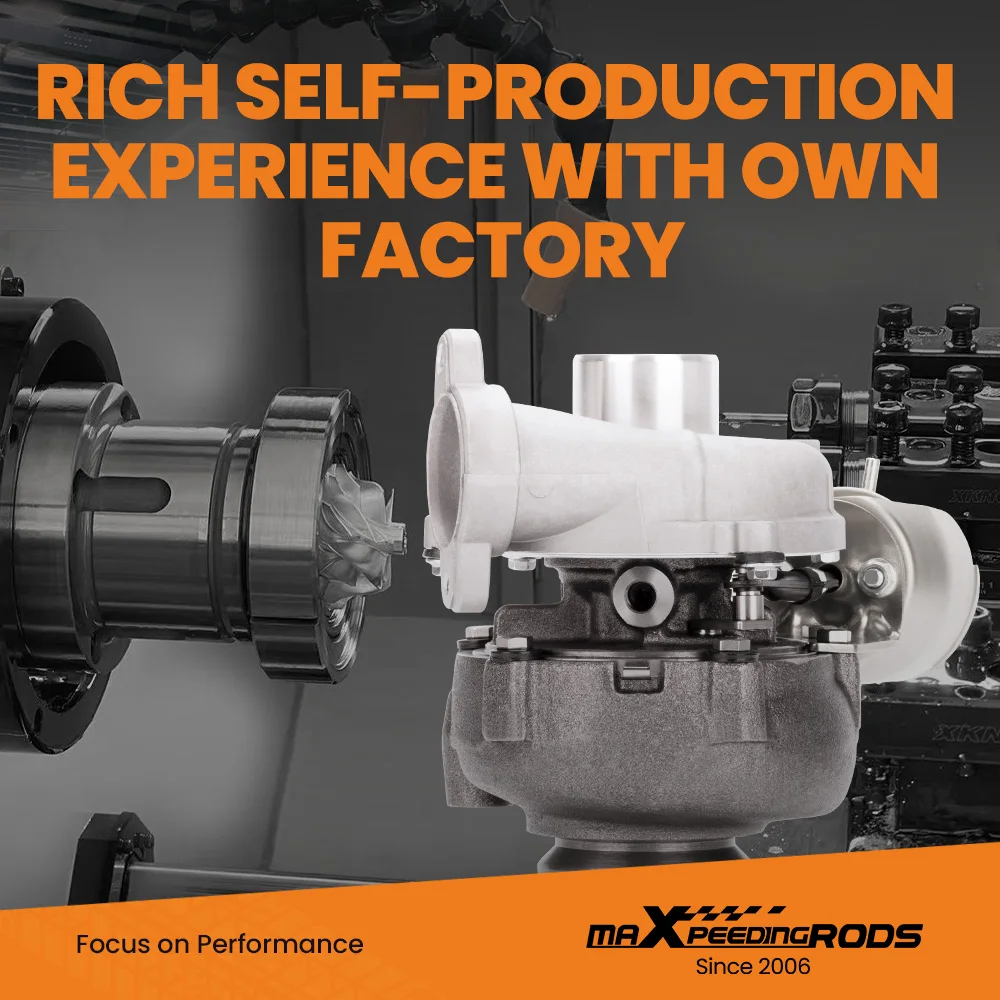

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Product Certification: TÜV ISO 9001 CERTIFIED

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
