Perfect for all 4.0L-6.0L engine  600+ HP

Exhaust (Turbo Manifold) Flange: T4 4 Bolt Flange

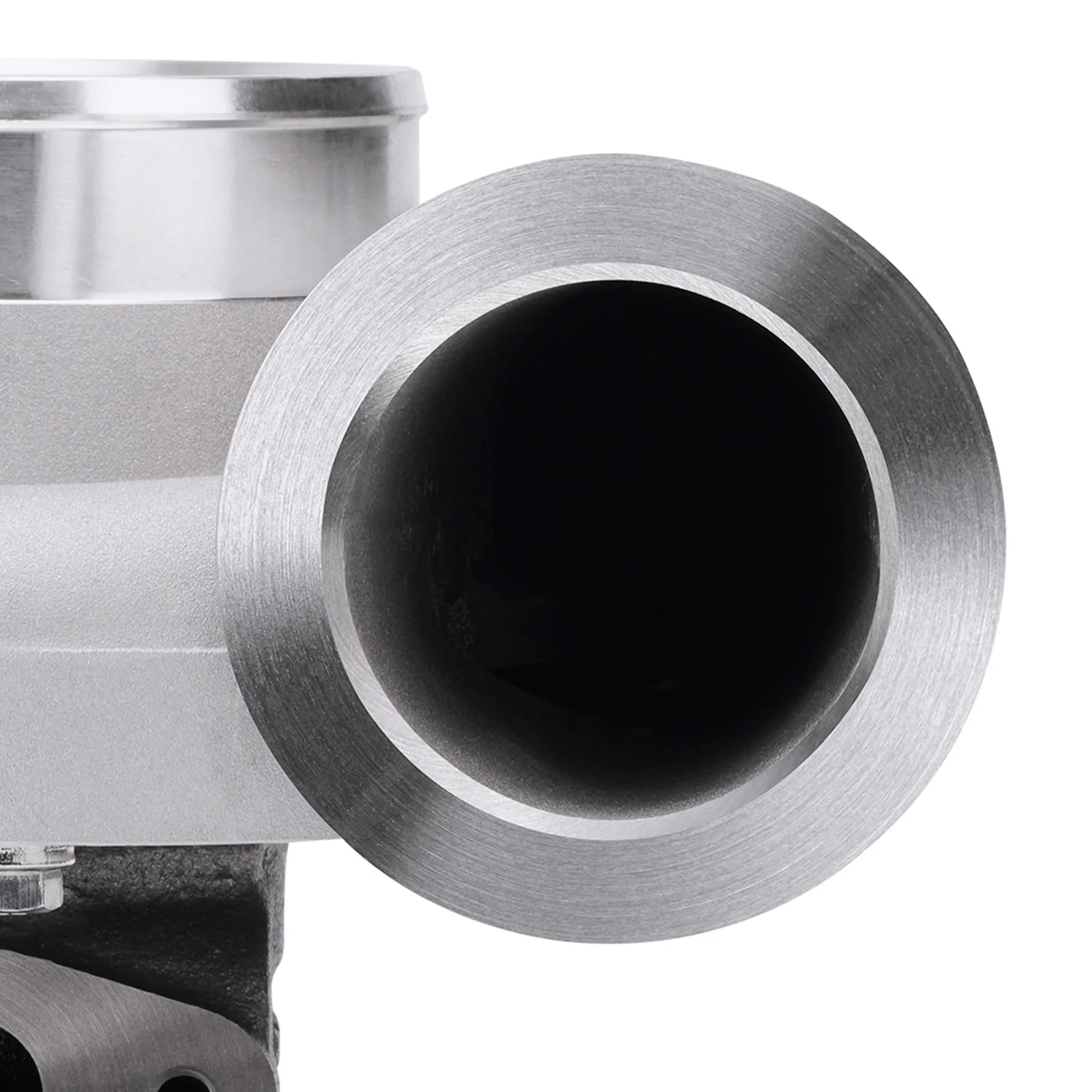

Exhaust Outlet (Downspout) Flange: 3.25 " V-Band Flange

Cooling Type: Oil Cooled

Wastegate:   External Wastegate

Horse Power:    Boost Horse Power up to 600+ BHP

Turbo Height:   243mm

Turbo Width:   273mm

Compressor：

Trim:   50

Inducer Diamter:   69mm

Exducer Diamter:   98 mm

A/R:0.66

Turbine：

Trim:  78

Inducer Diamter:   88mm

Exducer Diamter:   77.5 mm

A/R:  1.05

KEY FEATURES

-High Quality Material, Cast Housing with Durable Steel

-Boost Engine Horsepower Significantly

-Increase Engine Power and Torque Outpout;

-Maintain Combustion Chamber Pressure and Fuel/Air Load

-Contructed with High Quality Material

-Built for Durability and Strength

OUR ADVANTAGE

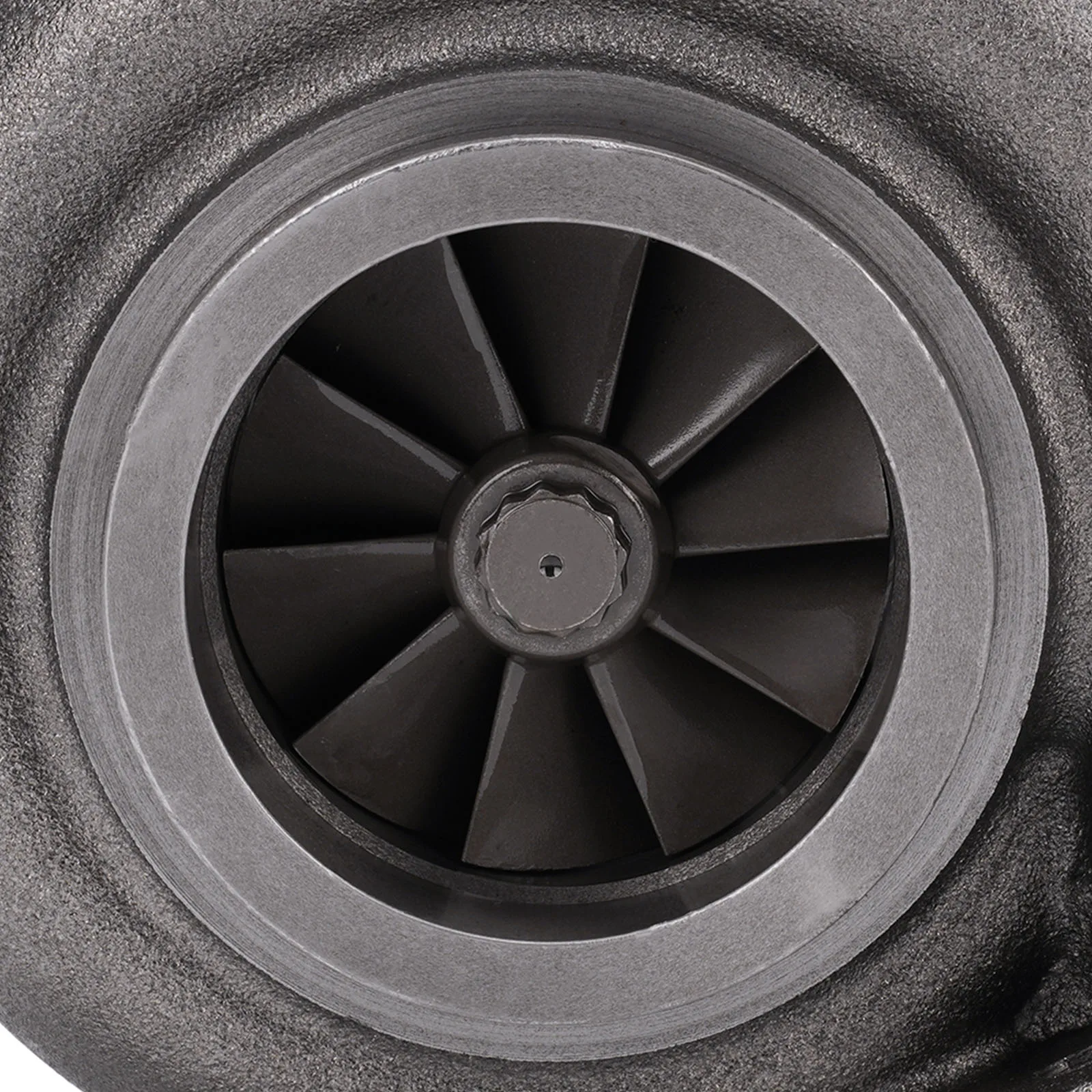

K18 INCONEL WHEELS-The turbine shaft wheels made of  special K418 alloy , high oxidation resistance and stability under high temperatures up to 900 degrees Celsius never use K13 Inconel alloy.

DUCTILE UCTILE IORN QT450-10-withstand temperatures up to 700 degrees Celsius

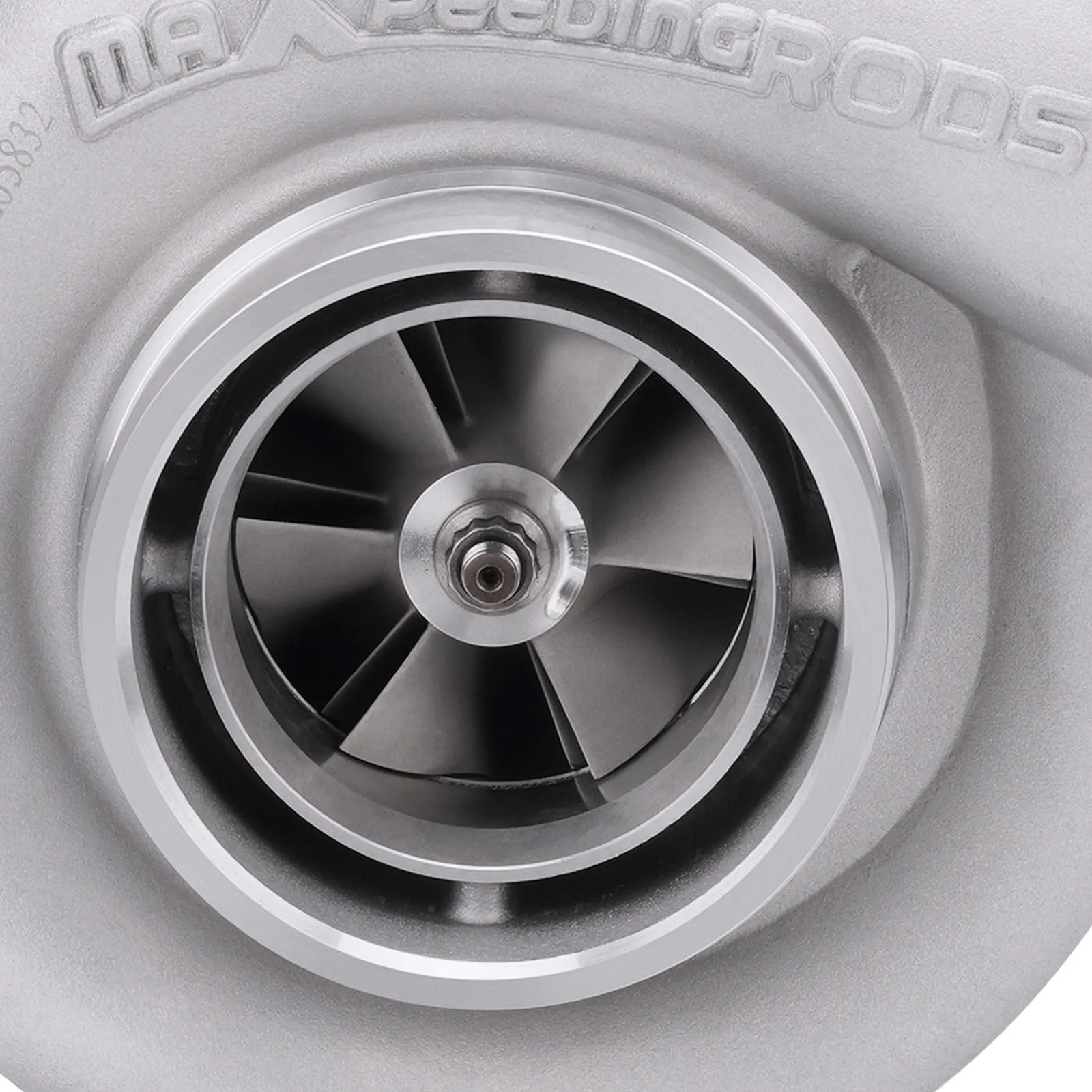

CAST ALUMINIUM IMPELLER-good gas tightness and corrosion resistance

BALANCING TEST

Bearing Type: Journal Bearing

This Turbocharger you will receive has been balanced using the VSR machine technology.

Through the comprehensive and high-precision static and dynamic balance detection technology, the use time and reliability.

TWIN SCROLL TURBINE housing options available-quicker response then single exhaust outlet

1 YEAR WARRANTY

Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.

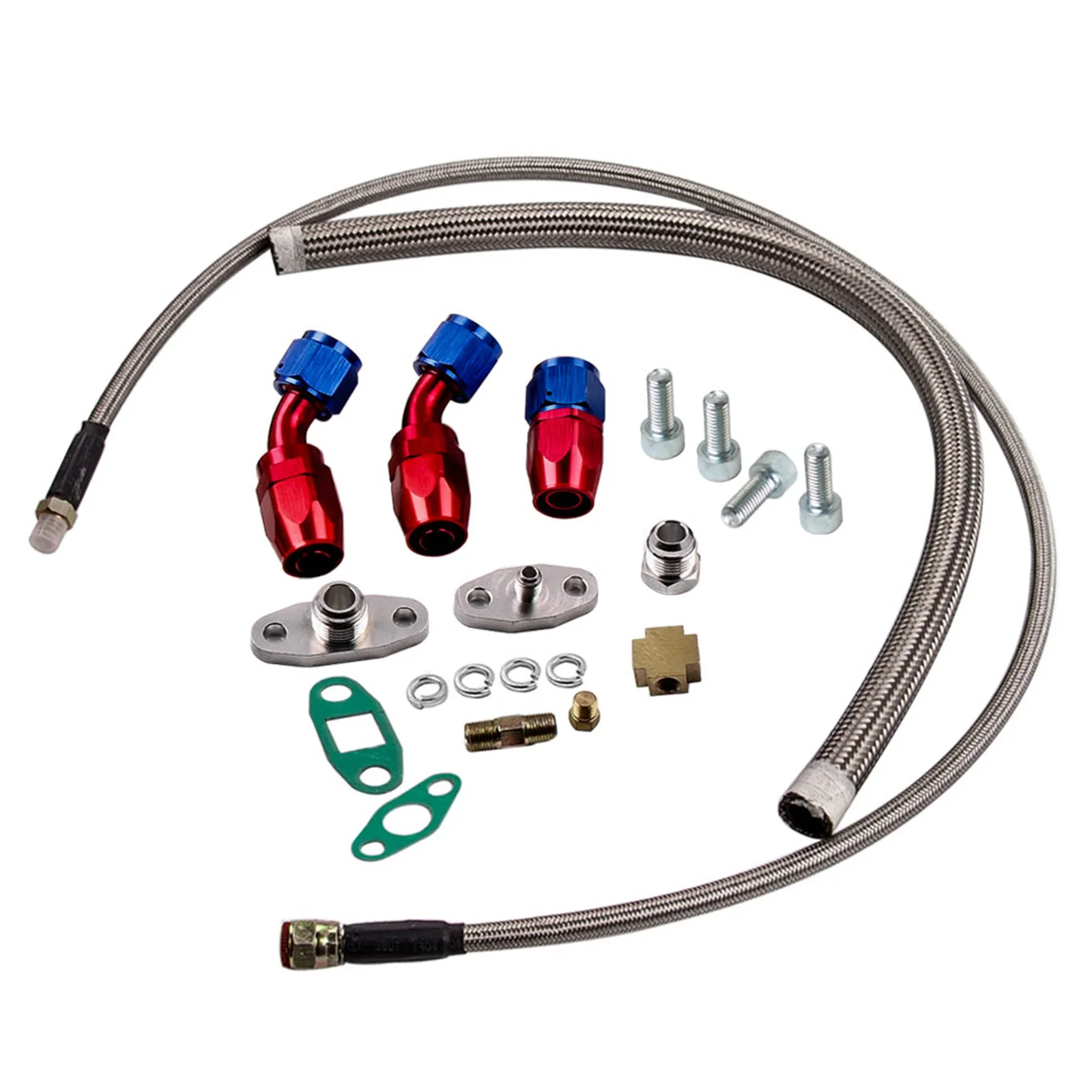

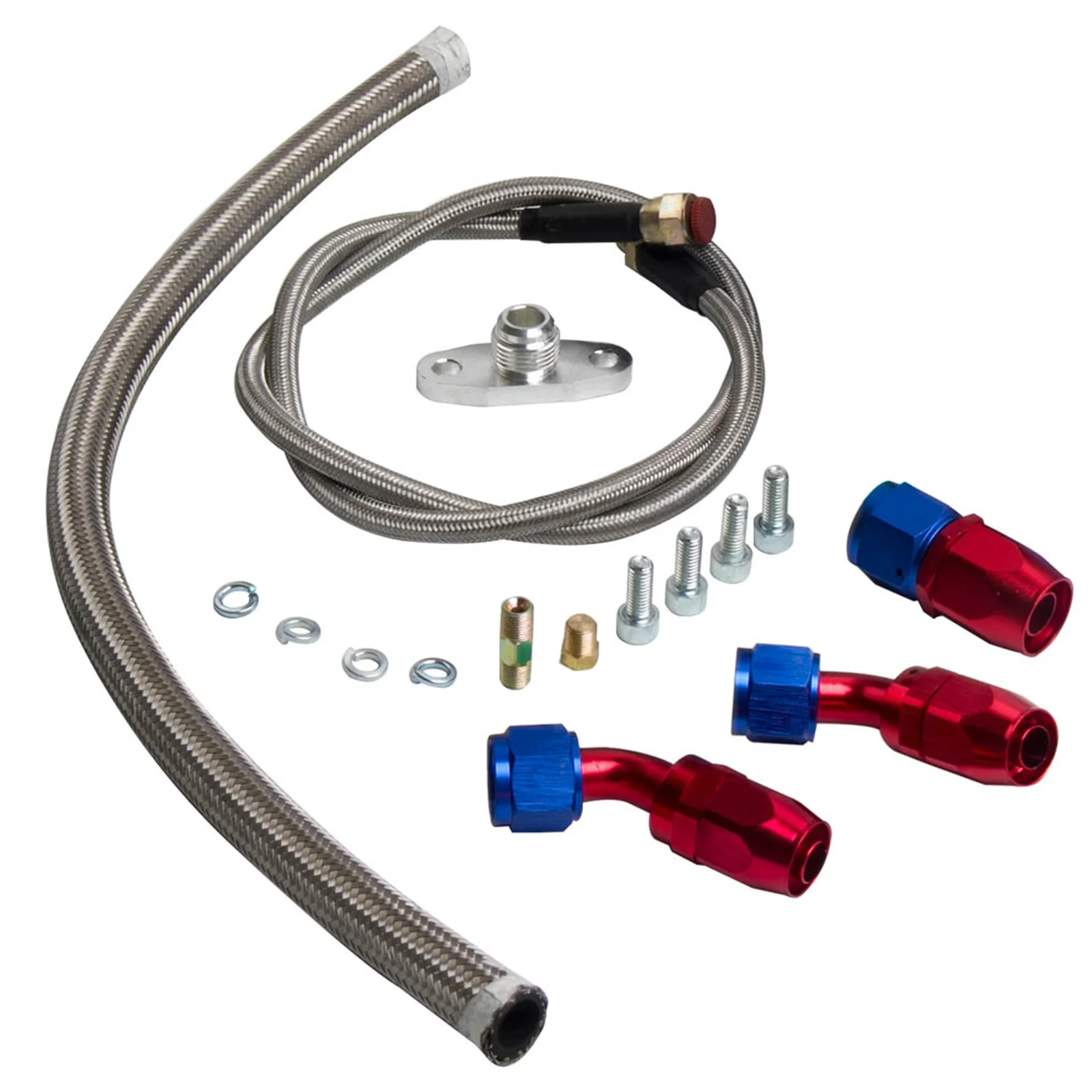

* OIL RETURN LINE:Length: 550mm || Inner Diameter: 21mm

* OIL FEED LINE:Length: 1000mm || Inner Diameter: 14mm

Condition:Brand New

Bearing Type:Floating Bearing

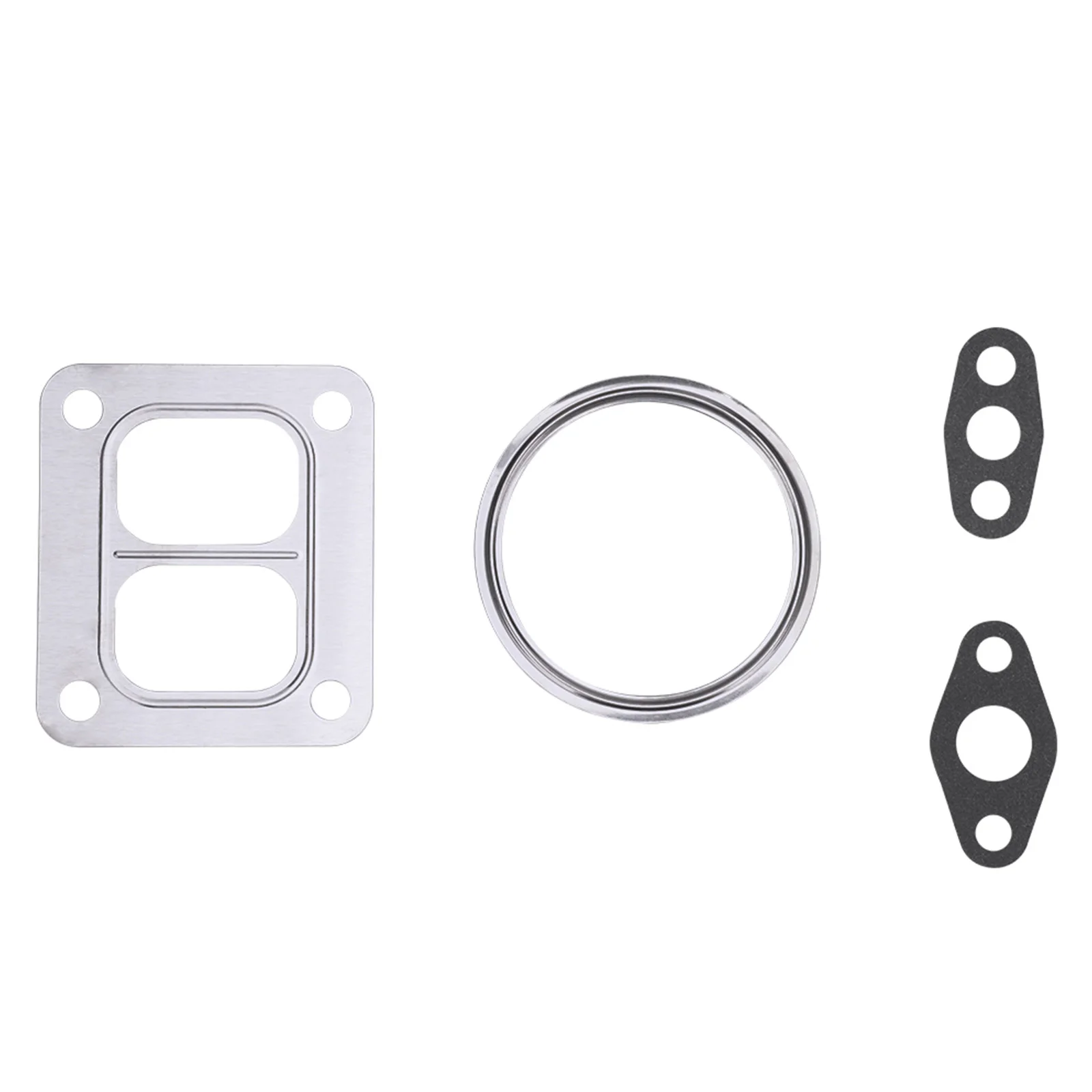

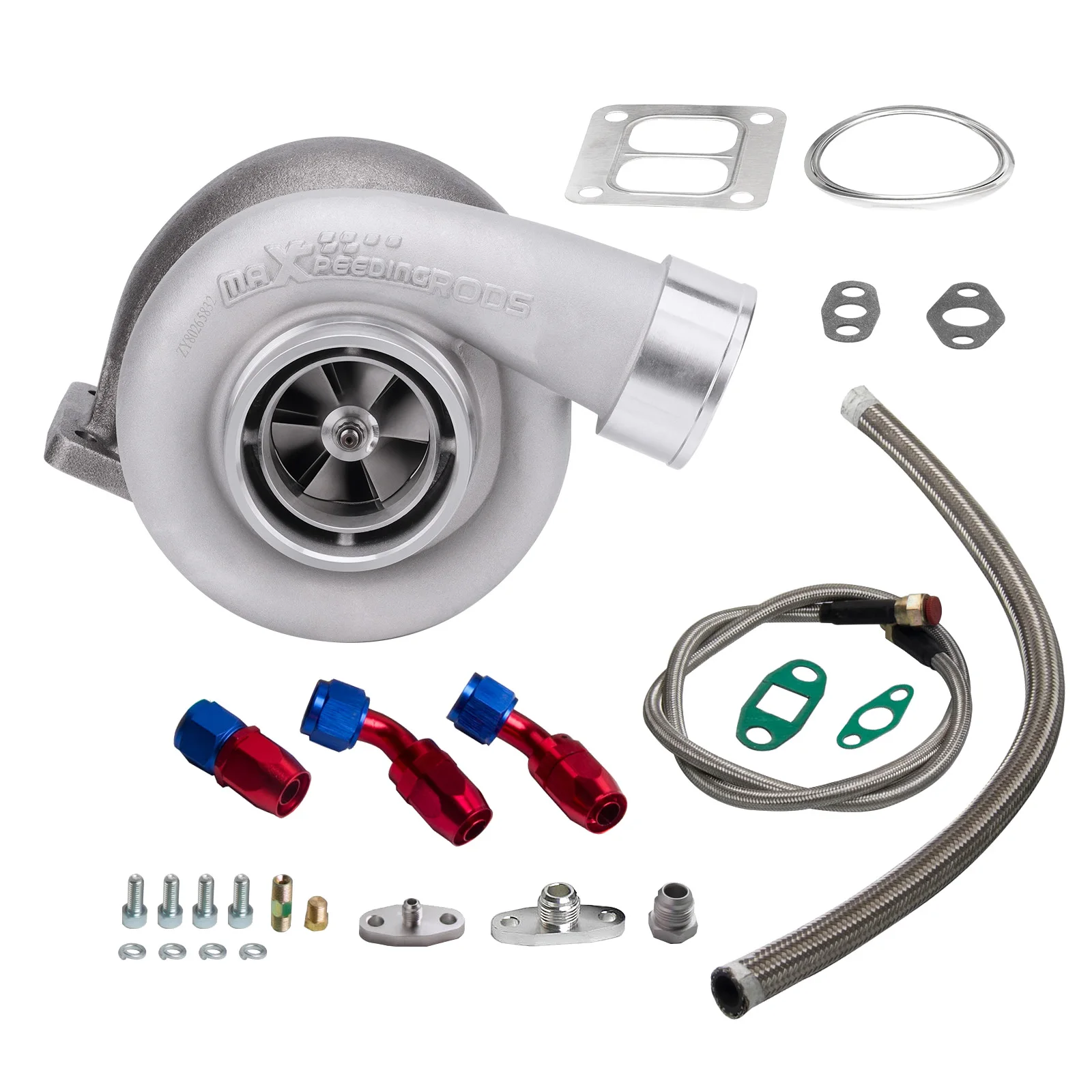

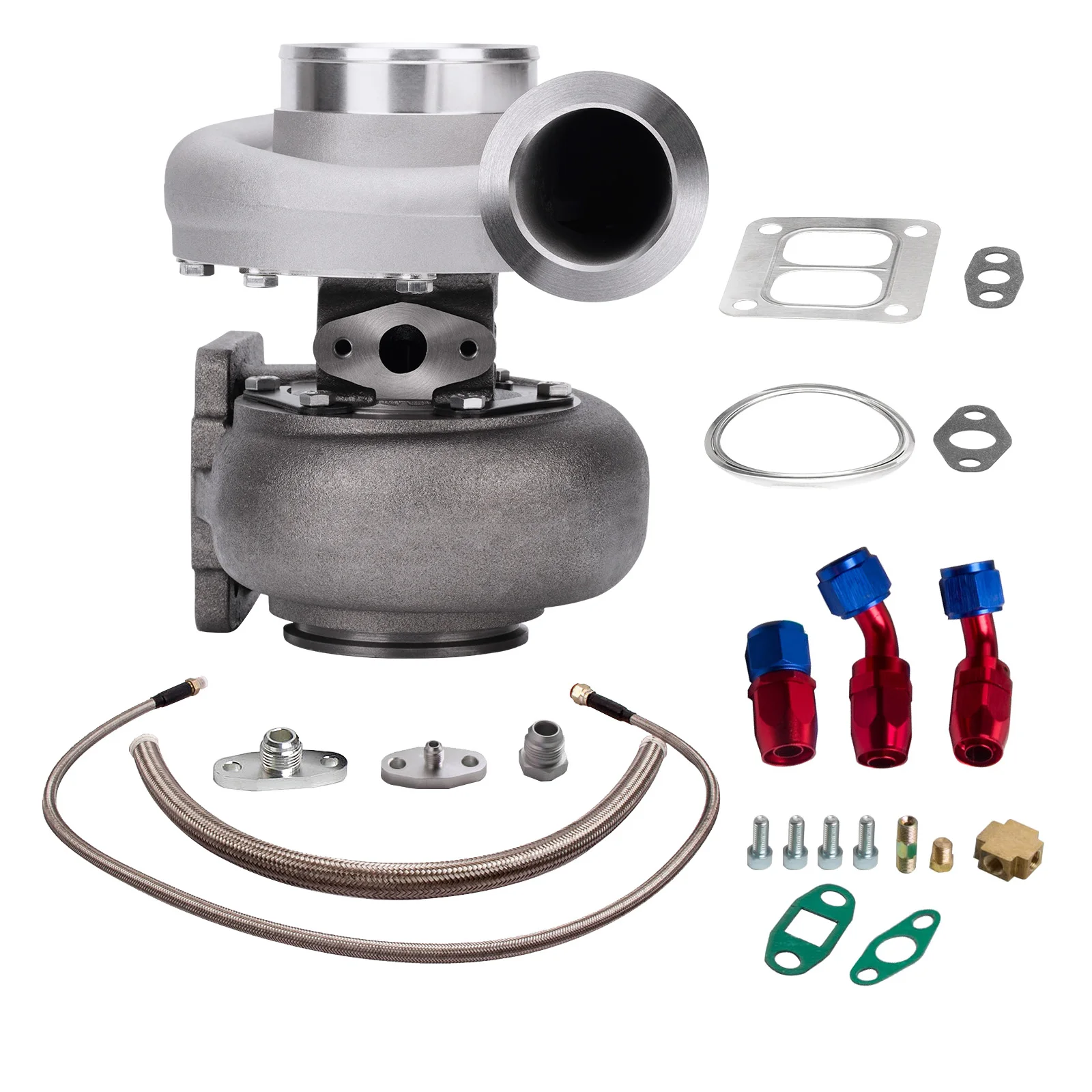

Accessories:You will get exactly as shown in the picture above (turbo + oil lines kits)

NOTE:

* Professional installation is highly recommended (No Instruction Included)

* For any needs please contact us

* This is universal application turbo, so modification might be required for some vehicles.
