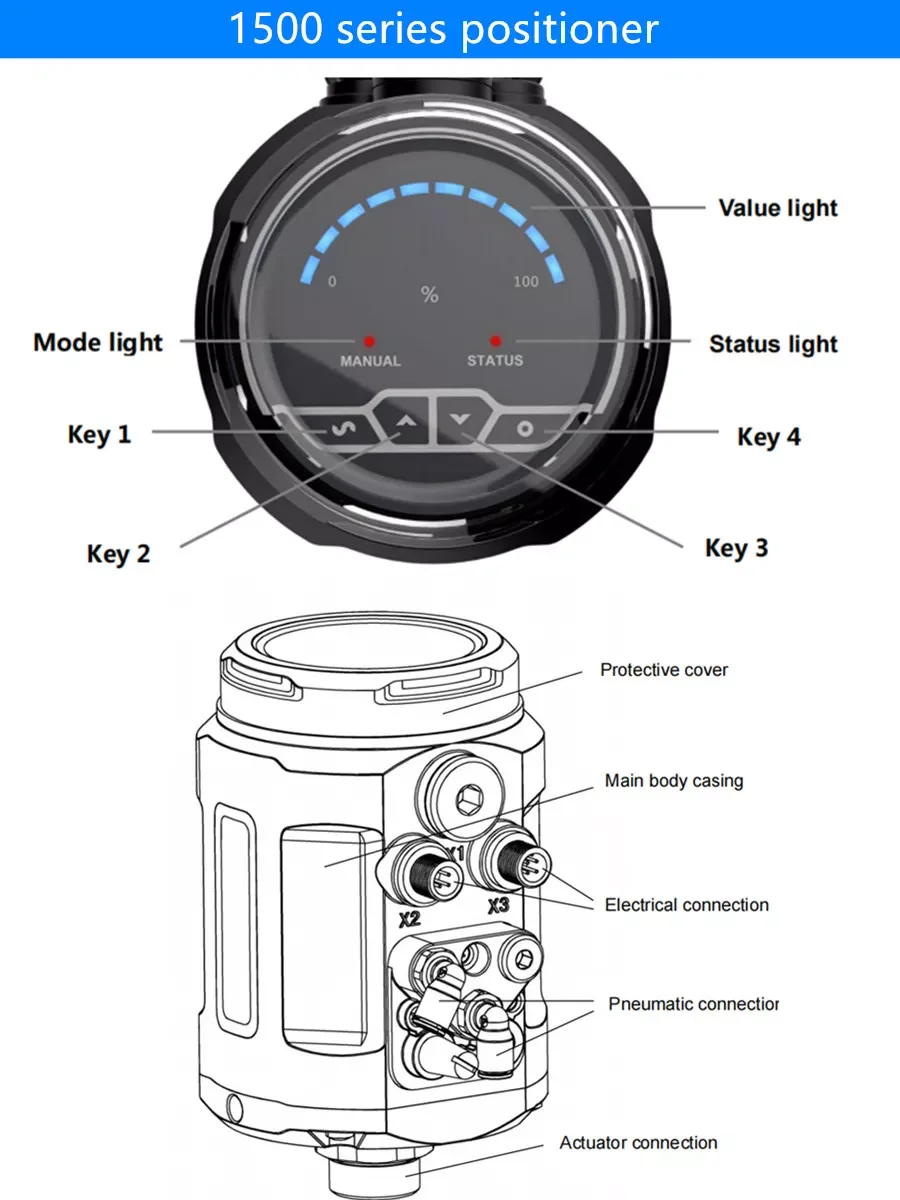

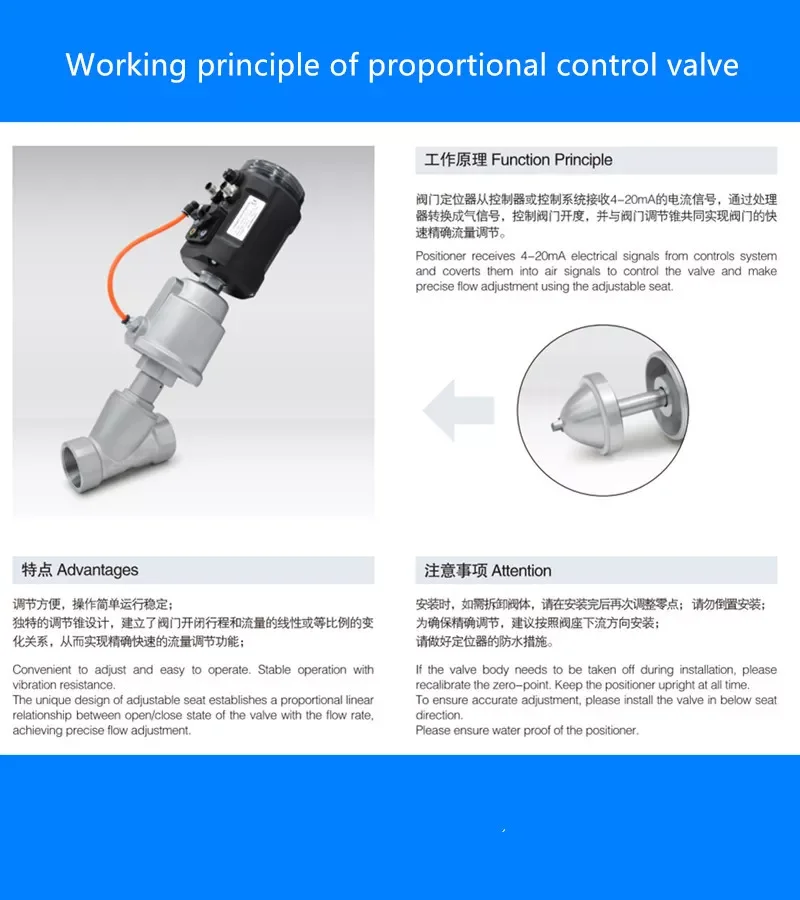

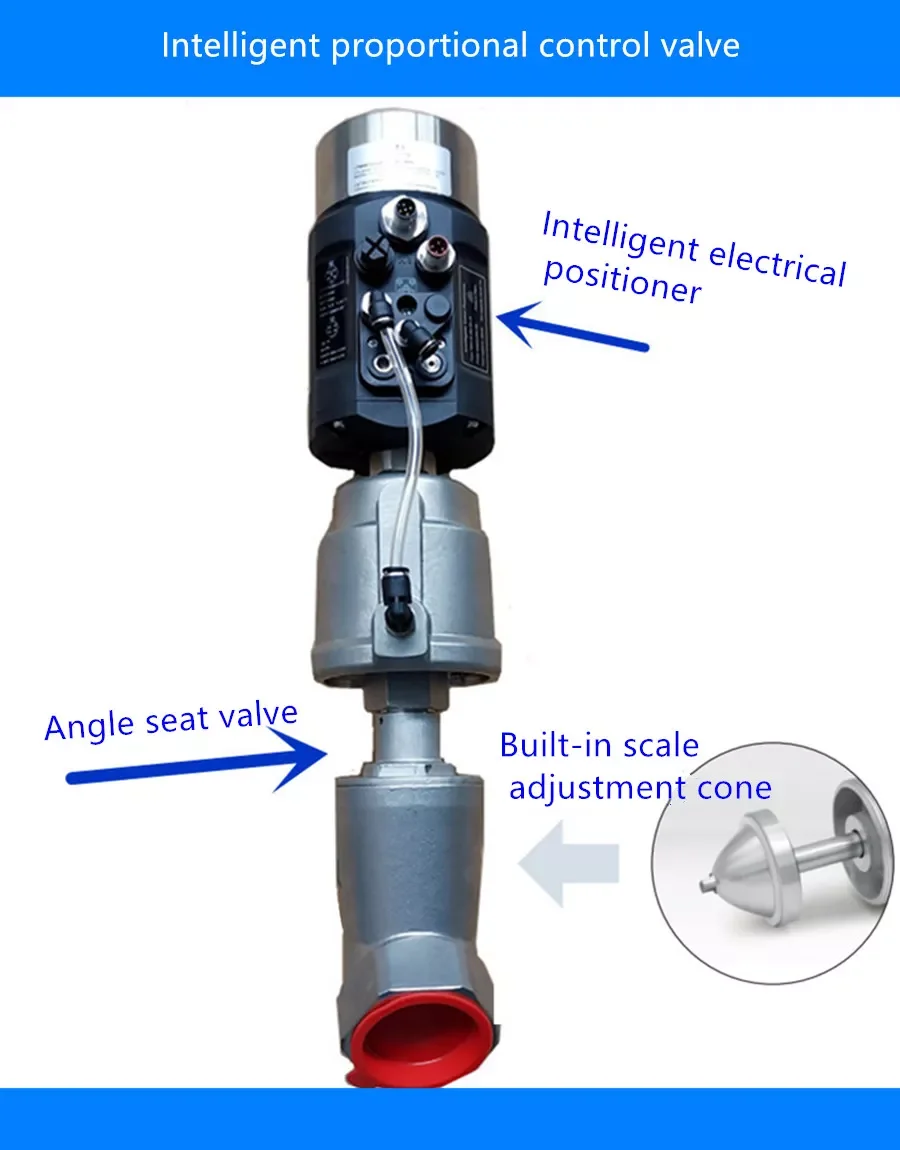

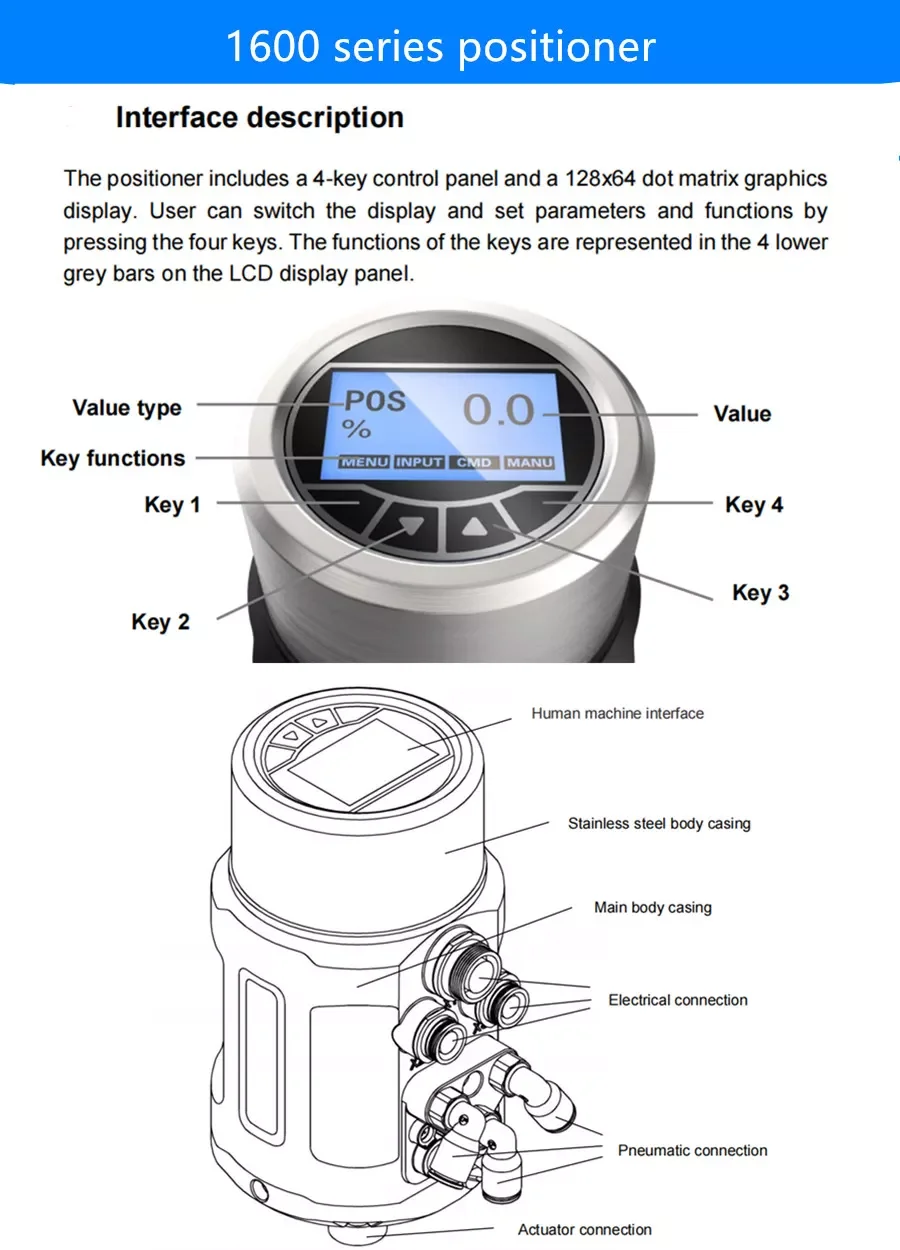

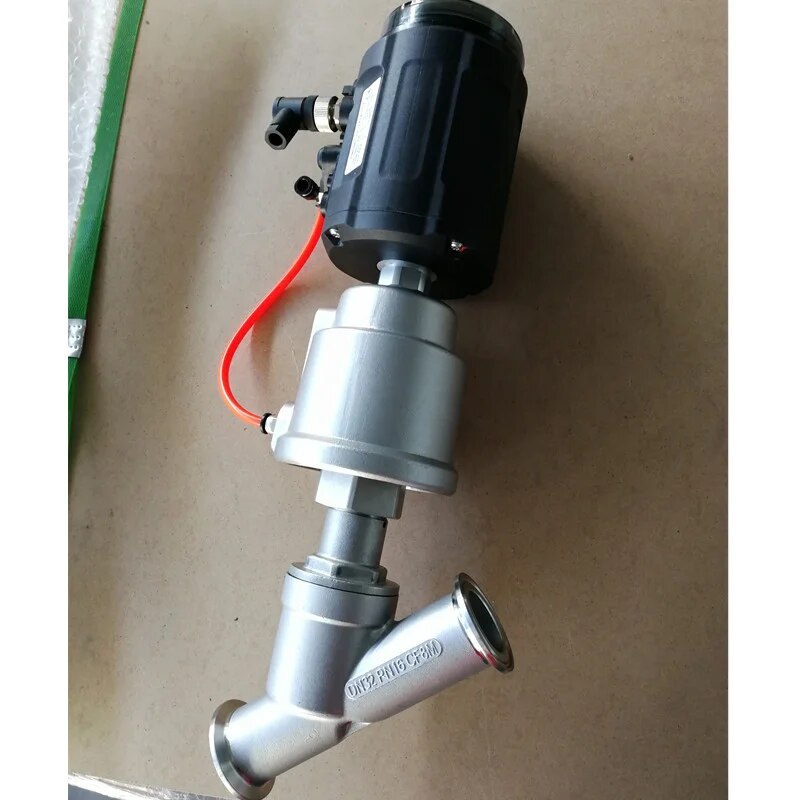

Pneumatic Angle seat proportional control valve is composed of intelligent valve positionerand pneumatic Angle seat valve specially used for regulation. Proportional control valve is widely used in short time frequent pneumatic, with sensitive response, safe and reliable, accurate action characteristics. Accurate control of gas and liquid flow. Widely used in food and chemical process, sterilization machine, high temperature sterilizer, dry cleaning machine, beer production line, etc. 1600 series intelligent electric valve positioner is a valve opening regulator based on microprocessor. The valve opening can be set by external input signal. The positioner uses automatic control algorithm and PWM control technology to quickly and accurately adjust the valve opening, so as to control the flow of fluid pipeline. The product can be used in sealed Spaces, and remote automatic control. Can do continuous position control, can also achieve continuous process control through internal functions (PID function).

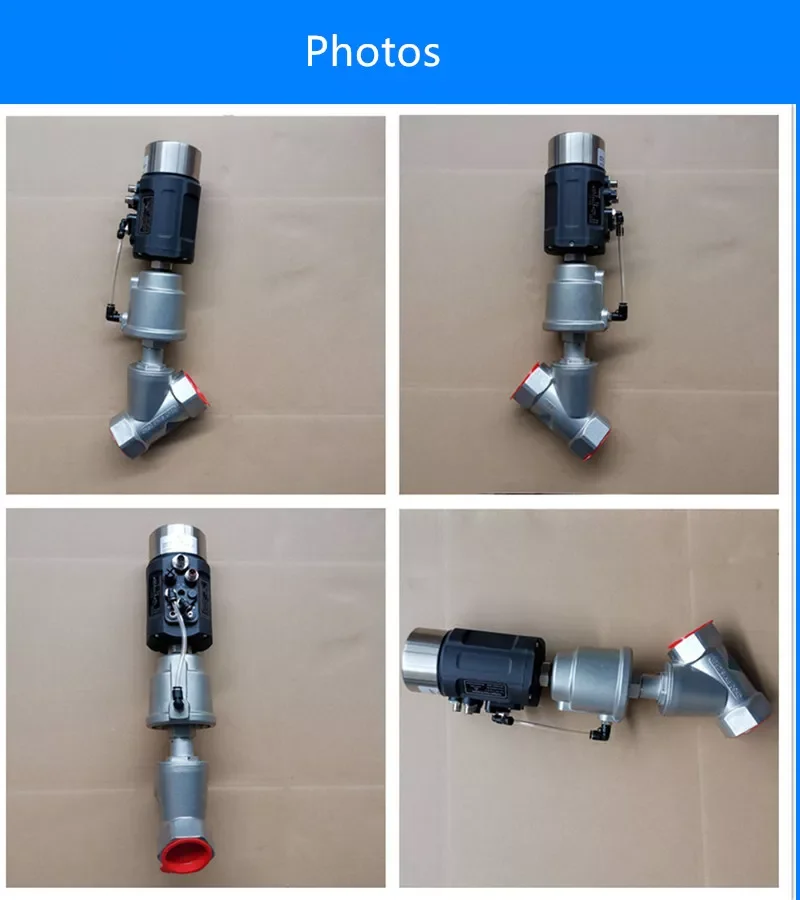

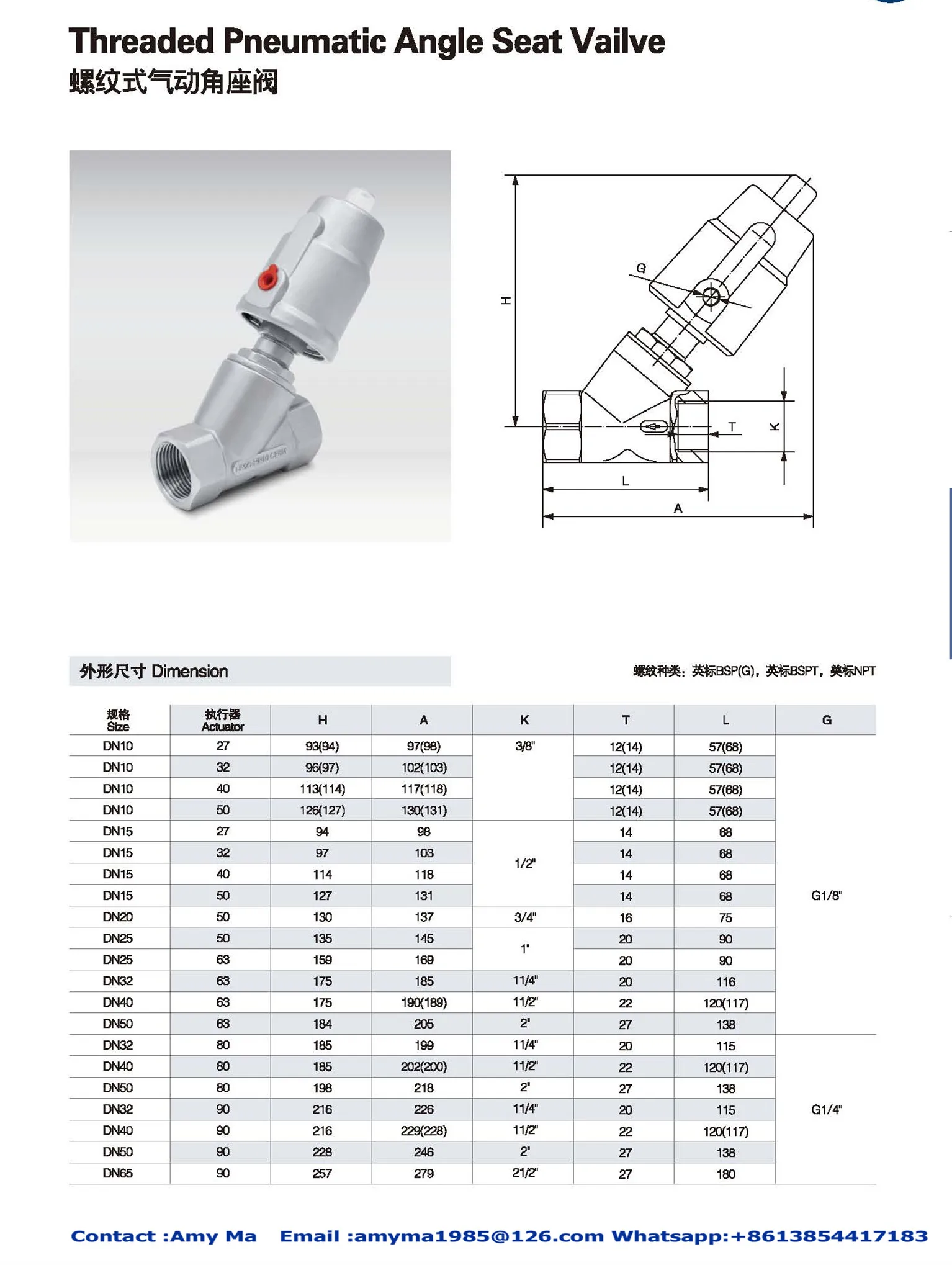

A. THREAD TYPE

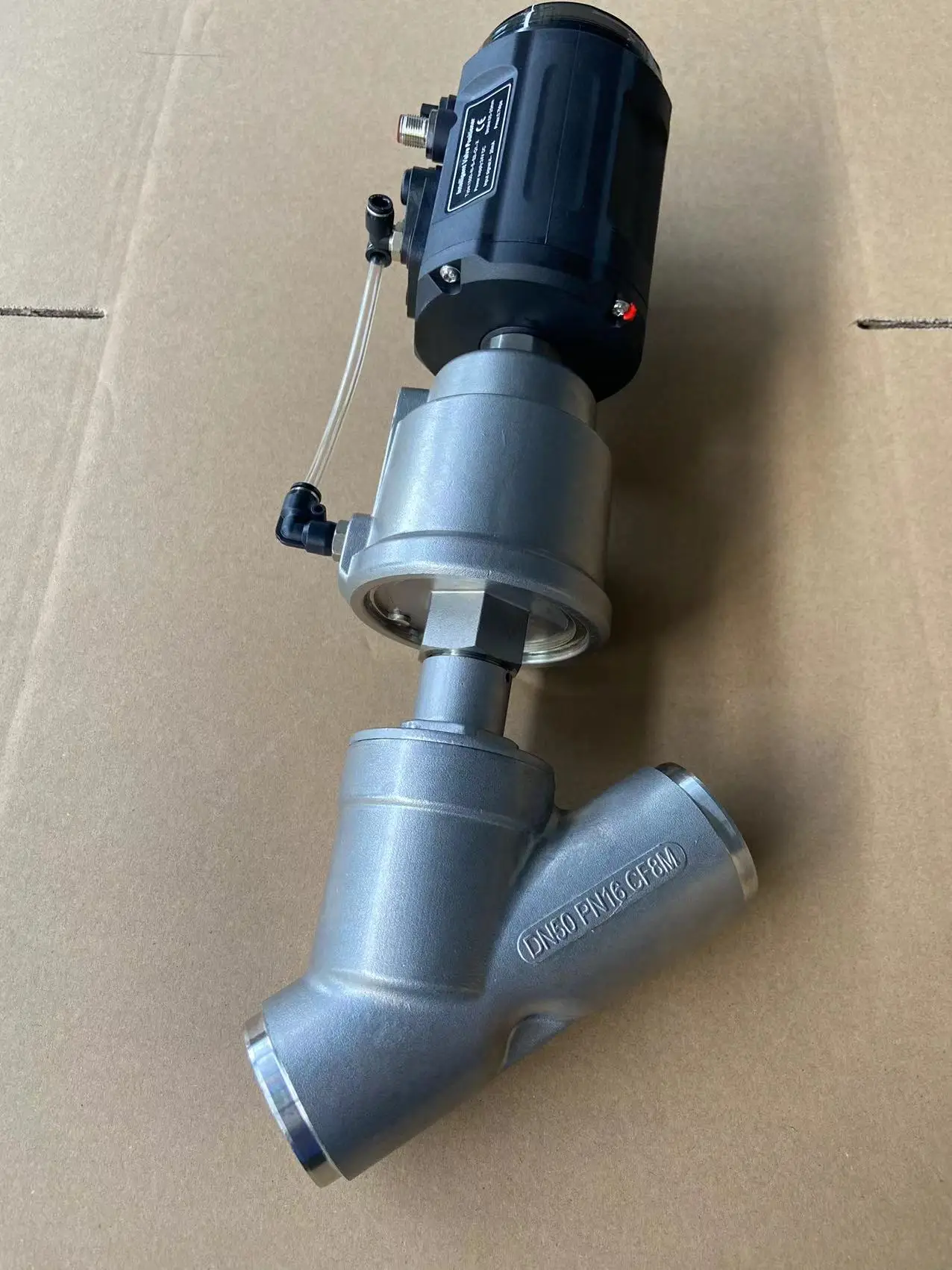

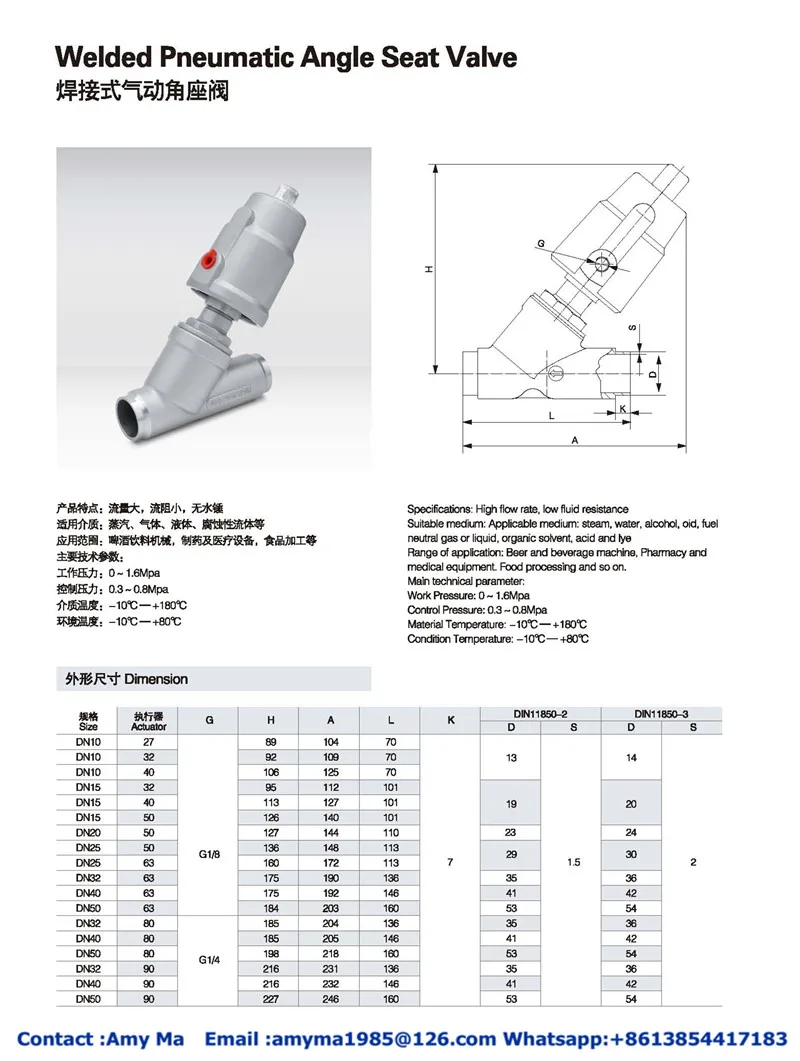

B. WELDING TYPE

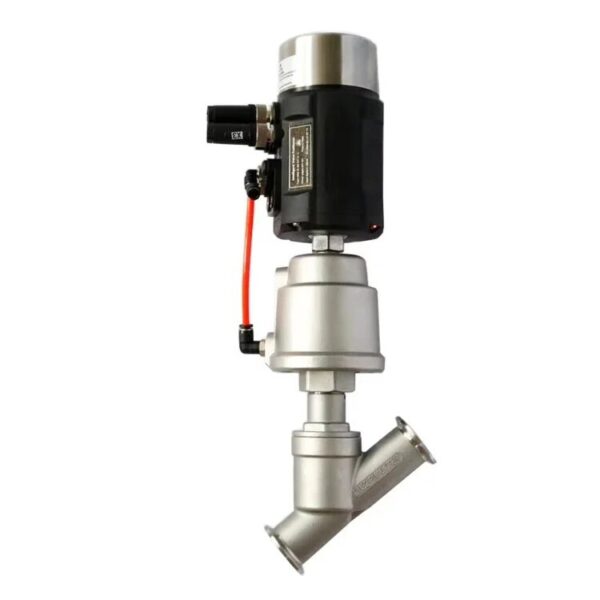

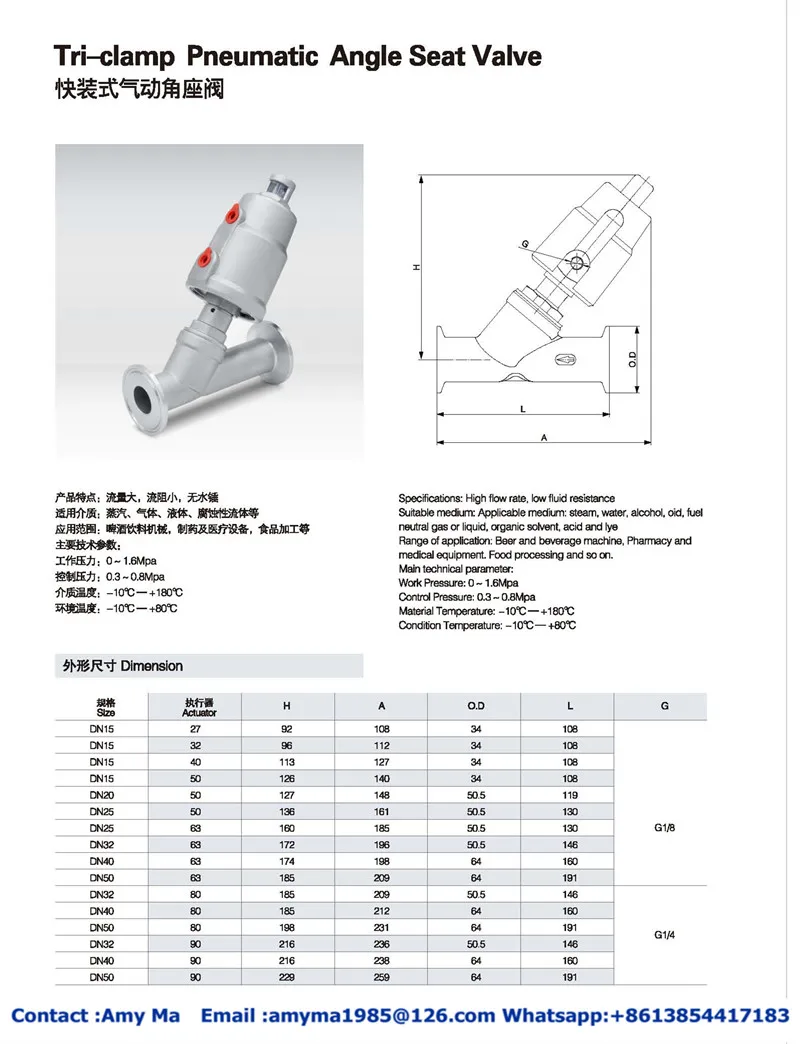

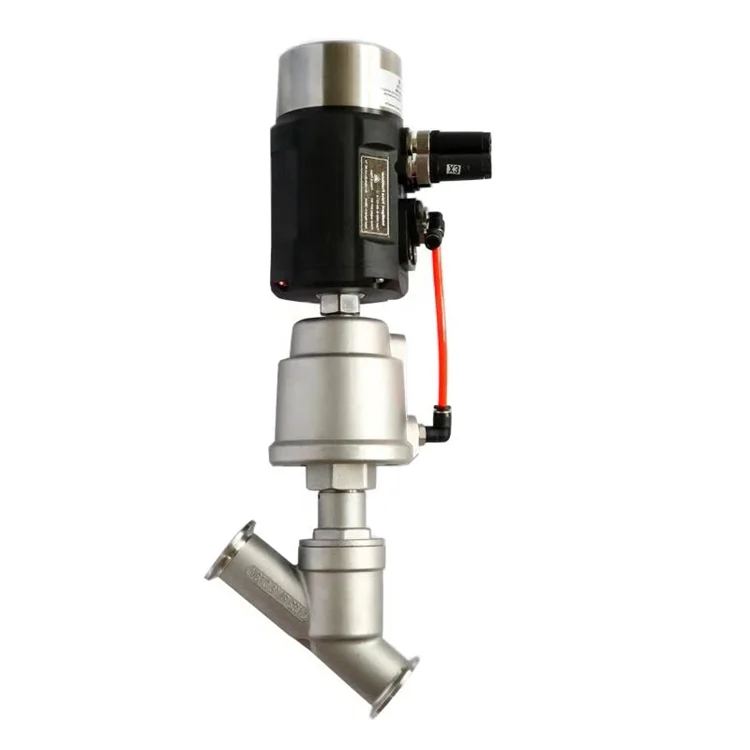

C.CLAMP TYPE

THE PRICE IS WITH 1500 series /1600 series
