T3/T4 T04E V-band Turbocharger Internal Wastegate+Turbo Manifold for BMW E36 E46

* This is universal application turbo, so modification might be required for some vehicles.

Application:

For BMW E36 328I / 328IS i6 1994-1999
For BMW E36 323I i6 1995-1999
For BMW E36 M3 i6 1992-1999
For BMW E46 323I / 323IS / 323CI / 323TI i6 1997-2000
For BMW E46 328I / 328CI i6 1998-2000
For BMW E46 325I / 325CI / 325XI / 325TI i6 2001-2007
For BMW E46 330I / 330CI / 330XI i6 2000-2007

(Not fit E46 M3 3.2L)

(Fits M50/ M52/ M54/ S50/ S52 Engine ) Please Check Compatibilities for Years and Models

1. About T3/T4 T04E Turbocharger

Exhaust (Turbo Manifold) Flange:   T3 T4 4 bolt Flange Patterns
Exhaust Flange:   V-Band Flange
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Horse Power: Boost Horse Power up to 420HP

Compressor:
Trim: 44
Inducer Diameter:50.5 mm
Exducer Diameter:76 mm
A/R:0.5

Turbine:
Trim:73
Inducer Diameter:65.5 mm
Exducer Diameter:55.9 mm
A/R:0.63

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: 2 Years

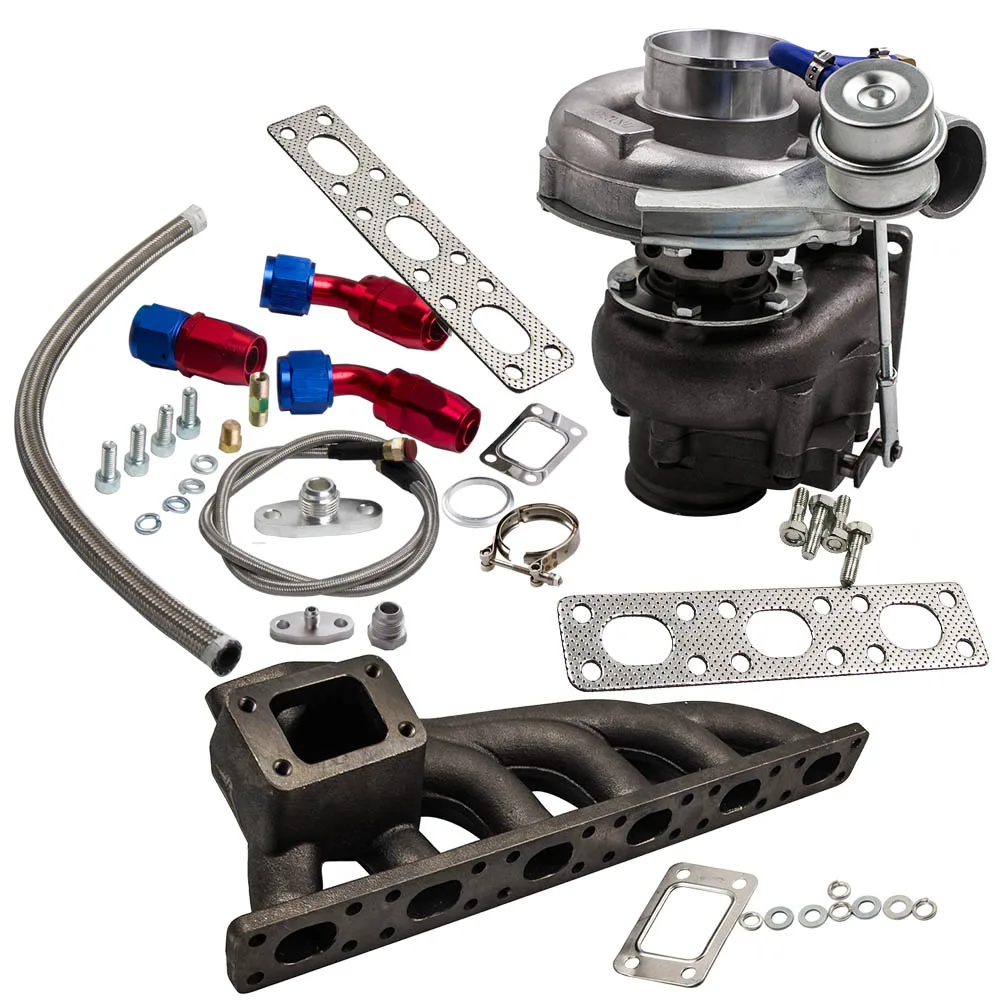

Accessories: You will get exactly as shown in the picture above

2. About Cast Iron Turbo Manifold T3 flange:

Features:

• *100% Brand New

• *2 years warranty

• *Cast Iron Turbo Manifold

• *With 35mm/38mm External Wastegate Flange

• *T3 Flange, fit T3 and T3/T4 turbo

• *Great for Increase HP, Improve More Air Flow, Gain 10-15HP

• *Professional Installer is Highly Recommended (No Instruction Included)

3.Turbo Oil Feed Line + Turbo Oil Feed Line:

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm

* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

NOTE:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
