T3/T4 T04E V-band Turbocharger 63 A/r W/ Internal Wastegate+Blow Off Valve

* This is universal application turbo, so modification might be required for some vehicles.

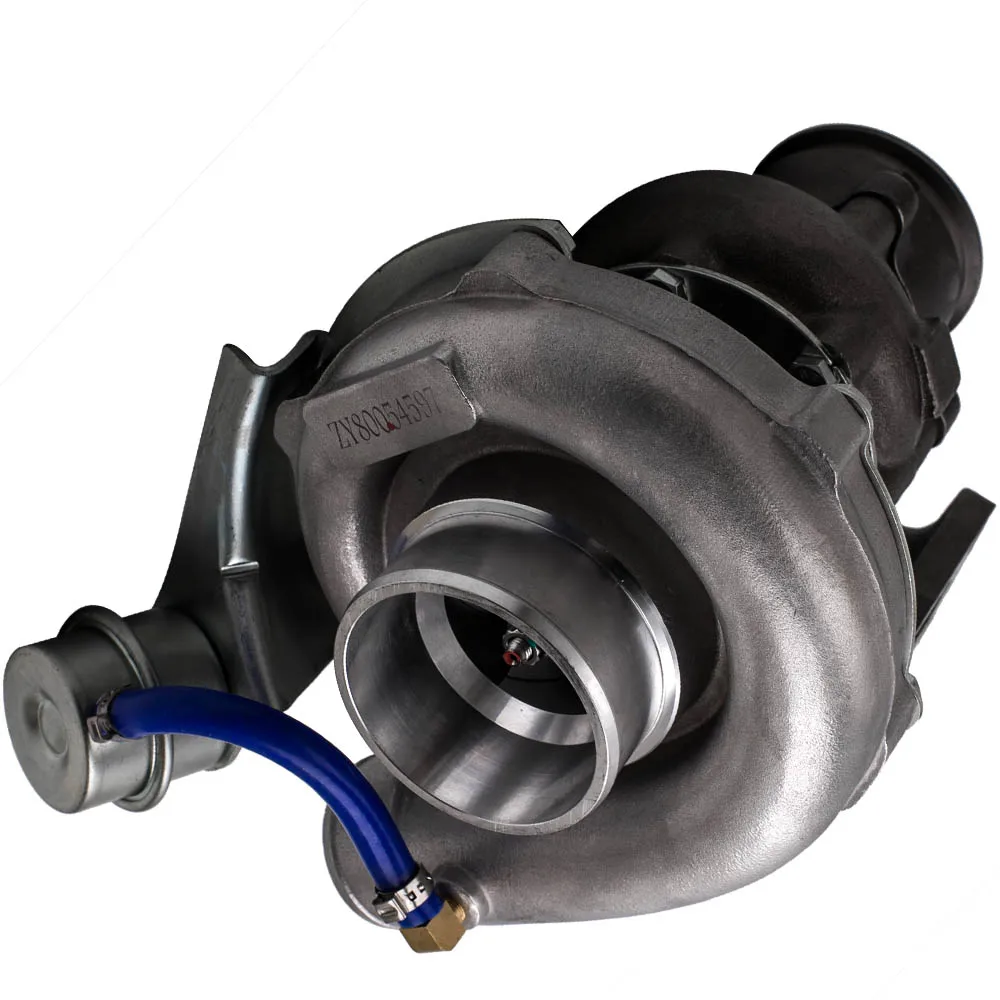

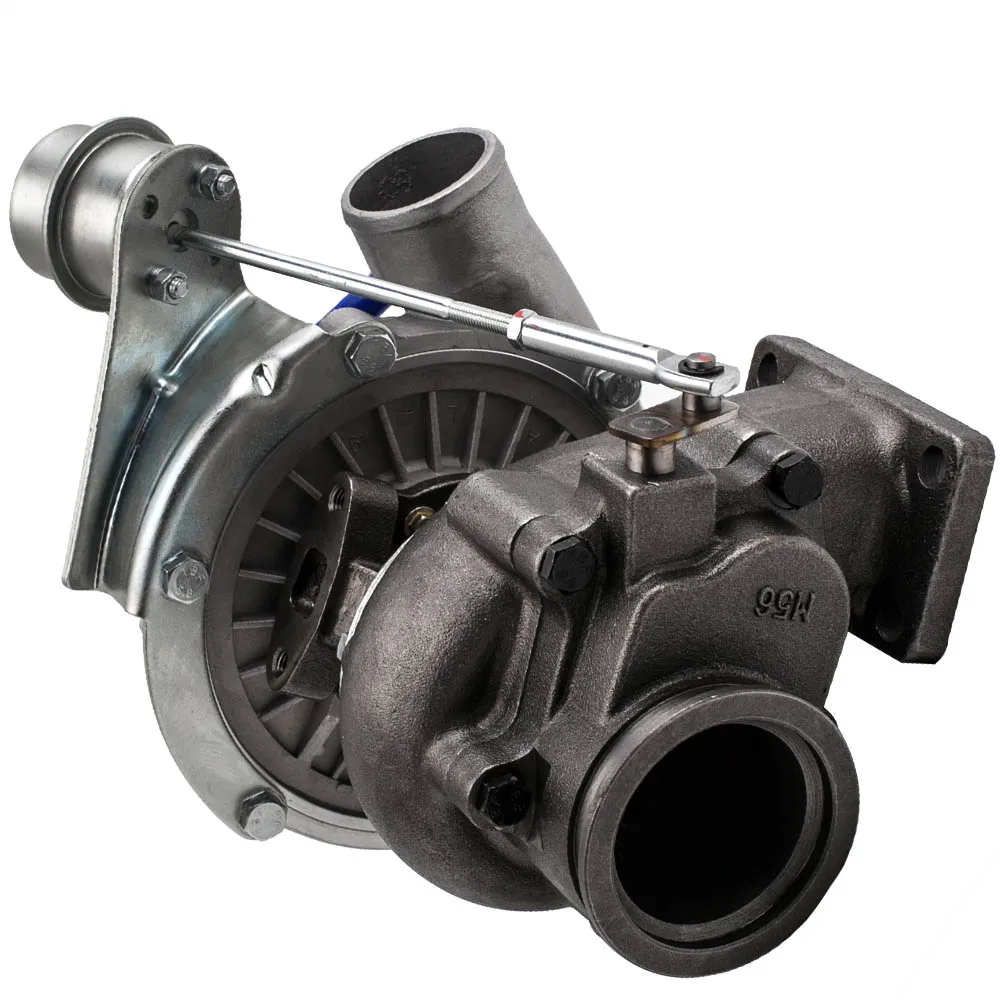

1. About Turbocharger

Application:

Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines

Horse Power: Capable of Boosting Horse Power up to 420HP

Bearing: Journal Bearing

Specification:

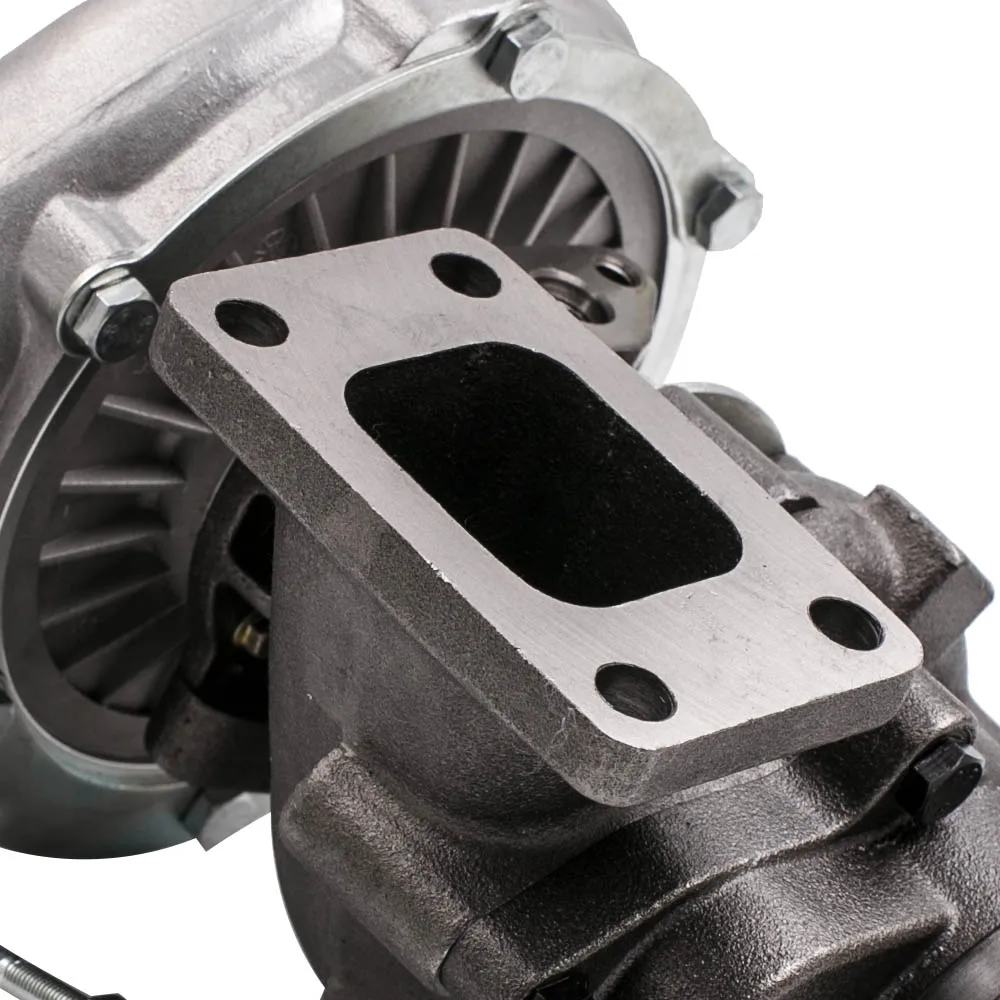

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: V-Band Flange

Bearing: Journal Bearing

Cooling Type: Oil Cooled

Wastegate: Internal Wastegate

Compressor：

Trim: 48.1

A/R: 0.5

Inducer: 52.7mm

Exducer: 76mm

———————-

Turbine:

Trim: 74.2

A/R: 0.63

Inducer: 64.8mm

Exducer: 55.8mm

———————-

Turbine exhaust  outlet : 79mm

Turbine exhaust inlet：44.7mm/85.8mm

Compressor outlet：78 mm

Compressor inlet：51.5 mm

Condition: 100% Brand New
Warranty: 2 Years
Accessories: You will get exactly as shown in the picture above

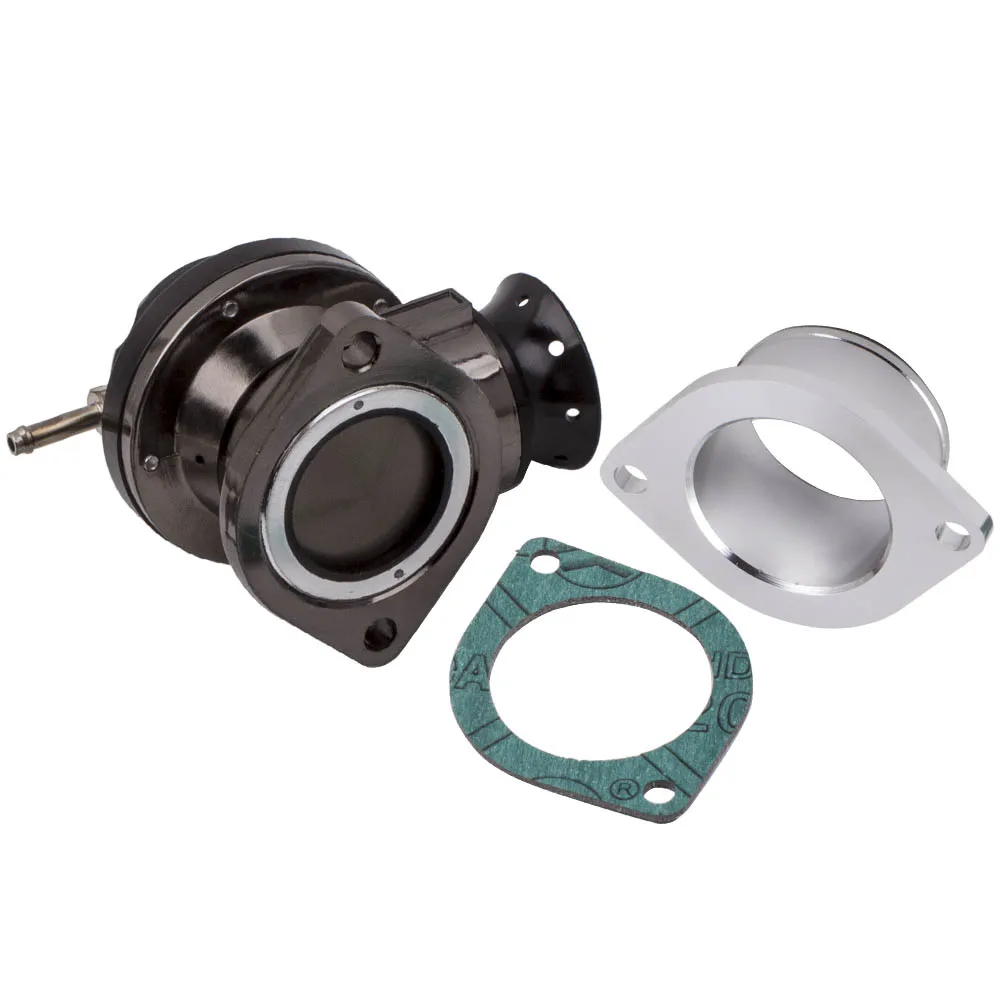

2. About Blow Off Valve:

Blow Off Valve:

• Holds Up to 30PSI Boost Pressure

• Easy Assembly,Aluminum Flange, CNC Machined Billet Aluminum Body

• Dual Spring System Promoted Response & Allows for High Boost Pressures

• Hard-Anodized Valve for Increased Air Flow

• Powder-Coated Anodized and Polished Finish

• 2 Bolts Mounting Design

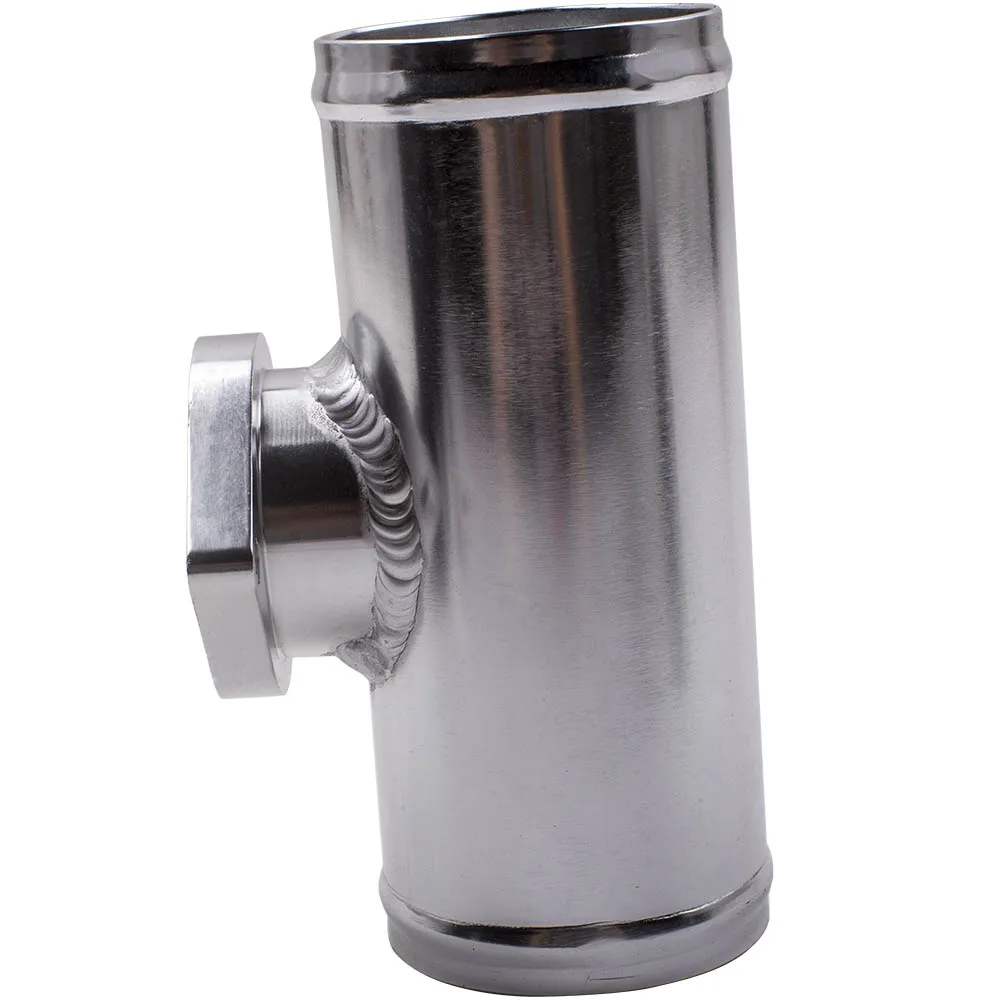

Flange Pipe Adapter:
2.50" (63mm) Pipe Size
Fits Type-S or Type-RS Dump Pipe Flange
Oval / 2 Bolt Flange Design type

Condition: 100% Brand New
Warranty: 2 Year warranty

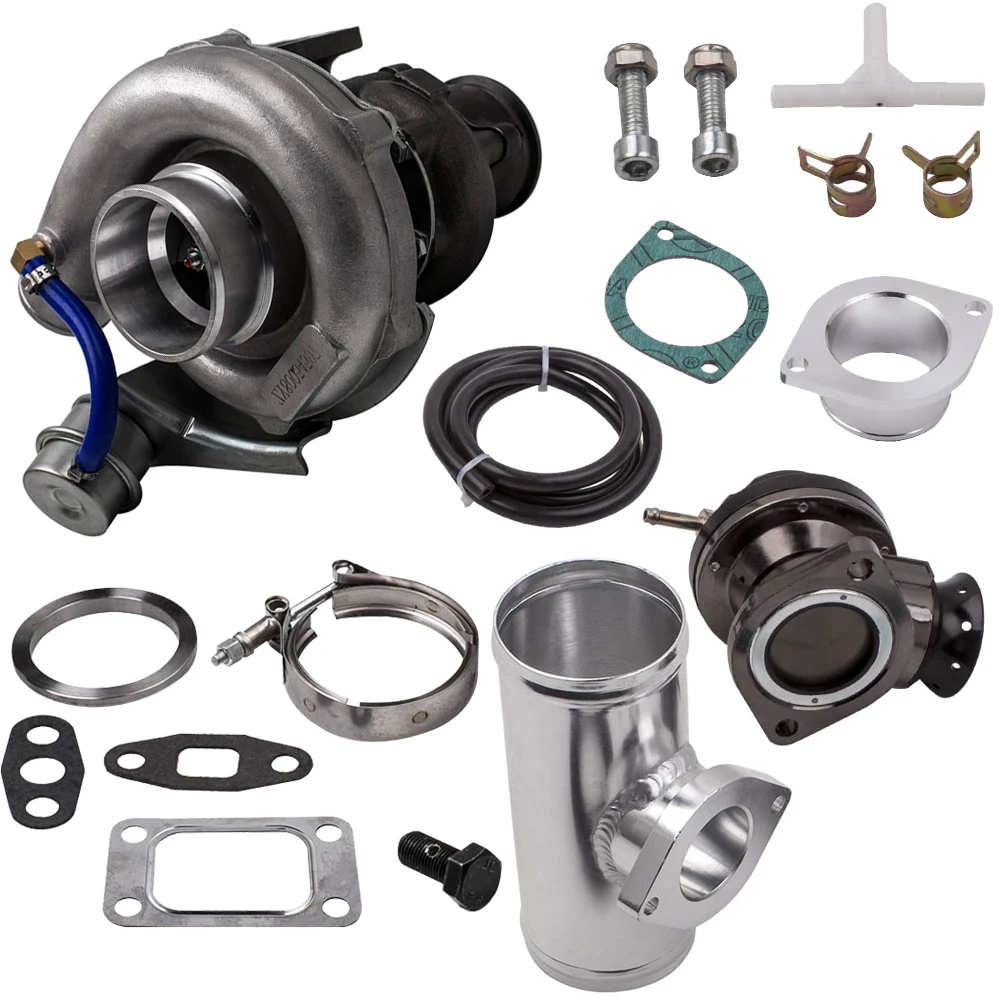

Package Includes:

1xT3/T4 T04E V-band Turbocharger
1x Type-RS Blow Off Valve Kit
1x Type-RS 2.5" Aluminum Flange Pipe Adapter
(You will get exactly as shown in the picture above)

NOTE:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
