Name: T76 Turbo Turbocharger T4 .96 A/r .80 Trim 500 Hp 76mm Compressor Turbine
SKU: 1005005439851098
Availability: InStock

T76 Turbo Turbocharger T4 .96 A/r .80 Trim 500 Hp 76mm Compressor Turbine

$789.42 – $890.22

SKU: 1005005439851098 Category: Turbo

Note

* This is universal application turbo, so modification might be required for some vehicles.

T76 T4 Flange .96 A/R .80 A/R V-Band Racing Turbo Turbocharger – Up to 500 HP

Application:

Universal turbo for V6 V8 Cars
Perfect fit for Above 3.0L Engines, 6/8 cylinder

Specific:

Exhaust Inlet Flange: T4 Flange

Exhaust Outlet Flange: V-Band

Outer diameter of V-Band : 91.95mm
Inner diameter of V-Band : 74.5mm

Compressor:

Compressor Trim: 56.1
Compressor Inducer Diameter: 76.6
Compressor Exducer Diameter: 102.3
Compressor A/R: 0.8

Turbine:

Exhaust Inlet Flange: T4 Flange
Exhaust Outlet Flange: V-Band
Turbine Inducer Diameter: 73.5
Turbine Exducer Diameter: 64.3
Turbine Trim: 76.5
Turbine A/R: 0.96

Oil Inlet: 1/8"-27
Oil Outlet: 2*M8*1.25

Bearing: Wet Float
Cooling Type:  Oil Cooled
Wastegate:  W/O Wastegate
Turbo Type:  Individual
Thrust Bearing: 270 degree
Horse Power: Boost Horse Power up to 500BHP
Condition: 100% brand new

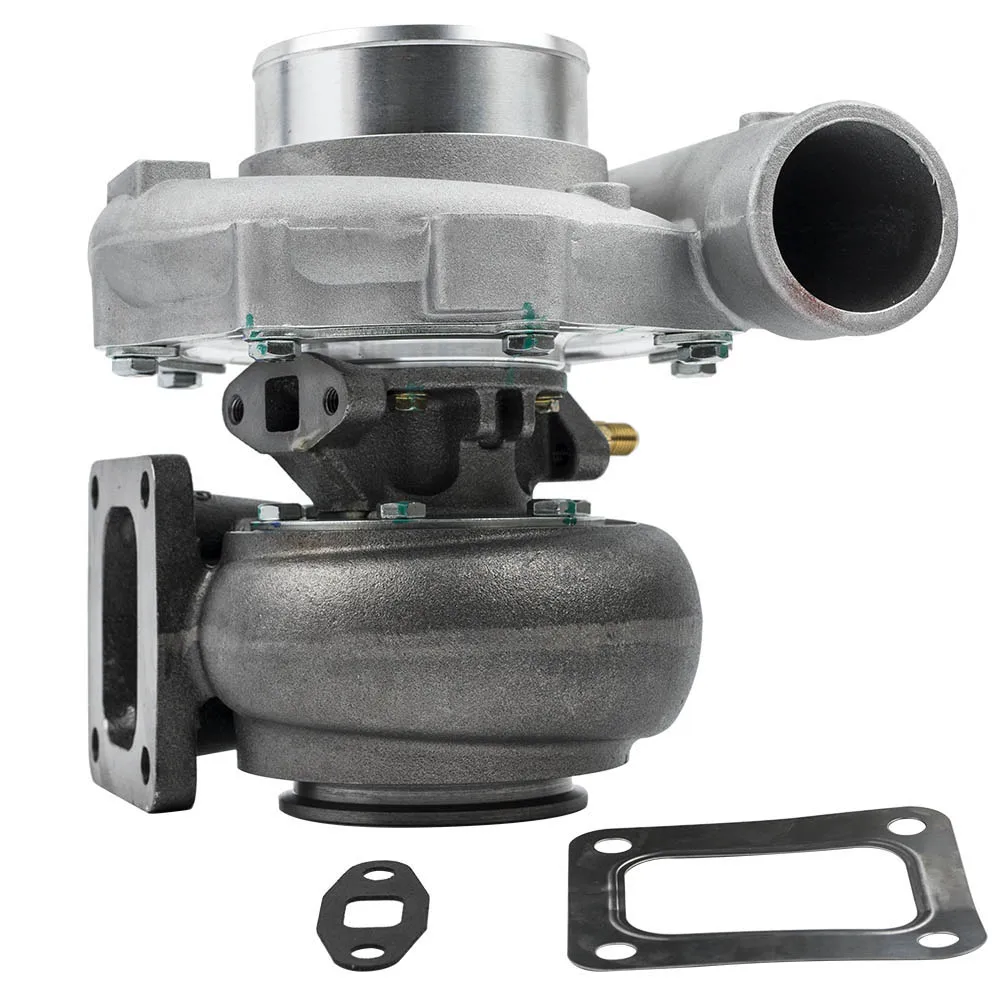

Accessories:  You will get exactly as shown in the picture above
Package Size: 29*27*24 cm
Package Weight:  10000 g

Features:

*Product Material
1. Turbine housing: Ductile iron QT450-10 – temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy – high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Notice:

* Replace, repair or reconnect air cleaner element per manufacturer’s manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
