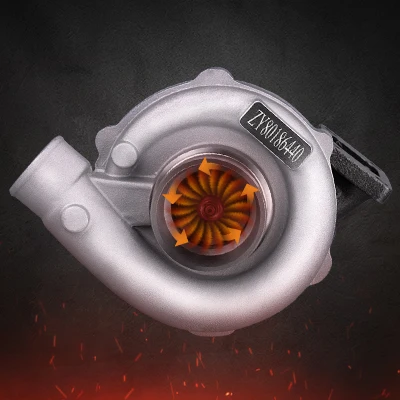

Turbo Charger .50 A/R T04E T3 T4 0.63 t04e universal turbocharger for 2.0-2.5L

Fit for:

This item fits: Universal Application.

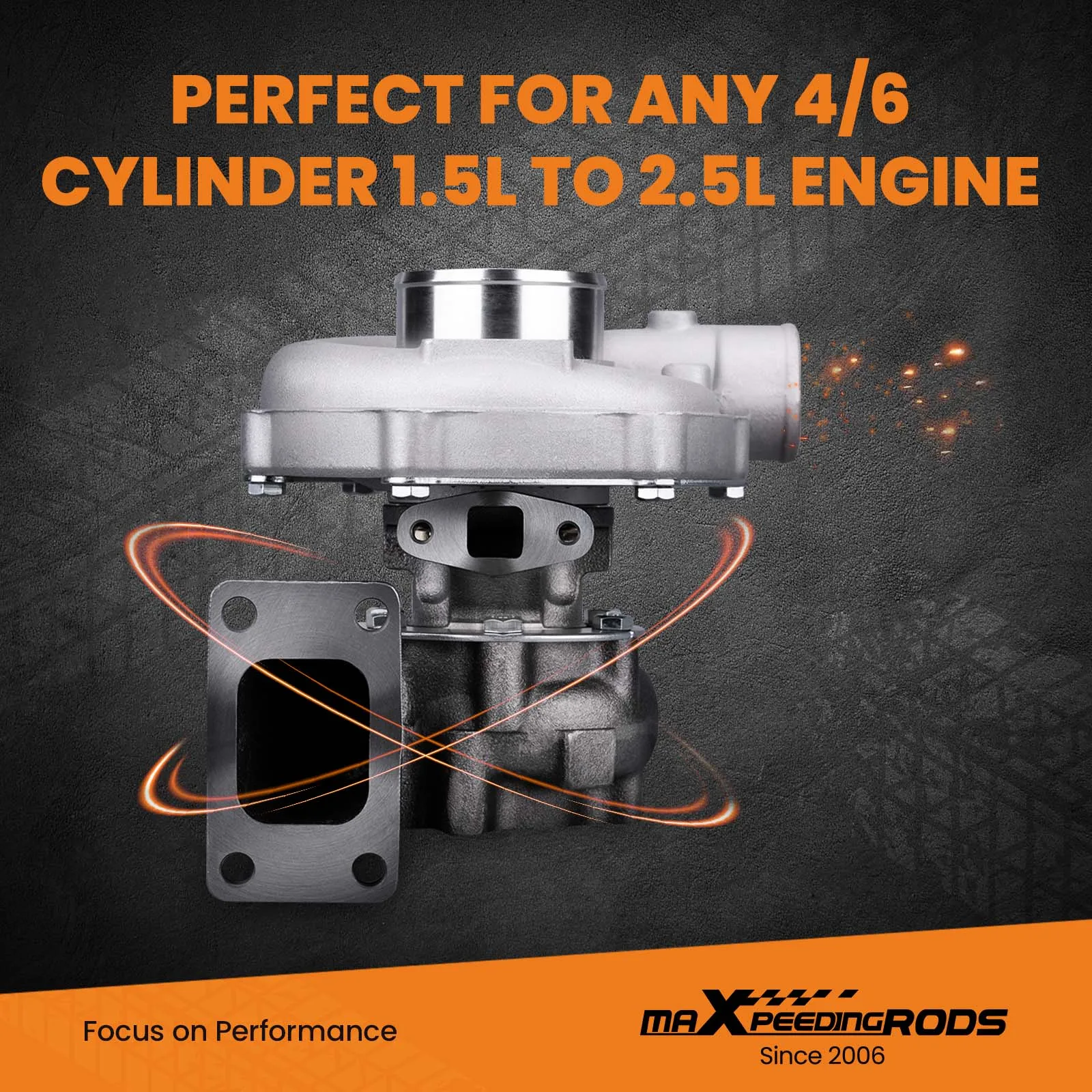

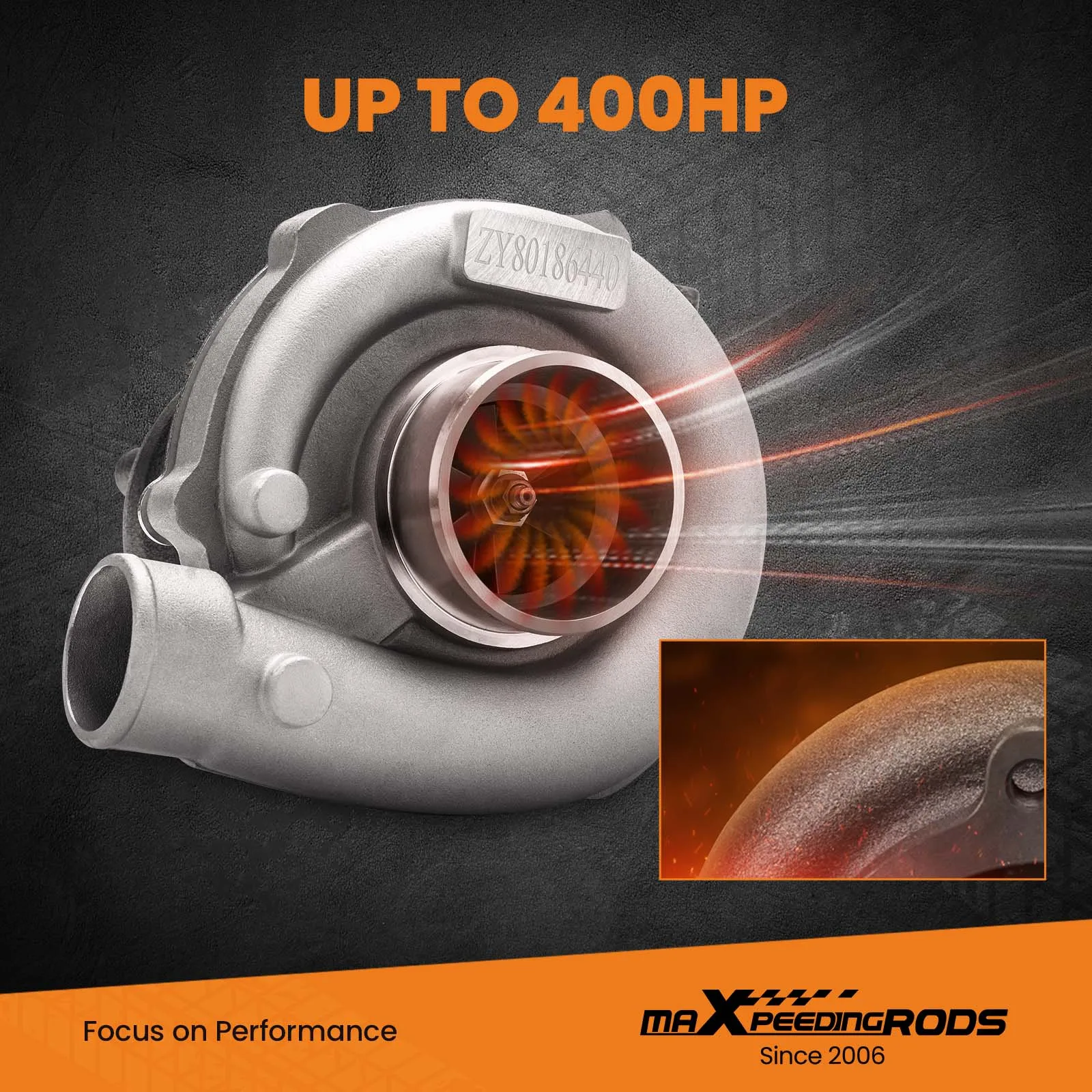

for 1.5L to 2.5L any 4/6 cylinder engine up to 400+ HP

Maximum 18PSI

Notice:Please confirm that your car’s displacement is between 1.5-2.5L .Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Specification

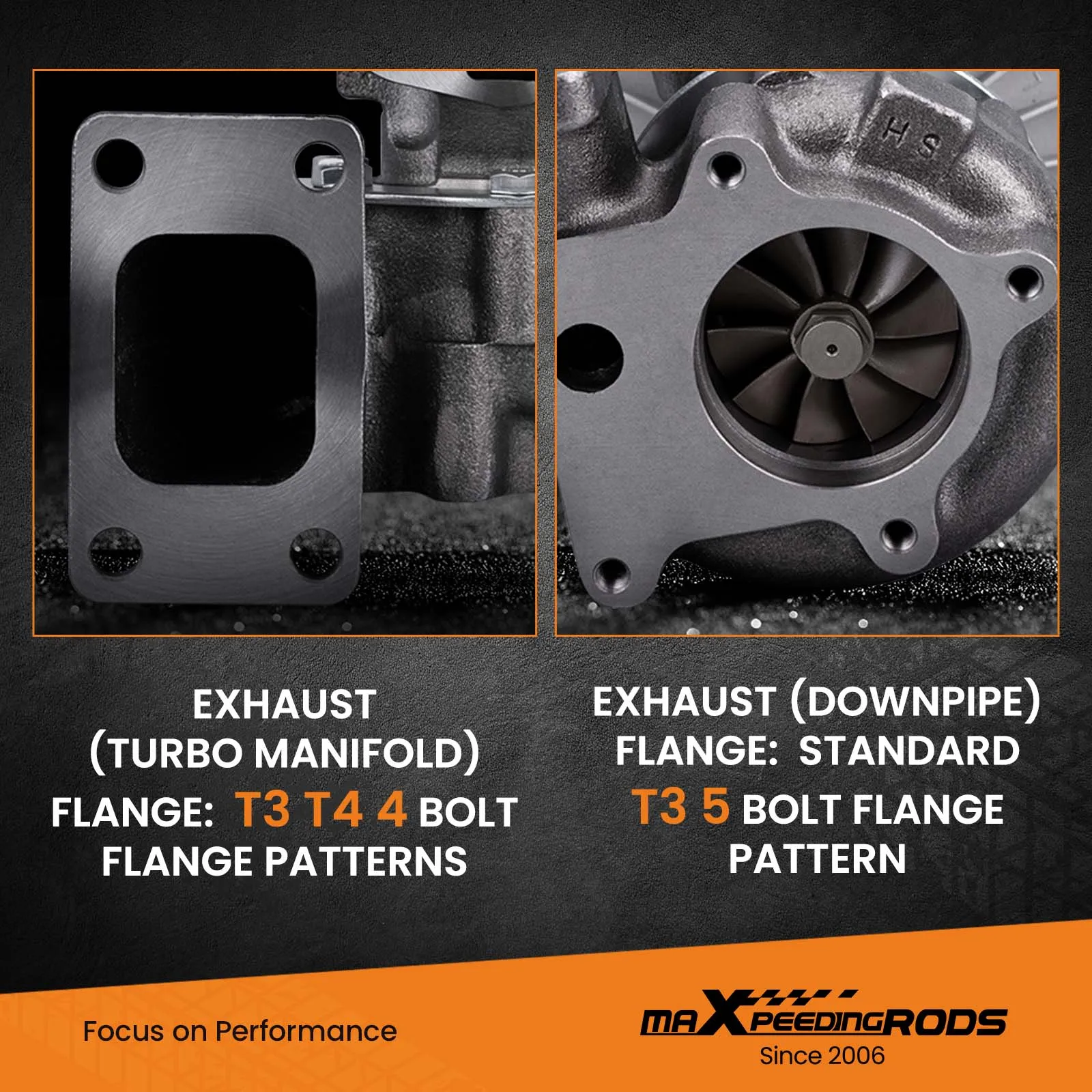

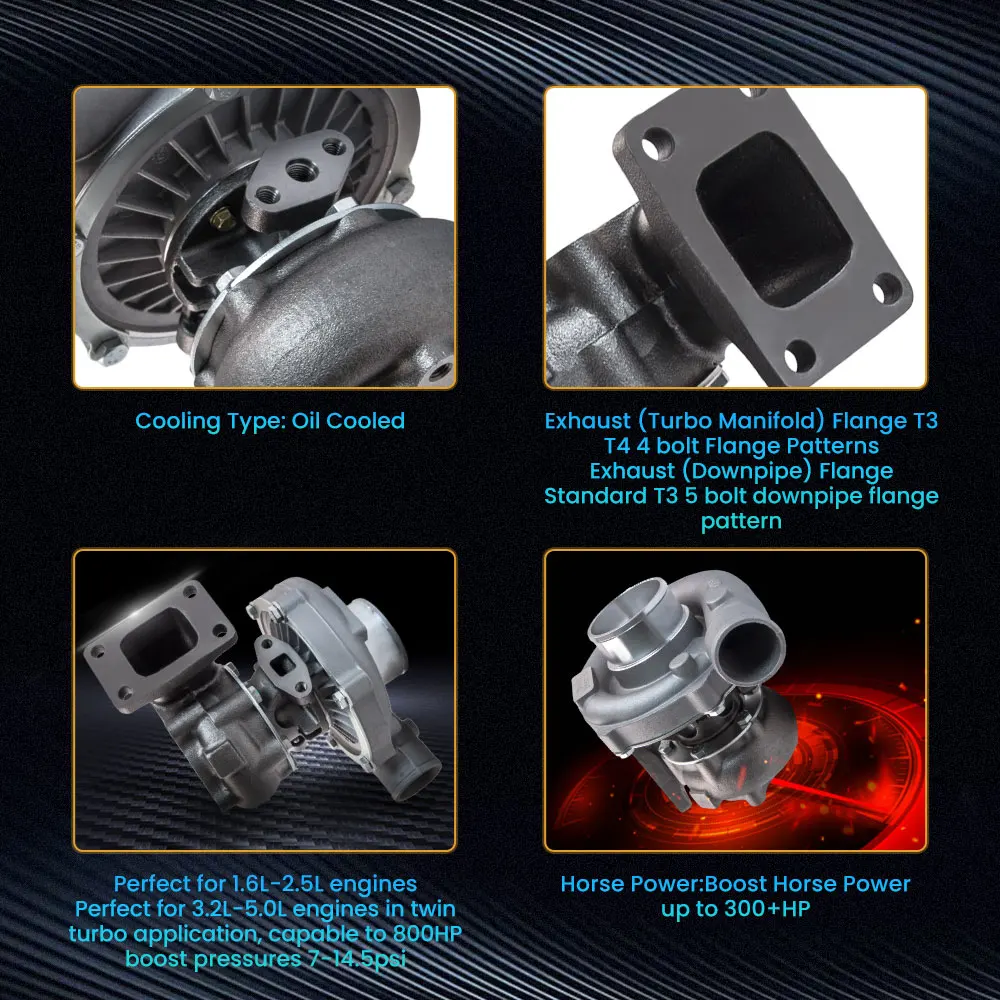

Exhaust (Turbo Manifold) FlangeT3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange Standard T3 5 bolt downpipe flange pattern

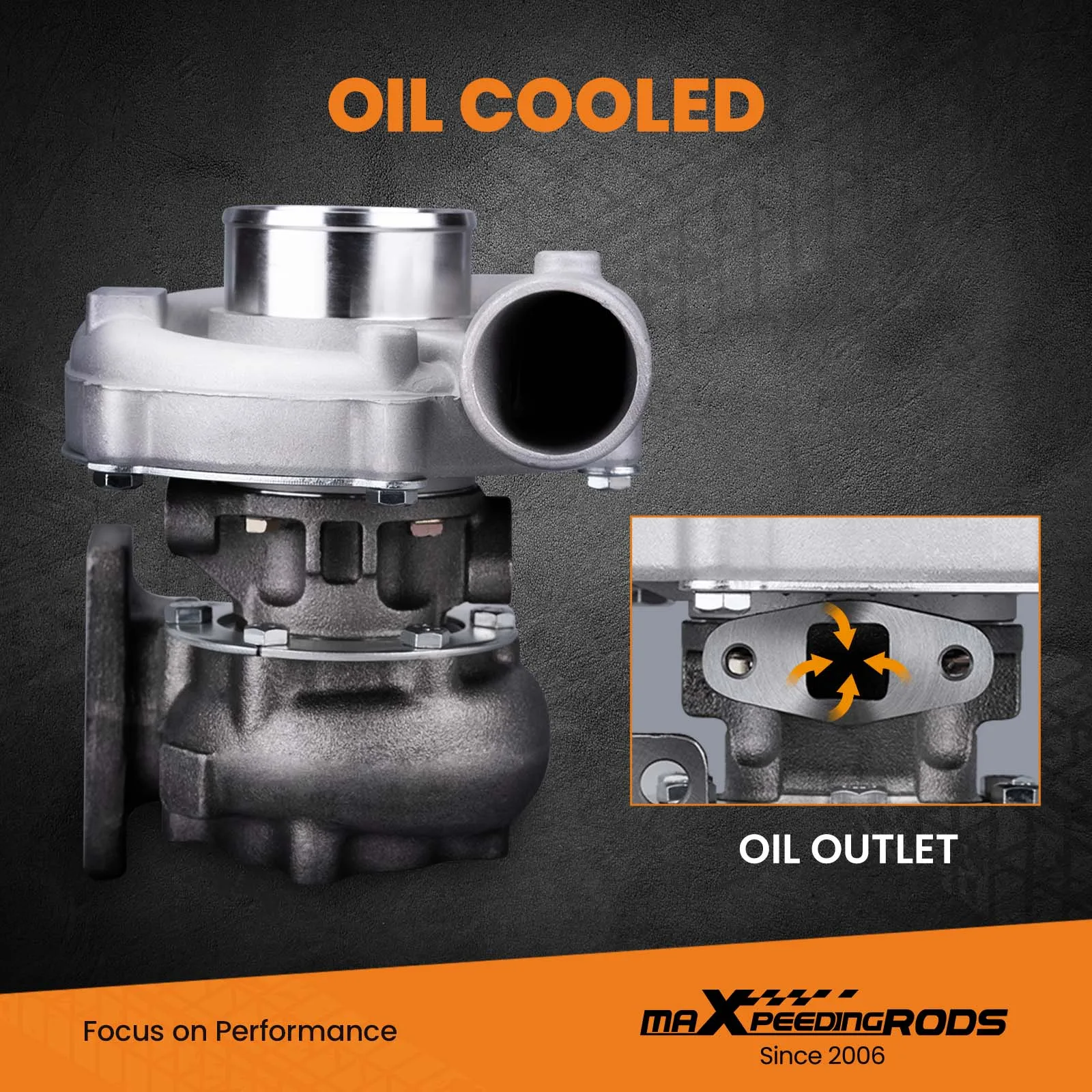

Cooling TypeOil Cooled
WastegateExternal Wastegate

Horse PowerBoost Horse Power up to 300+HP

Compressor:

Trim: 48.1

A/R: 0.5

Inducer: 52.7

Exducer: 76

Turbine:

Trim: 74.2

A/R: 0.63

Inducer: 64.8

Exducer: 55.8

Turbine exhaust inlet：44.5mm/81mm

Compressor outlet：45mm(inside diameter)、53mm(Outer diameter)

Compressor inlet：68 mm(inside diameter)、72mm(Outer diameter)

Condition:Brand New
Bearing Type:Journal Bearing

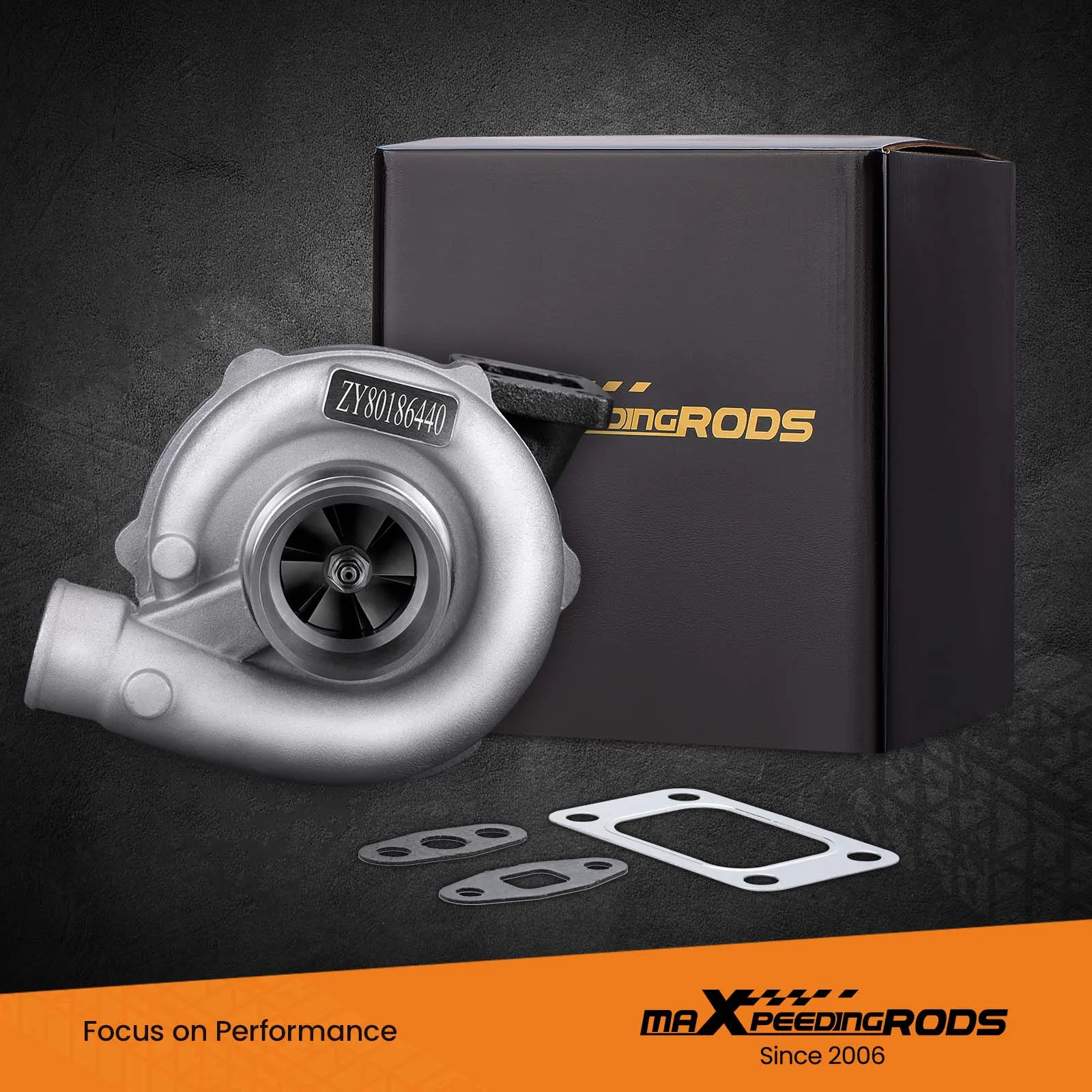

Accessories:You will get exactly as shown in the picture above

KEY FEATURES

-High Quality Material, Cast Housing with Durable Steel

-Boost Engine Horsepower Significantly

-Increase Engine Power and Torque Outpout;

-Maintain Combustion Chamber Pressure and Fuel/Air Load

-Contructed with High Quality Material

-Built for Durability and Strength

OUR ADVANTAGE

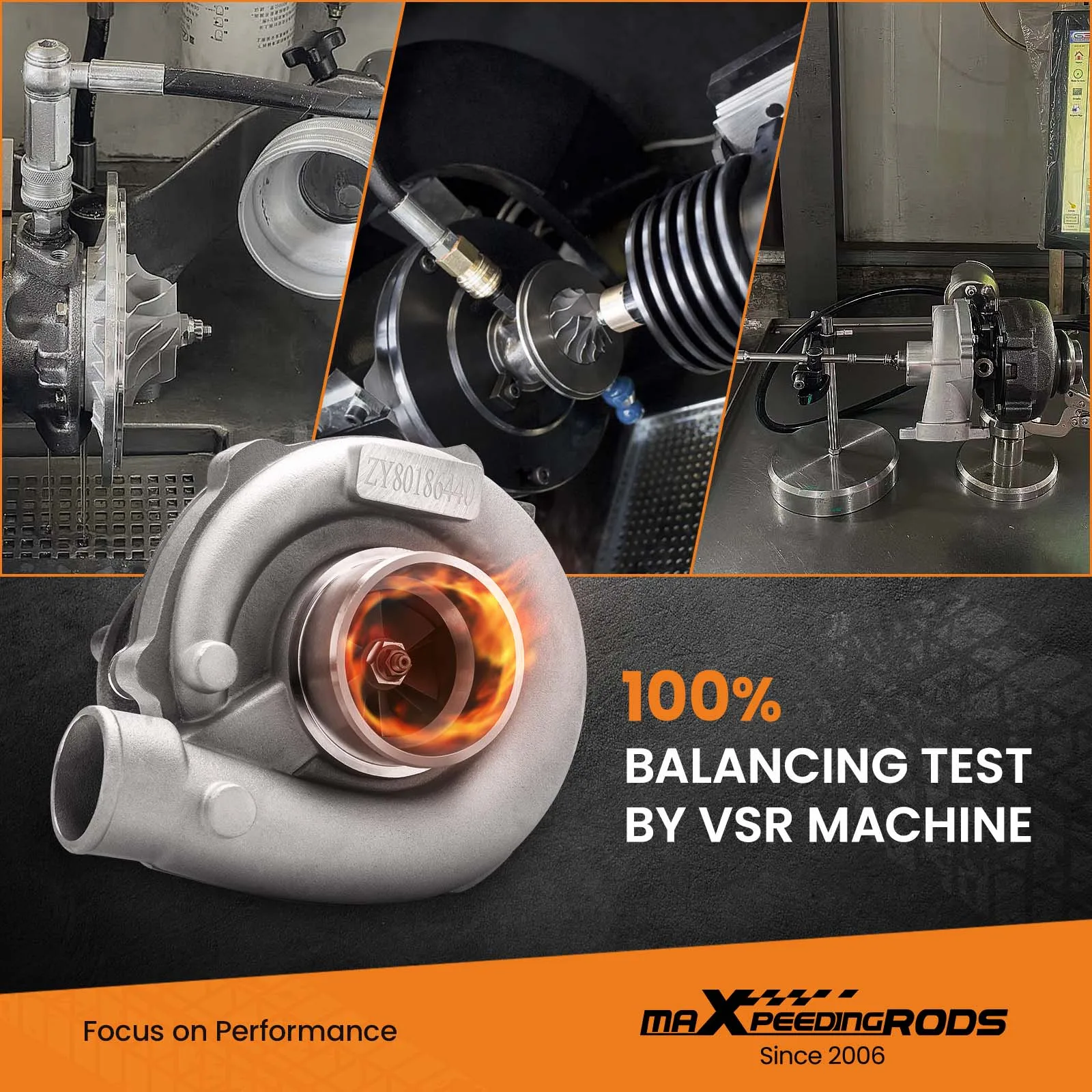

1、100% BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology.

Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2、All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.

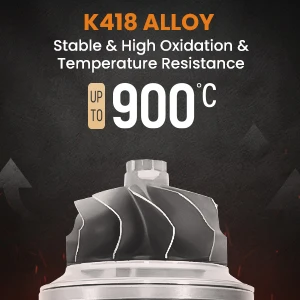

Turbine Wheel： the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.

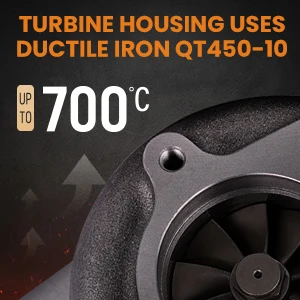

Turbine housing :Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius

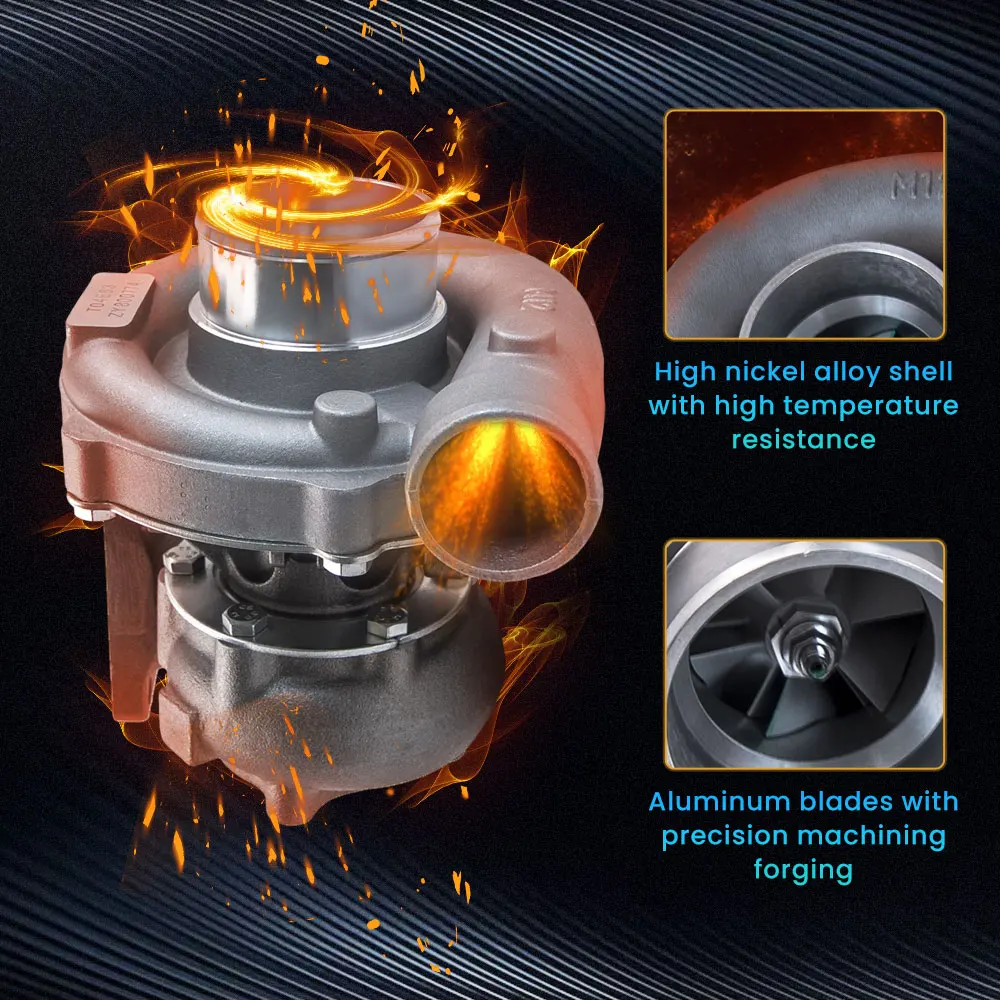

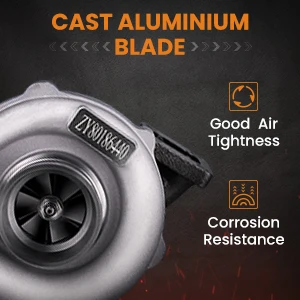

Aluminum blades :Precision machining forging. The lightweight design enables reduced noise and increased response without compromising comfort or longevity

2 YEARS WARRANTY

Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.

Feature

*100% Brand New

* Professional Installation is Highly Recommended， Instruction is NOT Included

*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.

*Does NOT have a internal wastegate so you must have a external wastegate on your manifold.

NOTE:

* Professional installation is highly recommended (No Instruction Included)
* This is universal application turbo, so modification might be required for some vehicles.
* For any needs please contact to us
