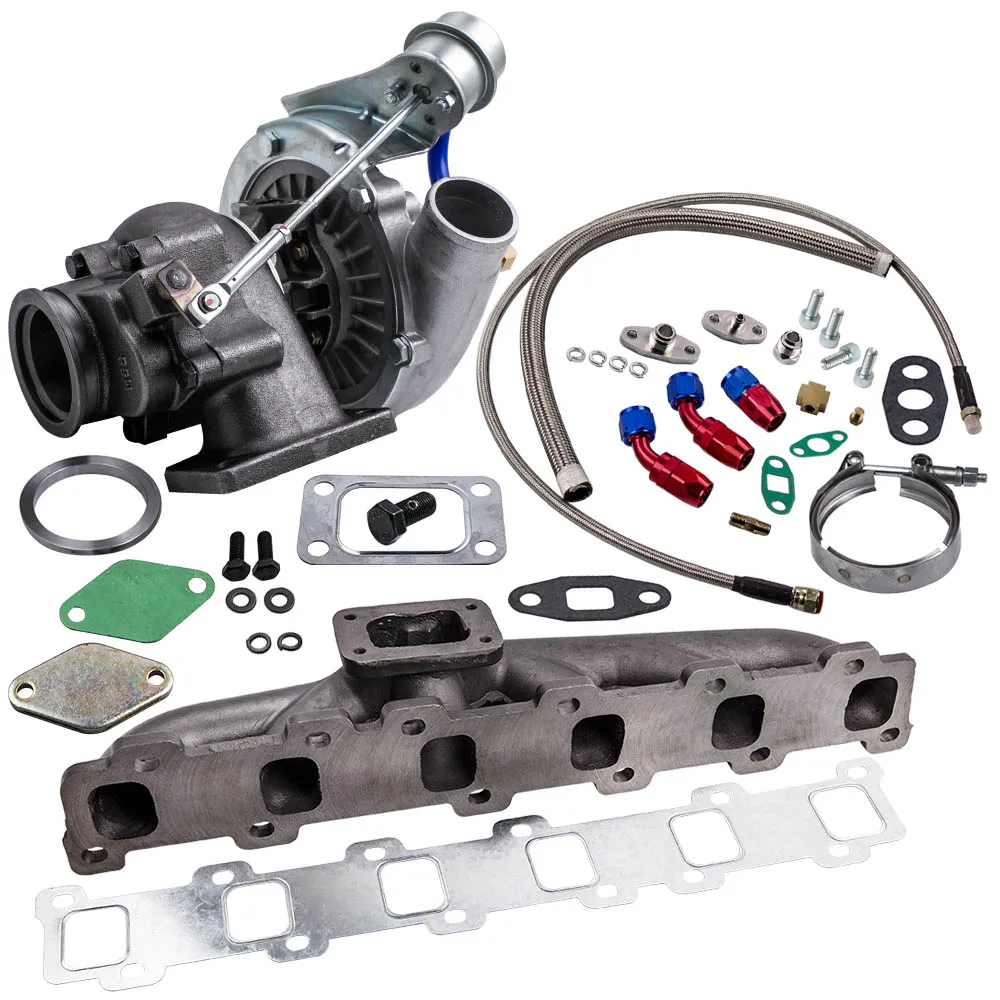

Manifold+Turbo charger KIT Fit Nissan Safari Patrol (4.2L)TD42 TD42T1 GQ GU Y60

Quantity :1 unit T3/T04e (V-BAND) TURBOCHARGER + 1 unit exhaust inlet Manifold + 1 set oil inlet oil return lines kits

Turbo Suitable for:

Perfect for all 4 or 6 CYL, 1.5L-2.5L engines

Cooling Type: Oil Cooled Wastegate Internal

Horse Power: Horse Power Boost up to 420HP

Manifold Suitable for:

for Nissan Safari / Patrol 4.2L TD42

– For TB42, TB45, TD45, this manifold may also fit; as far as we know, the port configurations are the same. Please double check the dimensions with us before buying.

Oilline Suitable for:

Turbo Specifics:

Compressor：

Trim: 48.1

A/R: 0.5

Inducer: 52.7mm

Exducer: 76mm

———————-

Turbine:

Trim: 74.2

A/R: 0.63

Inducer: 64.8mm

Exducer: 55.8mm

———————-

Turbine exhaust outlet : 79mm

Turbine exhaust inlet：44.7mm/85.8mm

Compressor outlet：78 mm

Compressor inlet：51.5 mm

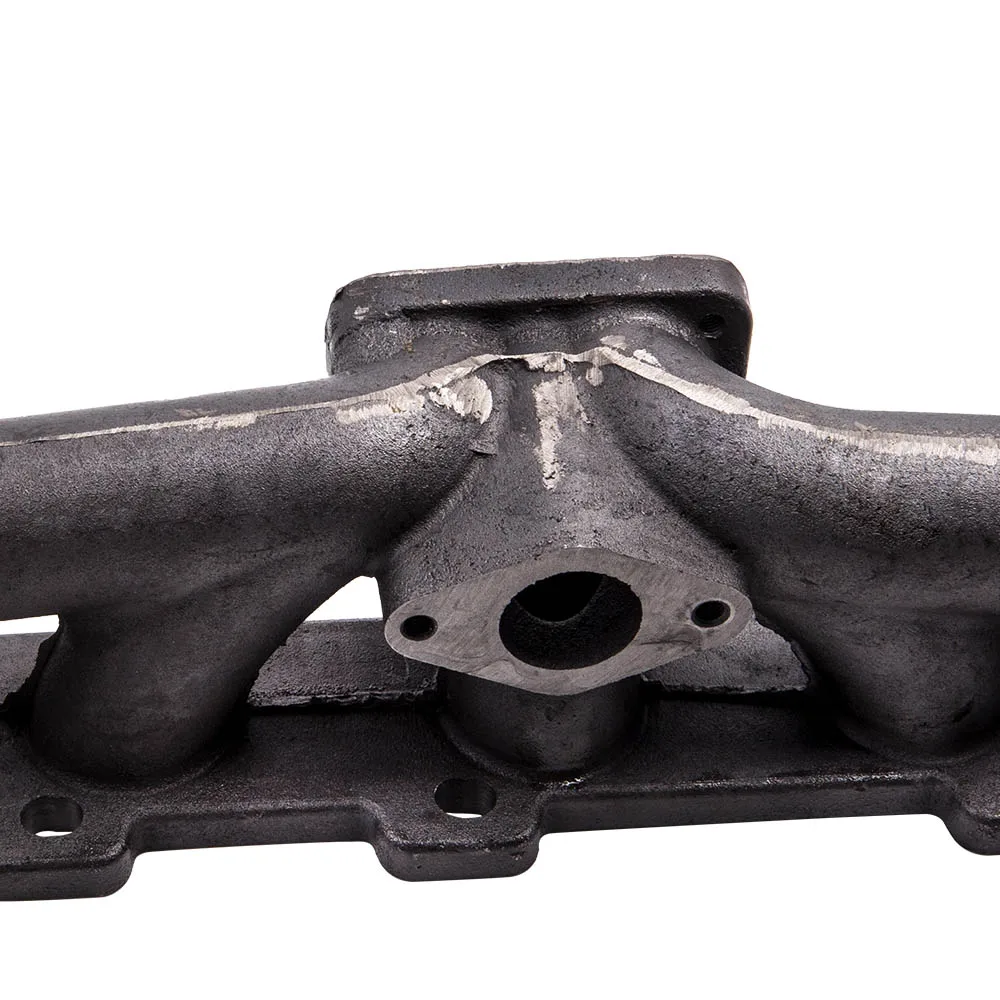

Manifold Specifics：

Turbo Flange : T3 flange

Mount Type: top mount / high mount

External Wastegate:38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

OilLineSpecifics：

Features:

– Brand New

– Specific design to increase the volumetric efficiency of the engine, resulting in a gain in power output.

– Improve Exhaust Gas Flow and Increase Turbo Spool up and Reduces Turbo Lag

– Manufactured from high quality cast iron for durable usage

– Continuous tests under extreme conditions to withstand high temperature

– Special surface treatment to resist corrosion.

– Accurate dimensions with exquisite workmanship

– Tubes sized and shaped to match cylinder-head exhaust port

Note:Please feel free to contact us for whatever we can help
