Application

(Important notice: please make sure your engine is not 110hp or 109ps, this item does not fit 110hp or 109ps engine)

for Ford Fiesta VI 1.6 TDCi engine DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Ford C-MAX 1.6 TDCi engine DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-2008
for Ford Focus II 1.6 TDCi engine HHDA 1560 ccm 66 Kw – 90 hp 2005-
for Ford Fusion 1.6 TDCi engine DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Citroen Berlingo 1.6 HDi engine: DV6B DV6ATED4 1560 ccm 55 Kw – 75 hp 2005-
for Citroen Berlingo 1.6 HDi engine DV6B DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Citroen C3 1.6 HDi engine DV6B DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Citroen C4 1.6 HDi engine DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Citroen Jumpy 1.6 HDi engine DV6B DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Citroen Xsara 1.6 HDi engine DV6B DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Peugeot 207 1.6 HDi engine DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Peugeot 307 1.6 HDi engine DV6ATED4 1560 ccm 66 Kw – 90 hp 2005-
for Peugeot 308 I 1.6 HDi FAP engine DV6ATED4 1560 ccm 66 Kw – 90 hp 2007-
for Peugeot Expert 1.6 HDi FAP engine DV6UTED4 1560 ccm 66 Kw – 90 hp 2007-
for Peugeot Partner 1.6 HDi engine DV6ATED4 DV6B 1560 ccm 55 Kw – 75 hp 2005-
for Peugeot Partner 1.6 HDi engine DV6ATED4 DV6B 1560 ccm 66 Kw – 90 hp 2005-

Specification

Turbo Model：TD025
Engine Code：DV6ATED4/ DV6B / DV6UTED4

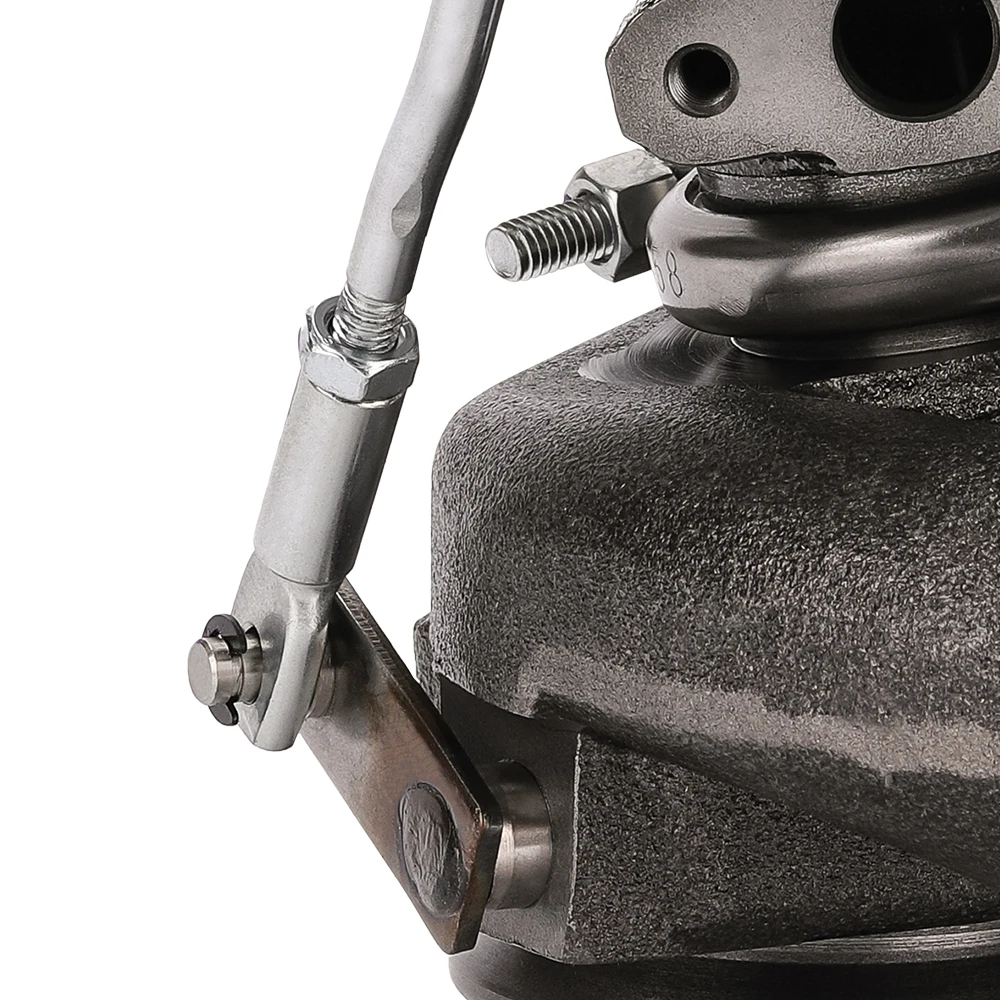

Actuation: Vacuum
Cooling Type: Oil Cooling

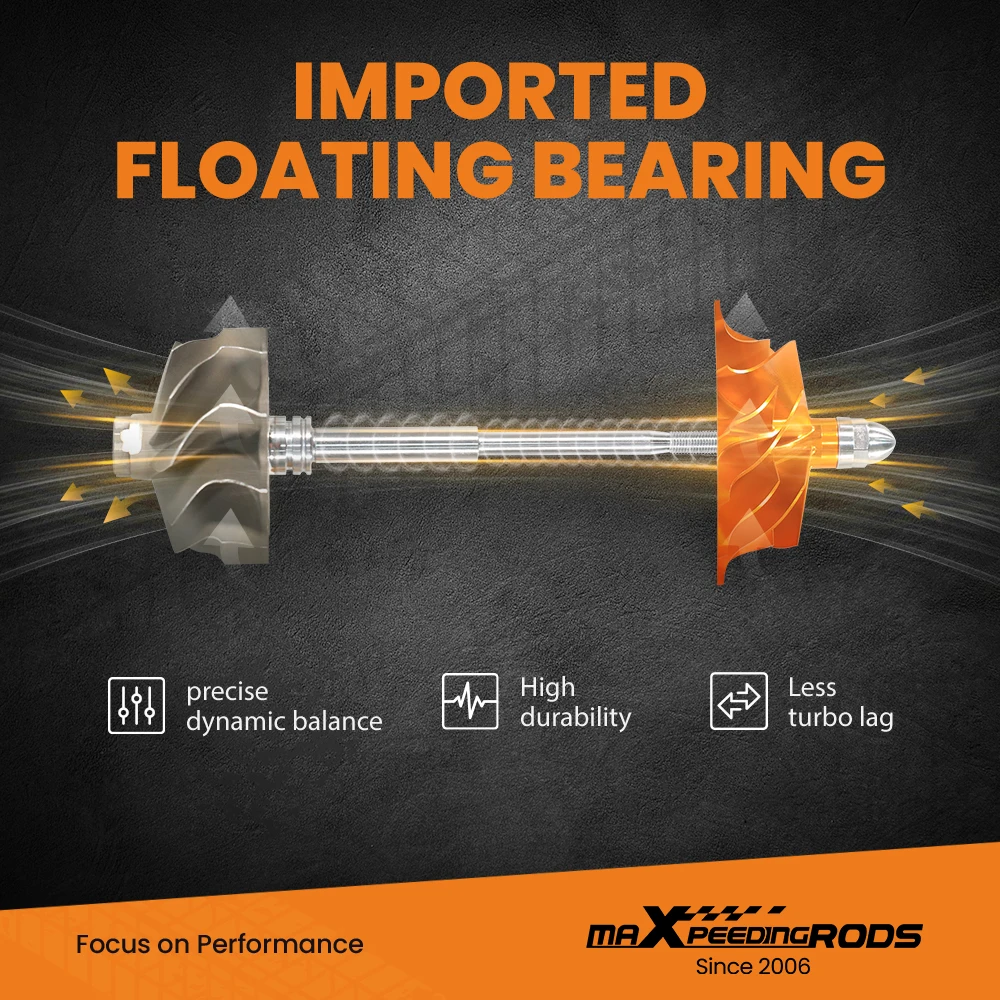

Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 90HP
Condition: Brand New
Warranty: 2 years warranty for any manufacturing defect

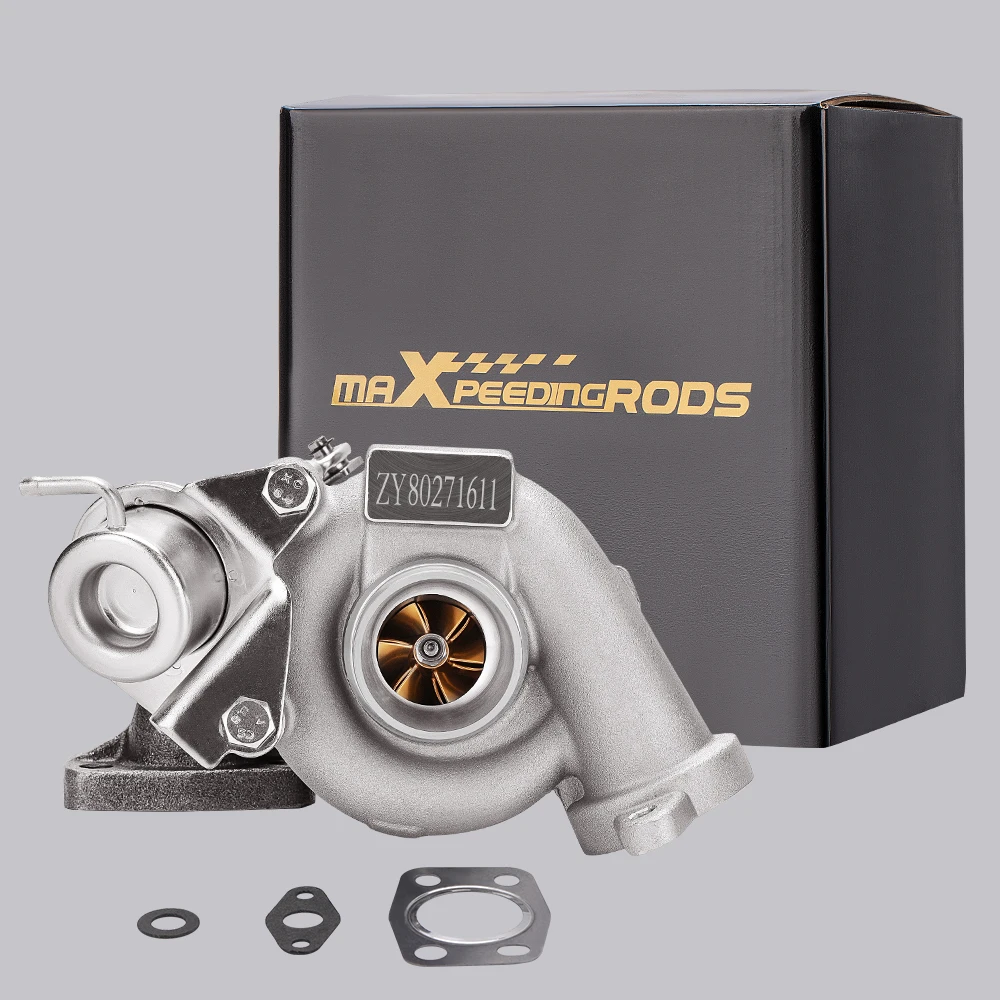

Accessories: You will receive the parts exactly as shown in the picture above.

Part Numbers

49173-07508 49173-07507  49173-07506  49173-07504  49173-07503
49173-07502  49173-07522  49173-07516  49173-07527  49173-07528
49173-07513 , 49173-07514 , 49173-07517,49173-56201

49173-07518 , 49173-07523 , 49173-07524
49173-07526 , 49173-07527
54359707000 , 5435 970 7000 , 5435-970-7000
54359887000 , 5435 988 7000 , 5435-988-7000
0375K5 , 0375Q2 , 0375Q3 , 0375N5
0375J0 , 0375Q5 , 0375Q4 , 0375N0
1684949 , 1335262 , 1441254 , 1479841
1523337 , 71793889 , 71793891 , 71794229
9682881380 , 9685293080 , 9657603780
9670371380 , 9657530580 , 9662371080
9682881780 , 3M5Q6K682DD , 3M5Q6K682DE
3M5Q6K682DC , 3M5Q6K682DA , 3M5Q6K682DB
3M5Q-6K682-DD , 3M5Q-6K682-DE , 3M5Q-6K682-DA
3M5Q-6K682-DB , 3M5Q-6K682-DC

Feature

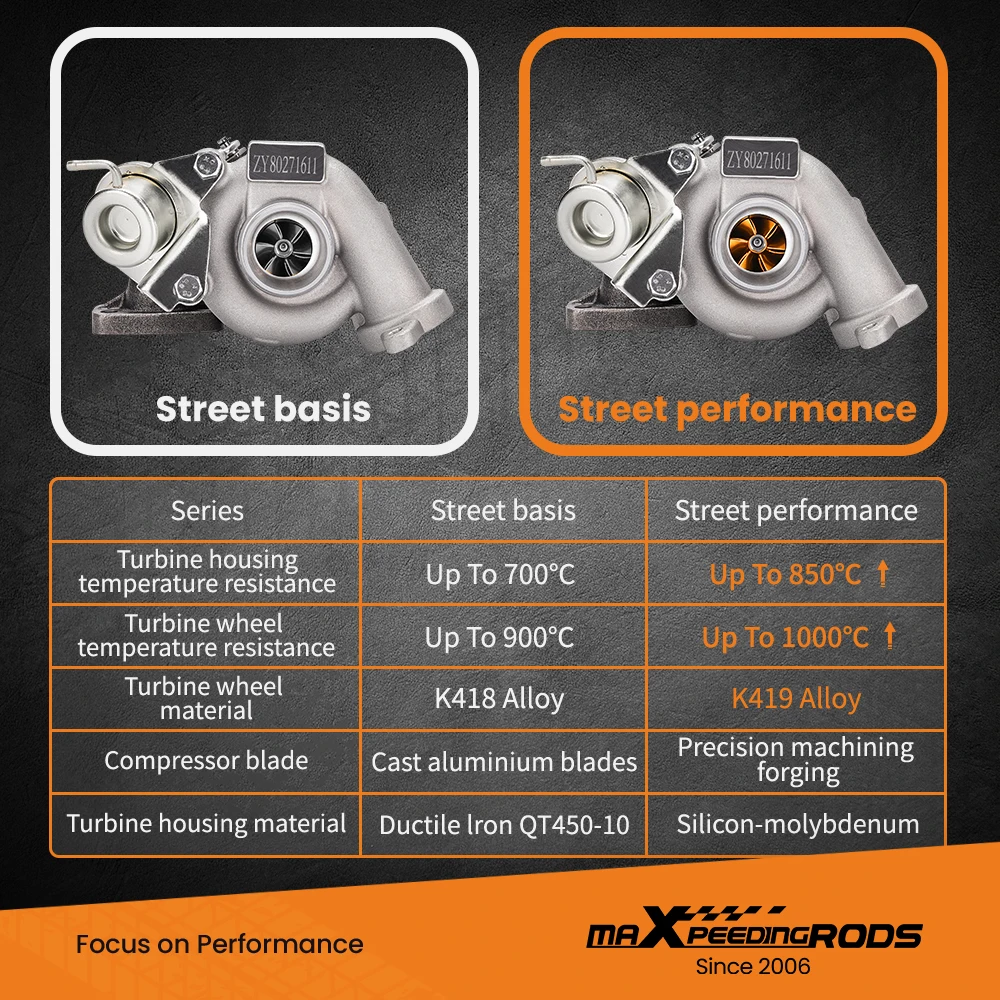

* Product Material

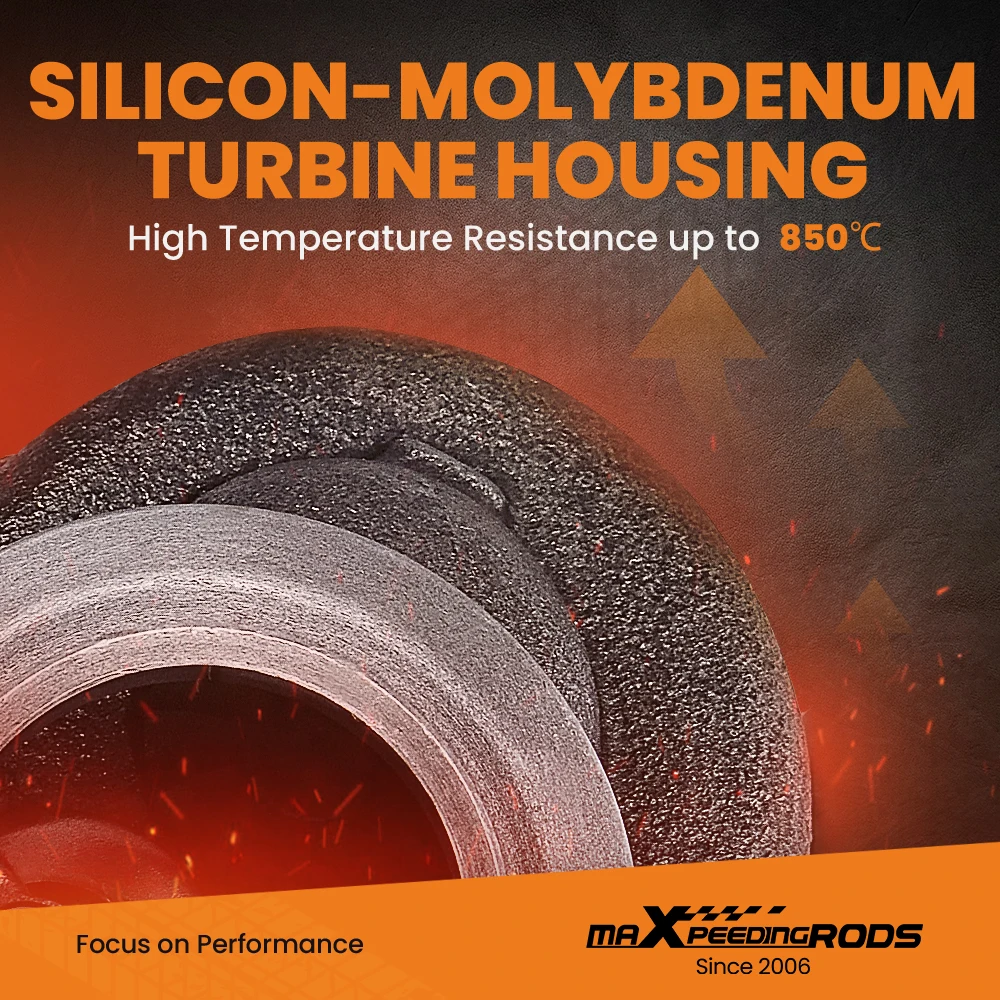

1. Turbine housing ：Silicon-Molybdenum – temperature resistant up to 850℃

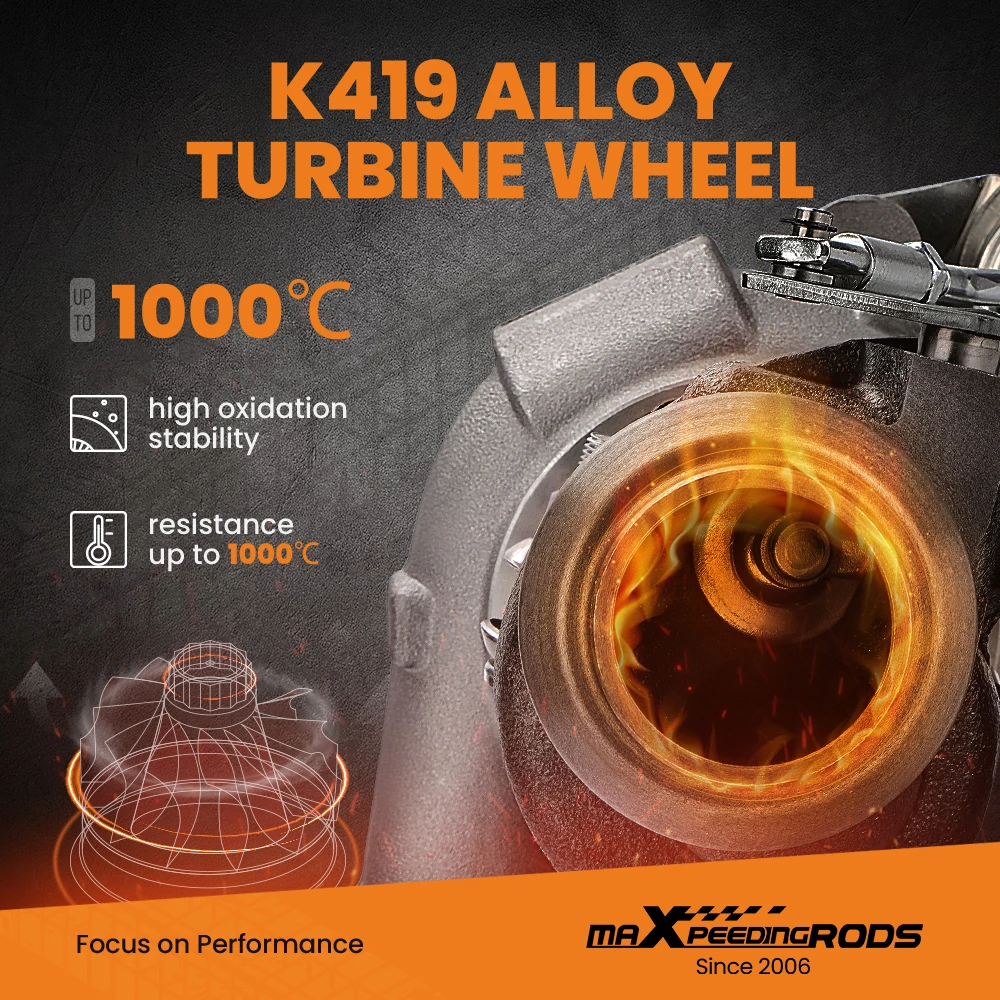

2. Steel Turbine Wheel：K419 alloy – high oxidation stability and resistance  up  to 1000℃

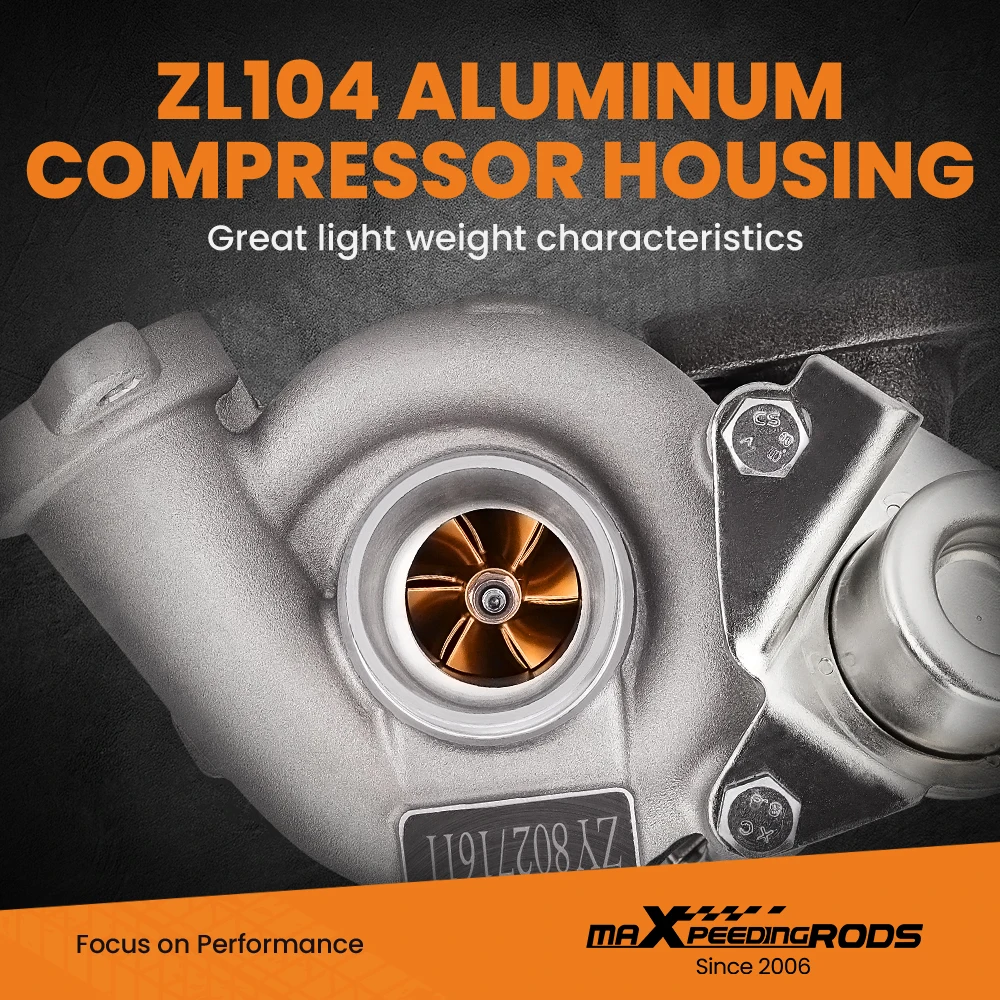

3. Compressor housing：ZL104 aluminum with lightweight

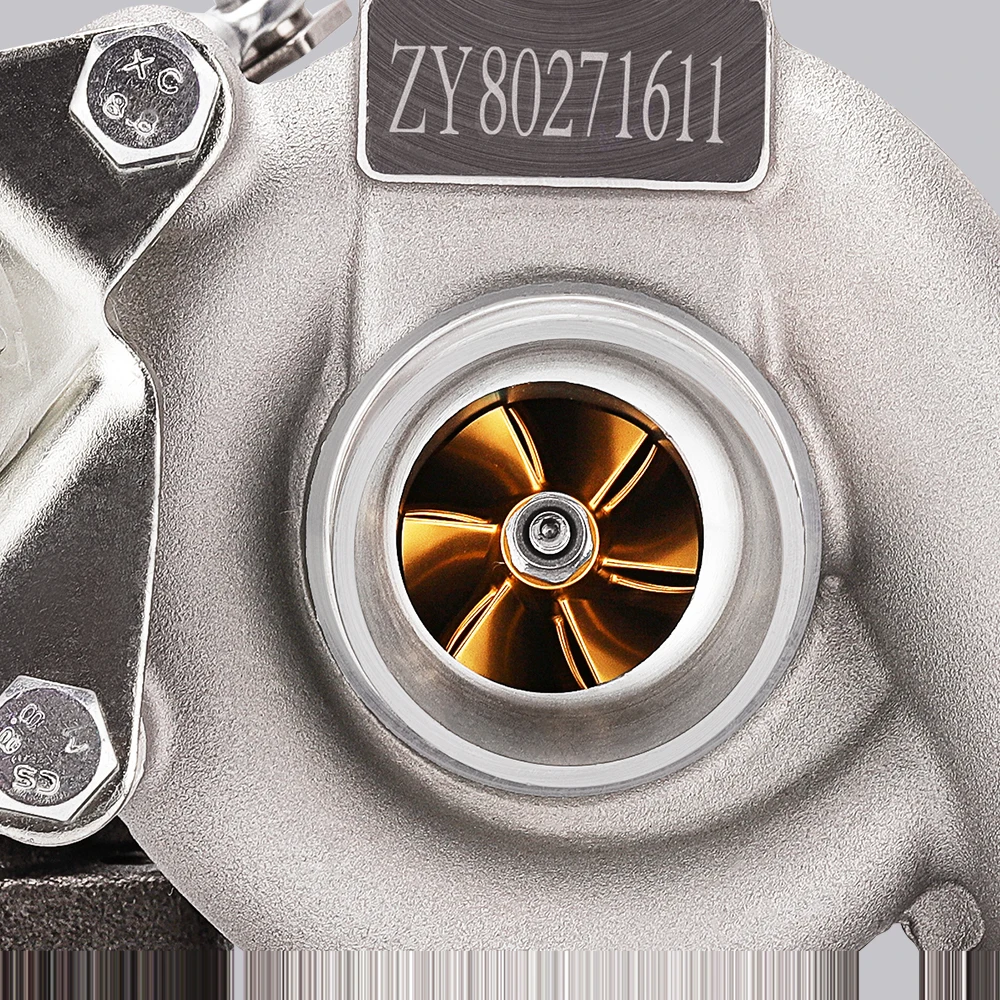

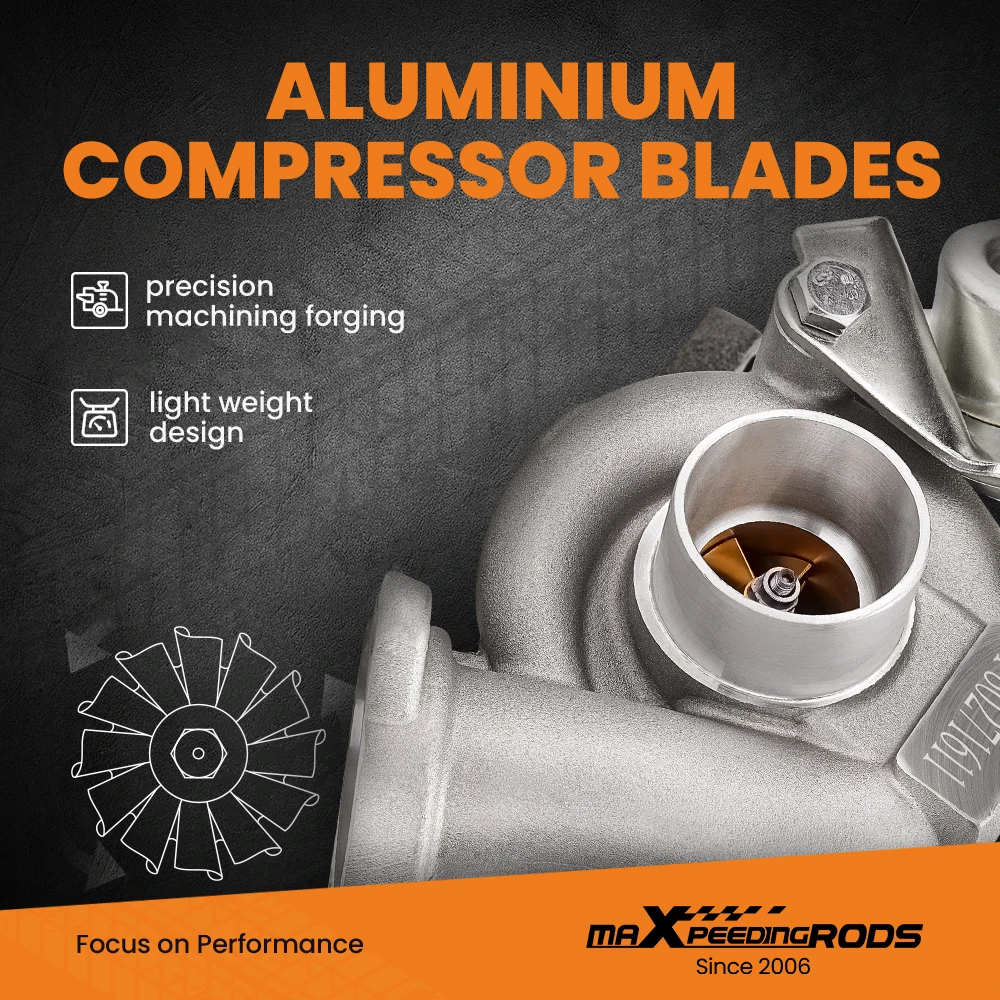

4. Compressor wheel/blades：Aluminum blades-precision machining forging and light weight design

* Product  Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability

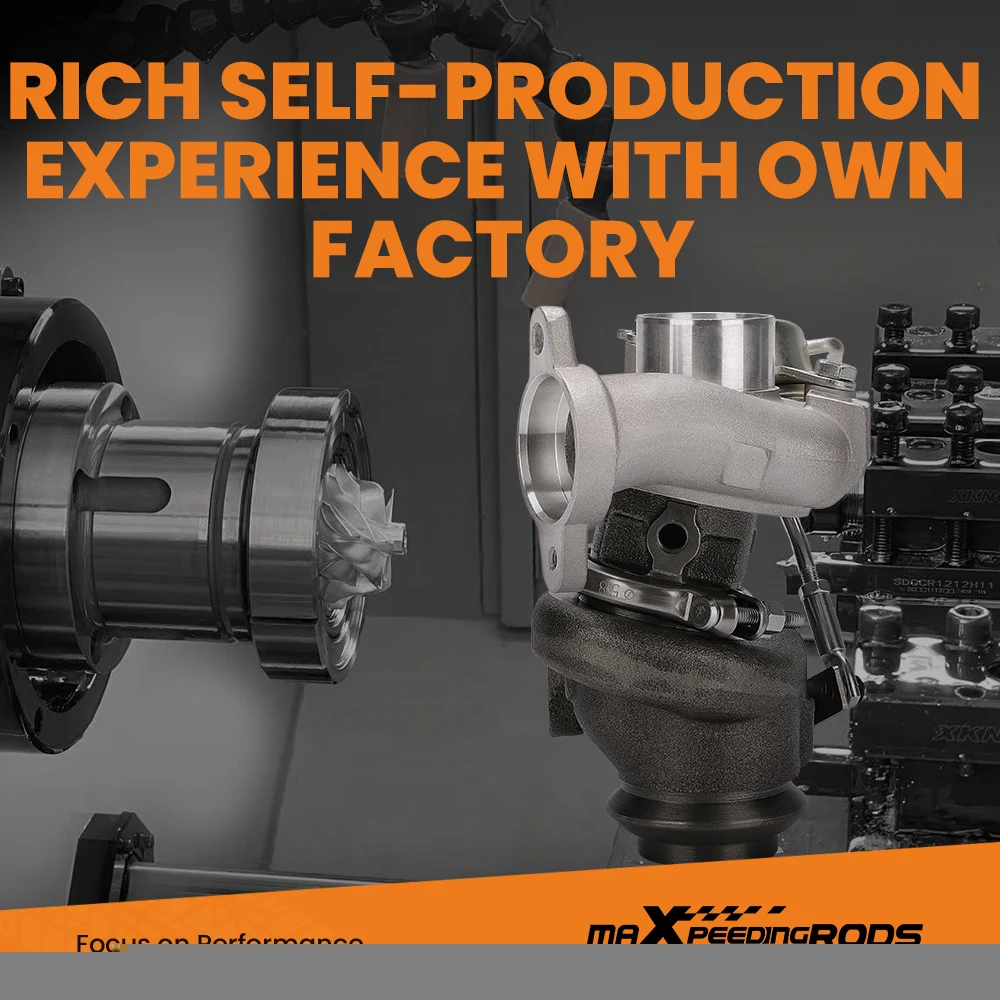

3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

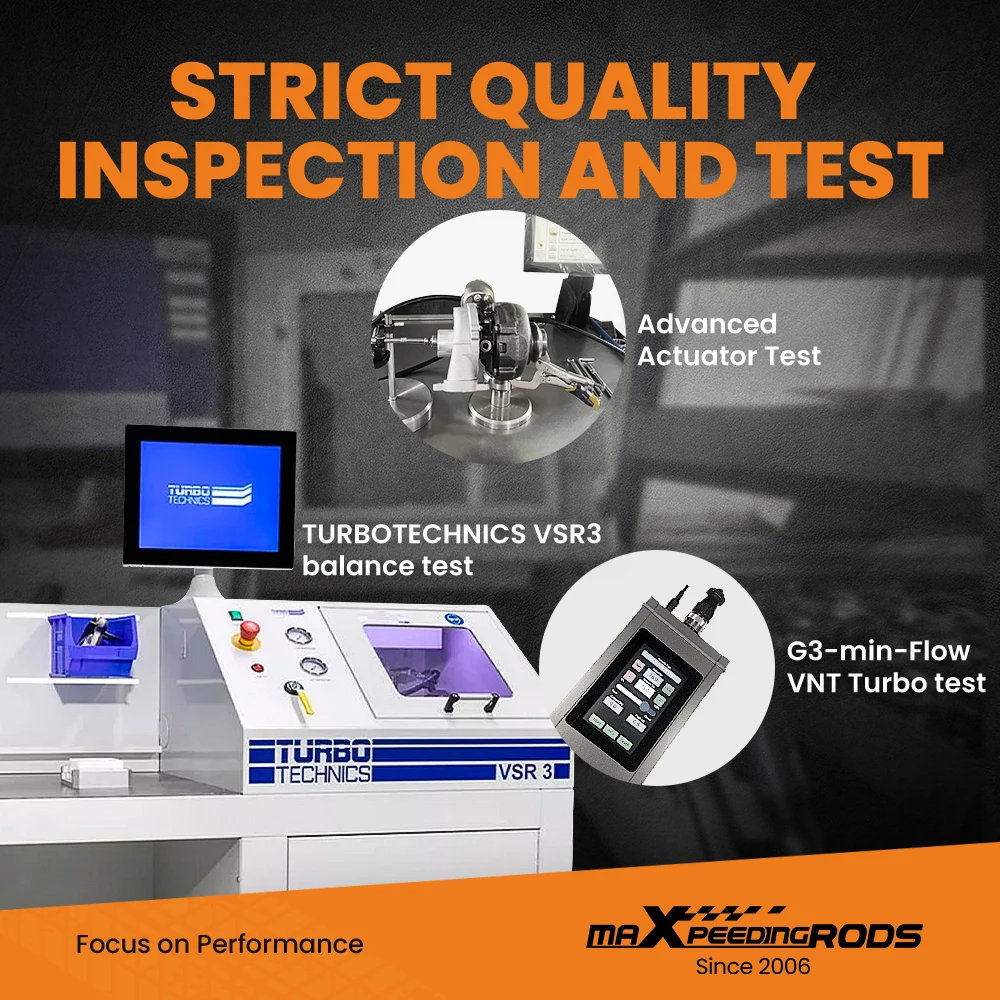

1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  Advanced Actuator Tester/Programmer

Notice

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
