New GT2871 GT2860 GT25 GT28 T25 T28 for SR20 CA18DET Turbo + Braided Oil Fuel Line
Notice:
Pick up service is not available.
This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Application
Perfect for all 1.5L-2.0L engine , for all 4 cylinder
Horse Power: Capable of Boosting Horse Power up to 350BHP
Cooling Type: Water + Oil

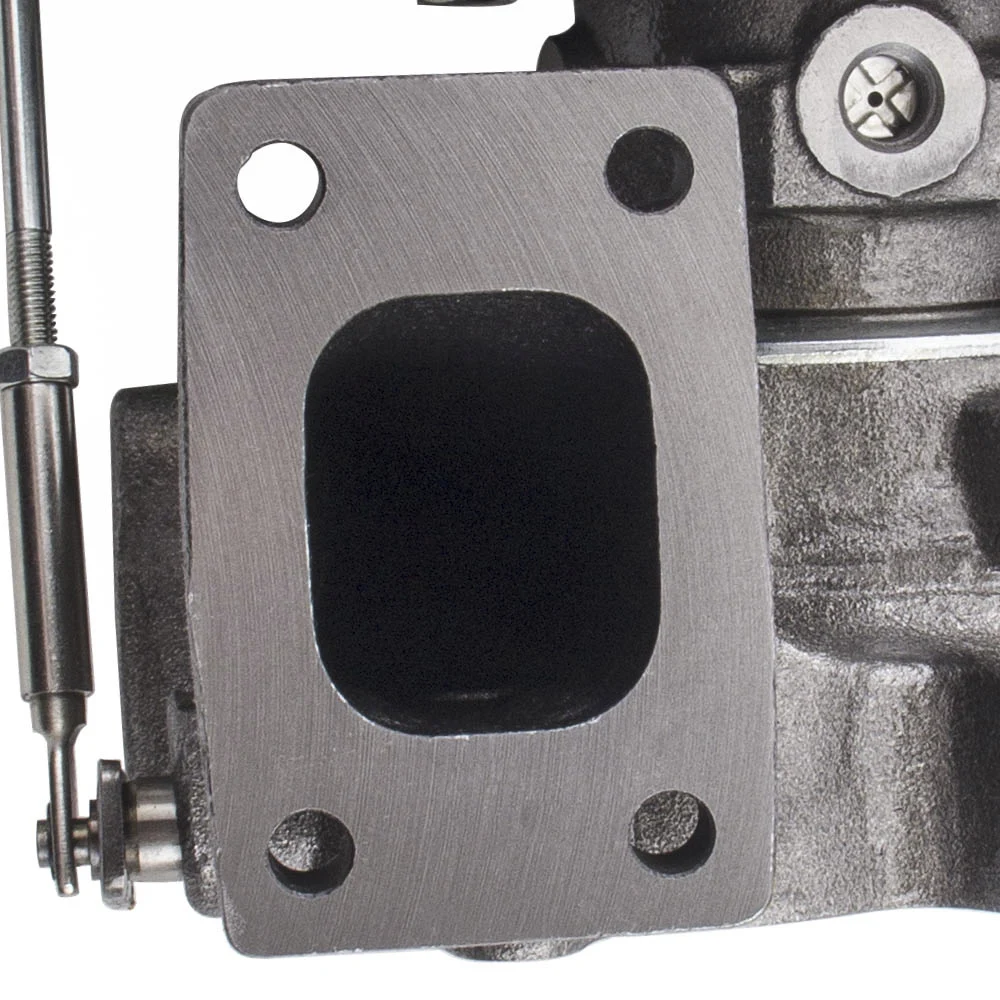

Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Compressor Trim: 48
Compressor Inducer Diameter: 49.20 mm
Compressor Exducer Diameter: 71 mm
Compressor A/R: 0.6
Turbine Trim: 74
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Turbine A/R: 0.64
Bearing: Wet Float
Warranty: 2 Year
Internal Wastegate: Yes
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Accessories: You will get exactly as shown as picture above
Braided Oil Fuel Line
Working Temperature: -40 F to +350 F
Working Pressure: 500 PSI
Burst pressure: 2000 PSI
Inner diameter: 0.34" / 8.64mm
Outside diameter: 0.55" /13.97 mm

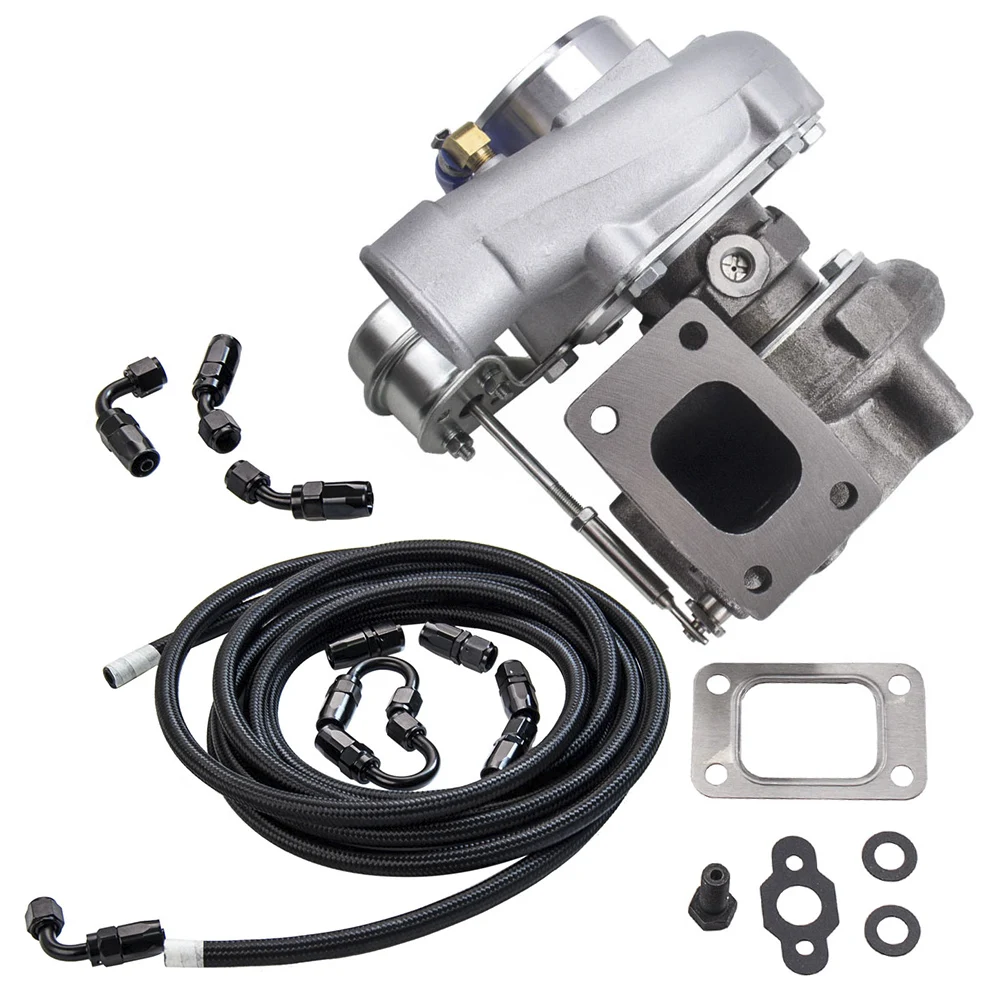

1xTurbo Charger
2x 5Meters/16.4FT AN6 Nylon- Stainless Steel Braided Fuel Hose
8 PCS Straight AN6 Reusable Swivel Fuel Hose Fitting Adapter
4 PCS 45 Degree AN6 Reusable Swivel Fuel Hose Fitting Adapter
4 PCS 90 Degree AN6 Reusable Swivel Fuel Hose Fitting Adapter
4 PCS 180 Degree AN6 Reusable Swivel Fuel Hose Fitting Adapter
(You will get exactly the same as picture shows)

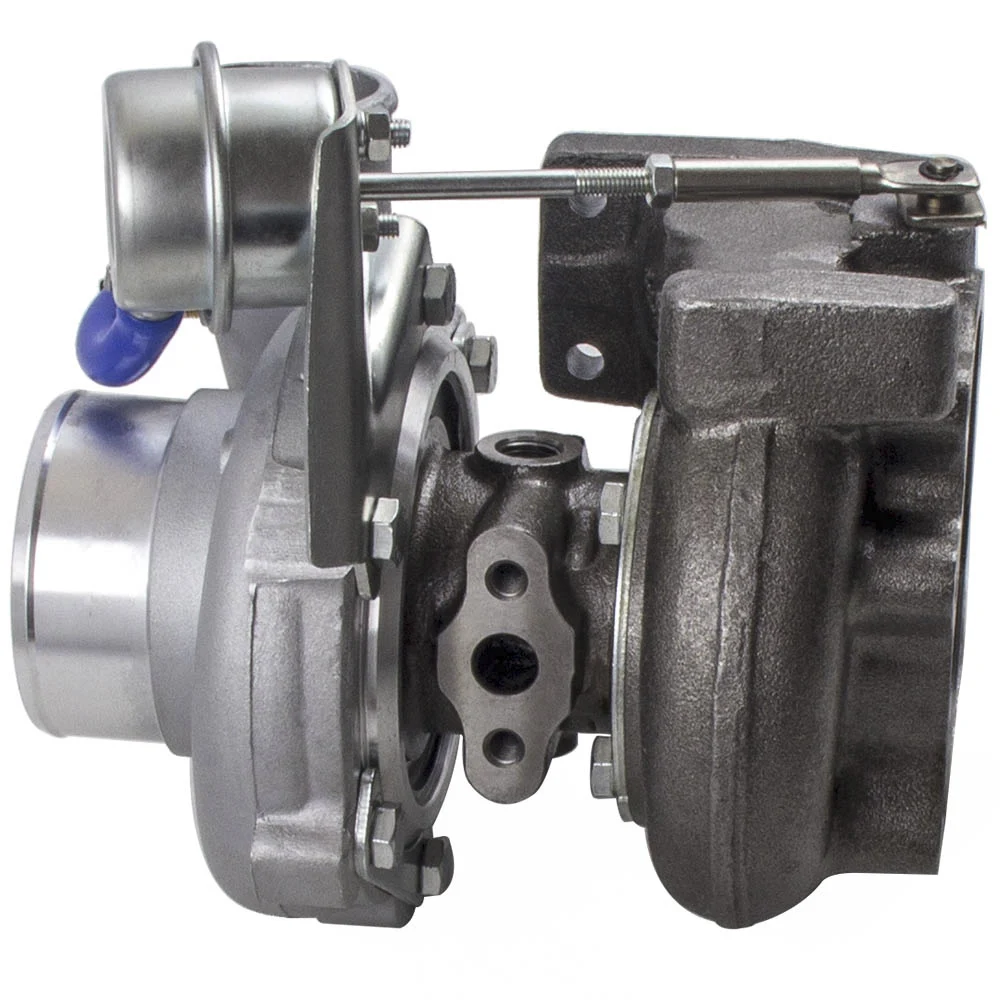

Turbo Charger Feature:
1. Cost effective Price:
Give your car 20%-40% more total power with friendly price
1. Excellent Design:
Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance
2. High Temperature Resistance:
special K418 alloy Turbine Wheel can withstand exhaust temperature Above 900°
ductile iron QT450-10 Turbine housing Can withstand temperatures up to 700℃
3. High Efficiency:
High efficiency and low inertia intake and exhaust blades can greatly reduce turbo lag
4. Durable:
Water-cooled/oil-cooled structure extends turbine service life
5. BALANCING TEST:
This Turbocharger you will receive has been balanced using the VSR machine technology.

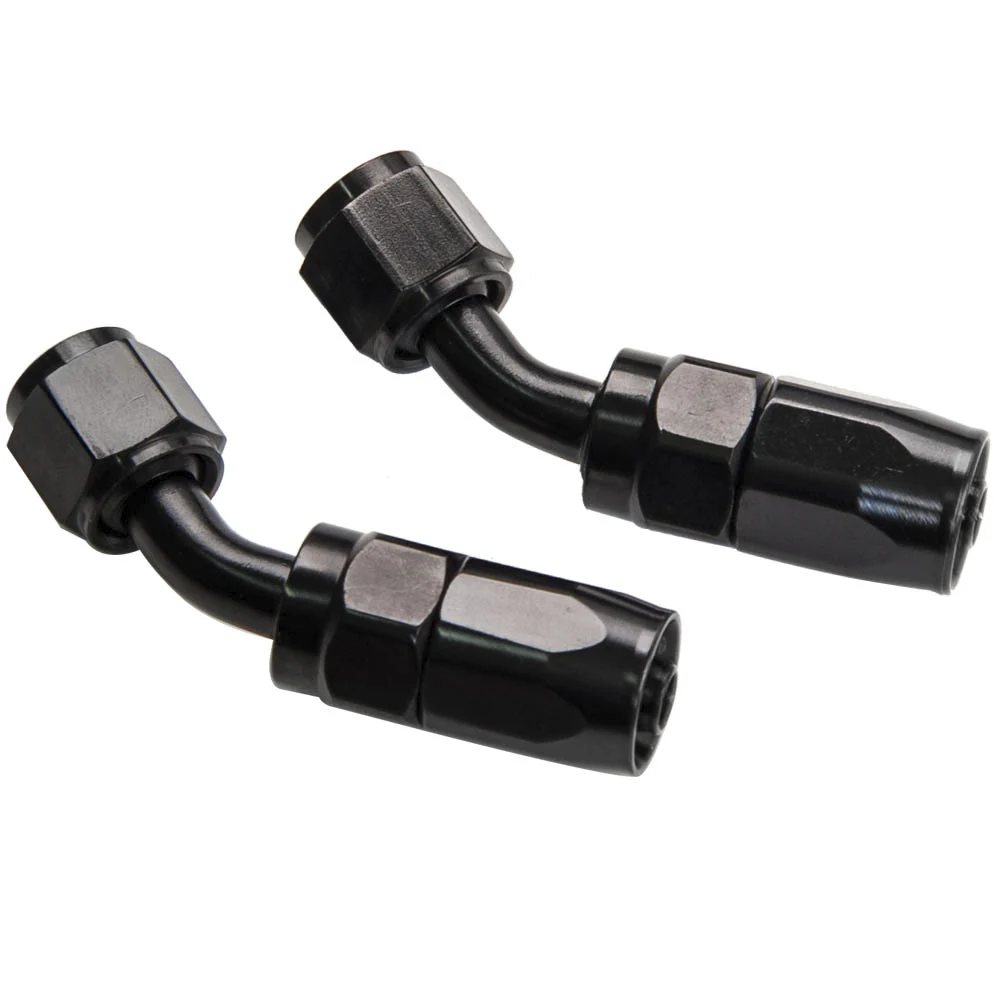

Hose End Fitting Features:
brand new, CNC machined items
Easy assembly
Anodized finish for strength and durability
Removable head for both push-on or twist-lock
Smooth flow design, reusable, lightweight
Polished and anodized for bright appearance and corrosion protection
No leakage under high pressure and temperature
Made of High Quality Lightweight T-6061 Aluminum Material
Anodized Finish for Strength and Durability
Removable Head for Both Push-On or Twist-Lock Applications

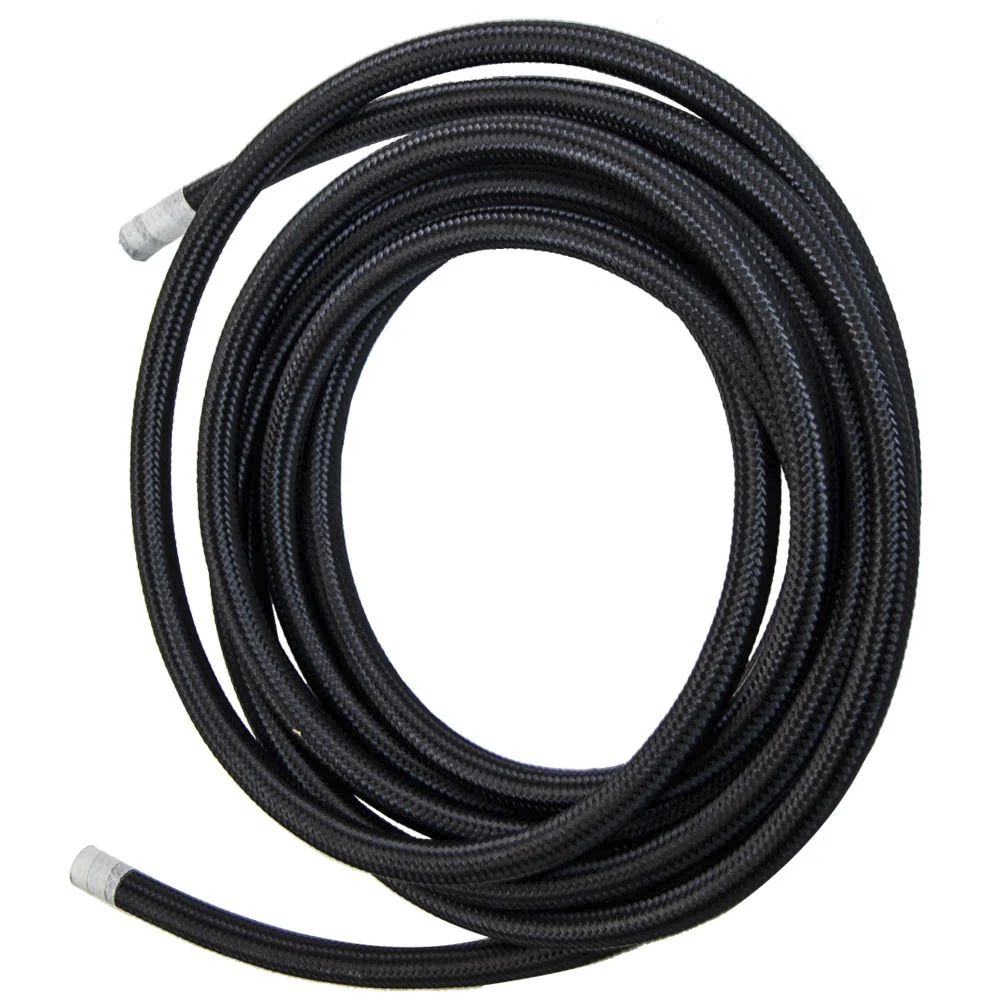

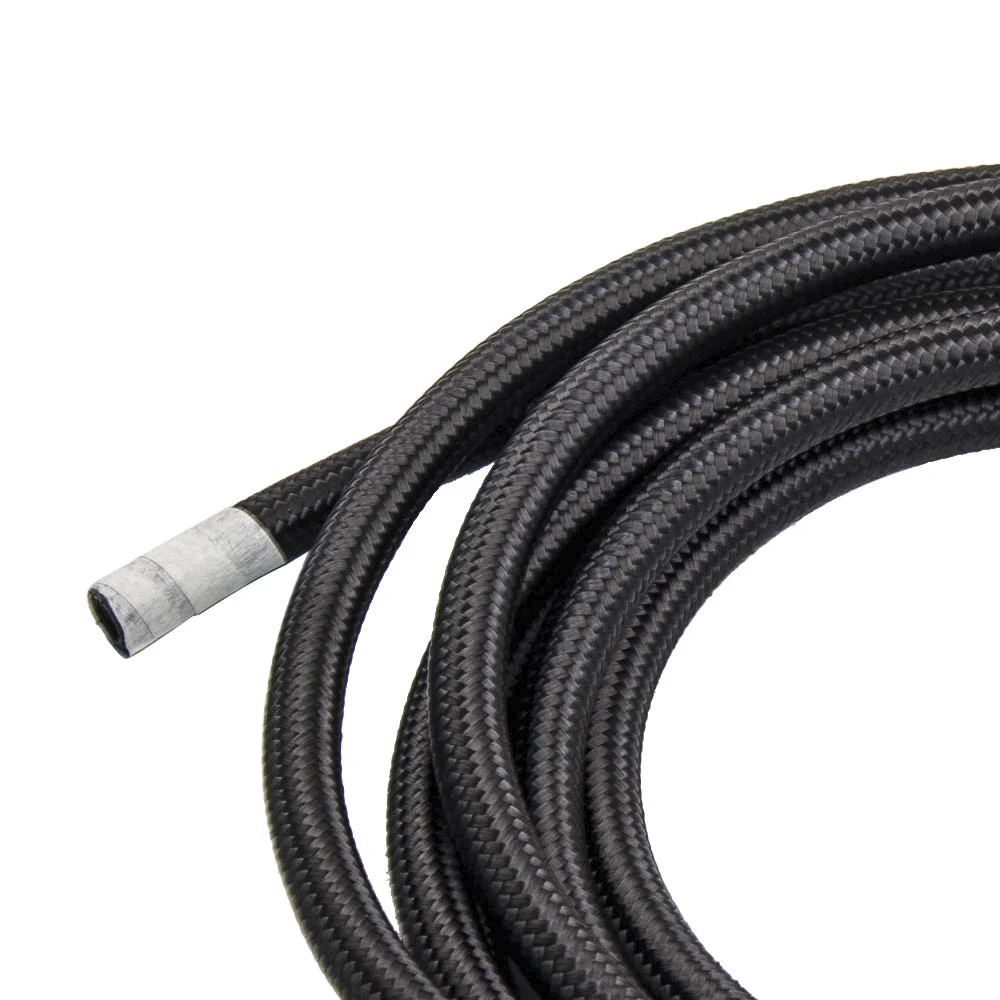

Braided Hose Features:
Made of durable CPE synthetic rubber tube bonded and secured by Nylon and 308 Stainless Steel outer braid
Outside: Covered with High Quality Woven Nylon to Enhance Flexibility and Give a Cool Racing Appearance
Inner hose Material: CPE Synthetic material hose
Maximized Resistance to Heat, Corrosion and Abrasion
Notice
*Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
