This turbo is an universal application turbo, some modification may be required based on individual vehicle.

The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

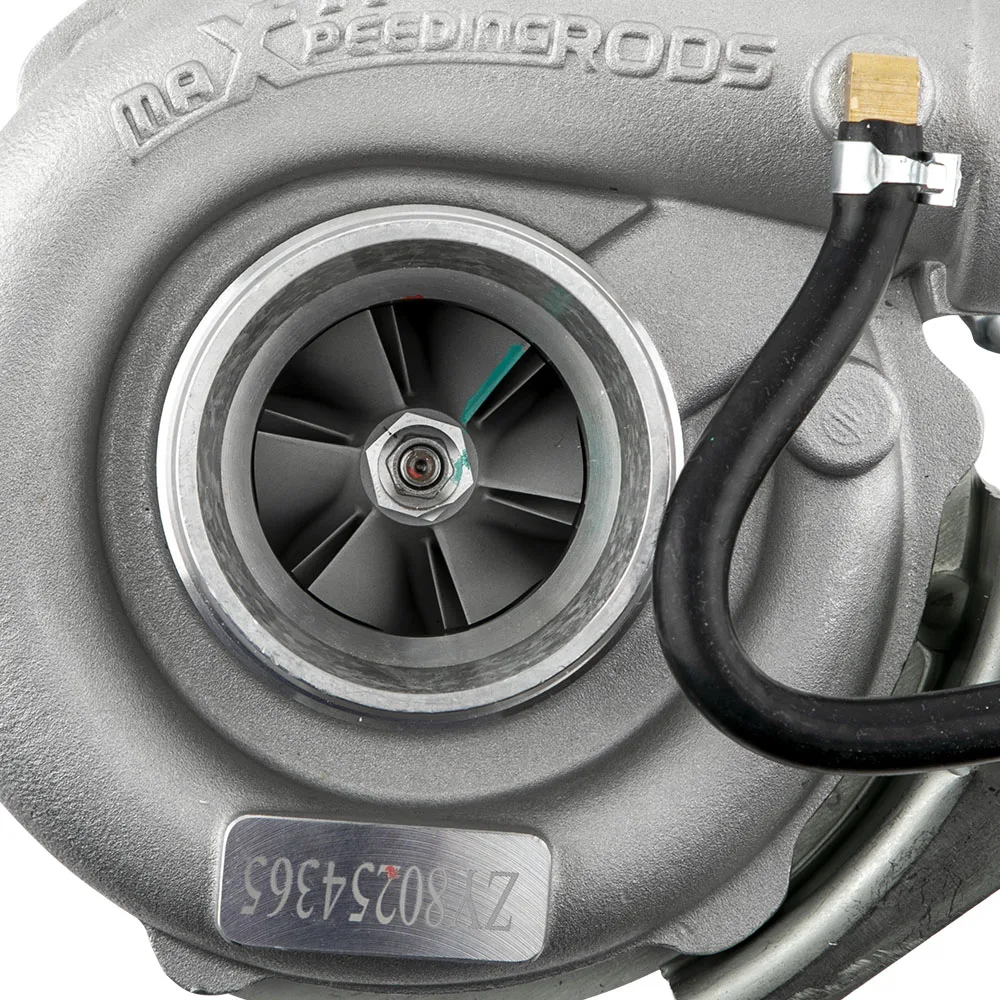

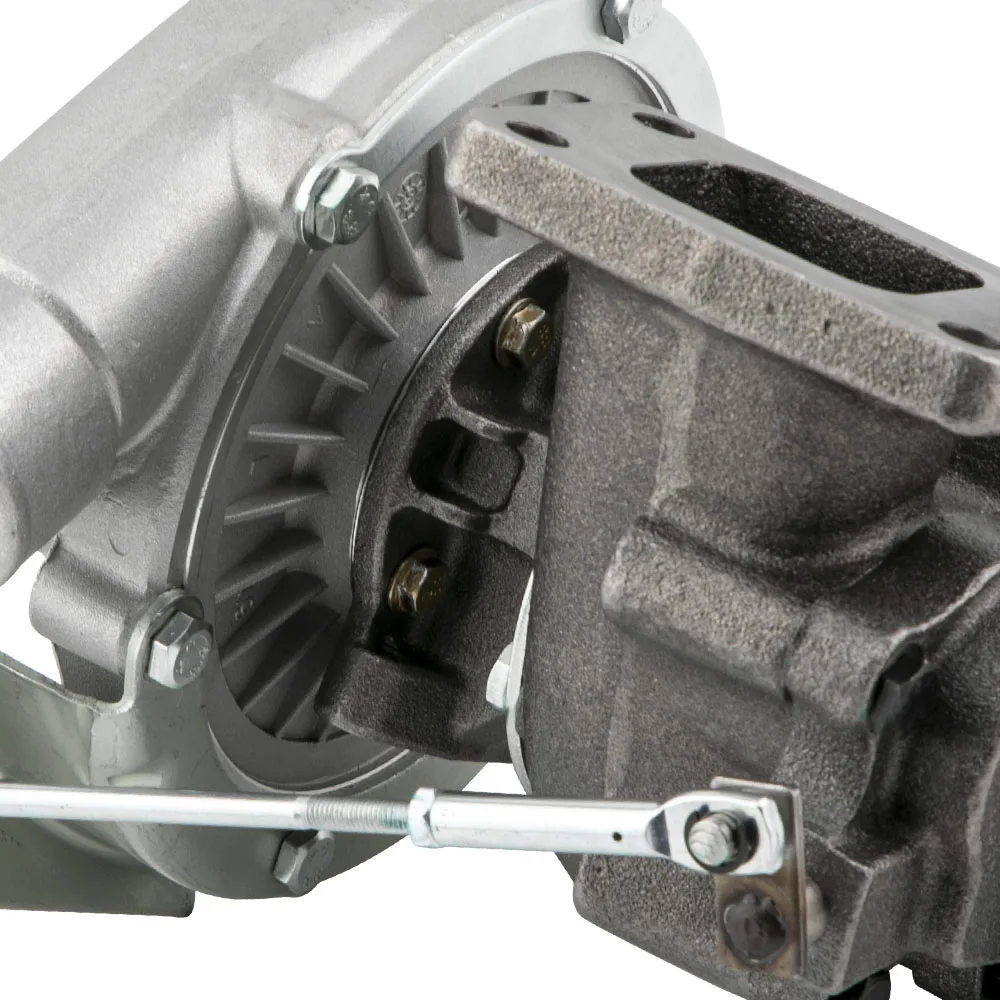

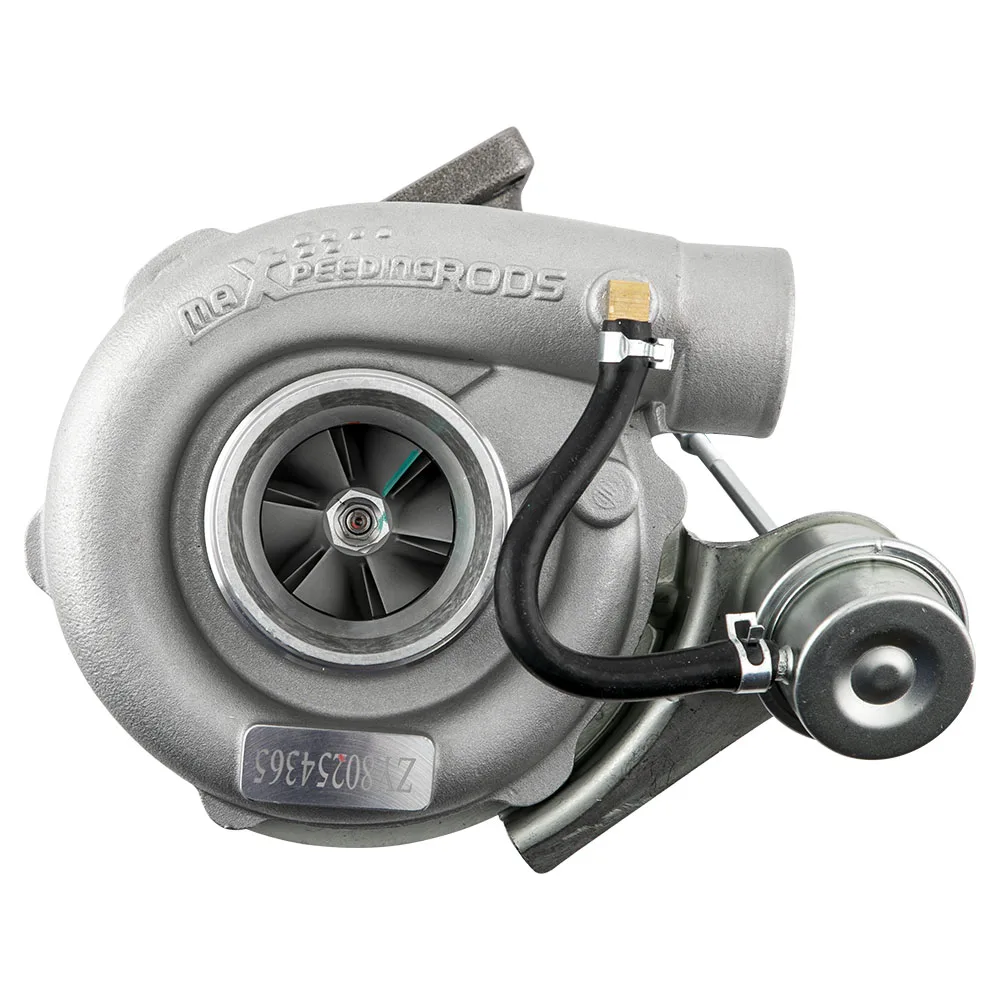

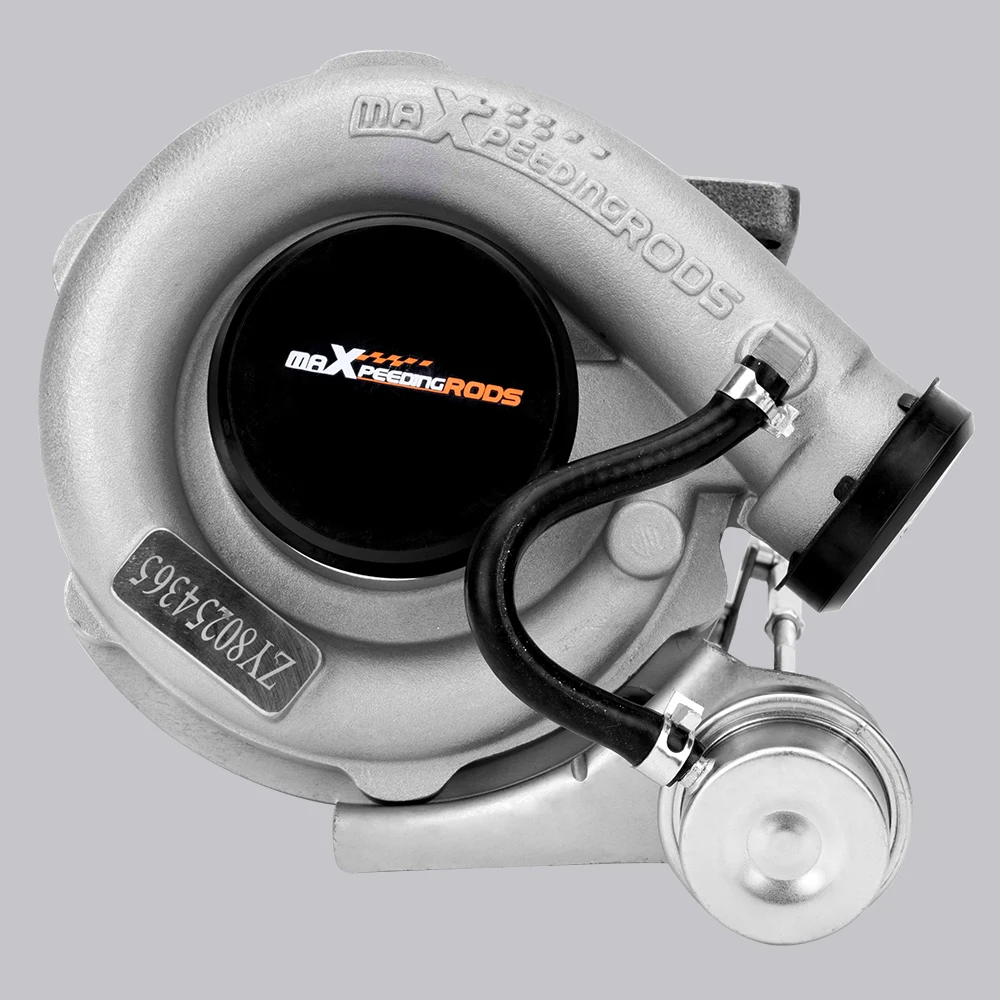

Turbo For Nissan Safari Patrol 4.2L TD42 GU GQ Y60 Turbocharger T3 Flange

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled

Specification

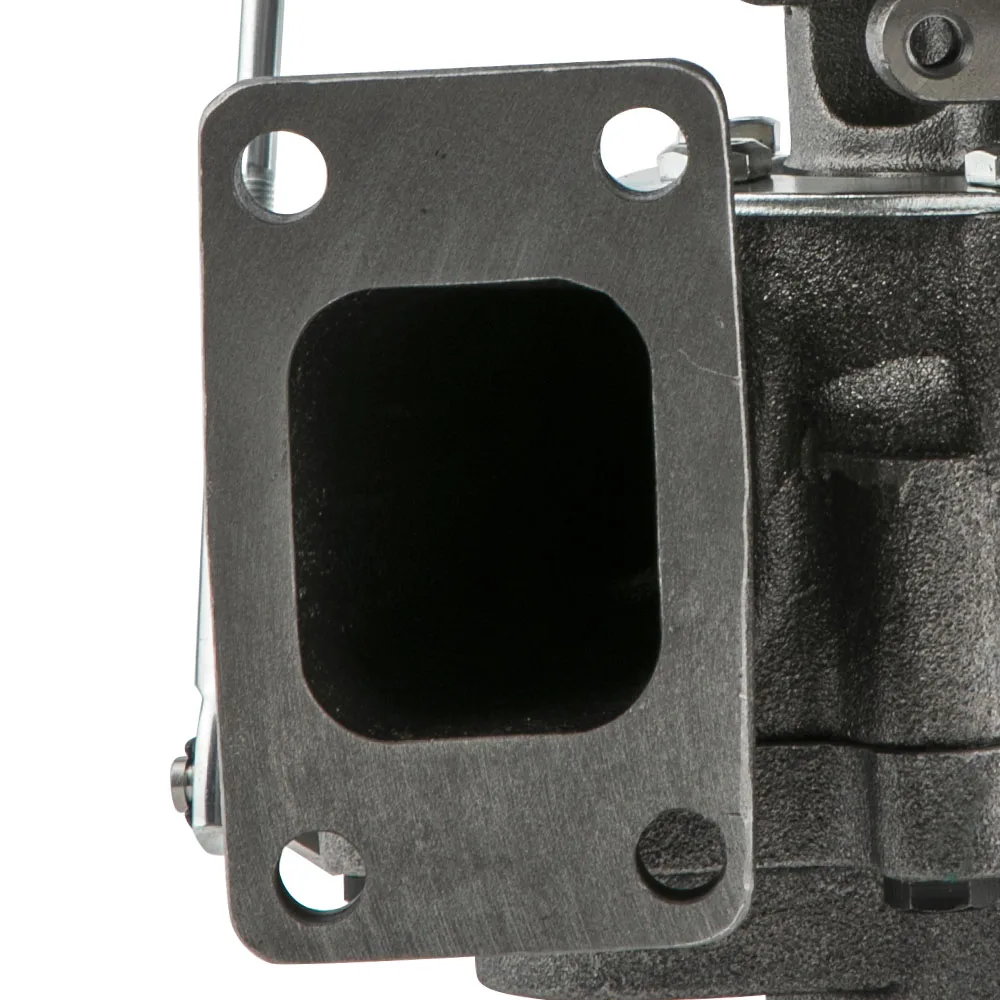

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Turbine exhaust  outlet : 79mm
Turbine exhaust inlet：44.7mm/85.8mm

Compressor outlet：78 mm
Compressor inlet：51.5 mm
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: 2 Year

Wastegate：With Wastegate

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

KEY FEATURES
-High Quality Material, Cast Housing with Durable Steel
-Boost Engine Horsepower Significantly
-Increase Engine Power and Torque Outpout;
-Maintain Combustion Chamber Pressure and Fuel/Air Load
-Contructed with High Quality Material
-Built for Durability and Strength

OUR ADVANTAGE
1、100% BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2、All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.
Turbine Wheel： the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius,  and never use K13 Inconel alloy.
Turbine housing :Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius
Aluminum blades :Precision machining forging. The lightweight design enables reduced noise and increased response without compromising comfort or longevity

*Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
2 YEARS WARRANTY
Factory direct price, ship worldwide;  Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.

Notice

* This turbocharger is only for 1.5L -2.5L engine.

* Air filter is Necessary to complete the turbocharger. We will not be responsible for any damage which caused by disobey the 2 rules.

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.

* This is universal application turbo, so modification might be required for some vehicles

* Professional installation is highly recommended (No Instruction Included)

*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
