- Model Number: QDW90A
- Max Measuring Range: 400 Bar & Above
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: CE,FCC,RoHS

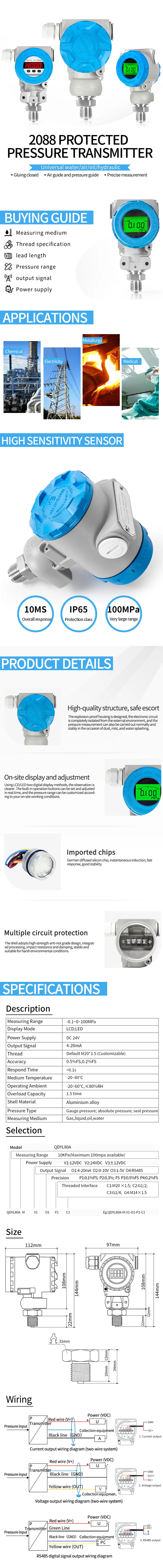

- Product name: 2088 Pressure transmitter
- Measuring range: -0.1Mpa~0~100Mpa
- Output signal: 4~20mA (Can be customized)
- Power supply: DC24V
- Thread size: G1/4 (Can be customized)
- Accuracy: 0.2%FS
5 Digital Pressure Transmitter Oil/Liquid/Gas Pressure Sensor 1-5V Voltage Output -0.1-0-100MPa
Notes: Screw thread size is G1/4, if you need other sizes, please contact us.
Technical parameter
Measuring Range |
-0.1~0~100MPa |
Display Mode |
LCD;LED |
Power Supply |
DC 24V |
Output Signal |
4-20mA |
Thread |
Default M20*1.5 (Customizable) |
Accuracy |
0.5%FS,0.2%FS |
Respond Time |
<0.1s |
Medium Temperature |
-20~80℃ |
OperatingAmbient |
-20~60℃,≤80%RH |
Overload Capacity |
1.5 time |
Shell Material |
Aluminium alloy |
Pressure Type |
Gauge pressure;Absolute pressure;Seal pressure |
Measuring Medium |
Gas,liquid,oil,water |
