In series (DT) :

1. The two bearings are the same and the installation direction is the same;

2, can bear radial load;

3. Weak self-aligning and poor ability to withstand higher overturning moment;

Back to back (DB) :

1, symmetrical installation;

2, can bear radial load;

3. Able to bear axial load in two directions;

4, can withstand high overturning moment;

Face to face (DF) :

1, symmetrical installation;

2, can bear radial load;

3. Able to bear axial load in two directions;

4. Weak self-aligning and poor ability to withstand high overturning moment;

Bearing ring

Contains inner ring and outer ring.Made of high quality steel, effectively extend the service life of bearings

Rolling element

Transfer the load between the inner and outer rings

cage

Reduce friction heat: optimized load, convenient disassembly

Monolithic seal

Significantly extend the service life of the bearing, keep the lubricant in the bearing and keep the pollutants out

Bearings are the heart of machinery. Choosing a suitable bearing will greatly improve the production efficiency of mechanical equipment and save costs. High-standard bearings can reduce friction and have strong high temperature resistance during high-speed operation and overload operation. Bearing life and increase speed.

Rubber cover seal: dust proof, liquid foreign matter proof, good mute effect, suitable for harsh environment.

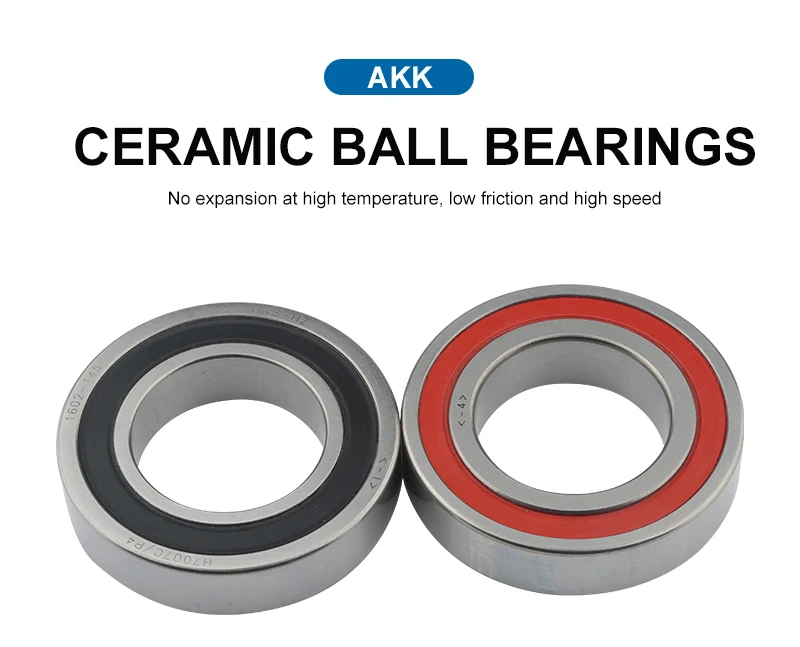

High temperature resistant

Ceramic ball thermal expansion coefficient is small, in high temperature environment will not cause the bearing ball expansion because of the temperature.

High speed

The ceramic ball has the property of oil-free self-lubrication, the friction coefficient of the ceramic ball is small, so the ceramic has a high speed.

Long service life

The ceramic ball can be without any grease, that is to say, even if the grease dries out, the bearing can still operate, so as to avoid the occurrence of premature damage phenomenon caused by the grease drying in ordinary bearings

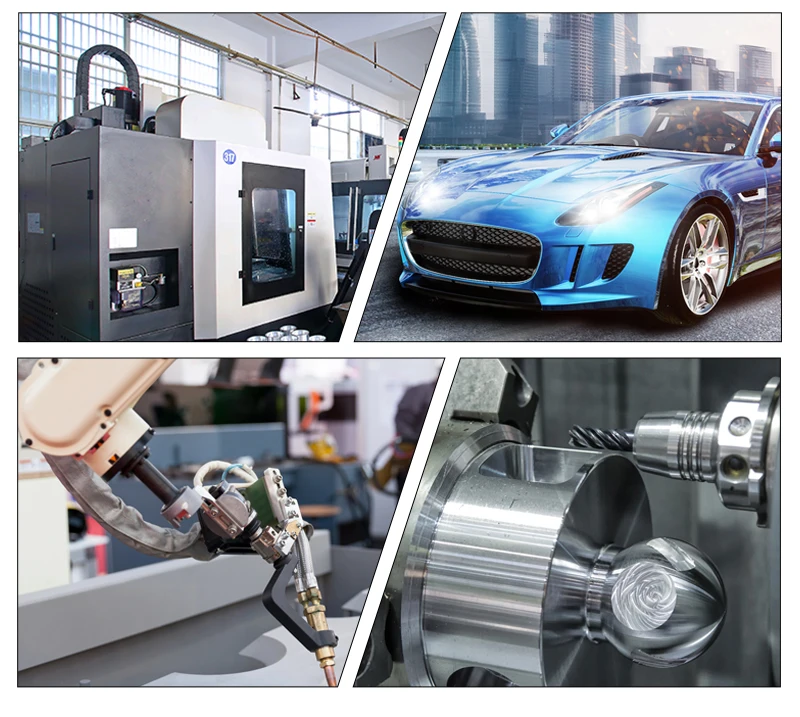

Application industry

Can be used for mechanical and electrical, aerospace, cars, trucks, engineering machinery CNC machine tools and so on, many industries.
