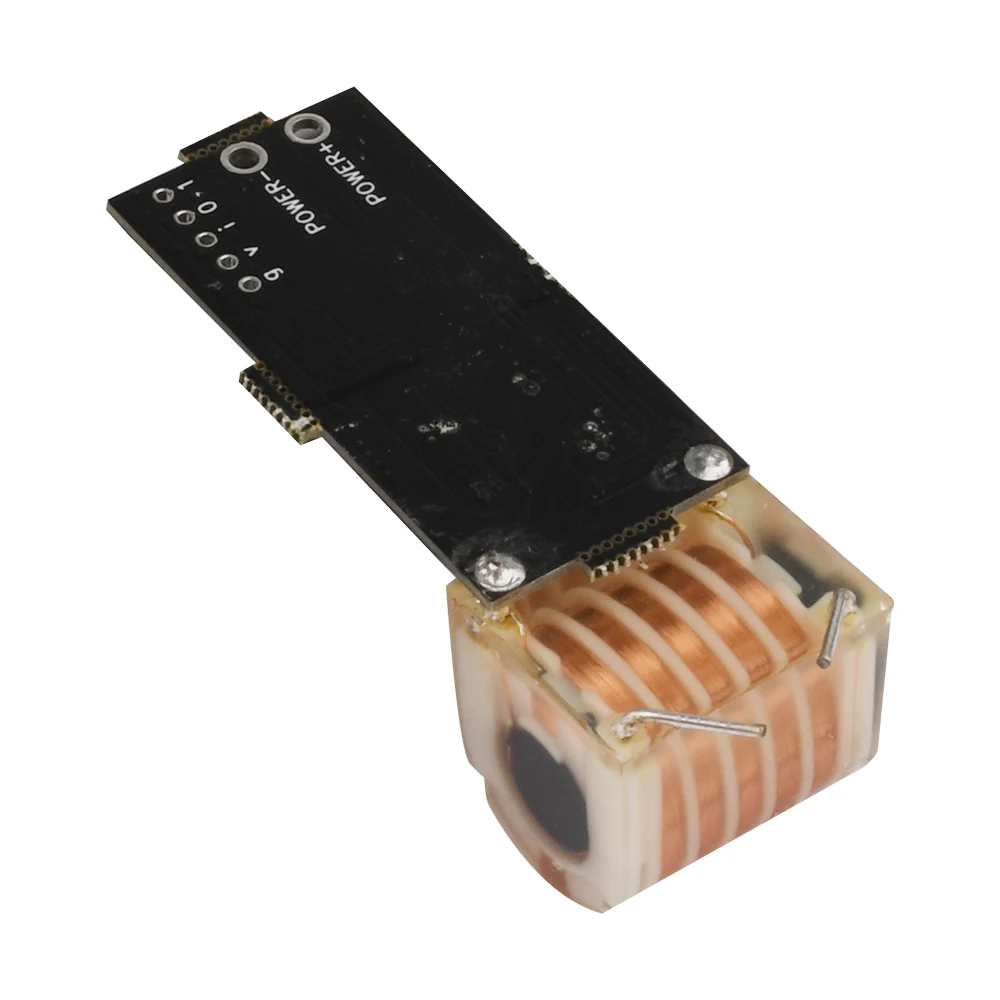

DC 7V-15V 12V To 15KV-20KV High Frequency AC High Voltage Generator Inverter Boost Step-up Spark Arc Ignition Coil Module

Product Features:

1. This drive board adopts H-bridge 4-tube MOS frequency conversion resonant topology technology, with high driving efficiency and high power;
2. Low heat, no radiator required;
3. The arc ignition distance is 1cm~2cm, which can start the arc directly without arc pulling;

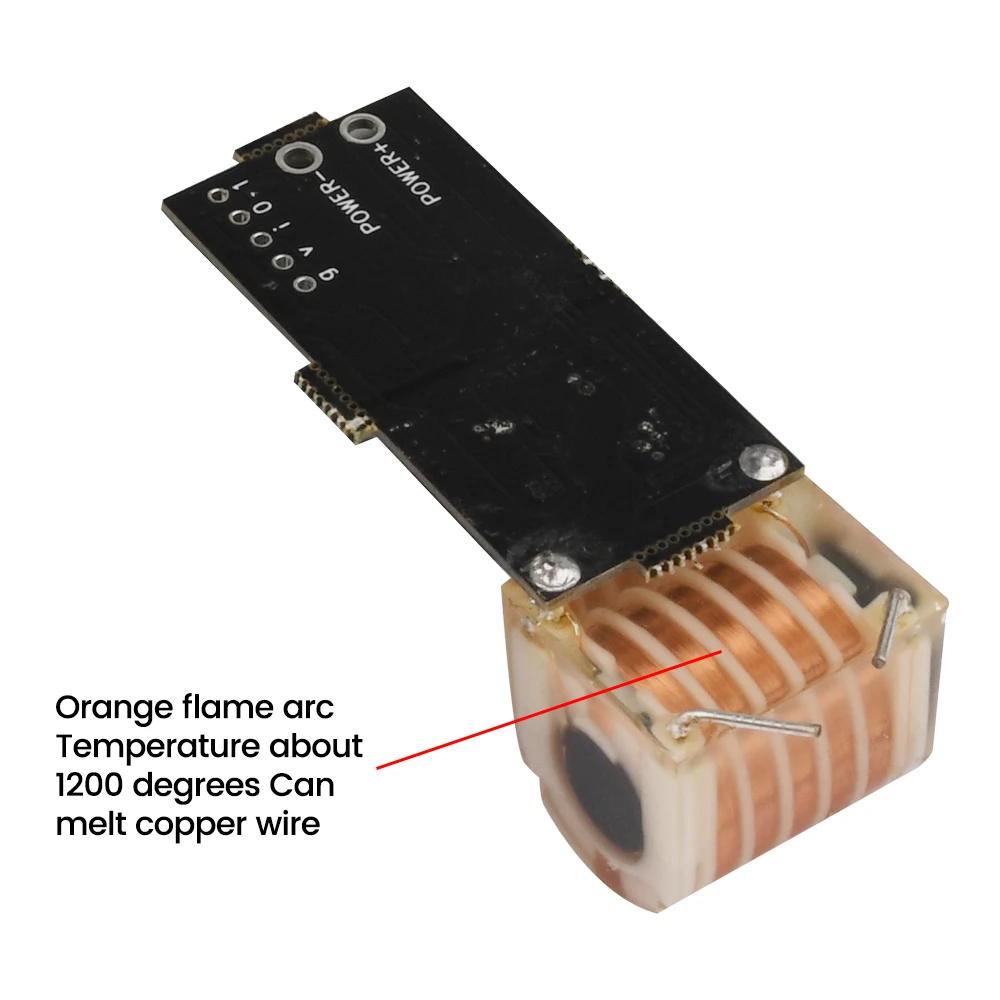

4. The orange-yellow flame arc temperature of about 1200 degrees can melt copper wire, and the scope of application is wide;
5. The arc temperature is high, you can directly melt fine copper wire, iron wire, spark splash, and can also directly ignite all kinds of gas, alcohol, gasoline, diesel, plastic, paper, etc.

Specifications:

Power supply voltage range: 7~15V
Recommended supply voltage: 12V
Full load power: 50W
Input current: <2A
Output voltage: 15KV~20KV
Output current: 5mA~15mA

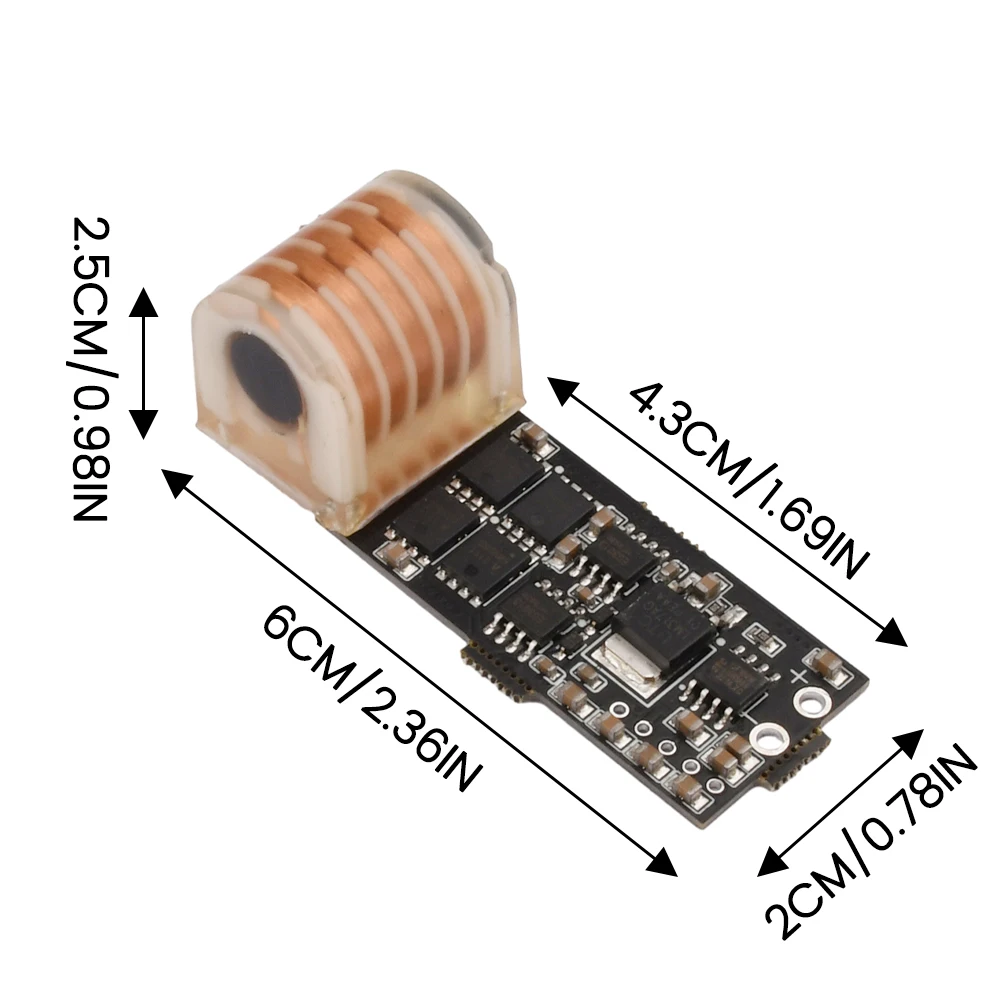

Board size: 2*4.3cm
Overall size: 2*6cm
Overall height: 2.5cm

Instructions for use:

Ignition distance 1cm~2cm (direct arc starting, no need to pull the arc, if the arc has been started but the arc is not obvious can not be ignited, the electrode distance can be closer)
When the continuous working time above 9V exceeds 5 minutes, it is necessary to add a fan next to the transformer,
This product has no shell (the transformer part is potted), and should be safe during operation.

Note:

1. This output high-frequency AC, so the lead should not be too long, the transformer can be removed and extended at the primary end, or directly extended at the power end
2. The power supply must be provided within the rated voltage range to work properly! If the voltage is too low, the module will undervoltage and stop working. Do not reverse or overpressure, otherwise it will damage the module and even cause the capacitor to explode!
3. This product poses a certain risk to non-professionals and must be operated in strict accordance with electrical specifications!

Product List:

1X High Voltage Module
