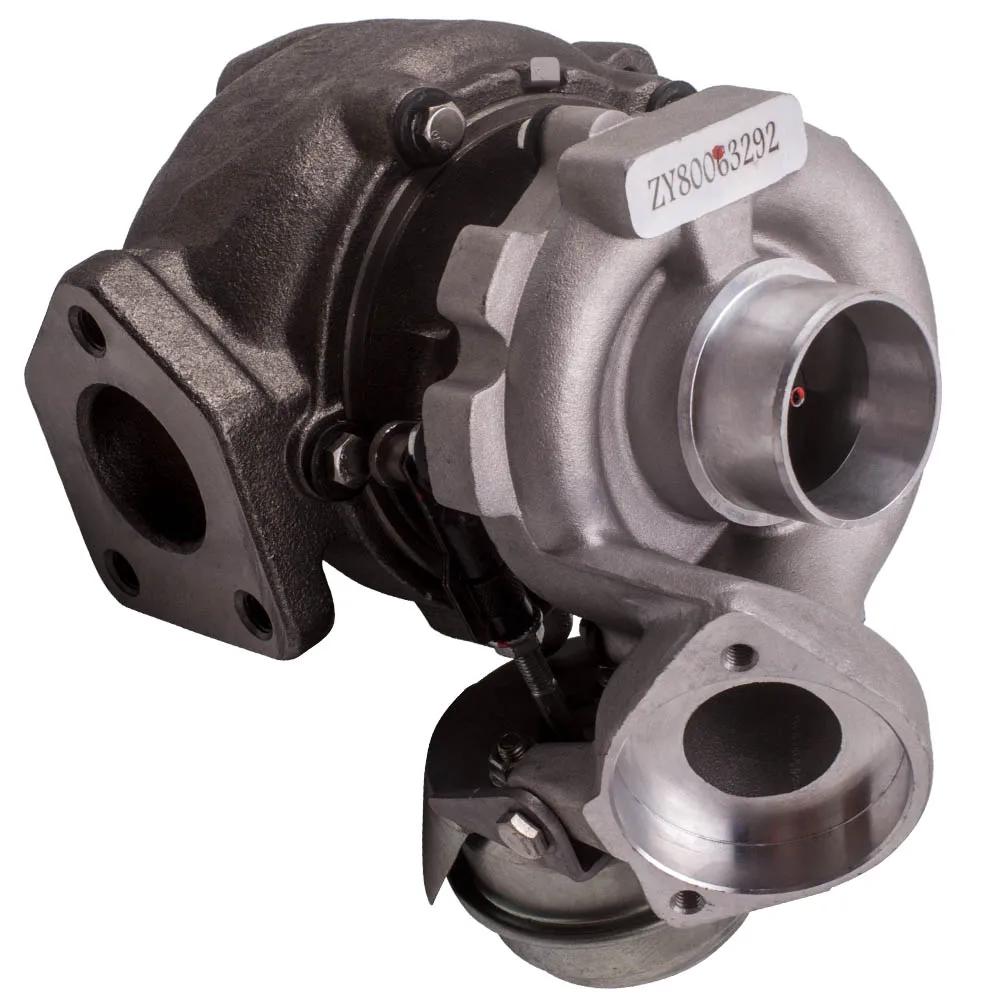

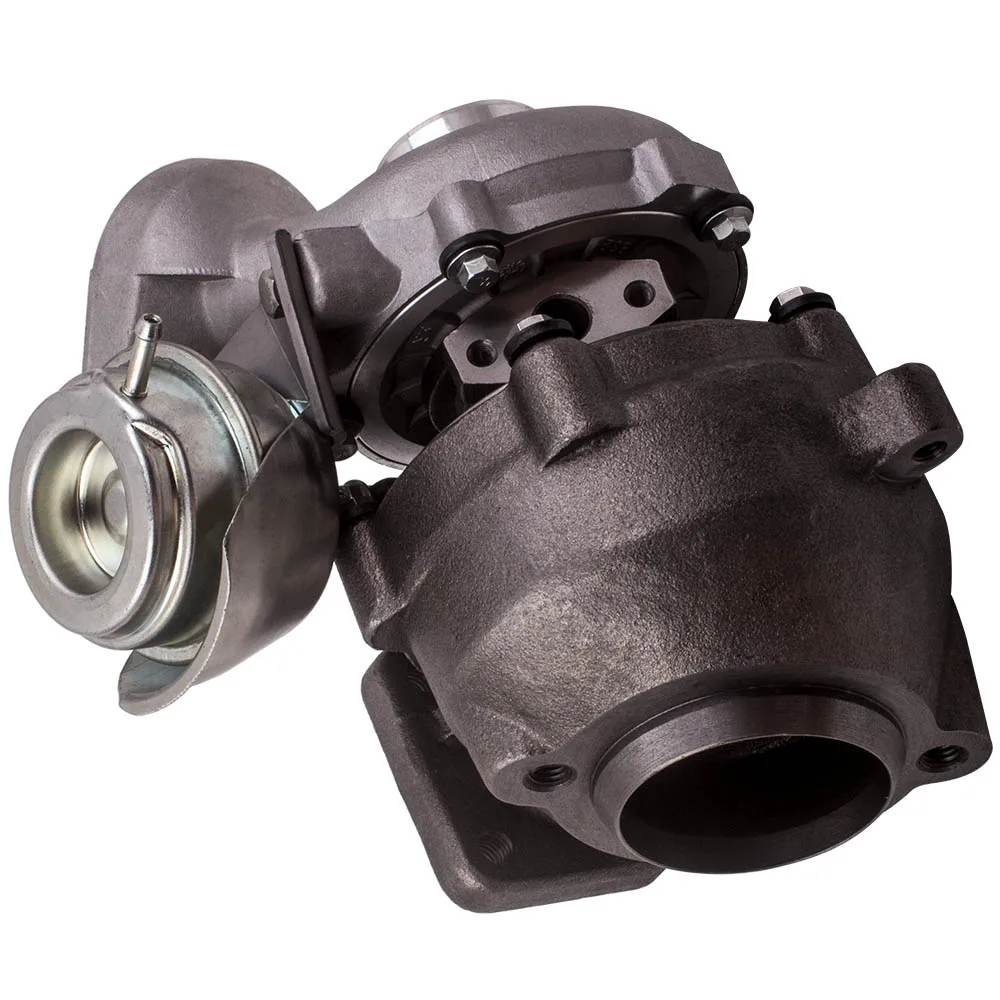

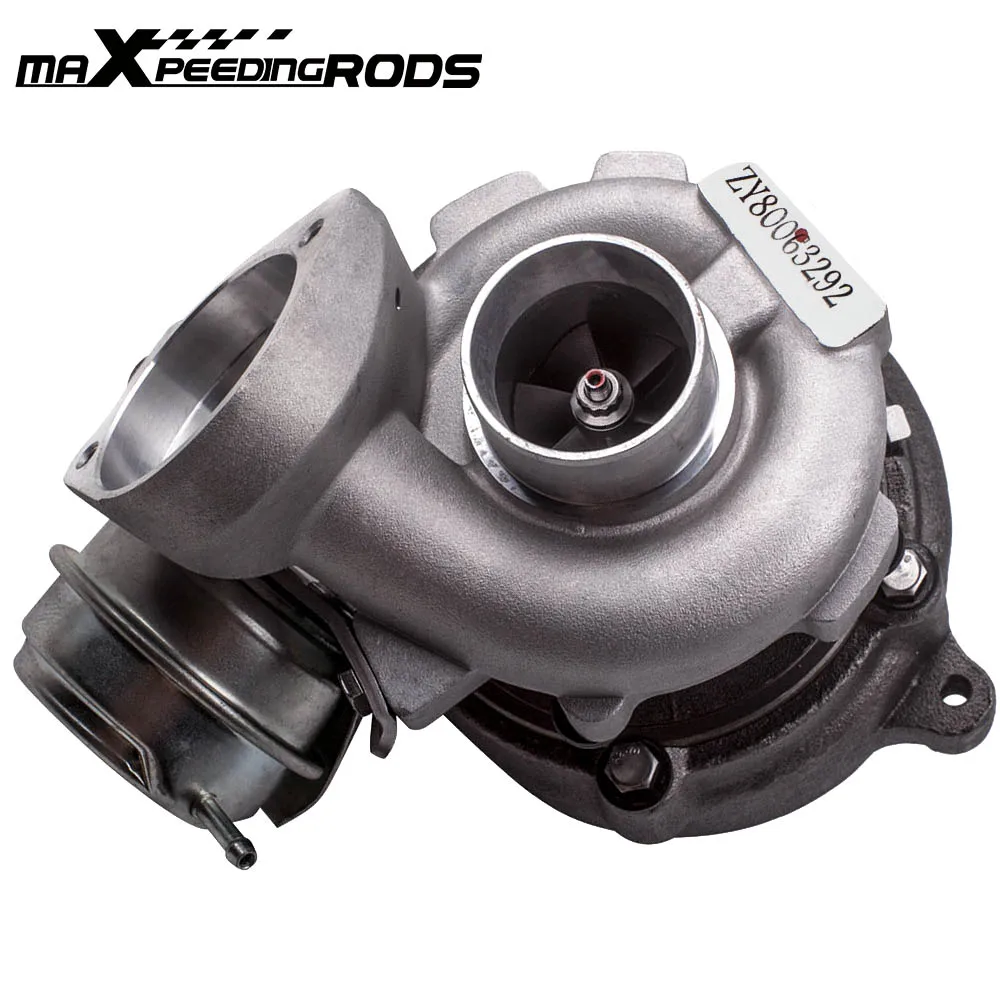

GT1749V Turbocharger For BMW 320d E46 X3 2.0d 110 kW 150 PS 7787628G 11657794144 7787626F

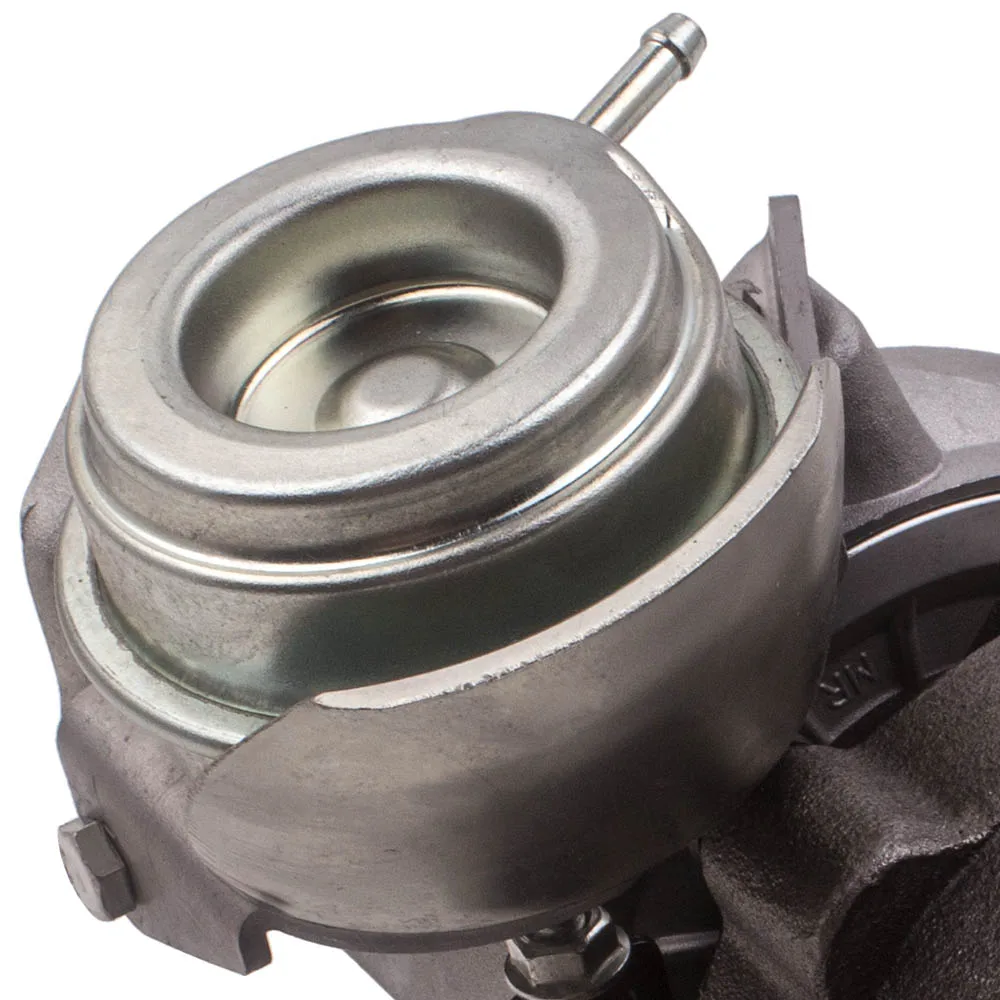

Note: this turbocharger is with vacuum actuator but not electric actuator， please double check your old turbo actuator before purchasing.

Application

for BMW 320 d E46 1995 ccm  2.0L 110 Kw – 148 HP 2001-2005

for BMW X3 2.0 d E83  1995 ccm 2.0L 110 Kw – 148HP  up to end of 2006

NOTE: this turbocharger is with vacuum actuator but not electric actuator， please double check your old turbo actuator before purchasing.

Turbo Part Number & OEM Number

750431, 750431-2,750431-3，750431-6，750431-9，750431-12, 750431-13，750431-0002, 750431-0003, 750431-0006，750431-0009，750431-0012, 750431-0013，750431-5002S, 750431-5003S, 750431-5006S， 750431-5012S, 750431-5013S，750431-5006，750431-5002, 750431-5009,750431-5003,750431-5012,750431-5013

717478, 17478-1, 717478-3, 717478-4, 717478-5, 717478-6，717478-0001, 717478-0002, 717478-0003, 717478-0004, 717478-0005, 717478-0006，717478-5001S, 717478-5002S, 717478-5003S, 717478-5004S, 717478-5005S

717478-5006S

7787626, 7787626G, 7787626F, 7787626D, 7787626H

7787627, 7787627G, 7787627F, 7787627H

7787628, 7787628G, 7787628H

77876260, 77876261, 77876271

7794140D, 7794140C,7794140E03, 7794144

7794144SD, 7794144E03, 7794144D

11657787627, 1165 778 7627, 11657787627G

11657787626, 1165 778 7626, 11657787626F, 11657787626G, 11657787626D

11657787628, 11657787628G

116577876260, 116577876261, 116577876271

11657794144, 11657794144E03, 11657794144D, 11657794144SD

11657794140E03, 11657794140D, 11657794140C

Specification

Turbo Model: GT1749V (S1) /GT1749V

Engine Code: M47TUD20

Bearing Type: Journal Bearing

Cooling Type: Oil cooling

Horse Power: 110kw/148hp

Package Size:30x 27 x 24 cm

Package Weight: 6600g

Condition: 100% New

Accessories: You will get exactly as the picture above shown

*Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy –  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product  Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. Quality assurance

4. High-Speed oil seal ring

5. Strict quality inspection

6. Precision clearance

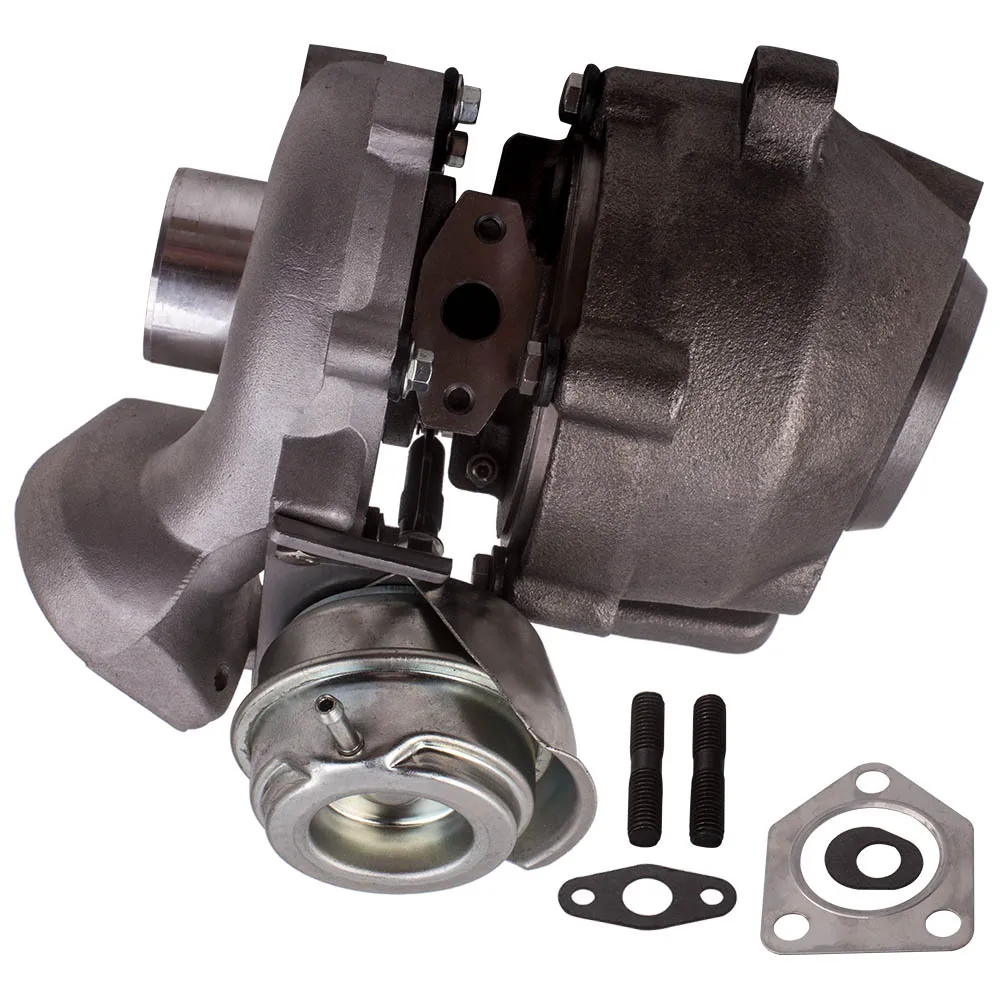

*All necessary gaskets included for ease of installation

NOTE

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)
