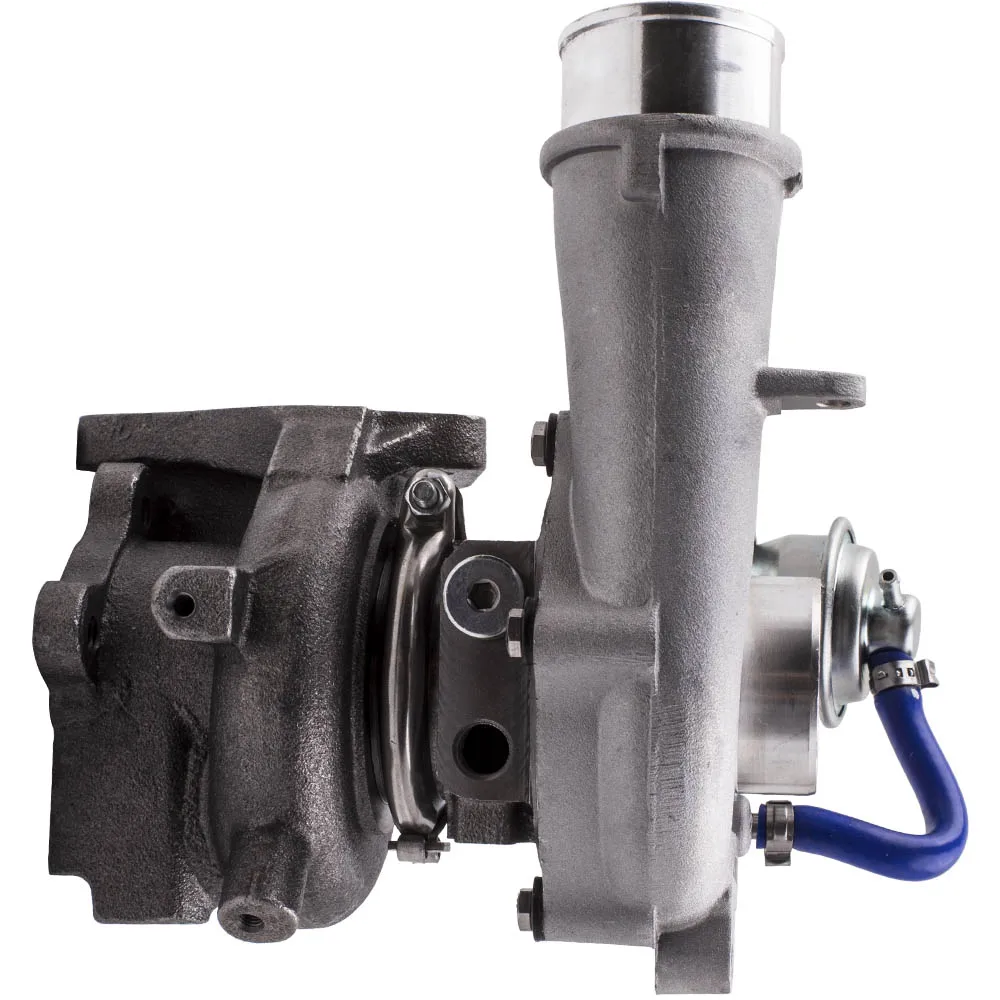

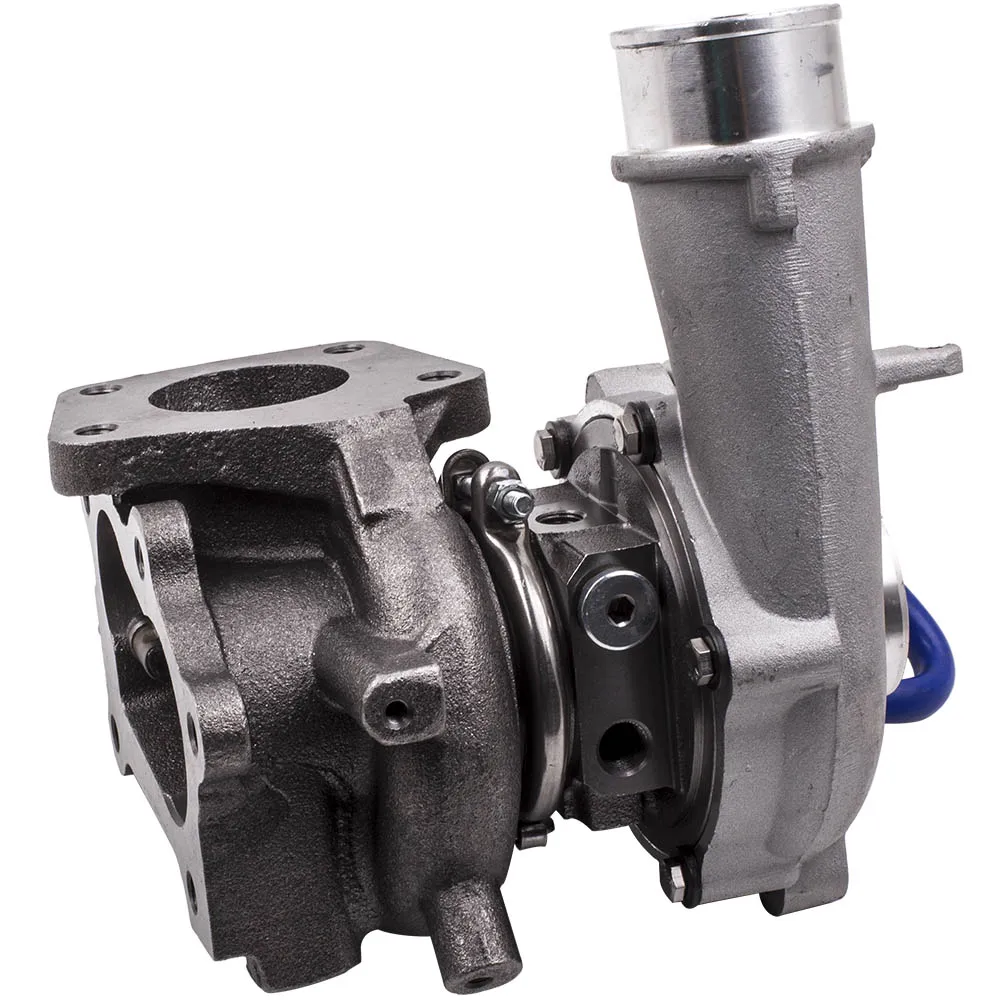

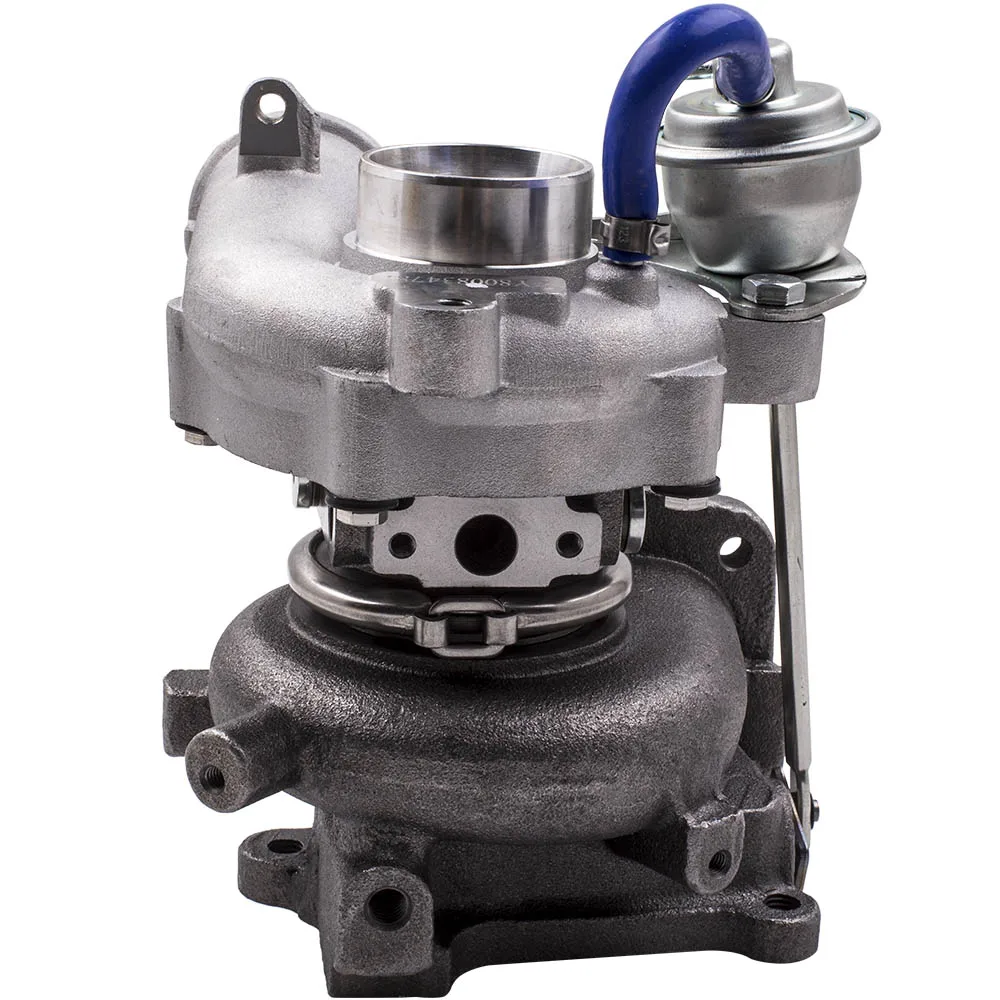

K0422-882 K0422-881 Turbo Turbocharger for Mazda CX7 for Mazdaspeed 3&6 2.3L MZR DISI

Looking to boost your car’s horsepower? Is your car’s original turbocharger not performing well or need replacing? Maxpeedingrods stocks all the best OEM-quality turbochargers and turbo parts to give your car the power, performance, and reliability you deserve. Maxpeedingrods aftermarket replacement turbos provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Turbo Model

K0422-881, K0422-882

Applications

For Mazda 3(BK) 2.3 MPS Turbo Hatchback 2006-2009
For Mazda 3(BL) 2.3 MPS Turbo Hatchback 2009-
For Mazda 6(GG) 2.3 MPS Turbo Saloon 2005-2007
For Mazda CX-7(ER) 2.3 MRZ DISI Turbo Closed Off-Road Vehicle 2009-

Part Number & OEM Number

53047109905, 53047109901, K0422-882, K0422-881, L3M713700C , L3K913700E

Specification:

Turbine Inducer wheel Diameter：49.9mm

Turbine Exducer wheel Diameter：44.5mm

Compressor Inducer wheel Diameter：44.9mm

Compressor Exducer wheel Diameter：58.8mm

Cooling Type：Water + Oil  Cooling

Bearing Type:  Journal Bearing / Floating Bearing

Thrust Bearings: 270 Degrees

Hosepower:  191 kw/256 bhp

Condition: Brand New

Warranty: 2 years warranty for any manufacturing defect

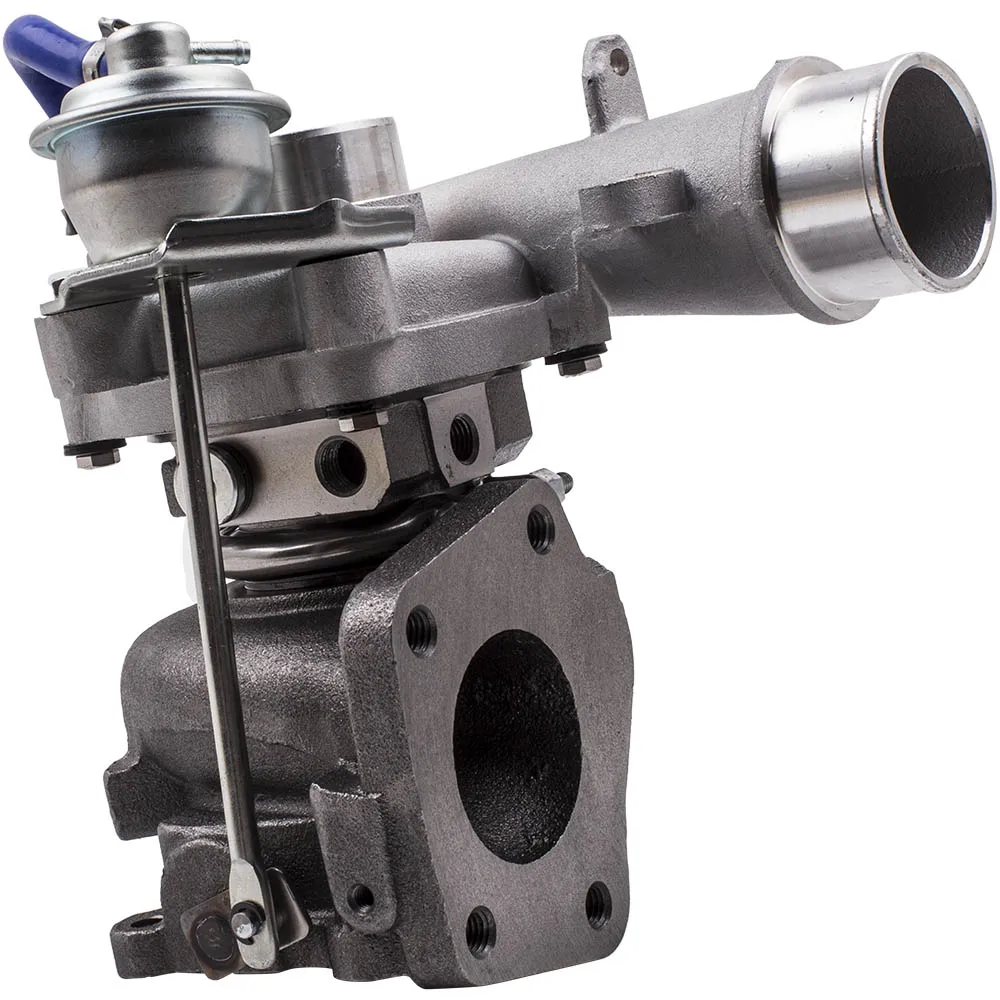

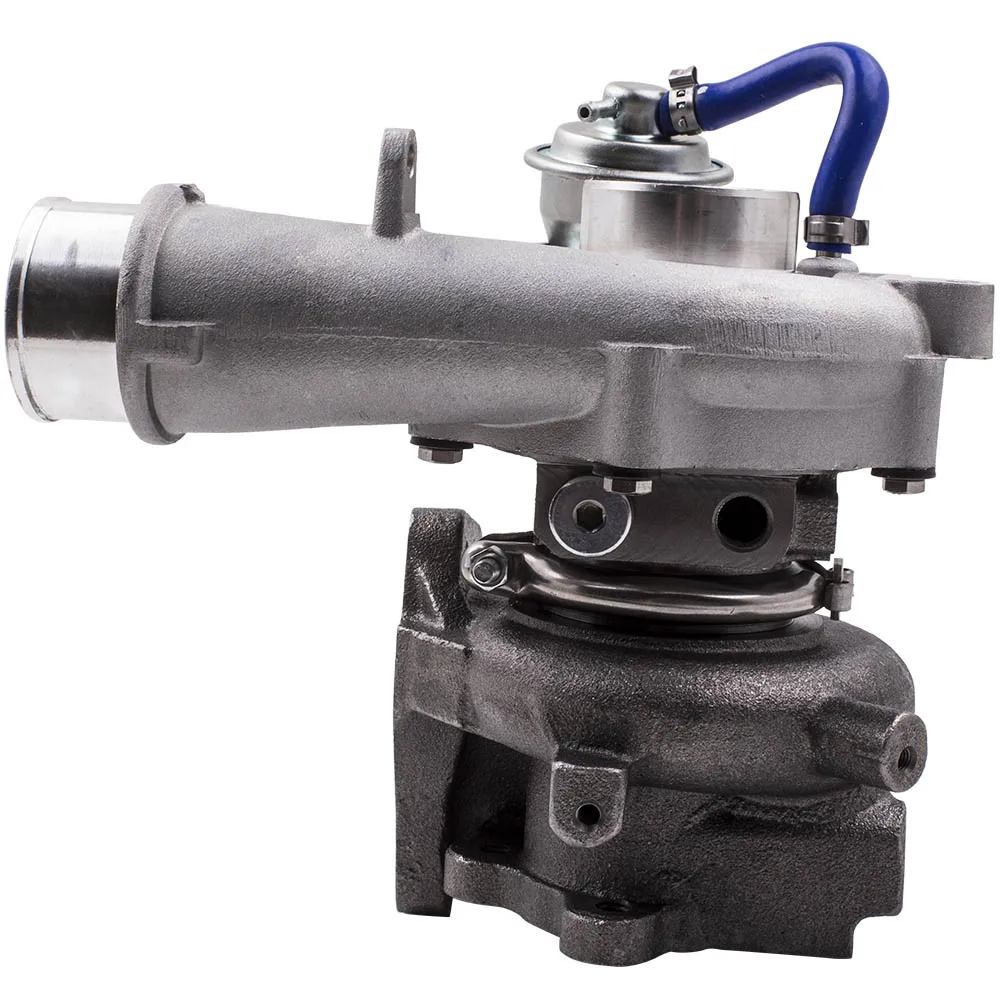

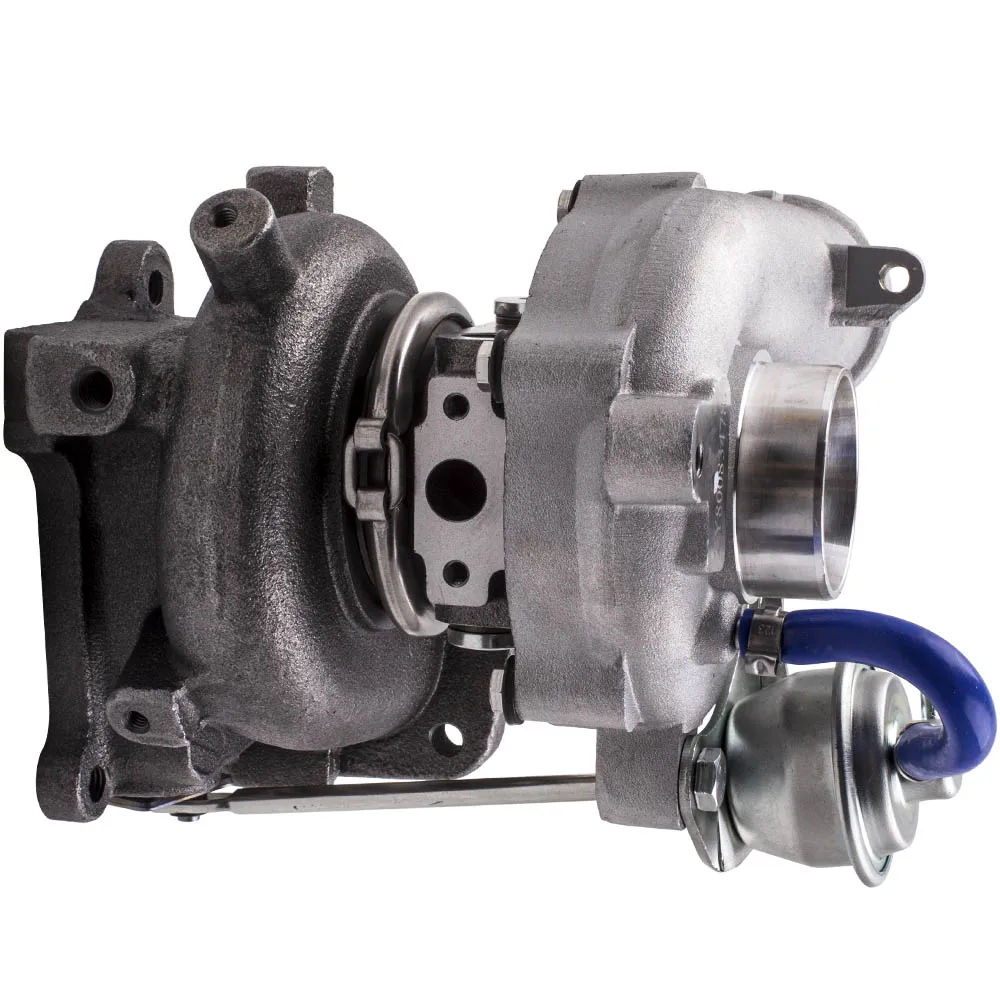

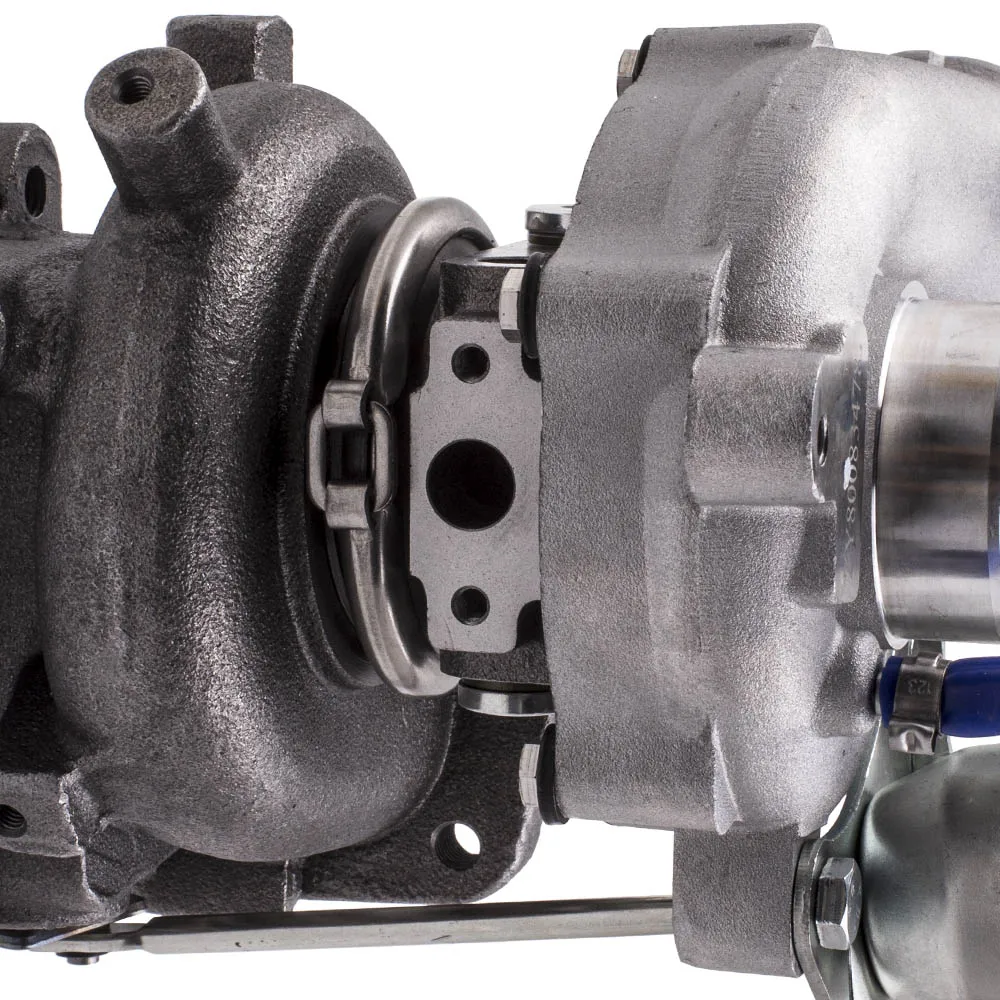

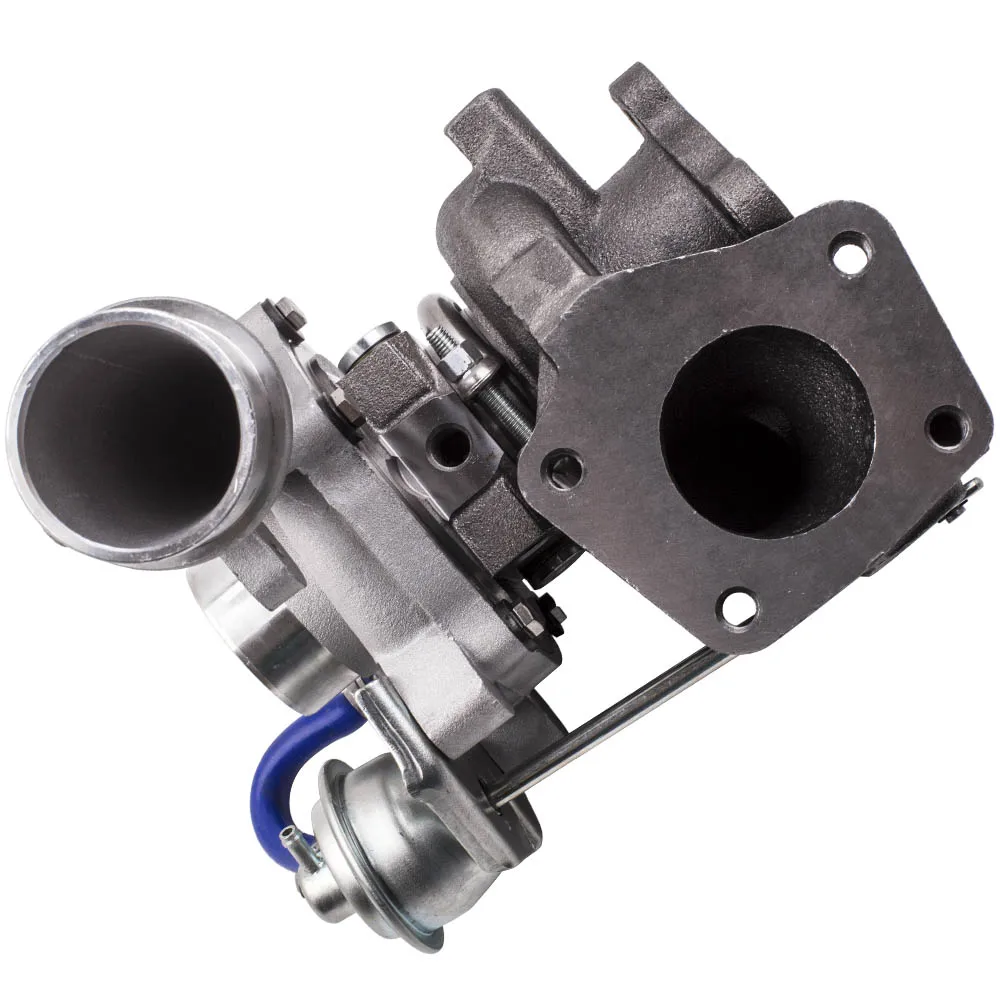

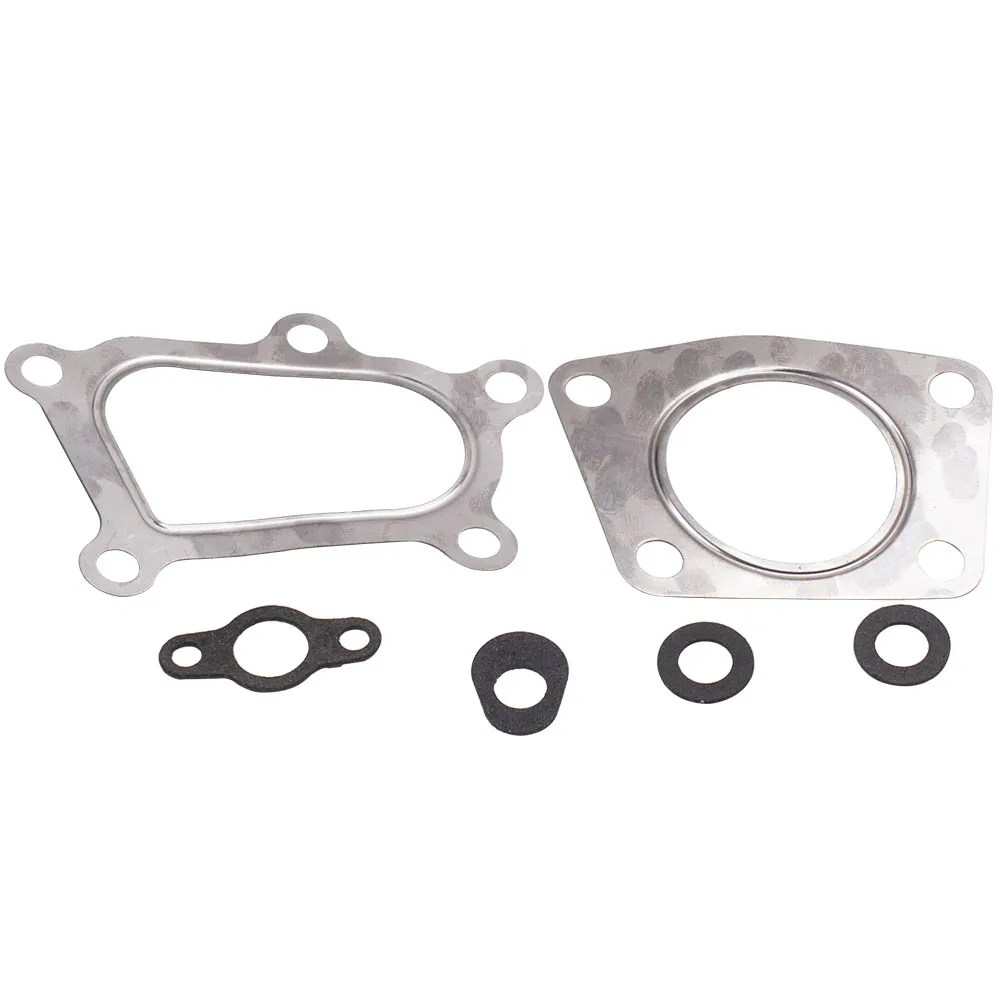

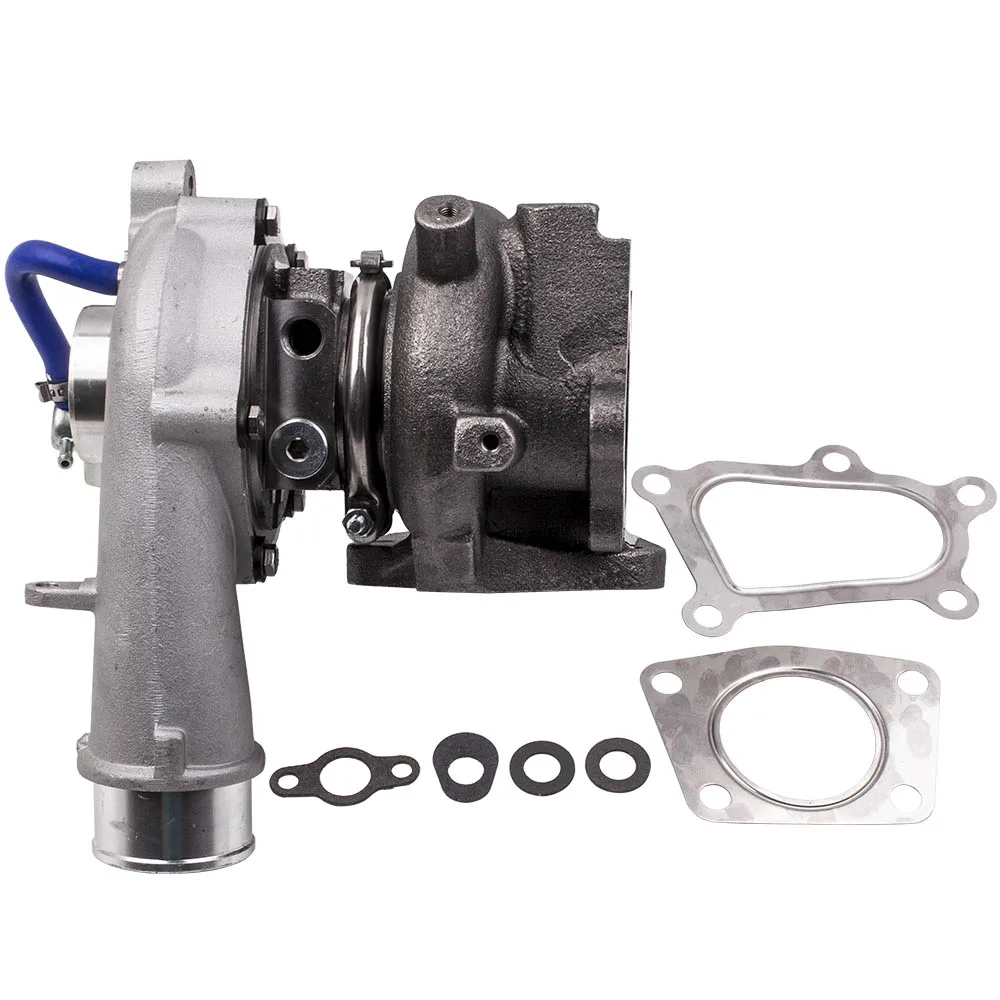

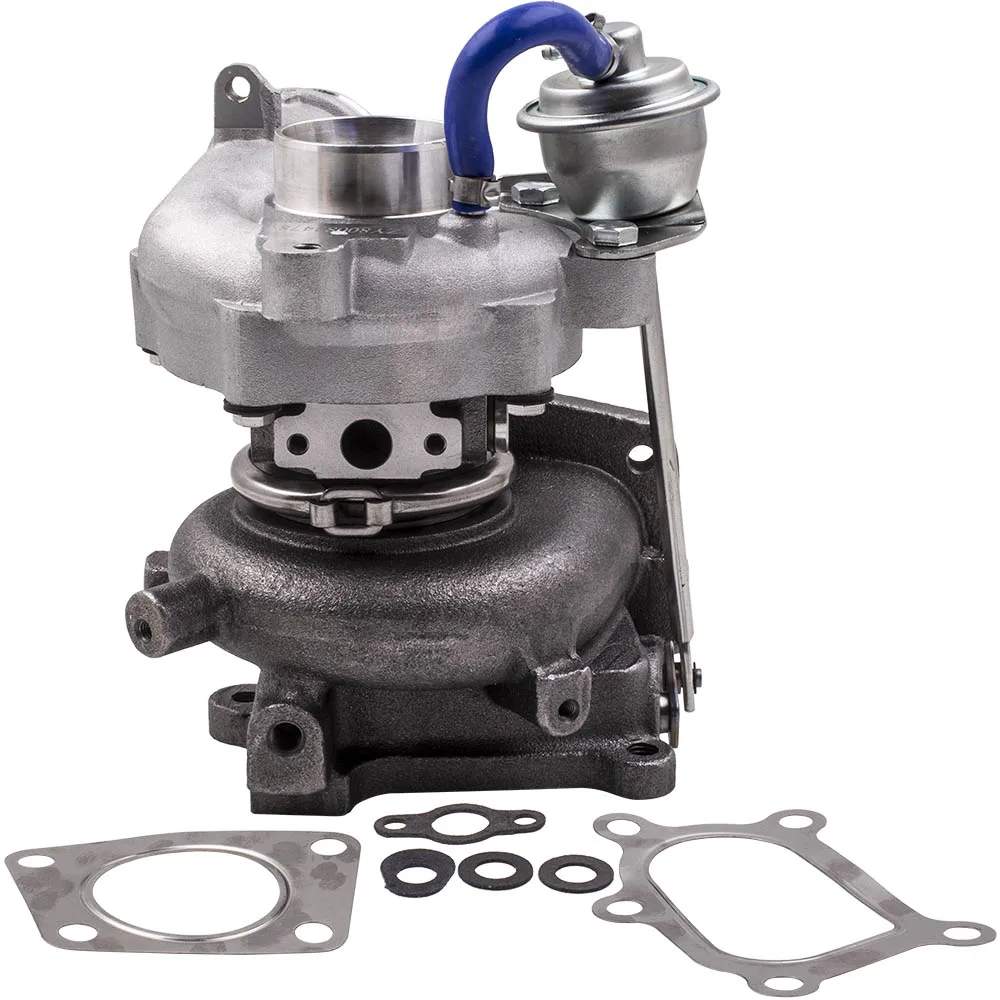

Accessories: You will receive the parts exactly as shown in the picture above

Product Feature:

1. Excellent Design:

Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance

2. High Temperature Resistance:

special K418 alloy Turbine Wheel can withstand exhaust temperature Above 900°

ductile iron QT450-10 Turbine housing Can withstand temperatures up to 700℃

3. High Efficiency:

High efficiency and low inertia intake and exhaust blades can greatly reduce turbo lag

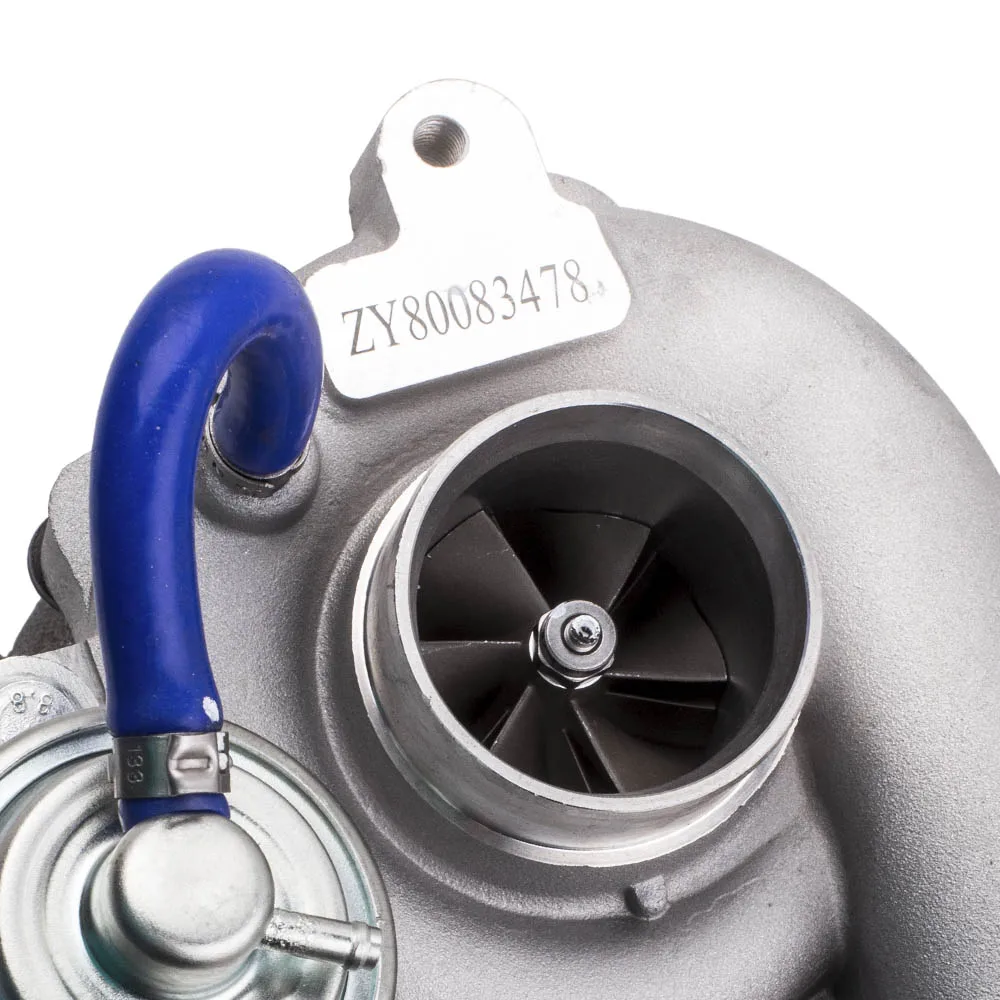

4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance

5. 100% BALANCING TEST:

This Turbocharger you will receive has been balanced using the VSR machine technology.

Features:

Product  Performance：

1. Rich Experience In Turbo Production And Own Factory

2. Quality Assurance

3. High Performance Rotor

4. High-Speed Oil Seal Ring

5. Strict Quality Inspection

6. Precision Clearance

7. High-speed Accessories

8. Increase Engine Power

9. Improve Emissions & Save Oil

10. OEM-quality and size with little modification

1. 100% balancing Test by TURBOTECHNICS  VSR3

This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer：

electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

HOW TO IDENTIFY YOUR TURBOCHARGER:

If you are not sure fitment for your old turbo , please let us know this information :

 1 . The OEM code information from your original turbo nameplate

 2 . The Engine code & KW , HP , Year for your car

 3 . The Photos of  your complete turbo

 4 . Please note that the registration number cannot identify your turbocharger

Notice

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)

* For any needs please contact us.
