Name: LCD Air Pressure Sensor Digital Wind Differential Pressure Transmitter 4-20mA Out Sensor -50-0-50Kpa Gas Pressure Transmitter
SKU: 1005004073409545
Availability: InStock

LCD Air Pressure Sensor Digital Wind Differential Pressure Transmitter 4-20mA Out Sensor -50-0-50Kpa Gas Pressure Transmitter

$80.82 – $140.43

Ships From

Choose an option

China

Measuring Range

Choose an option

-1-0Kpa

-1-1Kpa

-10 -10Kpa

-100 -100pa

-200- 200Pa

-300-300pa

-500 -500Pa

0 - 5Kpa

0 -10Kpa

0- 3Kpa

0-100Pa

0-15Kpa

0-1Kpa

0-200Pa

0-20Kpa

0-25Kpa

0-300Pa

0-500Pa

0-50Kpa

customize

Color

Choose an option

0-10v Output

0-5v Output

4-20mA Output

LCD 4-20mA Output

LCD RS485 Output

RS485 Output

Clear

Model Number: ESP-A300
Max Measuring Range: 400 Bar & Above
Brand Name: SOWAKAM
Origin: Mainland China
Certification: CE,FCC,RoHS
Measure range: -50 to 0 to 50KPa
Output signal: 4-20mA RS485
Power Supply: DC12V,DC24V
Accuracy: 0.2%FS
Display: LCD
product name: Gas Pressure Transmitter

1. Measuring range: Same as your choose

2. Output signal: 4-20mA RS485

3. Power supply: DC24V

4. Display：LCD

PLS Notes:

We can do OEM range according to your request :

1>. Measuring range: -20-0-25Kpa

2>. Output signal: 4~20mA,

3>.Power supply: 12~30VDC, 24VDC, 12VDC

Online Service :

If you need other parameters, please contact me online .

And pls let me know the measuring range, output signal, power supply, thread size.

We will do it according to your special request .

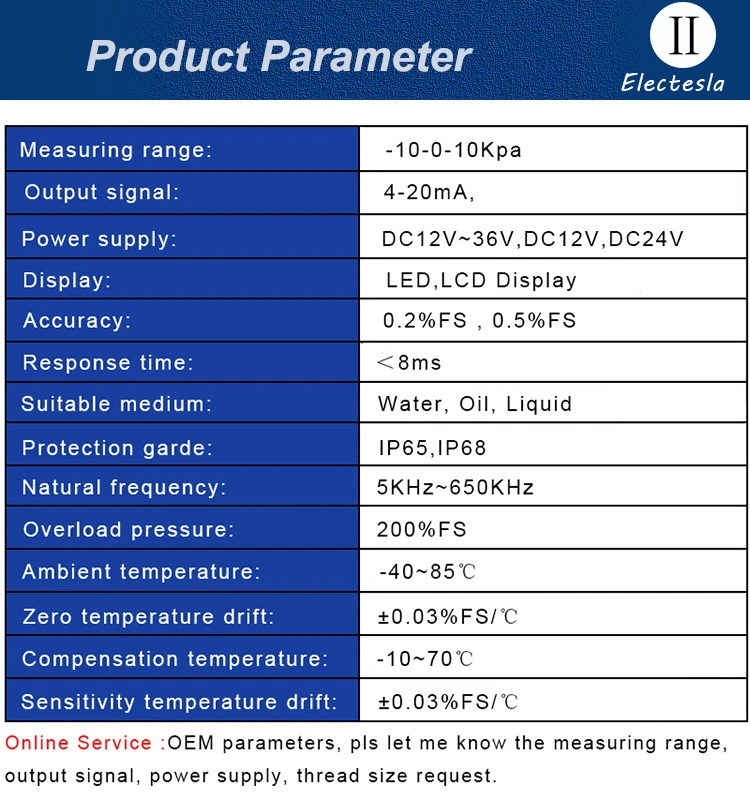

Technical Index and Specification:

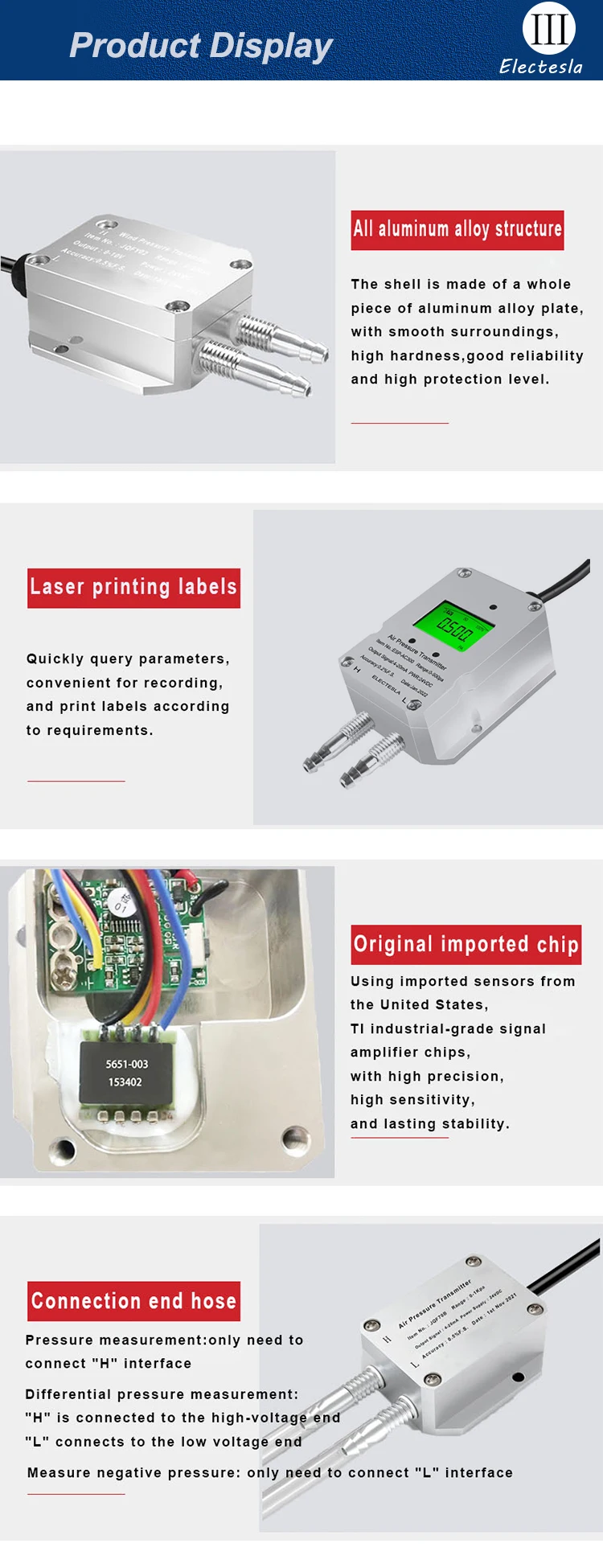

1>Differential air pressure transmitter is composed of OEM silicon piezoresistive differential pressure core.

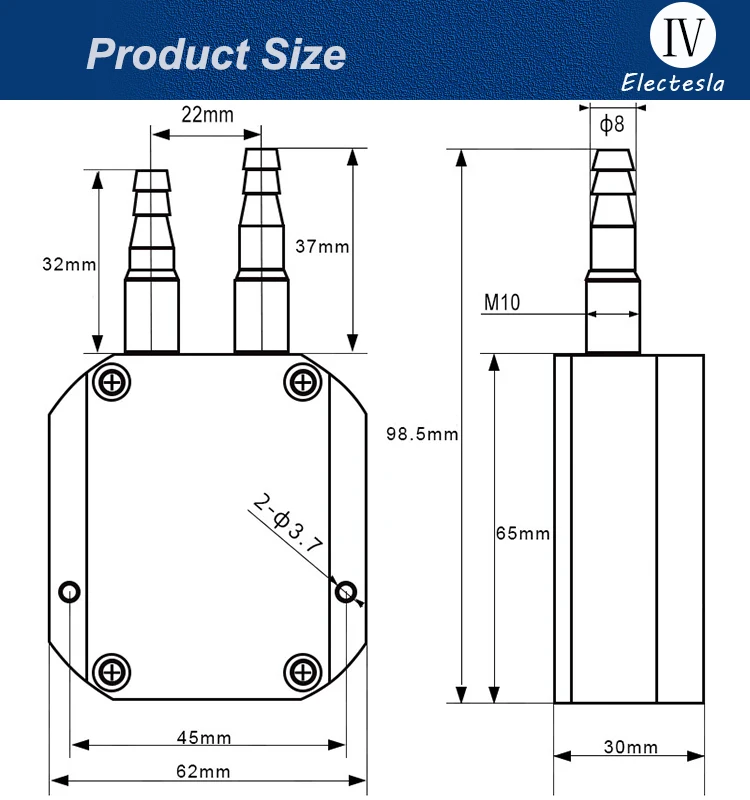

2>The shell is made of aluminium alloy. The two pressure interfaces are M8 threaded and cock structures,

which can be directly installed in the measuring pipeline or connected through the booster pipe, and can accurately measure the pressure and differential pressure of the gas.

3>It is widely used in the field of pressure process control in power and coal industry, such as boiler air supply and underground ventilation.

4>The long tube is the high pressure input port and the short tube is the low pressure input port.
Measuring Pressure: Only Long tube Measuring differential pressure: high pressure to long tube, low pressure to short tube
