Default DC24V power supply

 we can help you customize -0.1~1000bar （0-100Mpa），other pressure range ,pls contact us or choose OEM ,leave a message to us.TKS

Descriptions

<1>. QDX50A pressure sensor has been specially designed to cover the majority of industrial applications which need high accuracy measurement.
<2>. QDX50A pressure sensoris made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently. Thispressure transducerhas been approved with CE,FCC,ROHS,ISO certificates and explosion-proof certificates.
<3>. QDX50A pressure transmitteris suitable for all applications in process control, laboratory and materials testing equipments.

<4>.Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

Features

◆ CE Rohs，FCC certificates
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 4-20mA, 0.5-4.5V, 0-5V, 0-10V, 1-5V, various voltage output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM,ODM flexible customization

Applications

◆ Intelligent IoT constant pressure water
supply
◆ Engineering machinery, industrial process
control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing
equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration
equipment
◆ Water pump, air compressor pressure
monitoring

Parameters

Measuring range: 0～600Bar /60Mpa can be customized
Accuracy: 0.2%FS,0.5%FS
Output signal: 4-20mA (2 wires),0-10V (3 wires),others can be customized
Supply voltage: 12～36VDC (Default DC24V)
Compensation temperature: -20～80℃
Pressure medium: Non-corrosive liquid or gas
Pressure connection: G1/4, Other pressure connection pls contact us or leave a message on your order

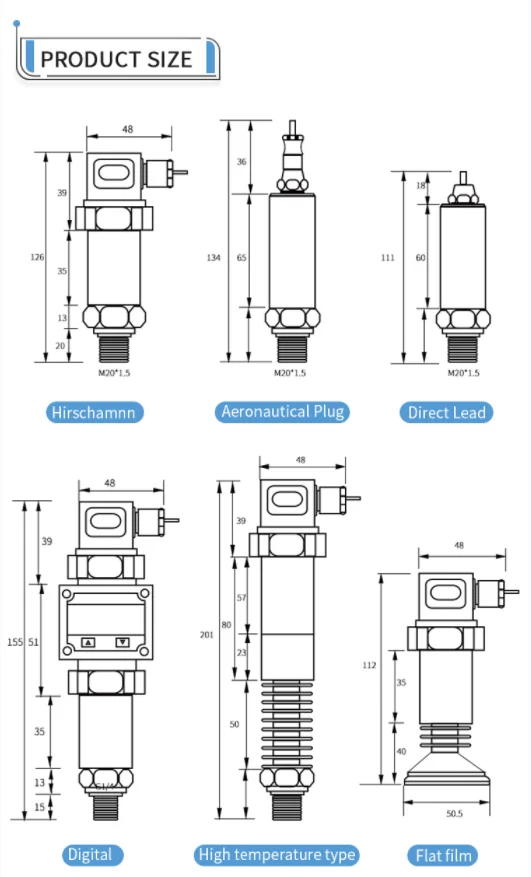

Electrical connection: Hirschman
Housing material: 304 Stainless Steel
Protection class: IP65
