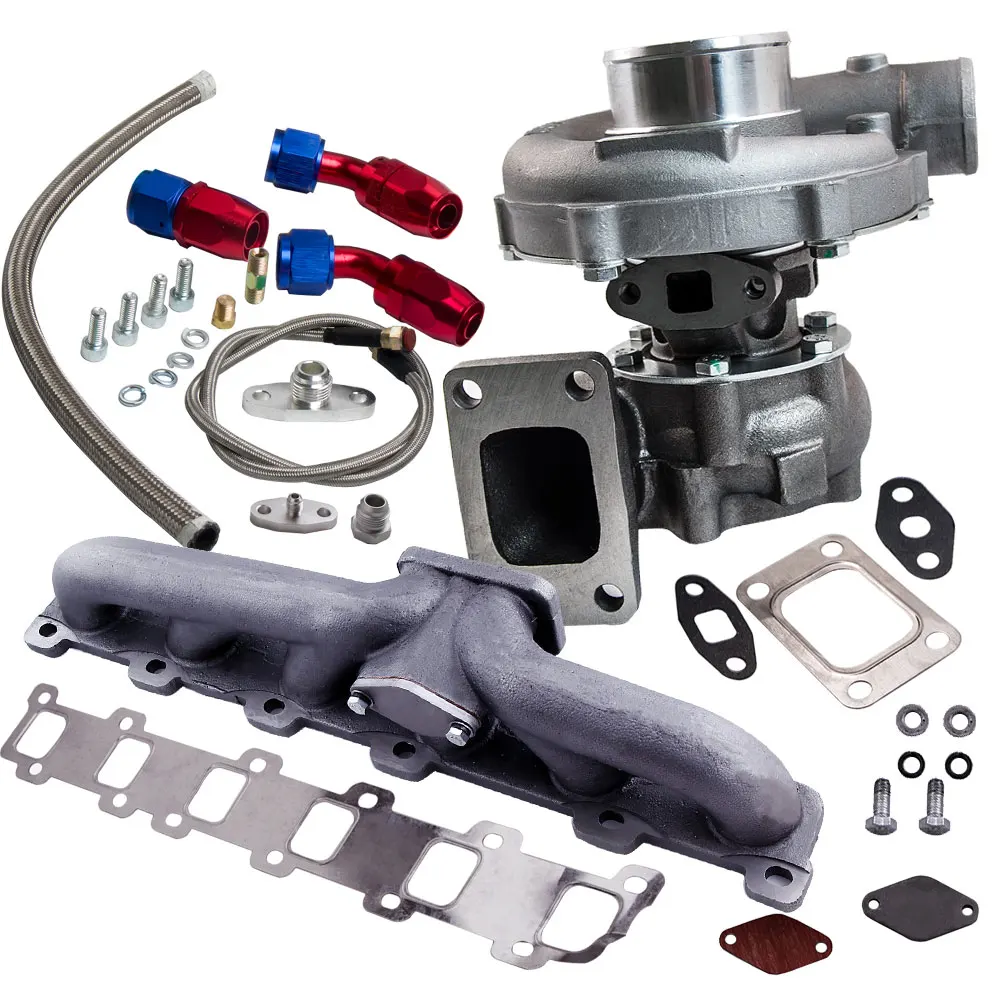

T04E T3T4 Turbo/Turbocharger +oil Return/feed Line +Td42 Manifold For Nissan

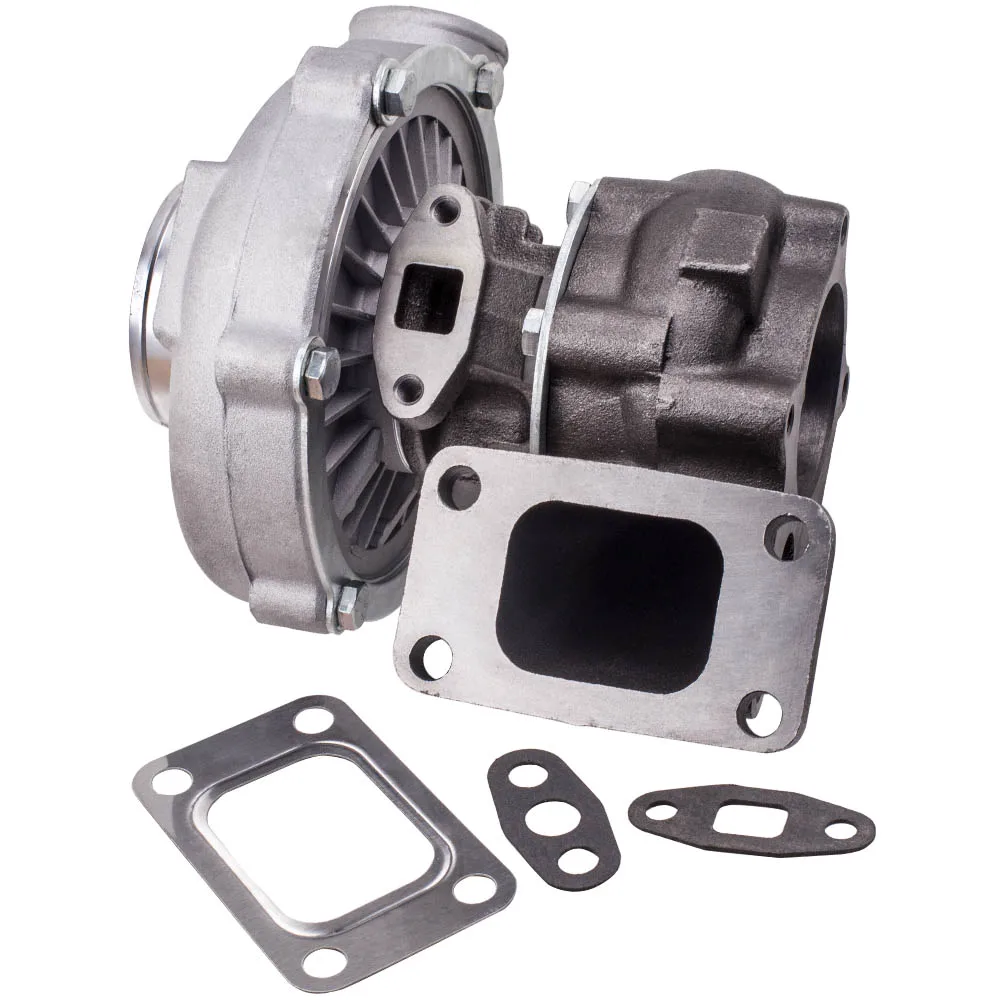

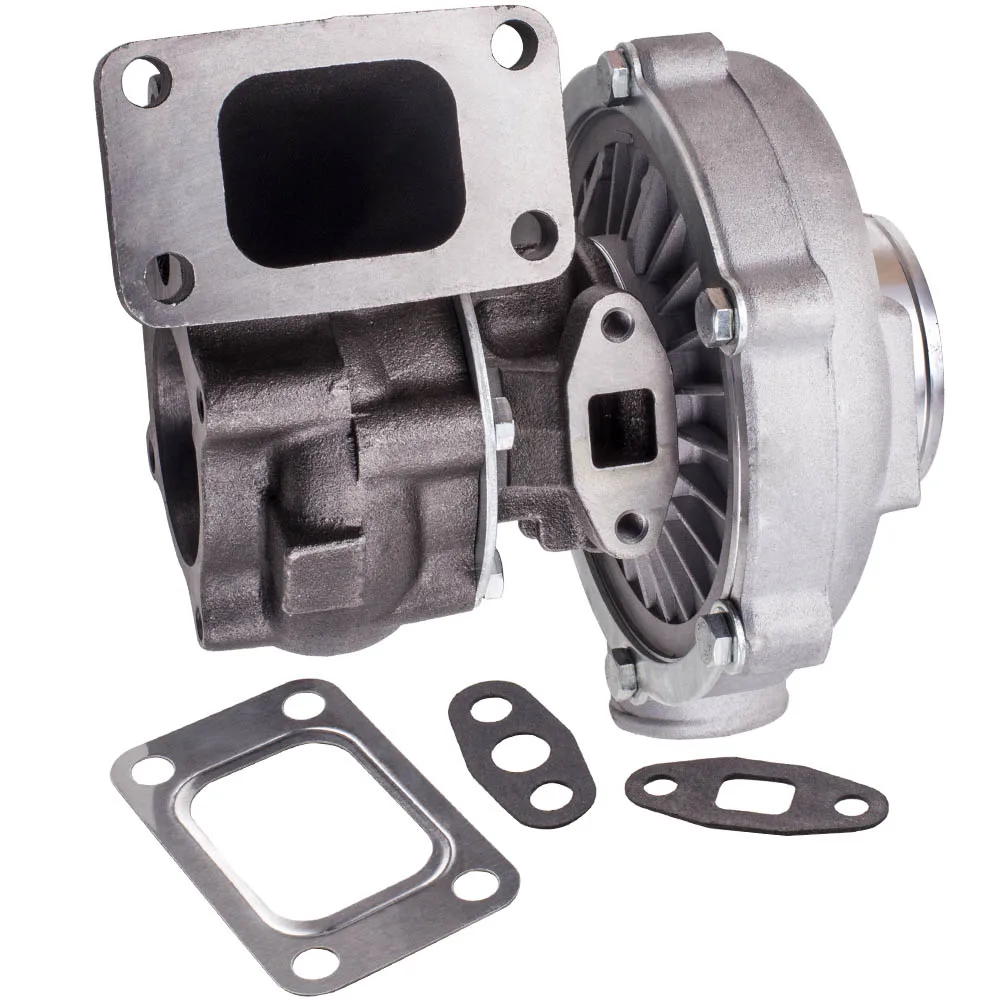

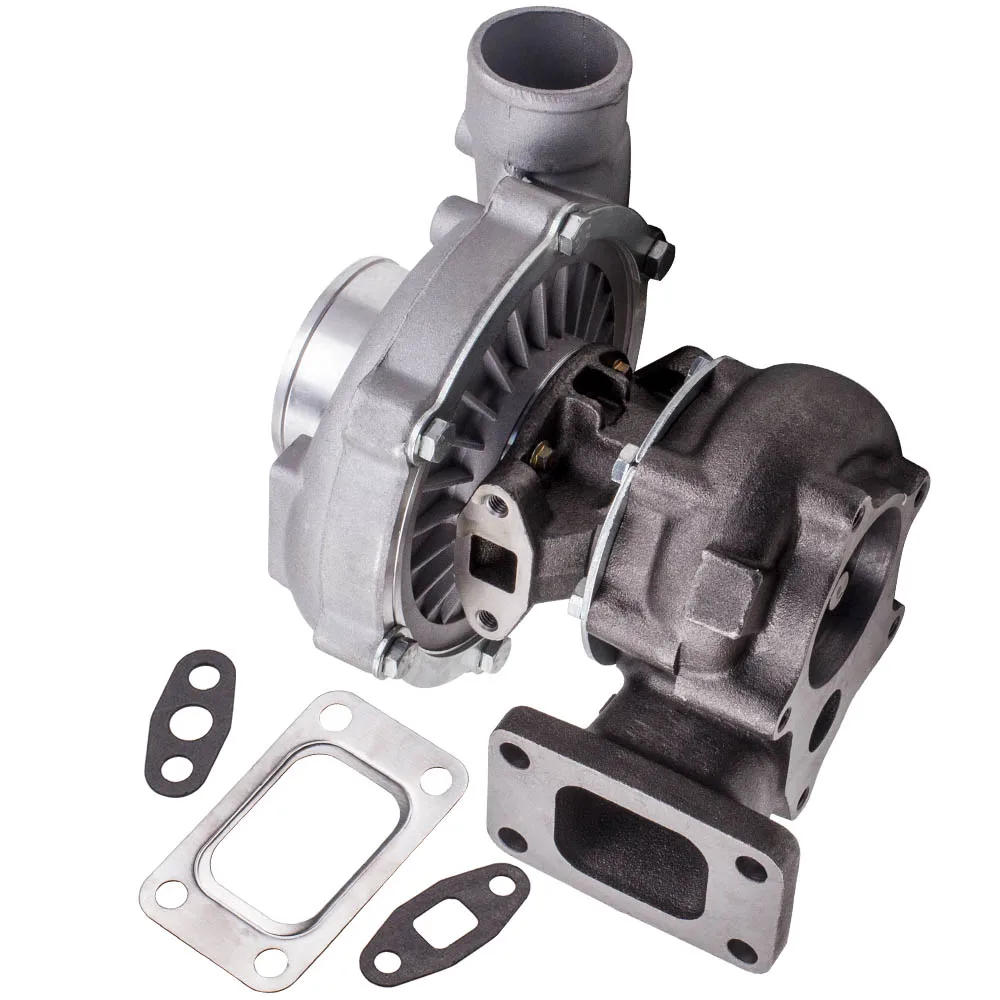

1.About T04E T3/T4 turbo

Introduction:
Looking to boost your car’s power? Is your car’s original turbocharger not performing well, or does it need replaced? Maxpeedingrods stocks all the best quality turbochargers, turbo parts to give your car the power, performance and reliability you deserve. Maxpeedingrods aftermarket replacement turbo provide the perfect solution by delivering a high-quality turbo at a budget-friendly price

Application:
This item fits: Universal Application.
for 1.5L to 2.5L any 4/6 cylinder engine up to 400+ HP
Maximum 18PSI (1.2Bar)

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet Flange: Standard T3 5 bolt flange pattern
Cooling Type: Oil Cooled
Wastegate: Without Wastegate

Bearing Type: Journal Bearing

Compressor:
Trim: 48.1
A/R: 0.5
Inducer: 52.7
Exducer: 76
———————-
Turbine:
Trim: 74.2
A/R: 0.57
Inducer: 64.8
Exducer: 55.8
———————-
Compressor outlet: 42mm(inside diameter), 52mm(Outer diameter)
Compressor inlet: 68 mm(inside diameter), 77mm(Outer diameter)

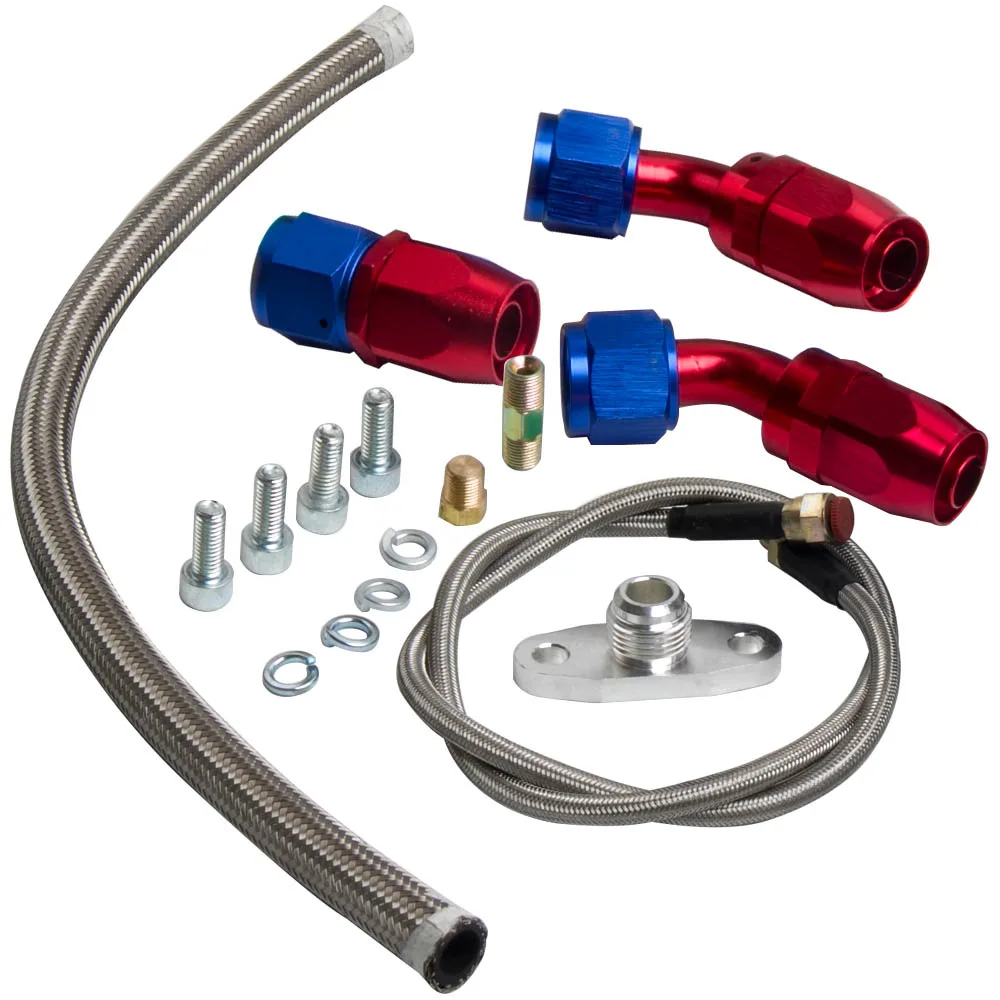

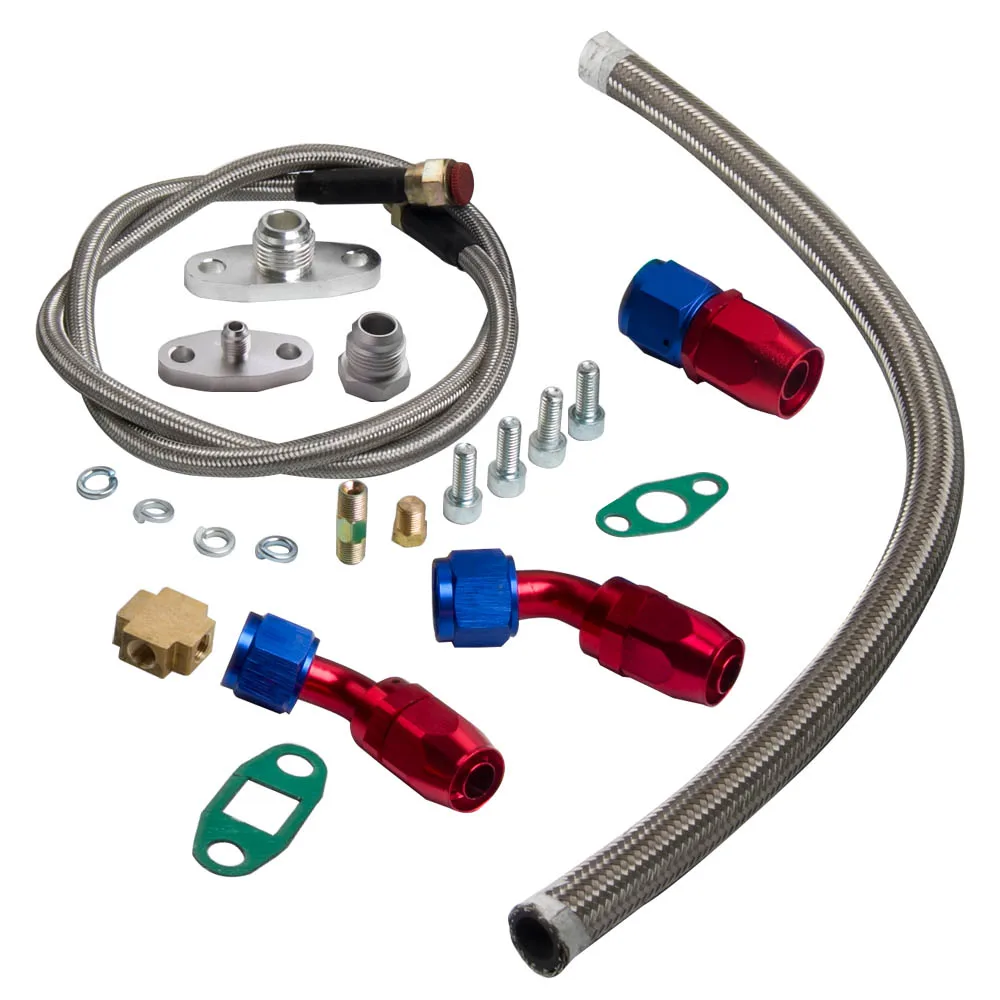

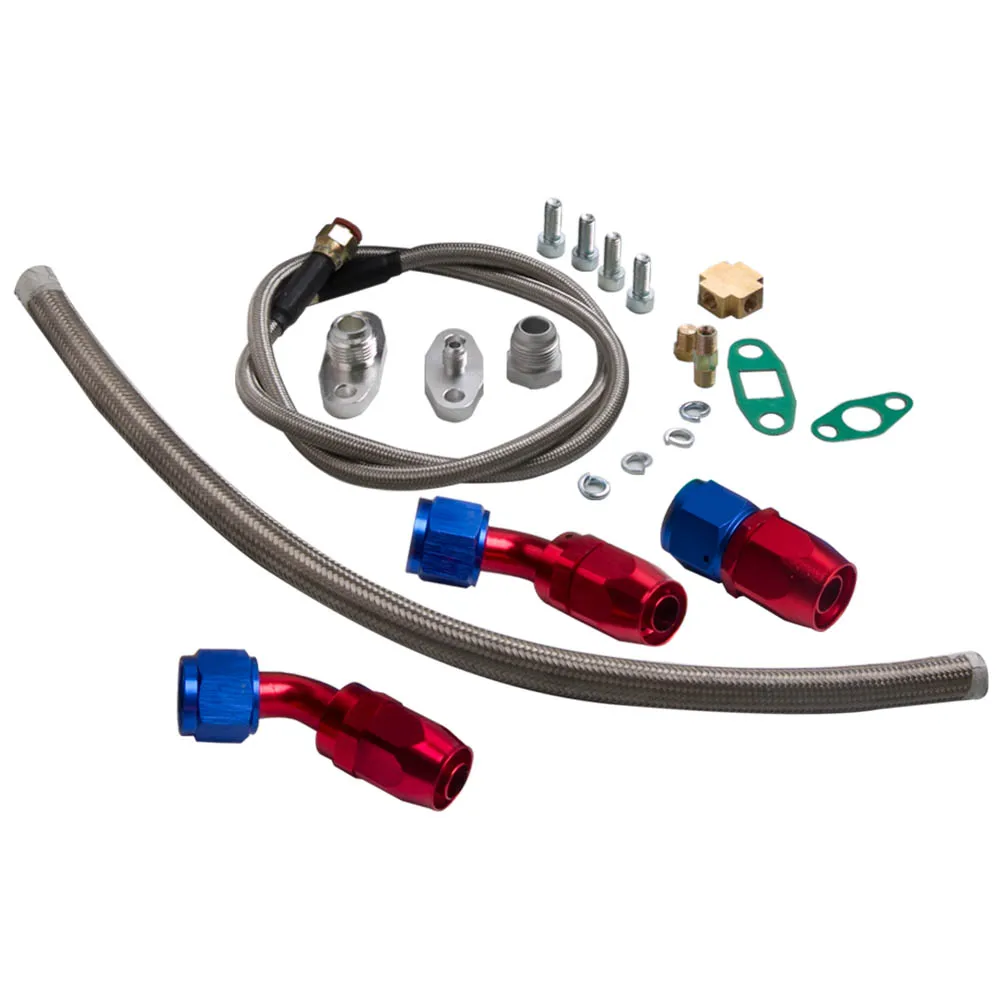

2.About Turbo Oil Return Line & Oil Feed Line
* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

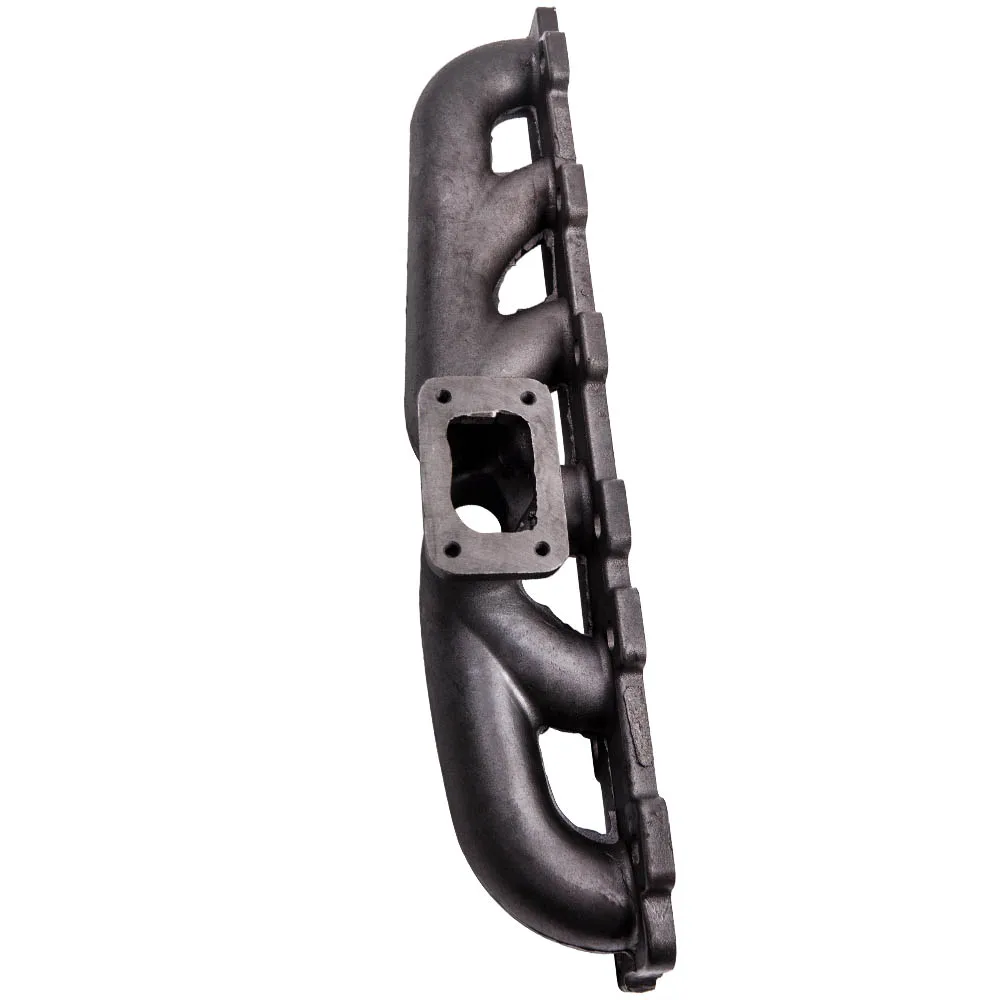

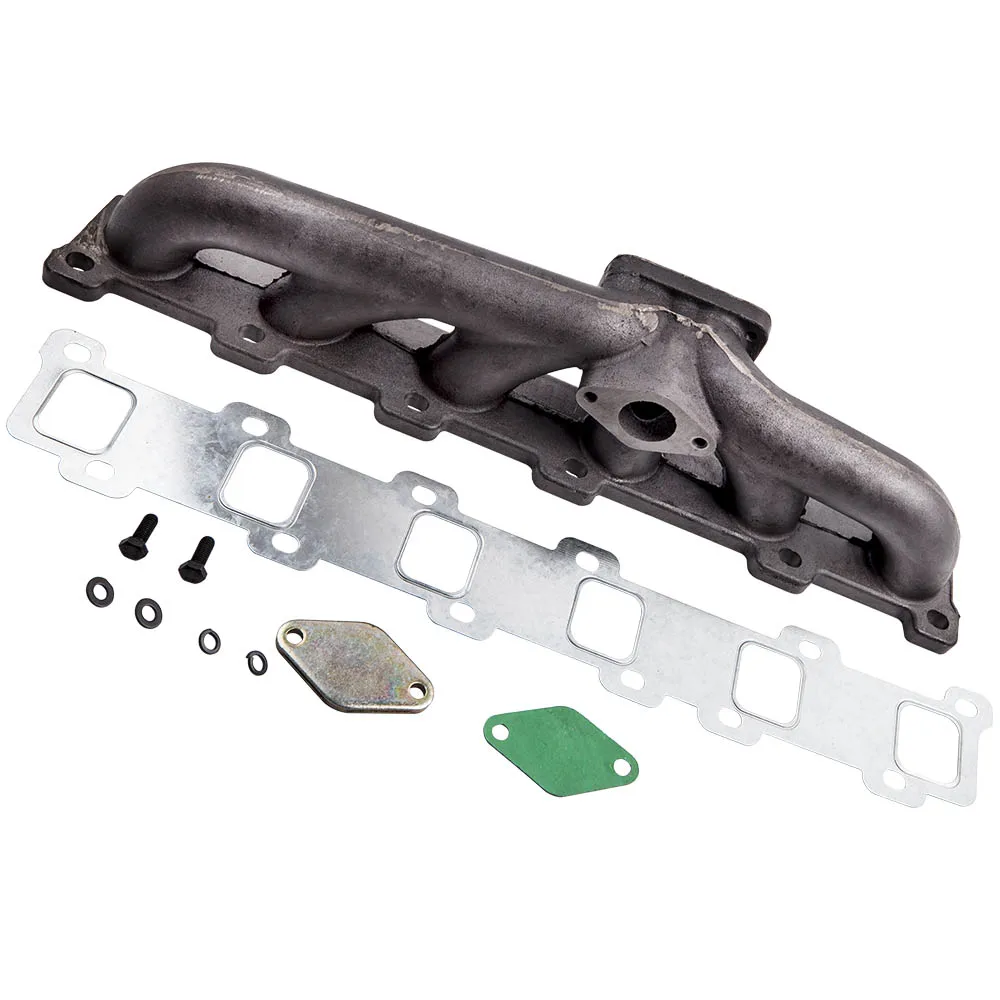

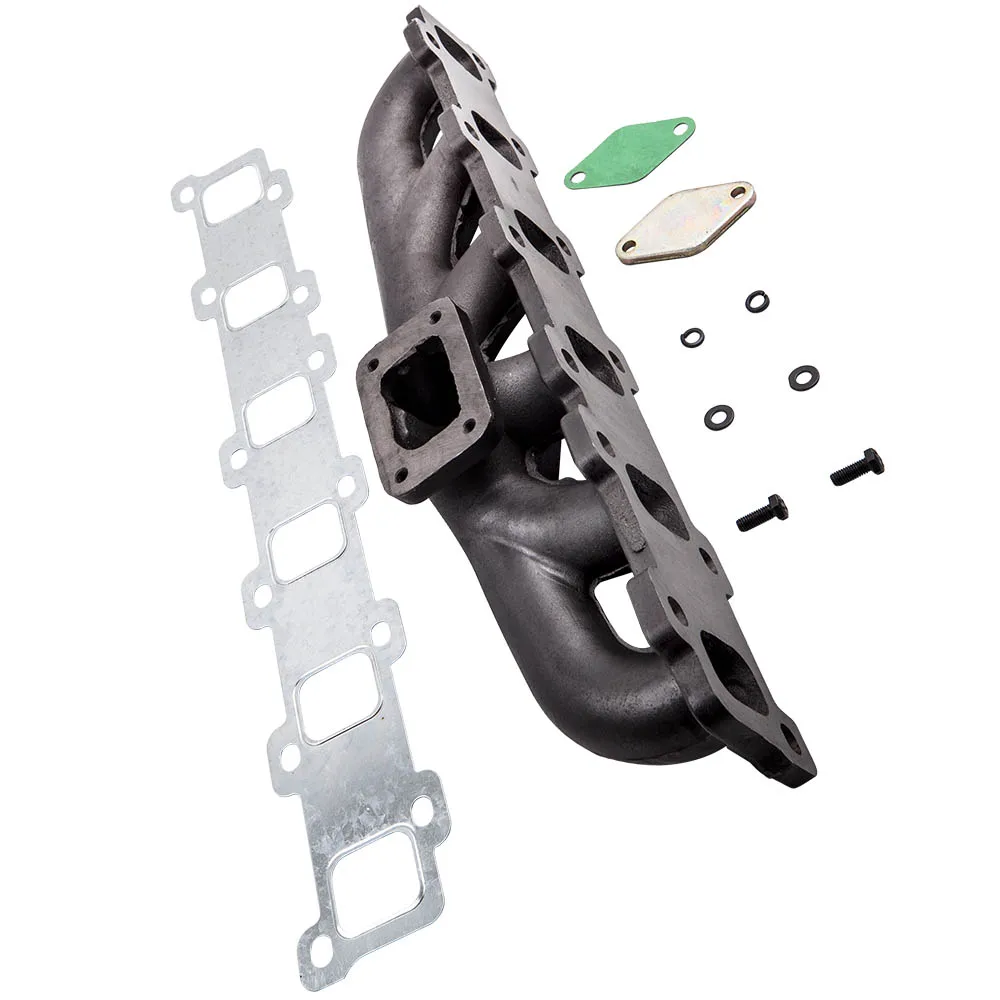

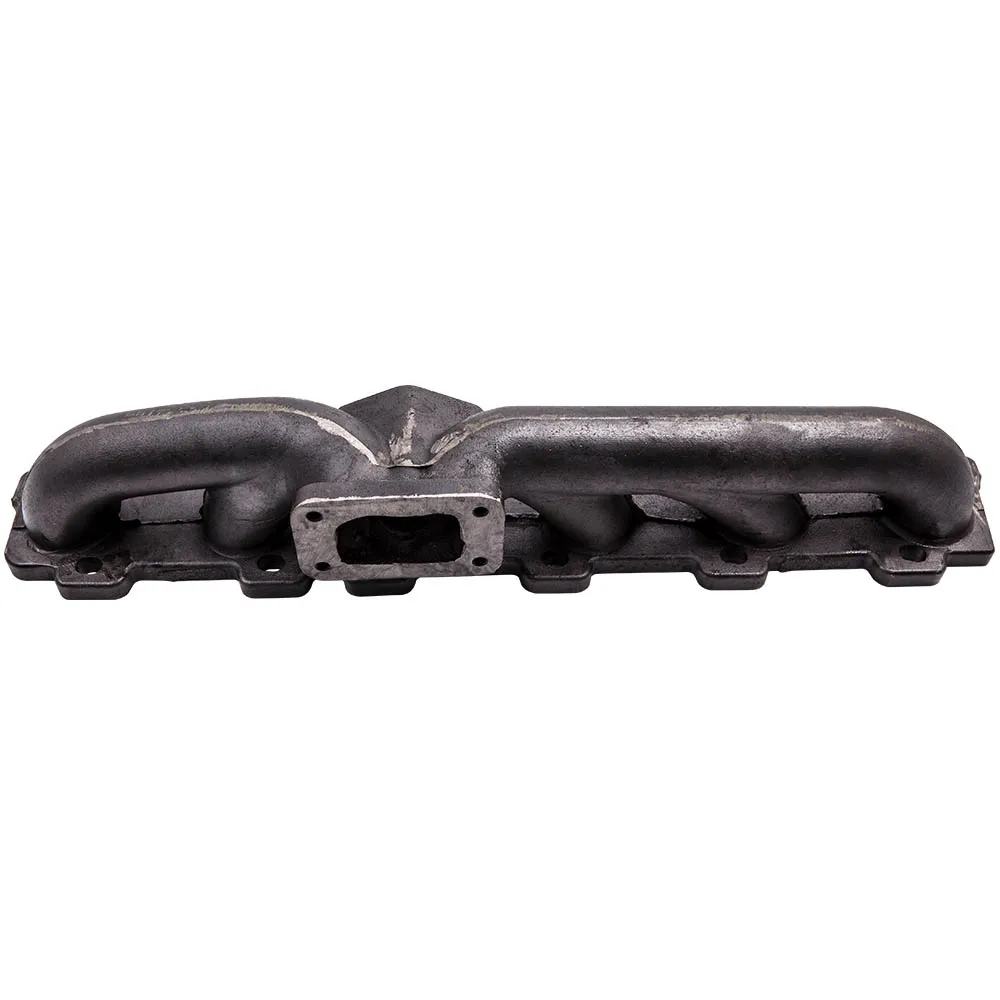

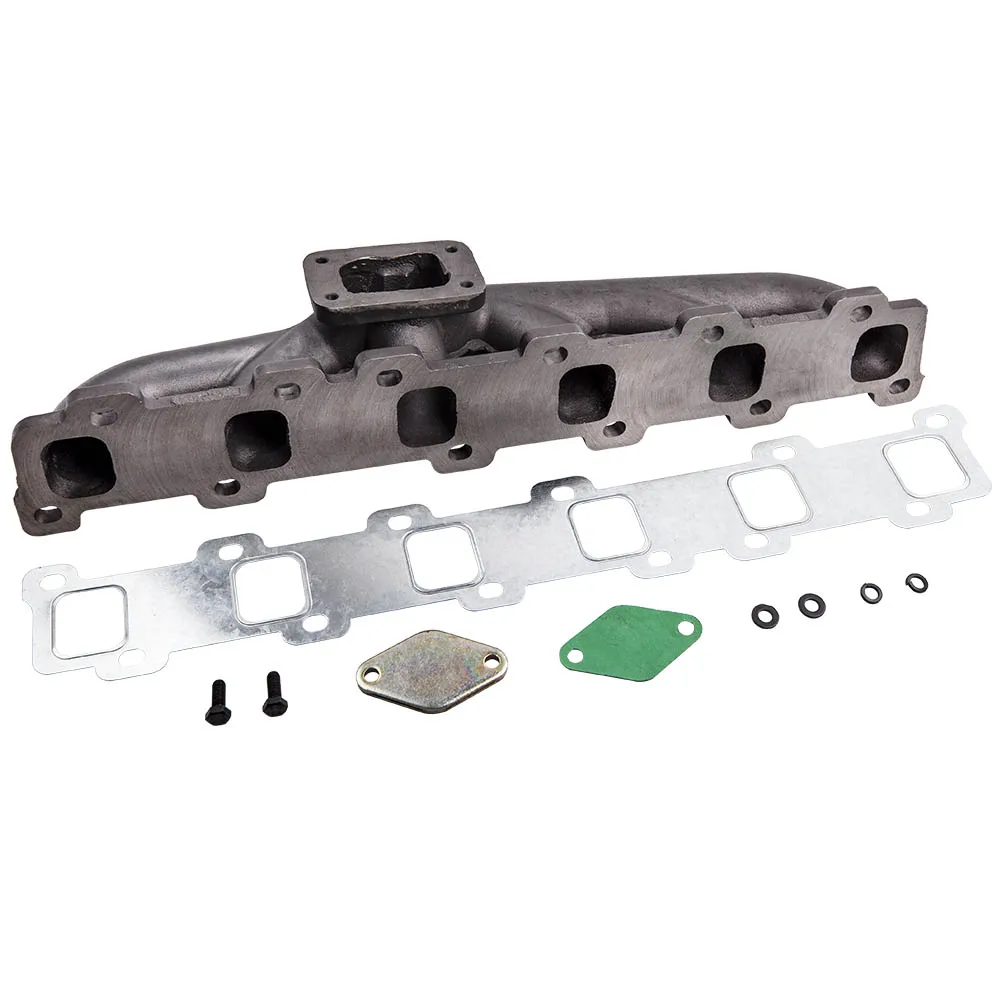

3. About TD42 manifold details
Turbo Flange: T3 flange
Mount Type:top mount / high mount
External Wastegate: 38mm

include: same as picture

Features:

1. BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.
Turbine Wheel: the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.
Turbine housing : Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius
Aluminum blades : Precision machining forging. The lightweight design enables reduced noise and increased response without compromising comfort or longevity
2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.

NOTE:
*100% Brand New
* Professional Installation is Highly Recommended， Instruction is NOT Included
*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
*Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
