Best Turbo Turbocharger Twice Balanced 452204 For Saab 9-3 9-5 2L 2.3L Engine

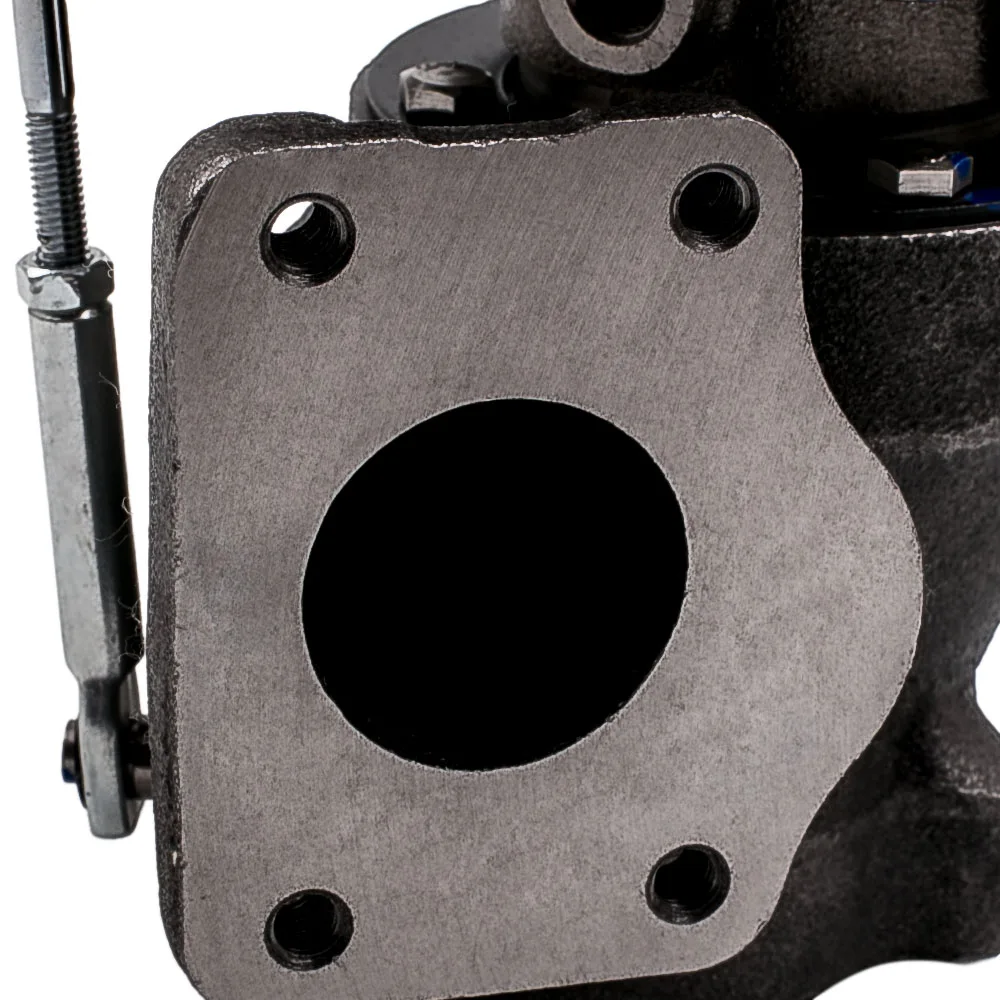

important notice:Please check the hole size , the hole size of the different versions of turbo is slightly different, and it may need modification

Introduction：
Looking to boost your car's power? Is your car's original turbocharger not performing well, or does it need replaced? Maxpeedingrods stocks all the best OEM-quality turbochargers, turbo parts to give your car the power, performance and reliability you deserve.  Maxpeedingrods aftermarket replacement turbo provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Applications

2000-2003  for Saab 9-3 I 2.0L T Engine B205E 150 PS /110 kW

1998-2009   for Saab 9-5 2.0L T Engine B205E 150 PS /110 kW

1998–2001  for Saab 9-5 2.3L T Engine B235E 170 PS /125 kW

Note:

Don't fit for SAAB 9-3/ 9-5 2.0L with B204（L/E/R）, L850, B207R,B205R,B253R engine.

Don't fit fot SAAB 9-5 3.0L  with B308E, B308 V6 Engine

Don't fit fot SAAB 9-5 2.3L Sedan/Aero/Viggen with  B253R engine

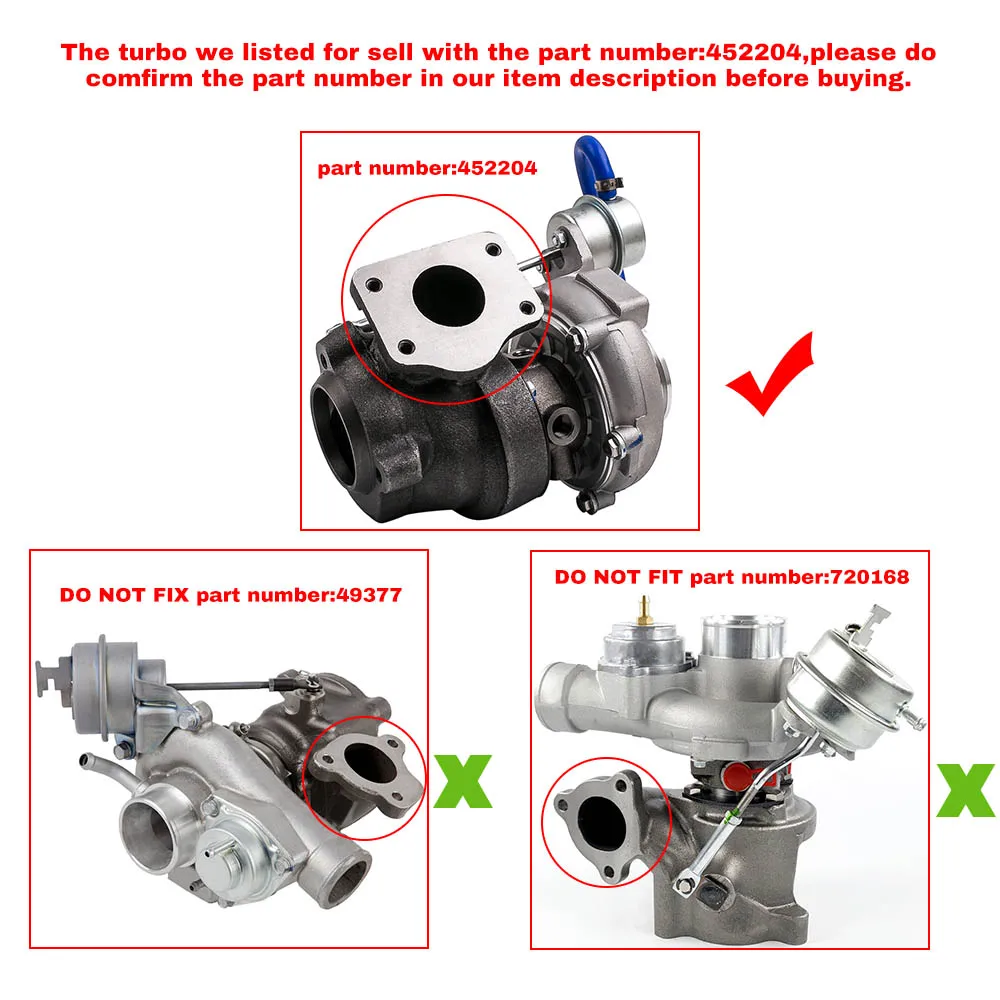

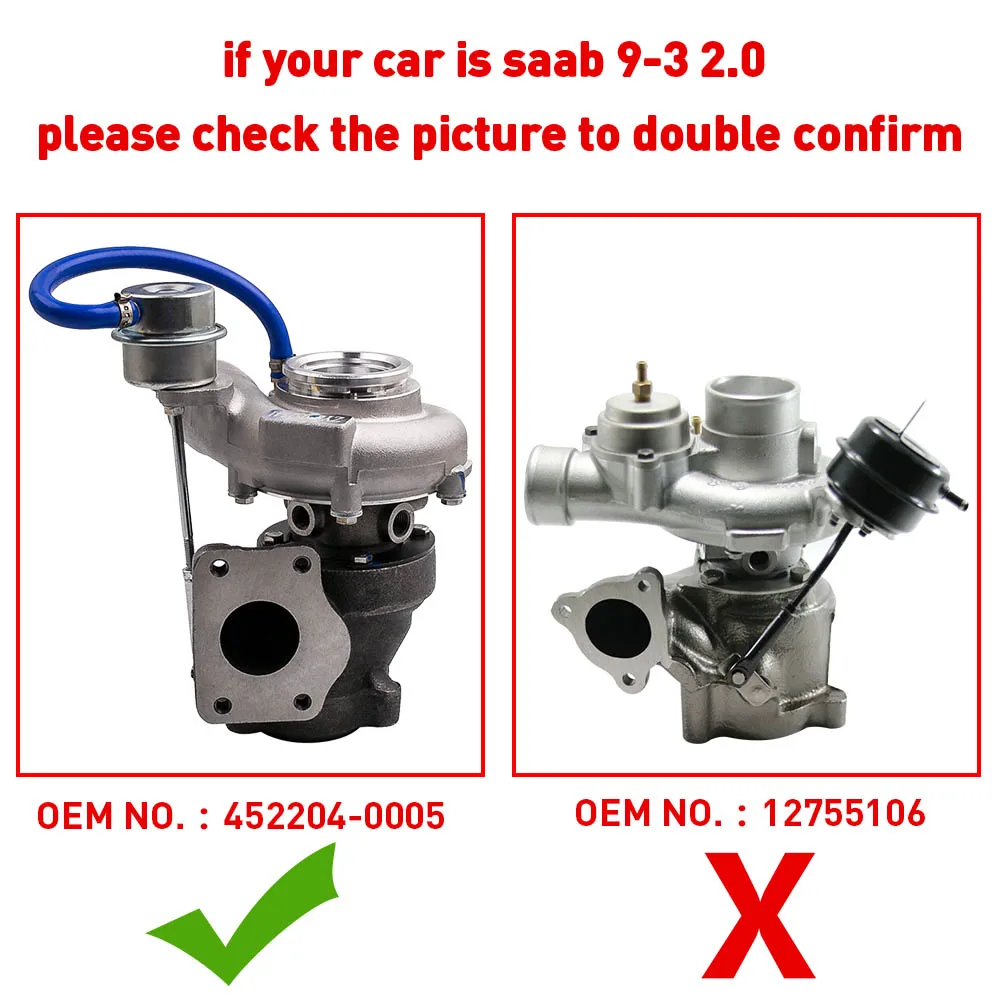

OE/ Part Number

452204-0001,452204-0003,452204-0004,452204-0005,452204-0007,

452204-5001S.452204-5003S.452204-5004S.452204-5005S,.452204-5007S,

452204-1,452204-3,452204-4,452204-5,452204-7,

4522040001, 4522040003, 4522040004, 4522040005,4522040007,

4522041, 4522043, 4522044 ,4522045, 4522047

5955703,9172123,55560913,9198631,4611349,9180290

Don't fit for 49189-01800,49189-01820,49189-01830，9172180，55559825, 49177-06501，708899-0001 ，452194-0001

Specification

Turbo Model:   GT1752S （not for TD04 , GT1549 ,  GT20,  GT2052 model）

Engine:  B235E, B205E

Compressor Wheel Diameter: 38.37/52mm

Turbine Wheel Diameter: 38.1/43.3 mm

coolant ports Diameter: 14mm

Cooling Type：Water Cooling

Bearing Type: Floating Bearing

Hosepower:  150PS/ 170PS

Turbo Type: Individual

Universal Fitment:  no

Finish: Matte

Condition: 100% Brand New & Factory Balance

Accessories: You will get exactly as shown in the picture above

Product Material：

1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

3. Compressor housing：ZL104 aluminum with lightweight

4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance

Product  Performance：

1. OEM-quality and size with little modification

2. Rich Experience In Turbo Production And Own Factory

3. Quality Assurance

4. High Performance Rotor

5. High-Speed Oil Seal Ring

6. Strict Quality Inspection

7. Precision Clearance

8. High-speed Accessories

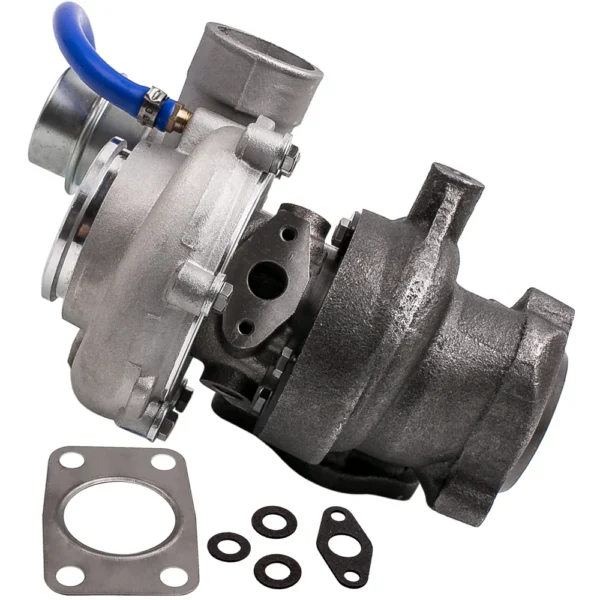

All necessary gaskets included for ease of installation

Technology Test

1. 100% balancing Test by TURBOTECHNICS  VSR3

This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo testing–此条讲的VNTturbo测试技术，视情况添加

The G3-min-Flow (Air) was designed and built in the UK by 3 former Garrett Test Engineers whom have a combined total of 60 years in the Industry.  the machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.

3.  Advanced Actuator Tester/Programmer：

electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Feature:
* Turbine housing adopts ductile iron QT450-10, withstand temperatures up to 700℃.
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.
* Cast aluminium blades with good air tightness and corrosion resistance
* OEM-quality and size with little modification

Specification:

Compressor Wheel Diameter: 38.37/52mm

Turbine Wheel Diameter: 38.1/43.3 mm

Cooling Type：Water Cooling

Bearing Type: Floating Bearing

Hosepower:  Up to 170HP

Condition: 100% Brand New & Factory Balanced

Warranty: 2 years warranty for any manufacturing defect

Accessories: You will get exactly as shown in the picture above

Note:

*Any Free Shipping Promotion is Valid to the 48 contiguous states. for Alaska, Hawaii, Puerto Rico, Guam,Virgin Islands and Samoa, extra shipping fee will be charged.

*Pick up service is not available.

Additional Details:

* Please check the Turbo Model, Turbo Part Number and OEM Number on your original turbo to make sure it's the right one for your engine. If you are not sure about these information,  please feel free to contact us

* Instruction is not included. Professional installation is highly recommended!

* You will get exactly what you see in the above picture.

* Bearing Type: Journal Bearing

* Please check the hole size , the hole size of the different versions of turbo is slightly different, and it may need modification.
