Introduction:

Are you trying to put together a cost effective turbocharger system for your vehicle?   You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods universal turbocharger got just what you’re looking for.

Don’t hesitate to get a turbo to boost your car’s power

Application:

Universal Turbo Kit Perfect For 2.5-6.0L engine

This Kit Will be able to add 350+HP at 7.5-14.5 PSI.

(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)

Specification:

1x GT35 Turbo charger

Exhaust Inlet (Turbo Manifold) Flange: T3

FlangeExhaust Outlet (Downpipe) Flange: 4-Bolt

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Bearing Type: Wet Float

Cooling Type: Water + Oil

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

Wastegate：External Wastegate

Oil feed/inlet: M10*7/16-24

Oil drian/outlet: 2*M8*1.25

water inlet/outlet: M14* 1.5

Maximum PSI：22

Turbocharger Overall size: 230*180*240

1x intercooler

Overall Size 27” x 7” x 2.5” inch.

core size:  21*7*2.5

Inlet size is 2.5 inch.

1 x Universal turbo intercooler piping kit:

 * 2 x Straight Aluminum Pipe

 * 2 x 45°Aluminum Pipe

 * 2 x 75°Aluminum Pipe

 * 2 x 90°Aluminum Pipe

 * 6 x 2.5"" Straight Silicon Hose (Blue)

 * 2 x 2.5"" 90 Degree Hose (Blue)

 * 16 x 2.5"" Stainless Steel T-Clamp

1 x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5"" Inch Type S/Rs Flange Pipe.  25PSi Boost! Can hold up to 1000+ HP.

1 X BOV pipe: can install anywhere suitable

1 x  35/38MM Wastegate: 35/38mm External Waste Gate Kit

1 x Turbo Boost Controller: Up To 30 PSi Boost

1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo charger to the oil pan. The kit provides a anodized look, and gives a best cooling performance on your turbo and long lasting life.

Material: Stainless Steel Braided

1x 5” 4 in 1 Tachometer:

Water Temp Unit Type: Celsius

Water Temp Display Range: 40~120 Celsius

Oil Temp Unit type: Celsius

Oil Temp Display Range: 50~150 Celsius

Oil Pressure Unit Type: Bar

Oil Pressure Display Range: 0~7 Bar

Thread Size of Sensors: 1/8NPT

1x heat shield branket

Titanium and Carbon Fiber high temperature wrap: 2500°F max

1x  Tachometer

Package included:

1x GT35 Turbocharger

1x Oil Feed / Return Line

1x 35/38mm Wastegate

1x Turbo Boost Gauge

1x Turbo Intercooler

1x Tubo Boost Controller

1x Type-S Blow Off Valve(Random Color)

1x Turbo Piping Kit

1x 5"" 4in1 Tachometer

1x Tachometer

1x heat shield branket

Features:

1.Turbo charger:

* Capable of Boosting Horse Power up to 400+ HP

* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃

* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃

* Cast aluminium blades with good gas tightness and corrosion resistance.

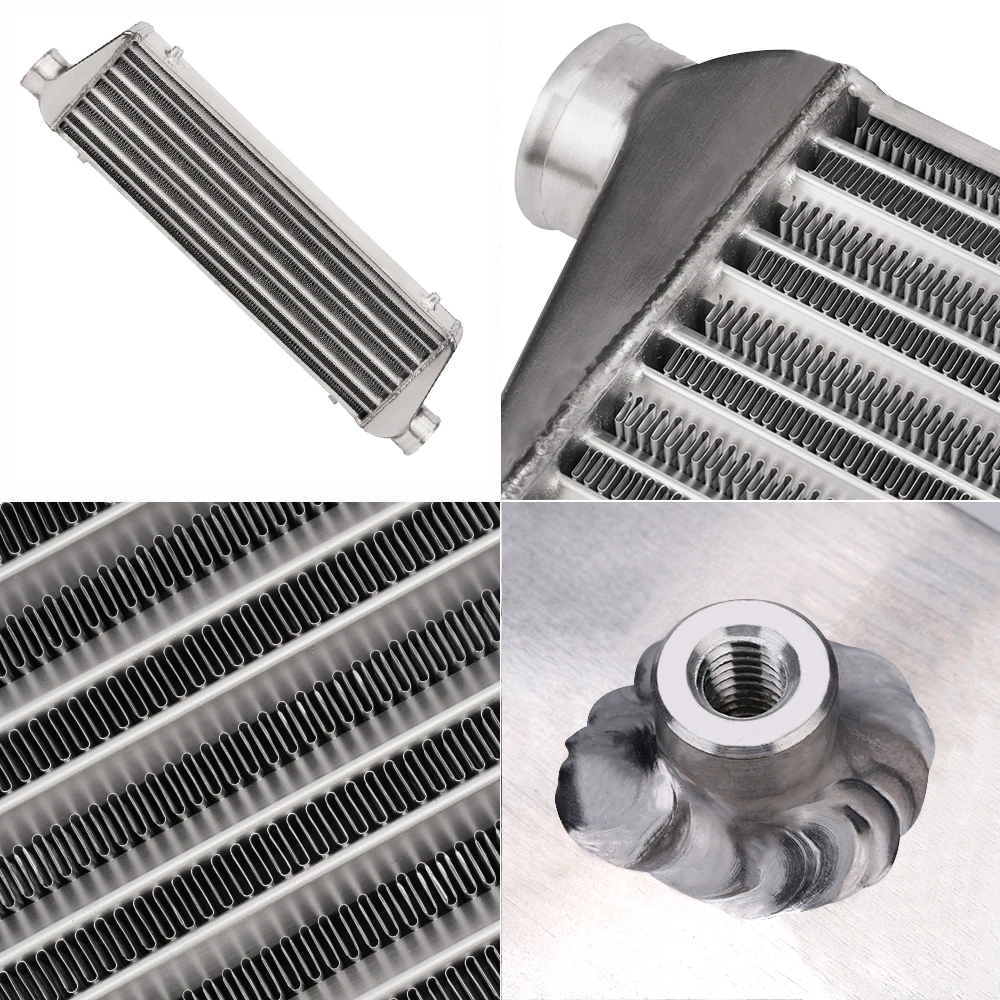

 2. Intercooler

 * core size:21*7*2.5 cools down the turbocharged air efficiently

 * Lightweight aluminum racing intercooler，

 * Strong TIG welds will support high PSI levels

3.Boost controller

 * Can be setup to adjust boost PSI on the fly

 * Can be adjusted for any PSI level desired

 * Control your boost with a precise click

 * Includes complete install kit

 * Anodized aluminum finish

 * CNC machined design

4. Intercooler piping kit

 * Made of 6061 aluminum

 * Lightweight yet strong aluminum piping

 * High pressure silicone couplers  and T-bolt clamps

5. Turbo Oil returen /Feeding line kit

 * Stainless Steel Braided

 * Includes complete install kit

 *  It helps circulate oil from the turbo charger to the oil pan.

 * The kit provides a anodized look

 * gives a best cooling performance on your turbo and long lasting life.

6.Blow Off Valve Kit

 * CNC Billet Aluminum Type RS Style Blow off Valve

 * Easy Mount Piping Set Included For Bolt-On.

 * Including all necessary hardwares.

 * easily adjustable to prevent both permature boost leakage and compressor surge.

 * Fast response One For Low And High Boost Pressure.

 * Performance design produces a powerful and aggressive sound

 * Quality design will not leak under high boost conditions

 * Flanges can be installed at user discretion

7. 38MM Wastegate

 * Most reliable wastegates For competition vehicles.

 * accurate boost control

 * high quality appearance features Dual port design

 * comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.

8. 5 Blot Turbo Downpie

 * CNC machined surface

 * Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing.

9.  BOV pipe/Adapter

 * can install anywhere suitable

10.5” 4 in 1 Tachometer:

 * Comes with All the Wiring Necessary for Installation.

 * All Accessories are Included for Installation.

 * Back lit for use at night time

11.heat shield branket

Note:

* Need modifications – Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it’s recommended to advanced players but not for beginners. )

* we will not be responsible for man-made installation damage.
