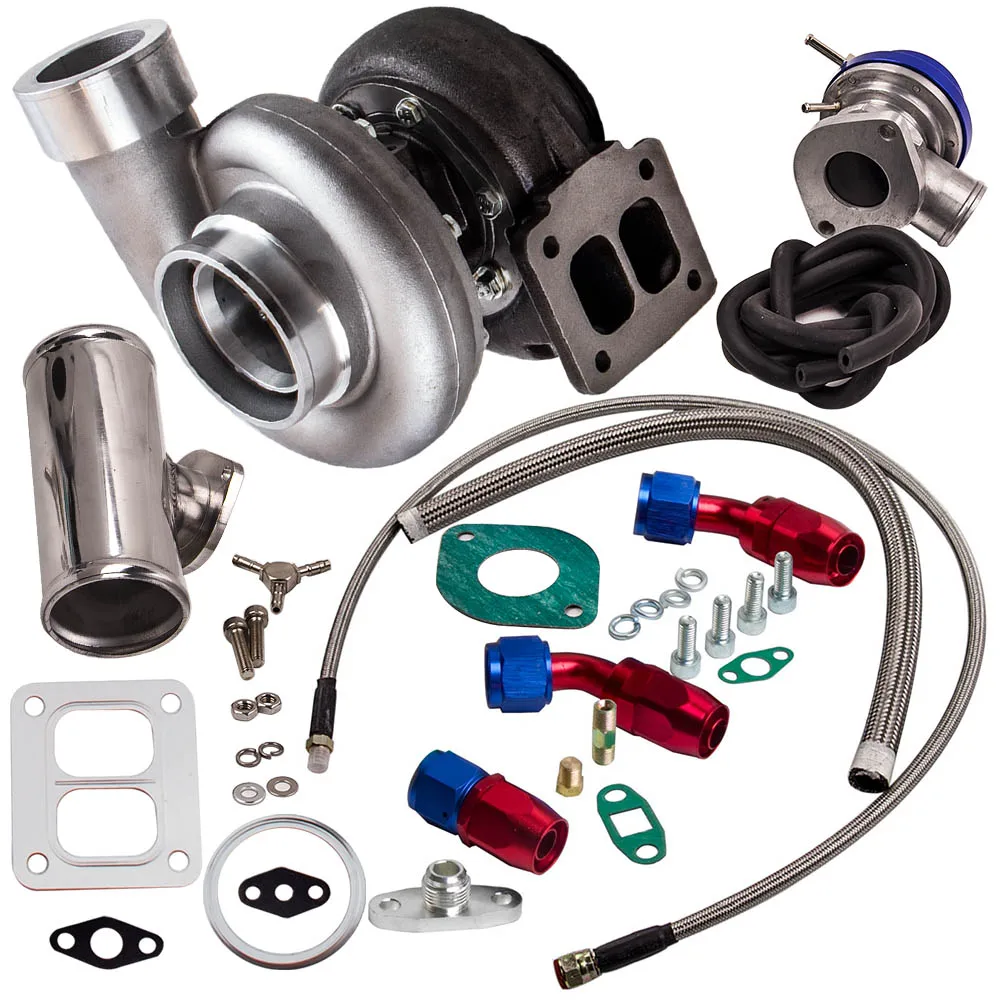

GT45 Turbocompressor Turbocharger + 40mm BOV + 2.5" Flange Adapter Pipe + Oil Feed & Return Line Turbo Turbine

* This is universal application turbo, so modification might be required for some vehicles.

Perfect for all 4.0L-6.0L engine 600+ HP

Exhaust (Turbo Manifold) Flange: T4 4 Bolt Flange

Exhaust Outlet (Downspout) Flange: 3.25 " V-Band Flange

Cooling Type: Oil Cooled

Wastegate: External Wastegate

Horse Power: Boost Horse Power up to 600+ BHP

Turbo Height: 243mm

Turbo Width: 273mm

Compressor：

Trim: 50

Inducer Diamter: 69mm

Exducer Diamter: 98 mm

A/R:0.66

Turbine：

Trim: 78

Inducer Diamter: 88mm

Exducer Diamter: 77.5 mm

A/R: 1.05

KEY FEATURES

-High Quality Material, Cast Housing with Durable Steel

-Boost Engine Horsepower Significantly

-Increase Engine Power and Torque Outpout;

-Maintain Combustion Chamber Pressure and Fuel/Air Load

-Contructed with High Quality Material

-Built for Durability and Strength

OUR ADVANTAGE

K18 INCONEL WHEELS-The turbine shaft wheels made of special K418 alloy , high oxidation resistance and stability under high temperatures up to 900 degrees Celsius never use K13 Inconel alloy.

DUCTILE UCTILE IORN QT450-10-withstand temperatures up to 700 degrees Celsius

CAST ALUMINIUM IMPELLER-good gas tightness and corrosion resistance

BALANCING TEST

Bearing Type: Journal Bearing

This Turbocharger you will receive has been balanced using the VSR machine technology.

Through the comprehensive and high-precision static and dynamic balance detection technology, the use time and reliability.

TWIN SCROLL TURBINE housing options available-quicker response then single exhaust outlet

2 YEARS WARRANTY

Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.

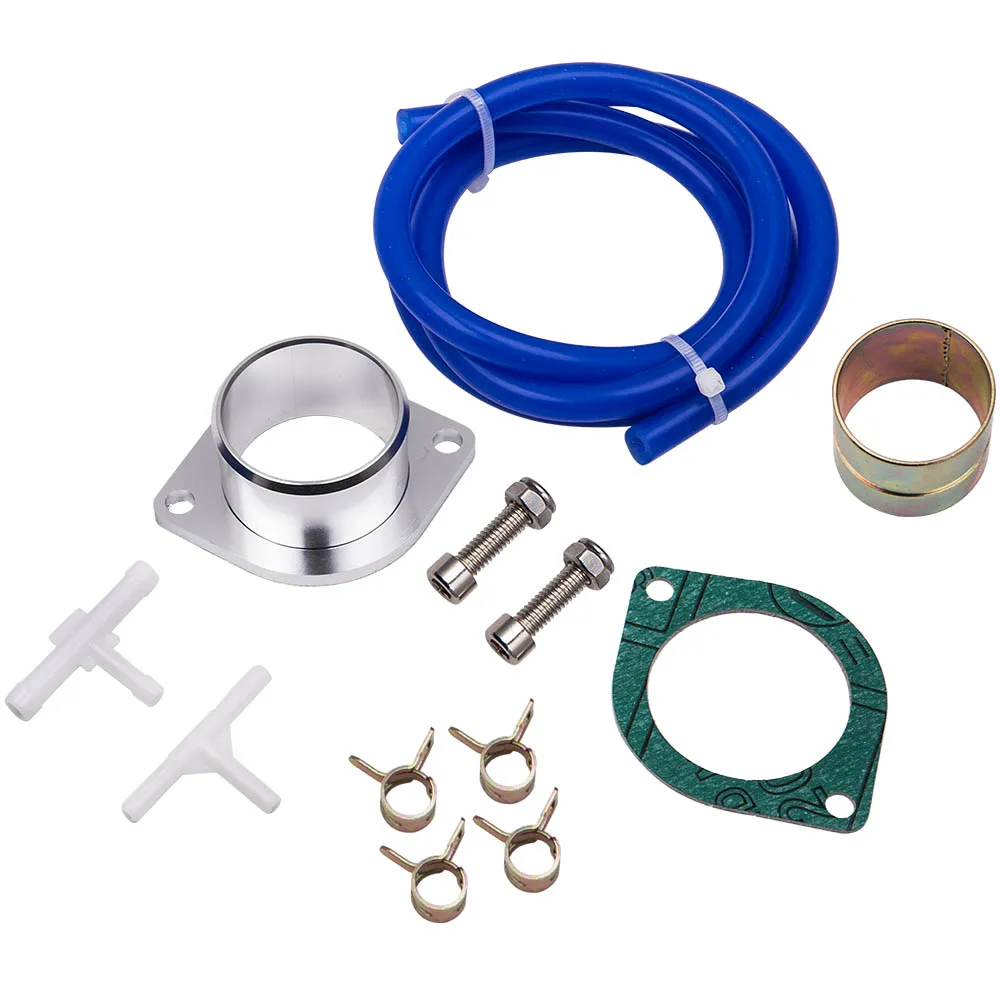

Blow Off Valve:

Billet Aluminum Body
8 Discharge Ports That Draw In Surrounding Air and Release a Unique Discharge Sound
40mm, Hard-Anodized Valve for Increased Airflow
Dual Spring System Promoted Response and Allows for High Boost Pressures
Holds Up to 30 PSI Boost Pressure
Aggressive for JDM Racing Discharge Sound
2 Bolt Mounting Design

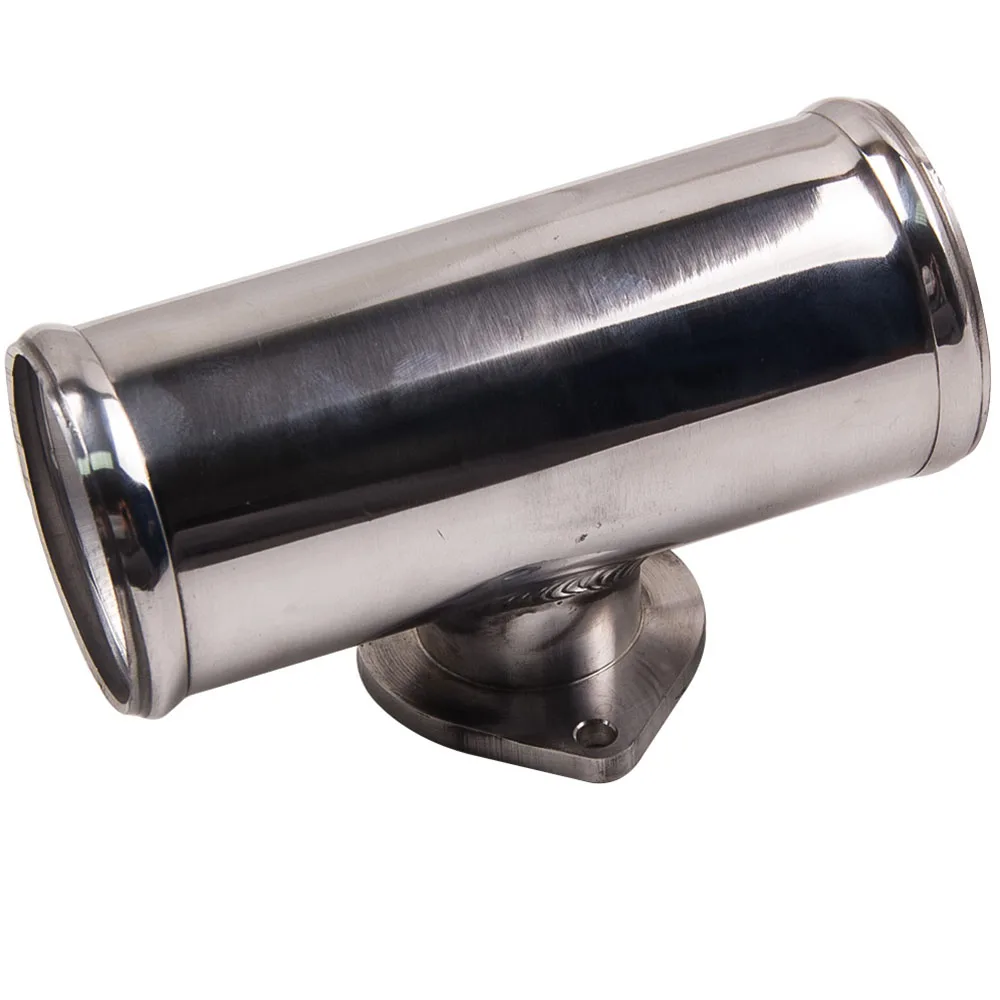

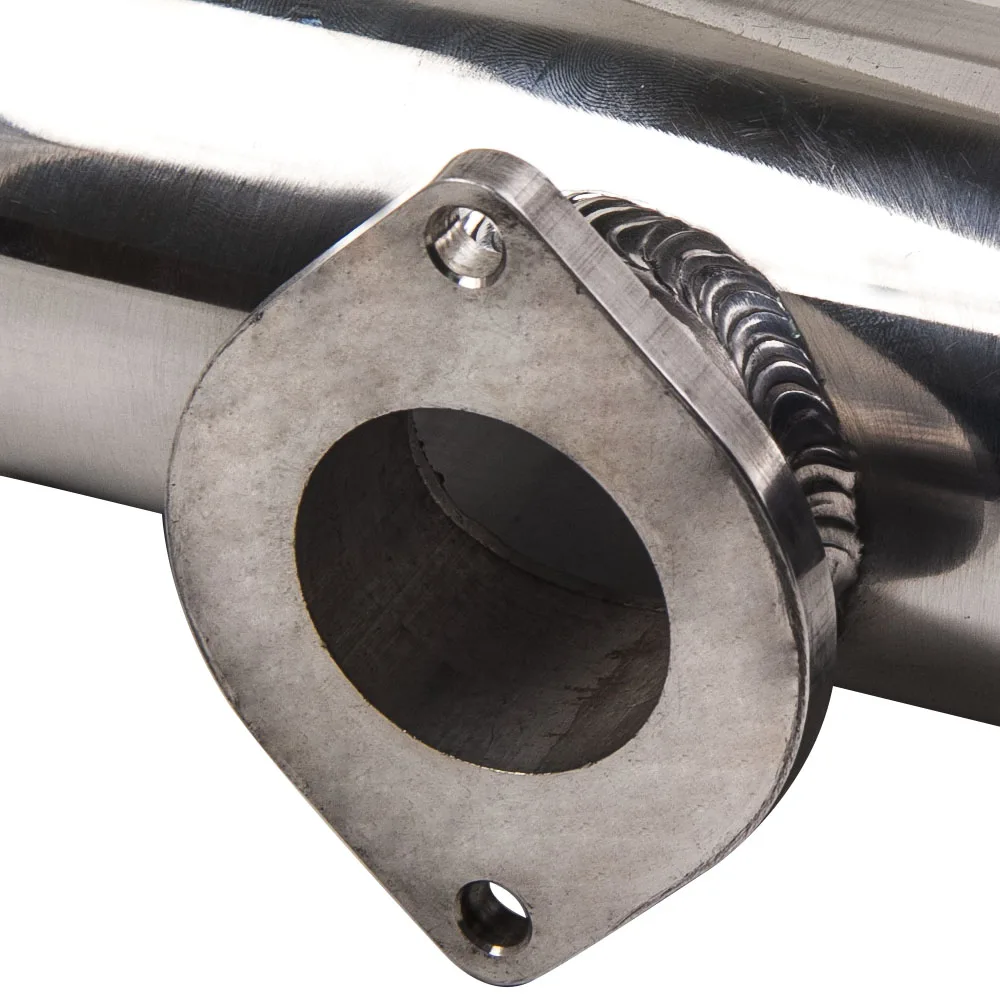

Flange Pipe:

Fits TYPE-S or TYPE-RS Dump Pipe Flange
Construction Prevents Warping Due to High Heat
Made of High Quality T-6061 Aluminum, Lightweight Design
2.50" Pipe Size

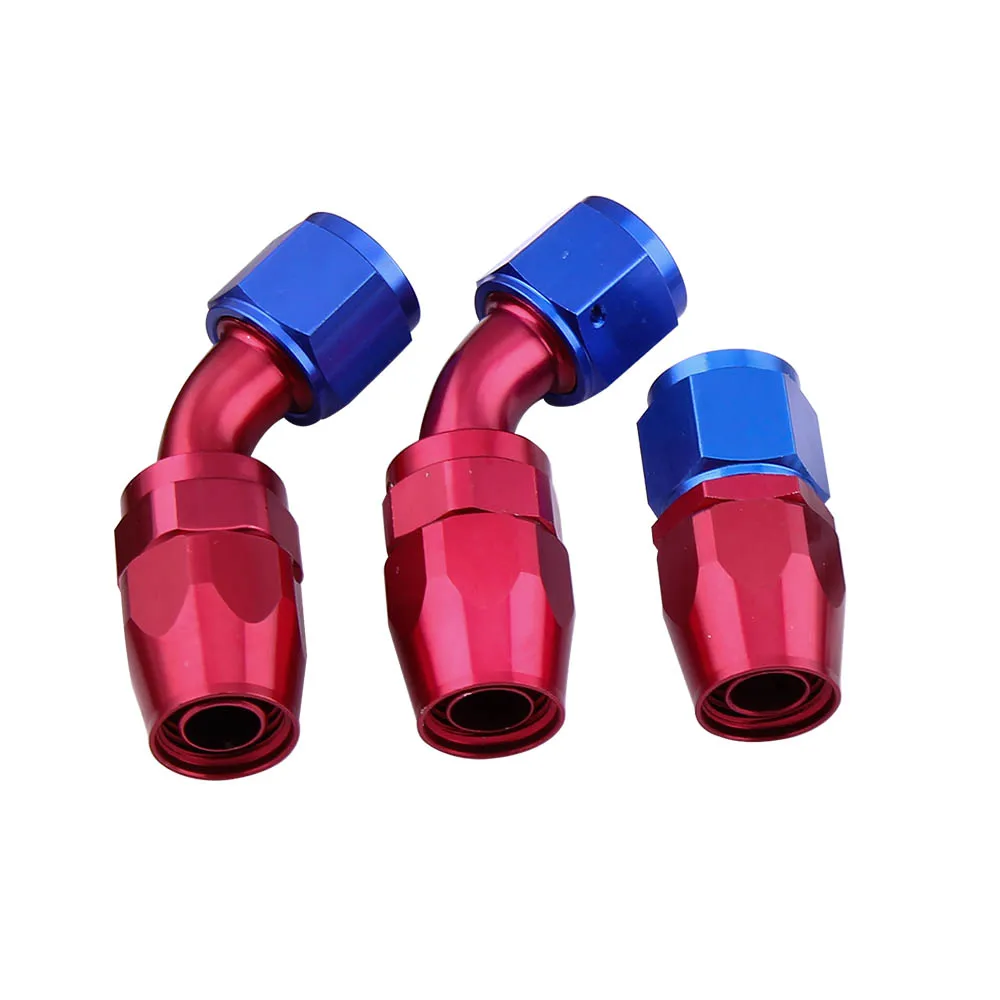

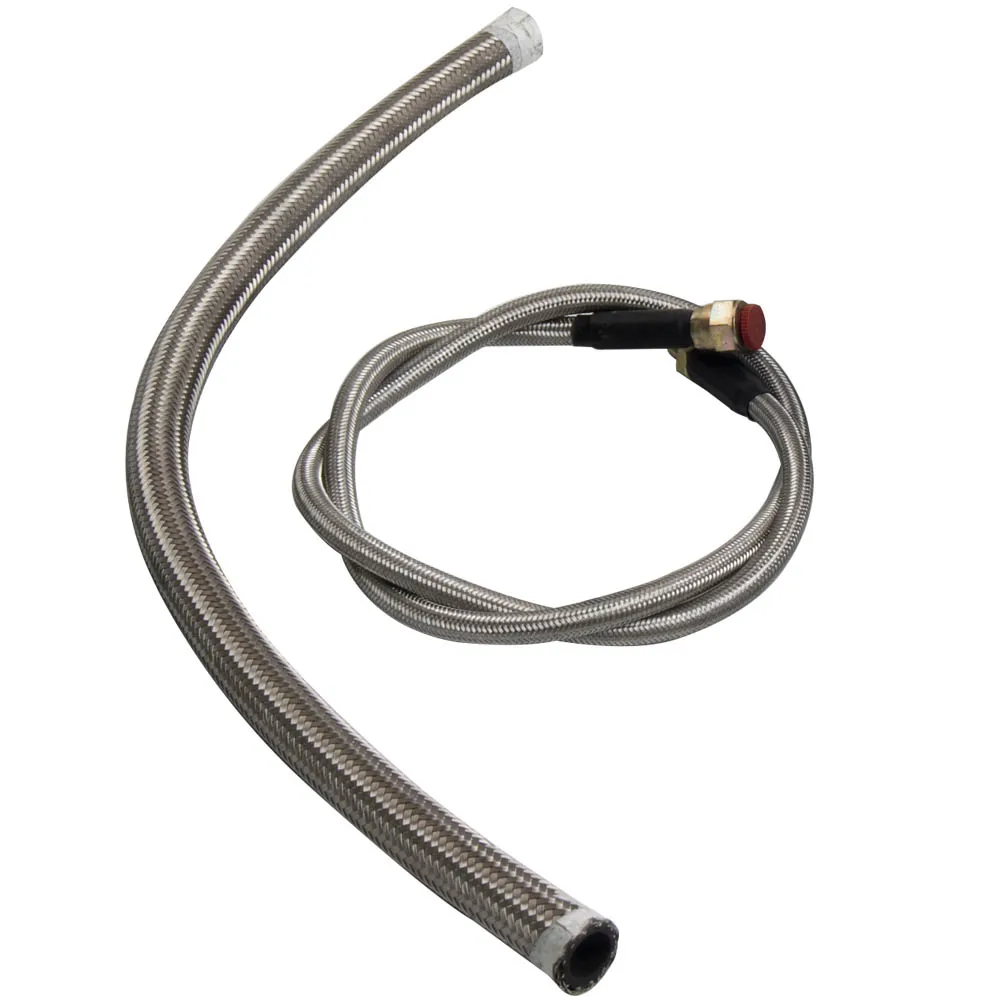

Universal T3/T4 T04E Oil Feed+Return Drain Line:

Oil Return Line: Length: 550mm || Inner Diameter: 21mm
OilFeedLine: Length: 1000mm || Inner Diameter: 14mm

Quantity:

You will receive as shown in the picture
